sat nav HONDA CR-V 2011 RD1-RD5, RE7 / 3.G Owners Manual

µ
µ µ
µ
µ
µ
The system will return to the audio
display about 10 seconds af ter you
stop adjusting a mode.Adjusts the volume level
basedonthevehiclespeed.
Eachmodeisshowninthedisplayas
it changes. Turn the VOL/SELECT
knob to adjust the setting to your
liking. When the level reaches the
center, you will see ‘‘C’’ in the display.
Press the sound ( ) button to
select an appropriate setting: bass,
treble, f ader, balance, subwoof er (if
equipped), and SVC (speed-sensitive
volume compensation). Turn the
VOL/SELECT knob to adjust the
setting.
Adjusts the strength of
sound f rom the subwoof er speaker. Adjusts the side-to-
side strength of the sound. Adjusts the front-to-back
strength of the sound. Adjusts the treble.
Adjusts the bass.
The SVC has f our modes: SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the VOL/SELECT knob
to adjust the setting to your liking. If
you f eel the sound is too loud,
choose low. If you f eel the sound is
too quiet, choose high.
The SVC mode controls the volume
based on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the system is turned
of f .
79
If equipped
Adjusting the Sound
SVC
SUBW
BA L A NCE
FADER
TREBLE
BAS
A udio System L ighting
Playing the FM/AM Radio (EX and EX-L models without navigation sys tem)
Speed-sensit ive Volume
Compensat ion (SVC)
160
Main MenuTable of Contents

Your vehicle is capable of receiving XM
Radio anywhere in Canada and
the United States, except Hawaii,
Alaska,andPuertoRico.XM
CANADA
is a registered business
name of Canadian Satellite Radio Inc.,
and XM is a registered trademark of
Sirius XM Radio, Inc.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
Playing the XM
Radio
Playing the XMRadio (EX-L model wit hout navigat ion syst em)
Features
On EX-L without Navigation System
161
BUTTON
BUTTONBUTTON
XM
BUTTON
PRESET BUTTONS
SCAN
BUTTON
SEEK
BUTTONPRESET BUTTONS
SEEK
BUTTON
VOL/SELECT KNOB
Main MenuTable of Contents

µµ
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas. Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title inf ormation at
this time.
There is a problem
with the XM antenna. Please consult
your dealer.
‘‘----’’
‘‘A NT ENNA ’’
Playing the XMRadio (EX-L model wit hout navigat ion syst em)
164
Signal may be blocked by
mountains or large obstacles to
the south.
Signal weaker in
these areas.
SATELLITE GROUND REPEATER
Main MenuTable of Contents

µµ
µ
µ
µ
µ
You can adjust the sound on the
navigation screen. To adjust the
sound, push the AUDIO button, then
enter the sound grid by touching the
SOUNDicononthedisplay.
Adjusts the bass.Adjusts the side-to-
side strength of the sound.
To adjust the left/right balance,
touch the L or R icon.
Adjusts the
strength of sound f rom the
subwoof er speaker. To adjust the
sound strength, touch or
on each side of the adjustment
bar.
The right upper display shows you
the current setting of the sound
strength coming f rom each speaker.
The SVC mode
controls the volume based on vehicle
speed. The f aster you go, the louder
the audio volume becomes. As you
slow down, the audio volume
decreases. Touch the appropriate
icon (Low, Mid, Hi, Of f ) to select the
mode.
Adjusts the treble. To
adjust the treble and bass, touch
either or on the treble or
bass adjustment bar. The adjustment
bar on the lower right display shows
you the current setting.
Adjusts the front-to-back
strength of the sound. To adjust the
front/rear fader, touch the FR or RR
icon.
Adjusting the Sound
BASSBA L A NCE
SUBWOOFER
SVC (speed-sensitive volume
compensation)
TREBLE
FADER
Playing the AM/FM Radio (EX-L model with navigation system)
198
SPEAKER SETTING
SOUND ICON BASS/TREBLE SETTING
Main MenuTable of Contents

µ
To listen to XM Radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
power/volume knob to turn on the
audio system, and press the CD/XM
button. Adjust the volume by turning
the knob. The last channel you
listened to will show in the display. To switch between
channel mode and category mode,
touch the MODE icon. In channel
mode, you can select all of the
available channels. In category mode,
such as Jazz, Rock, Classical, etc.,
you can select all of the channels
within that category. Each time you
touch and release the MODE icon,
the display changes between the
channel mode and the category
mode.
You can also change to the XM
Radio while you are listening to an
FM station, AM station, disc, PC
card, etc., by touching the XM1 or
XM2iconontheaudiodisplay.
You can also operate the radio using
the control buttons on the left side of
the screen. The status bar appears
on the bottom of the screen each
time you press any of the control
buttons. On the navigation screen,
you can also see the audio
inf ormation by touching the AUDIO
INFO icon on the lower part of the
screen.
Your vehicle is capable of receivingXM
Radio anywhere in the United
States and Canada, except Hawaii,
Alaska,andPuertoRico.XMisa
registered trademark of Sirius XM
Radio
,Inc.andXMCANADAis a
registered business name of
Canadian Satellite Radio Inc.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
Whenyoupressandholdthe
AUDIO button, the display also
shows all XM inf ormation.
CONT INUED
Operating the XM Radio MODE
Playing the XMRadio (EX-L model wit h navigat ion syst em)
Features
201
Main MenuTable of Contents

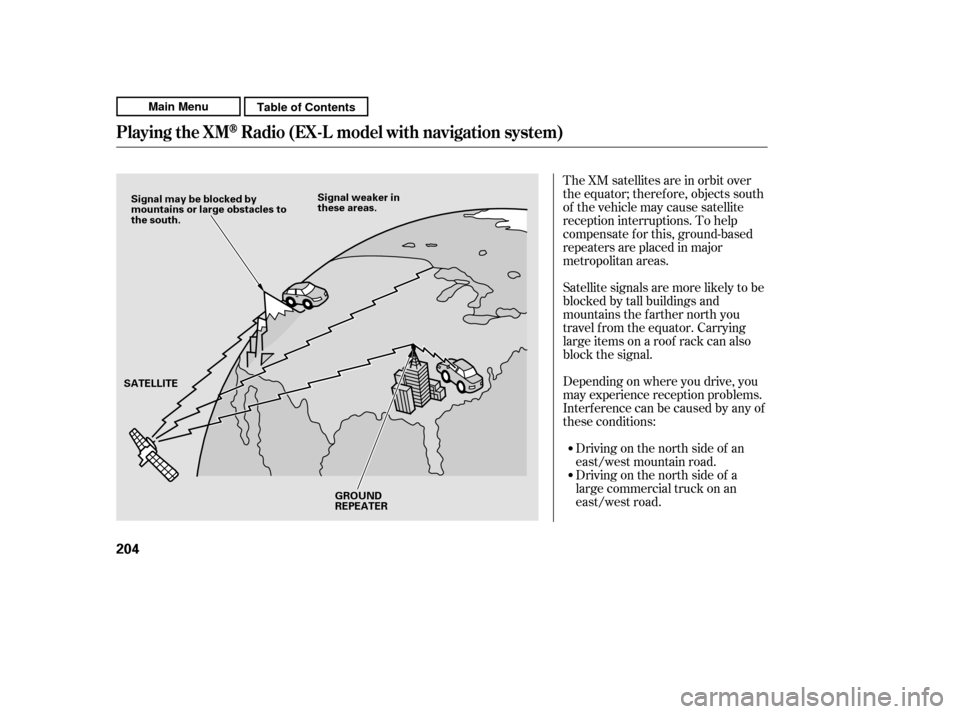

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road.
Playing the XMRadio (EX-L model wit h navigat ion syst em)
204
Signal may be blocked by
mountains or large obstacles to
the south. Signal weaker in
these areas.
SATELLITE GROUND
REPEATER
Main MenuTable of Contents
