warning light HONDA CR-V 2011 RD1-RD5, RE7 / 3.G Technology Reference Guide

Malfunction IndicatorsIf an indicator remains on, there may be a problem; see your dealerOn/Off Indicators
Condition IndicatorsAction is needed by driver
PASSENGERAIRBAGOFF%''#& &OFF(above Hazard Warning button)
SIDE AIRBAGOFF
VSAOFF
CRUISE MAINon
Headlightson
Turn signals/hazardson
CRUISE CONTROLon
High beamson
Charging system
Low brake fluid, Brake system
Low oil pressure
ABS(antilock brake system)
DRL(daytime running lights)
Malfunction lamp(check engine light)
TPMS(tire pressure monitoring system)
VSA(vehicle stability assist)
SRS(supplemental restraint system)
Parking brake on:Release
Door/Tailgate open:Close door(s) / tailgate
Seat belt reminder: Fasten seat belt(s)
Low fuel:Refill
Low tire pressure:Add air
Maintenance MinderTM:Makedealer appointment

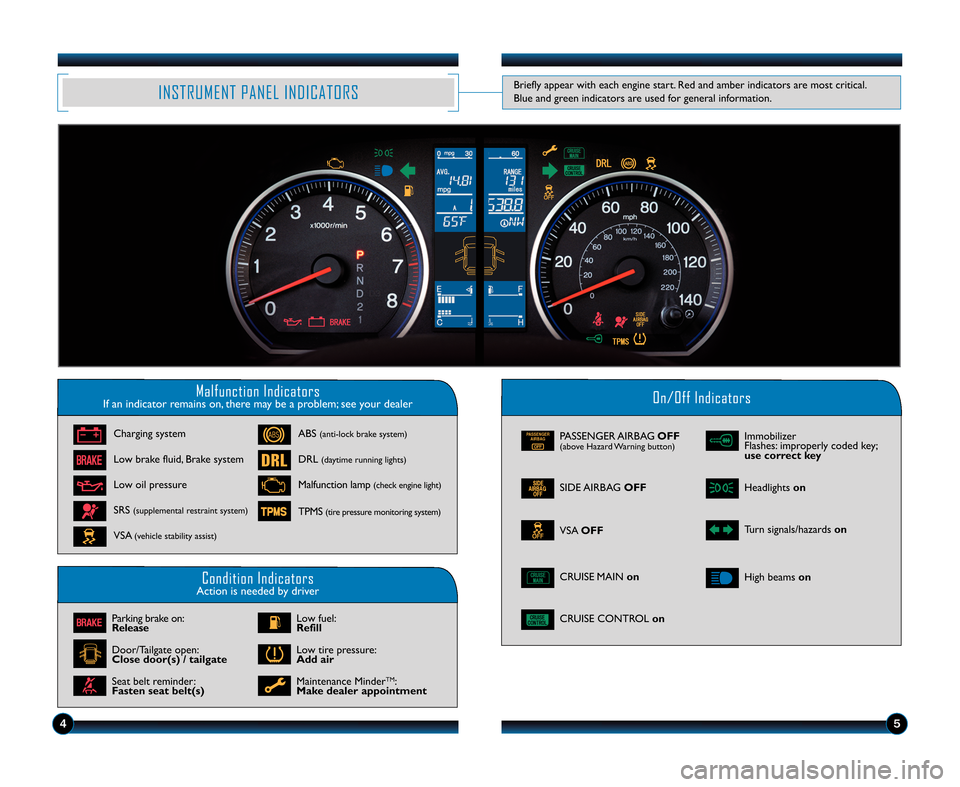

INSTRUMENT PANEL INDICATORS
ImmobilizerFlashes: improperly coded key;use correct key
Briefly appear with each engine start. Red and amber indicators are most critical.
Blue and green indicators are used for general information.
45
