keyless HONDA CR-V 2012 RM1, RM3, RM4 / 4.G Owners Manual

86
uuGauges and DisplaysuMulti-Information Display
Instrument Panel
Customize Settings
Display Setup
Trip Computer Setup
Lighting Setup
Door Setup
Default All
Select Wallpaper
Language Selection
Adjust Outside Temp. Display
Fuel Efficiency Backlight
Interior Light Dimming Time
Auto Light Sensitivity
Auto Door Lock
Security Relock Timer
Import WallpaperDelete WallpaperTrip Meter Item to DisplayWelcome ScreenColor ThemeTurn by Turn Display*
Trip A reset trigger
Trip B reset trigger
Headlight Auto Off Timer
Door Lock ModeAuto Door UnlockKeyless Lock Acknowledgment
* Not available on all models

89
uuGauges and DisplaysuMulti-Information Display
Continued
Instrument Panel

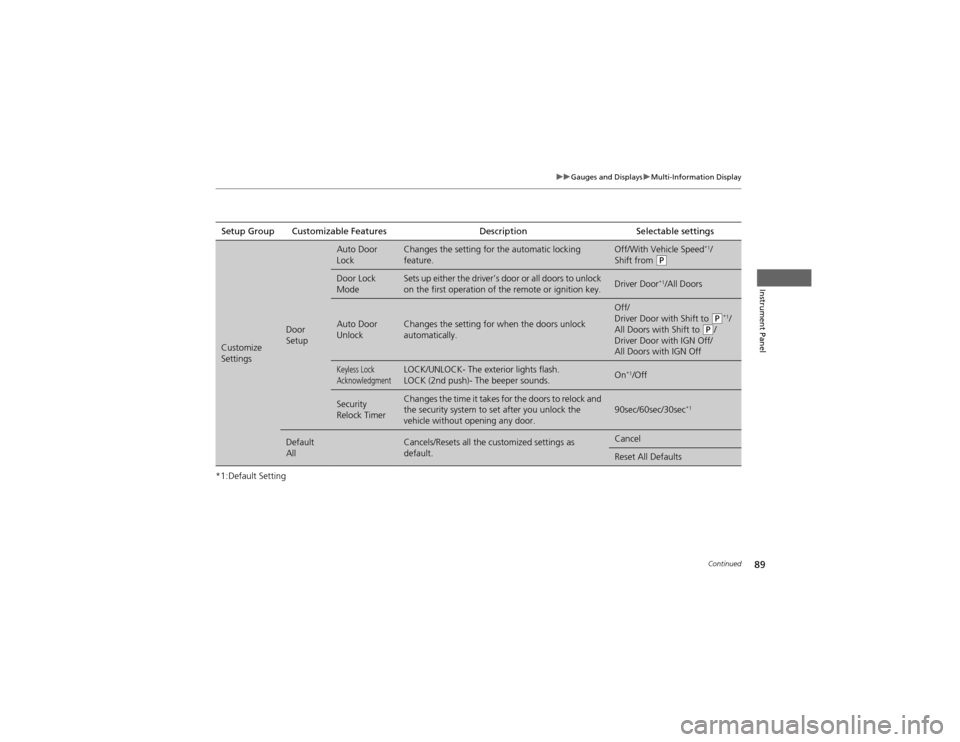

*1:Default SettingSetup Group Customizable Features Description Selectable settings
Customize
Settings
Door Setup
Auto Door
LockChanges the setting for the automatic locking
feature.Off/With Vehicle Speed
*1
/
Shift from (P
Door Lock
ModeSets up either the driver’s door or all doors to unlock
on the first operation of the remote or ignition key.Driver Door *1
/All Doors
Auto Door UnlockChanges the setting for when the doors unlock automatically.
Off/
Driver Door with Shift to (P *1
/
All Doors with Shift to (P /
Driver Door with IGN Off/
All Doors with IGN Off
Keyless Lock
AcknowledgmentLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.On *1
/Off
Security
Relock TimerChanges the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.90sec/60sec/30sec *1
Default AllCancels/Resets all the customized settings as default.Cancel
Reset All Defaults

355
Index
Information.............................................. 339
Information Display ................................... 78
Instrument Panel ........................................ 67
Brightness Control .................................. 117
Interior Lights ........................................... 132
Interior Rearview Mirror ......................... 120
iPod ®......................................................... 163
J
Jack (Wheel Nut Wrench) ........................ 320
Jump Starting ........................................... 324
K
Key Number Tag ........................................ 98
Keyless Lockout Prevention ..................... 100
Keys ............................................................. 97
Lockout Prevention ................................. 100
Master Keys .............................................. 97
Number Tag.............................................. 98
Rear Door Won’t Open ........................... 102
Remote Transmitter .................................. 99
Types and Functions.................................. 97
Valet Key .................................................. 98
Won’t Turn ............................................... 19
Kickdown (Automatic Transmission) ...... 242
L
Language (HFL) ........................................ 195
LATCH (Child Seats) ............................. 57, 61 Lights
................................................. 112, 285
Automatic ............................................... 113
Bulb Replacement.................................... 285
Daytime Running Lights ........................... 114
Fog Lights................................................ 114
High Beam Indicator .................................. 74
Interior .................................................... 132
Light Switches ......................................... 112
Lights On Indicator .................................... 74
Turn Signals............................................. 112
Load Limits ................................................ 229
Locking/Unlocking ...................................... 97
Auto Door Locking/Unlocking .................. 103
Childproof Door Locks ............................. 102
From Inside.............................................. 101
From Outside............................................. 99
Keys .......................................................... 97
Using a Key ............................................. 100
Lockout Prevention System ...................... 100
Low Battery Charge .................................. 329
Low Fuel Indicator ...................................... 70
Low Oil Pressure Indicator ................. 68, 329
Lower Anchors ...................................... 57, 61
Luggage (Maximum Load Limit) ............. 229
M
Maintenance ............................................. 265
Battery .................................................... 305
Brake Fluid .............................................. 283
Cleaning.................................................. 310 Climate Control System ........................... 309
Coolant ................................................... 280
Heating and Cooling System ................... 309
Maintenance Minder™ ........................... 269
Oil ........................................................... 276
Precautions ............................................. 266
Radiator .................................................. 281
Remote Control....................................... 307
Remote Transmitter ................................. 306
Replacing Light Bulbs .............................. 285
Safety...................................................... 267
Service Items ........................................... 271
Tires ........................................................ 296
Transmission Fluid ................................... 282
Under the Hood ...................................... 273
Wireless Headphone................................ 308
Malfunction Indicator Lamp .............. 69, 330
Map Lights ................................................ 132
Maximum Load Limit ............................... 229
Meters, Gauges ........................................... 77
Mirrors ...................................................... 120
Adjusting ................................................ 120
Door ....................................................... 121
Exterior ................................................... 121
Interior Rearview ..................................... 120
Modifications (and Accessories) .............. 263
Moonroof ................................................. 110
MP3 ................................................... 160, 168
Multi-Information Display ......................... 81
Multi-View Rear Camera .......................... 258
