set clock HONDA CR-V 2012 RM1, RM3, RM4 / 4.G Owners Manual

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular model may not have some of these features.
This owner’s manual is for vehicles sold in the United States and Canada.
The information and specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 23For Safe Driving P. 24 Seat Belts P. 29 Airbags P. 37
2Instrument Panel P. 67Indicators P. 68 Gauges and Displays P. 77
2Controls P. 95Setting the Clock P. 96 Locking and Unlocking the Doors P. 97
Opening and Closing the Moonroof *
P. 110
Adjusting the Seats P. 122
Climate Control System *
P. 145
2 Features P. 149Audio System P. 150 Audio System Basic Operation P. 153
General Information on the Audio System P. 190
2Driving P. 225Before Driving P. 226 Towing a Trailer P. 231Parking Your Vehicle P. 257Multi-View Rear Camera P. 258
2Maintenance P. 265Before Performing Maintenance P. 266 Maintenance Minder™ P. 269
Checking and Maintaining Wiper Blades P. 292
Remote Control and Wireless Headphone Care *
P. 307
2 Handling the Unexpected P. 315Tools P. 316 If a Tire Goes Flat P. 317
Overheating P. 327 Indicator, Coming On/Blinking P. 329
2Information P. 339Specifications P. 340 Identification Numbers P. 342
Emissions Testing P. 345 Warranty Coverages P. 347
Main Menu2012 CR-V Online Reference Owner's Manual

13
Quick Reference Guide
Climate Control System*
(P 145)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. See the navigation system manual for complete
details.
Models with navigation system
Driver's Side
Temperature
Control Dial
/ (Fan Control) Buttons
(Windshield
Defroster) Button
A/C (Air Conditioning)
Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
SYNC
(Synchronized) Button
(Recirculation) Button
AUTO Button
Passenger's Side
Temperature
Control Dial
(Rear Window Defogger/ Heated Mirror *
) Button
MODE Control Button
(On/Off) Button
Clock
(P 96)
a Press the CLOCK (AUX) button until the
displayed time begins flashing.
b Press Preset
(4 (Hour) or (5 (Minute)
to set the time. Press Preset (6 (Reset)
to set the time to the nearest hour.
c Press the CLOCK button again to set
the time.
To set the time to the nearest hour:
Press and hold the CLOCK button until the
clock display begins to blink, then press the
(6 (Reset) button.
Depending on the displayed time, the clock
sets forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models without navigation system
Models with navigation system
* Not available on all models

87
uuGauges and DisplaysuMulti-Information Display
Continued
Instrument Panel
■List of customizable options
*1: Not available on all models
*2: Default Setting
*3: Refer to the navigation system manual for complete details. Setup Group Customizable Features Description Selectable settings
Vehicle
InformationMaintenance infoReset the Maintenance Minder
TM
.No/Yes
Adjust Clock*1Sets time display 12 hour or 24 hour and adjust the time. 12 h *2
/24 h
Customize
SettingsDisplay Setup
Select WallpaperSelect the full-size analogue clock or the wallpaper.Clock *2
/Image 1/Image 2/
Image 3
Import WallpaperImport an image file for a new wallpaper.Three images can be stored.
2Importing wallpapers
from USB P. 90
Delete WallpaperDelete an image file for a wallpaper.Image 1/Image 2/Image 3
Trip Meter
Item to
DisplaySelect an item to be displayed along with average fuel economy.Range*2
/Elapsed time/
Average speed
Welcome ScreenSelect whether the welcome screen comes on or not
when you turn the ignition switch to ON (w .On *2
/Off
Color ThemeChanges the color of the screen.Blue *2
/Red/Amber/Gray
Turn by Turn
Display *1, *3Select whether the turn-by-turn display comes on or
not during the route guidance.On*2
/Off
Language
SelectionChanges the displayed language.English *2
/Francais/Español

uuGauges and DisplaysuMulti-Information Display
90
Instrument Panel
■ Example of customizing wallpapers
You can customize the display from clock to wallpaper.
Importing wallpapers from USB
You can import up to three images, one at a time for wallpaper from a USB flash
drive.Select Import Wallpaper from Customize Settings and properly connect a USB
flash drive to store an image.
1.Connect the USB flash drive to the adapter cable.
2 USB Adapter Cable P. 151
2. Press the MENU button.
3. Select Customize Settings with the
(+ / (- button, then press the SOURCE button.
4. Select Display Setup with the (+ / (-
button, then press the SOURCE button.
1Customized Features
• When importing wallpaper files, the image must be
in the USB flash drive’s root directory. Images in a
folder cannot be imported.
• The file format of the image that can be imported
is BMP (bmp) or JPEG (jpg).
• The individual file size limit is 2 MB.
• The maximum image size is 1,680 x 936 pixels. If
the image size was less than 420 x 234 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
• The number of files that can be selected is up to 255.
• Up to 64 characters can be displayed in the file name.

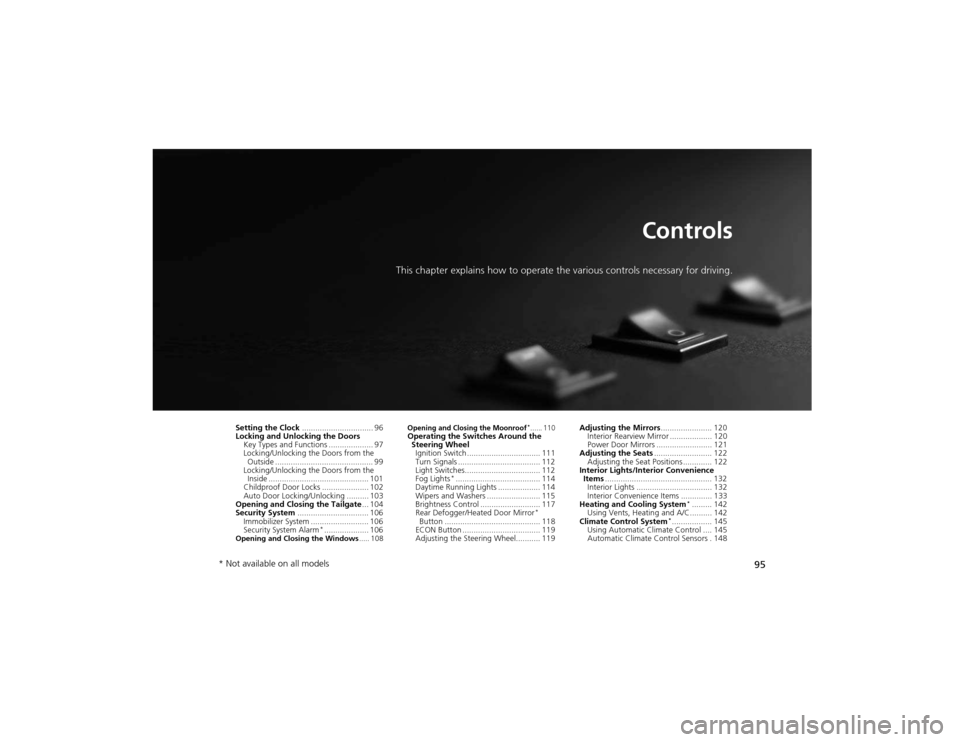

95
Controls
This chapter explains how to operate the various controls necessary for driving.
Setting the Clock ................................ 96
Locking and Unlocking the Doors
Key Types and Functions ... ................. 97
Locking/Unlocking the Doors from the Outside ............................................ 99
Locking/Unlocking the Doors from the Inside ............................................. 101
Childproof Door Locks ..................... 102
Auto Door Locking/Unlocking .......... 103
Opening and Closing the Tailgate ... 104
Security System ................................ 106
Immobilizer System .......................... 106
Security System Alarm *
.................... 106
Opening and Closing the Windows ..... 108Opening and Closing the Moonroof*...... 110Operating the Switches Around the
Steering WheelIgnition Switch ................................. 111
Turn Signals ..................................... 112
Light Switches.................................. 112Fog Lights *
...................................... 114
Daytime Running Lights ................... 114
Wipers and Washers ........................ 115
Brightness Control ........................... 117 Rear Defogger/Heated Door Mirror *

Button ........................................... 118
ECON Button ................................... 119
Adjusting the Steering Wheel........... 119 Adjusting the Mirrors
....................... 120
Interior Rearview Mirror ................... 120
Power Door Mirrors ......................... 121
Adjusting the Seats .......................... 122
Adjusting the Seat Positions ............. 122
Interior Lights/Interior Convenience Items ................................................ 132
Interior Lights .................................. 132
Interior Convenience Items .............. 133
Heating and Cooling System *
......... 142
Using Vents, Heating and A/C.......... 142
Climate Control System *
.................. 145
Using Automatic Climate Control .... 145
Automatic Climate Control Sensors . 148
* Not available on all models

96
Controls
Setting the Clock
Clock
You can adjust the time in the clock display with the ignition switch in ON
(w.
■ Using the MENU button
1. Press the MENU button.
2. Select Adjust Clock with the
(+/ (-button, then press the SOURCE button.
3. Press the
(+ / (- button to change the
setting between 12 H and 24 H.
4. Select hour or minute with the /
button.
5. Press the
(+ / (- button to adjust the
numbers up or down.
6. Select Set with the / button, then
press the SOURCE button to enter your
selection.
uThe display will return to the Adjust
Clock display.
■ Using the SETUP button
1. Press the SETUP button.
2. Rotate to select Adjust Clock, then press .
3. Rotate to select the item you want to change (12/24 hour mode, hour,
minute). Then press .
4. Rotate to make the adjustment.
5. Press to enter your selection. The display returns to Adjust Clock. Repeat steps
4 to 6 to adjust other items.
6. To enter the selection, Rotate and select Set, then press .
7. Press the SETUP button to go back to the normal display.
1Clock
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
To set the time to the nearest hour:
Press and hold the CLOCK button until the clock
display begins to blink, then press the
(6 (Reset)
button.
Depending on the displayed time, the clock sets
forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00
The clock is automatically updated through the
navigation system, so the time does not need to be
adjusted.
Models with navigation system

153
Features
Audio System Basic Operation
To use the audio system function, the ignition switch must be in ACCESSORY (q or
ON (w .
Use the selector knob or SETUP button to
access some audio functions.
Press to switch between the normal and
extended display for some functions.
Selector knob: Rotate left or right to scroll
through the available choices. Press to set
your selection.
SETUP button: Press to select any mode such
as the Auto Select, RDS Information, Sound
Settings, Play Mode, Resume/Pause, or Adjust
Clock. button: Press to go back to the
previous display.1Audio System Basic Operation
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Press the SOURCE,
(+, (-, or button on the
steering wheel to change any audio setting. 2 Audio Remote Controls P. 189
SETUP Menu Items 2 Auto Select P. 156
2 RDS information P. 157
2 Sound Settings P. 154
2 Play Mode P. 162
2 Resume/Pause P. 172
2 Adjust Clock P. 96
Button
Selector Knob
SETUP
Button
Menu Display

305
Maintenance
Battery
Checking the BatteryCheck the battery condition monthly. Look at
the test indicator window and check the
terminals for corrosion.
If your vehicle's battery is disconnected or goes dead: • The audio system is disabled.
2 Reactivating the audio system P. 152
• The clock resets.
2 Setting the Clock P. 96
• The navigation system *
is disabled.
2 Refer to the navigation system manual
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead and lead compounds.
Wash your hands after handling.
The test indicator's color information is on the battery.
When you find corrosion, clean the battery terminals
by applying a baking powder and water solution.
Rinse the terminals with water. Cloth/towel dry the
battery. Coat the terminals with grease to help
prevent future corrosion.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear protective clothing and
a face shield, or have a skilled technician do it.
Test Indicator Window
* Not available on all models

uuIf a Tire Goes FlatuChanging a Flat Tire
320
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket (as shown in the
image) clockwise until the top of the jack
contacts the jacking point.
uMake sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight ("load") or
their shape may not match.
The following instructions must be followed to use
the jack safely.
• Do not use while the engine is running.
• Use only where the ground is firm and level.
• Use only at the jacking points.
• Do not get in the vehicle while using the jack.
• Do not put anything on top of or underneath the jack.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jack
Handle
Bar Wheel Nut
Wrench as Jack Handle

357
Index
Seats.......................................................... 122
Adjusting ................................................ 122
Driver’s Seat Lumbar Support .................. 122
Front Seats.............................................. 122
Rear Seats ............................................... 129
Seat Heaters ........................................... 139
Security System ........................................ 106
Immobilizer System Indicator..................... 75
Security System Alarm Indicator ................ 75
SEL/RESET Knob .................................... 78, 81
Select Lever ........................................ 15, 243
Operation ......................................... 15, 244
Releasing ................................................ 326
Won’t Move ........................................... 326
Selecting a Child Seat ................................ 56
Selector Knob (Audio) ............................. 153
Setting the Clock ........................................ 96
Shift Lever .......................................... 15, 243
Shift Lever Position Indicator ............ 69, 244
Shifting (Transmission) ............................ 243
Shoulder Anchor ........................................ 33
Side Airbags ............................................... 44
Cutoff System ........................................... 46
Off Indicator ............................................. 46
Side Curtain Airbags .................................. 47
SMS Text Message ............................ 206, 218
Snow Tires ................................................ 304
Spare Tire ......................................... 317, 341
Spark Plugs ............................................... 340
Specifications ........................................... 340
Specified Fuel ................................... 259, 340 Speedometer
.............................................. 77
SRS Airbags (Airbags) ................................. 40
Starting the Engine .................................. 239
Does Not Start ......................................... 323
Engine Switch Buzzer .............................. 111
Jump Starting .......................................... 324
Steering Wheel ......................................... 119
Adjusting................................................. 119
Stopping .................................................... 257
Summer Tires ............................................ 304
Sunglasses Holder ..................................... 138
Supplemental Restraint System (SRS) ........ 40
Switches (Around the Steering
Wheel) ............................................. 2, 3, 111
Synchronized Mode .................................. 147
T
Tachometer ................................................. 77
Tailgate ..................................................... 104
Unable to Open ....................................... 337
Temperature Gauge ................................... 77
Temperature Sensor ................................. 148
Text Message .................................... 206, 218
Time (Setting) ............................................. 96
Tire Pressure Monitoring System (TPMS) ..................................................... 250
Indicator ............................................ 73, 332
Tires ........................................................... 296
Air Pressure ..................................... 297, 341
Checking and Maintaining....................... 296 Inspection ............................................... 296
Labeling .................................................. 297
Puncture (Flat Tire) .................................. 317
Regulations ............................................. 299
Rotation .................................................. 303
Spare Tire ........................................ 317, 341
Summer .................................................. 304
Tire Chains .............................................. 304
Wear Indicators ....................................... 301
Winter..................................................... 304
Tonneau Cover ......................................... 140
Tools .......................................................... 316
Towing a Trailer ....................................... 231
Equipment and Accessories ..................... 232
Load Limits .............................................. 231
Towing Your Vehicle ................................ 235
Behind a Motorhome .............................. 235
Emergency .............................................. 336
TPMS (Tire Pressure Monitoring
System) .................................................... 250
Indicator............................................ 73, 332
Transmission ............................................. 243
Automatic ............................................... 243
Fluid ........................................................ 282
Number................................................... 342
Shift Lever Position Indicator.............. 69, 244
Trip Meter ................................................... 79
Troubleshooting ....................................... 315
Blown Fuse...................................... 333, 334
Brake Pedal Vibrates .................................. 19
Buzzer Sounds When Opening Door.......... 20
