remote control HONDA CR-V 2014 RM1, RM3, RM4 / 4.G User Guide

154
uuAudio System Basic Operation uAudio Remote Controls
Features

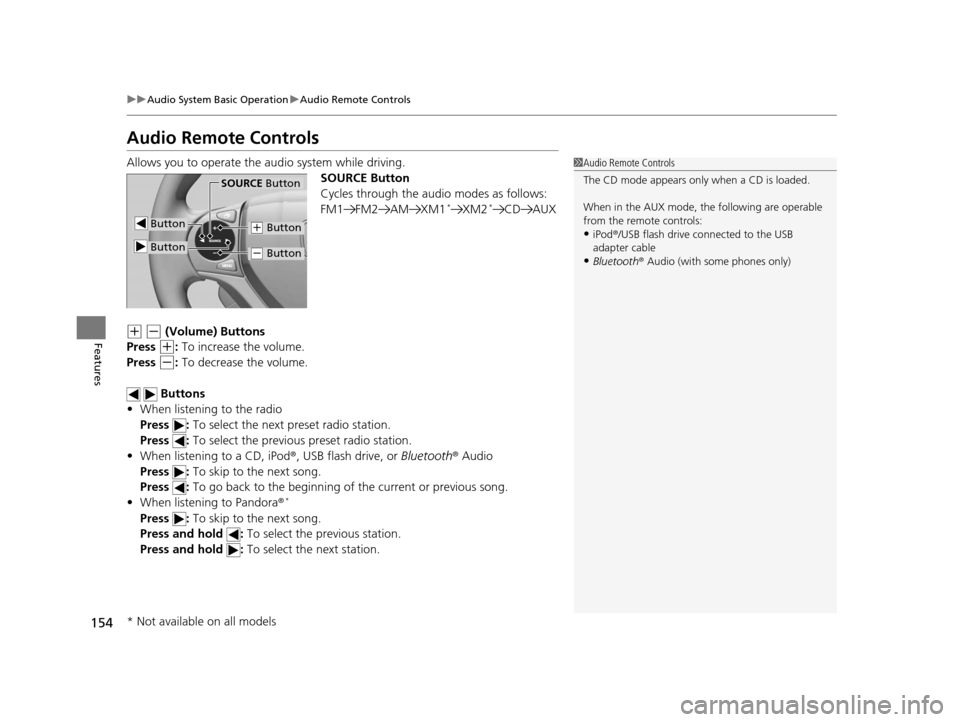

Audio Remote Controls
Allows you to operate the audio system while driving.
SOURCE Button
Cycles through the audio modes as follows:
FM1 FM2 AM XM1
*XM2*CD AUX
(+ (- (Volume) Buttons
Press
(+: To increase the volume.
Press
(-: To decrease the volume.
Buttons
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
• When listening to a CD, iPod ®, USB flash drive, or Bluetooth® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
• When listening to Pandora ®
*
Press : To skip to the next song.
Press and hold : To select the previous station.
Press and hold : To select the next station.
1Audio Remote Controls
The CD mode appears only when a CD is loaded.
When in the AUX mode, the following are operable
from the remote controls:
•iPod ®/USB flash drive connected to the USB
adapter cable
•Bluetooth ® Audio (with some phones only)
Button
SOURCE Button
Button
(+ Button
(- Button
* Not available on all models
14 CR-V-31T0A6200.book 154 ページ ２０１４年２月１０日　月曜日　午後７時１分

Continued157
uuAudio System Basic Operation uPlaying AM/FM Radio
Features
Use the auto select feature to scan both bands and store the strongest station in
each preset. 1.Press the SETUP button.
2. Rotate to select Auto Select, then
press .
To turn off auto select, press again. This
restores the presets you originally set.
■Auto Select1 Playing AM/FM Radio
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
To switch the audio mode, press the SOURCE button
on the steering wheel. 2 Audio Remote Controls P. 154
You can store 6 AM stations and 12 FM stations into
the preset button memory. FM1 and FM2 let you
store 6 stations each.
Auto Select function scans and stores up to 6 AM
stations and 12 FM stations with a strong signal into
the preset button memory.
If you do not like the stati ons auto select has stored,
you can manually store your preferred frequencies.
14 CR-V-31T0A6200.book 157 ページ ２０１４年２月１０日　月曜日　午後７時１分

uuRear Entertainment System*uOperating the System
184
Features
■Playing a CD
Press the DVD button.
The available options that appear on the overhead screen are Repeat, Random, and Scan.
The fast-forward, rewind, , and buttons work similarly to operation a DVD.
2Playing a DVD P. 178
To scroll the audio data title, press the TITLE button for five seconds.
■SETUP button on the remote
Press the SETUP button while the CD is
playing to see the ava ilable options. Use the
and buttons to highlight the option,
then press ENT.
Disp Adjust:
You can adjust the overhead screen’s Brightness, Contrast, and Black Level . To
return to the default display setting, select Reset.
After you make adjustments, the screen goes back to the top SETUP screen, or press
the CANCEL button to return.
Appearance:
You can select the screen color from blue, black, white, brown, and red.
Language:
You can select the display language from English, French, and Spanish.
1System Controls and Menus for CD
You can insert an audio CD compatible with the
system, or recorded in MP3/WMA/AAC formats into
the slot and play.
2 Playable Discs P. 185
14 CR-V-31T0A6200.book 184 ページ ２０１４年２月１０日　月曜日　午後７時１分

194
Features
Bluetooth® HandsFreeLink ®
See the Navigation System Manual for how to operate the Bluetooth®
HandsFreeLink ®.
Bluetooth ® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle's audio system, without handling your cell phone.
Using HFL
(Pick-up) button: Press to go directly to the Phone screen or to answer an
incoming call.
(Hang-up/back) button: Press to end a call or to cancel a command.
(Talk) button: Press to call a number with a stored voice tag.
PHONE button: Press to go directly to the Phone screen.
Selector knob: Rotate to select an item on the screen, then press .
■HFL Buttons
1Bluetooth ® HandsFreeLink ®
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
Voice control tips
•Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphone.
•Press and release the button when you want to
call a number using a st ored voice tag. Speak
clearly and naturally after a beep.
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, use the audio system's
volume knob or the remote audio controls on the
steering wheel.
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a
vehicle.
If you receive a call while using the audio system, the
system resumes its operati on after ending the call.
Models with navigation system
Models without navigation system
Talk Button
Volume up
Microphone
Hang-up/Back Button
Pick-up
Button
Volume
downSelector
Knob PHONE
Button
14 CR-V-31T0A6200.book 194 ページ ２０１４年２月１０日　月曜日　午後７時１分

267
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 268
Safety When Performing Maintenance..... 269Parts and Fluids Used in Maintenance Service ........................................... 270
Maintenance Minder
TM..................... 271
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 277Opening the Hood ........................... 278
Recommended Engine Oil ................ 279
Oil Check ......................................... 280
Adding Engine Oil ............................ 281
Changing the Engine Oil and Oil Filter ..... 282
Engine Coolant ................................ 284
Transmission Fluid ............................ 286
Brake Fluid ....................................... 287
Refilling Window Wa sher Fluid......... 288
Replacing Light Bulbs ....................... 289
Checking and Maintaining Wiper Blades.... 296Checking and Maintaining Tires
Checking Tires ................................. 300
Tire and Loading Information Label ...... 301Tire Labeling .................................... 301DOT Tire Quality Grading (U.S. Vehicles)....... 303Wear Indicators................................ 305
Tire Service Life ................................ 305 Tire and Wheel Replacement ........... 306
Tire Rotation .................................... 307
Winter Tires ..................................... 308
Battery ............................................... 309
Remote Transmitter Care Replacing the Button Battery ........... 310
Remote Control and Wireless Headphone Care
*........................... 311
Heating and Cooling System*/Climate
Control System* Maintenance ....... 313
Cleaning
Interior Care .................................... 314
Exterior Care.................................... 316
* Not available on all models
14 CR-V-31T0A6200.book 267 ページ ２０１４年２月１０日　月曜日　午後７時１分

311Continued
Maintenance

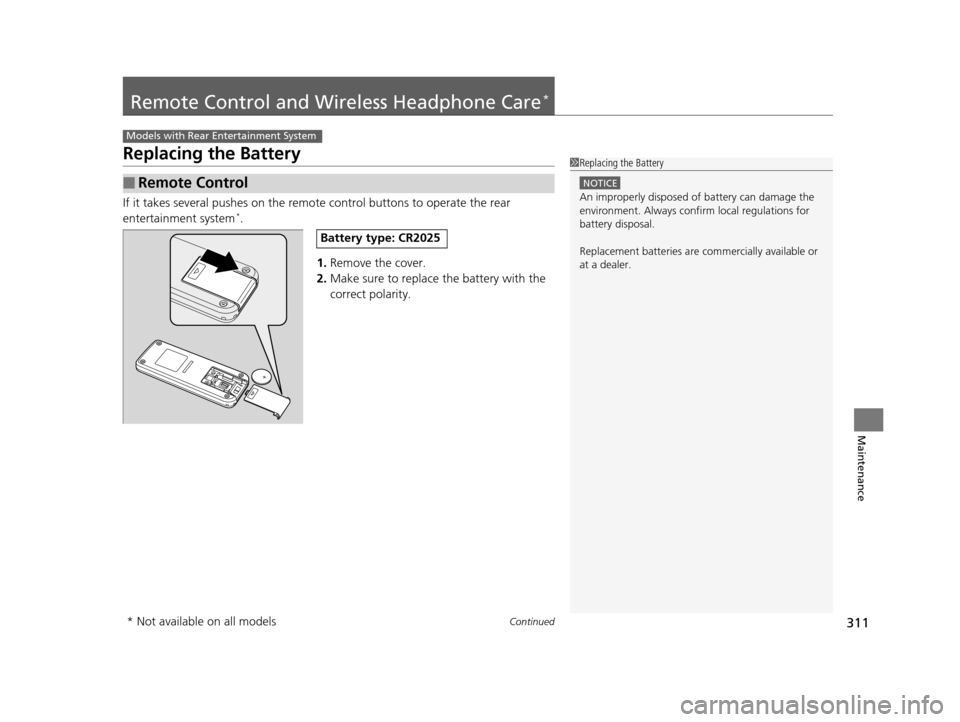

Remote Control and Wireless Headphone Care*
Replacing the Battery
If it takes several pushes on the remo te control buttons to operate the rear
entertainment system*.
1.Remove the cover.
2. Make sure to replace the battery with the
correct polarity.
■Remote Control
Models with Rear Entertainment System
1Replacing the Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Battery type: CR2025
* Not available on all models
14 CR-V-31T0A6200.book 311 ページ ２０１４年２月１０日　月曜日　午後７時１分

312
uuRemote Control and Wireless Headphone Care*uReplacing the Battery
Maintenance

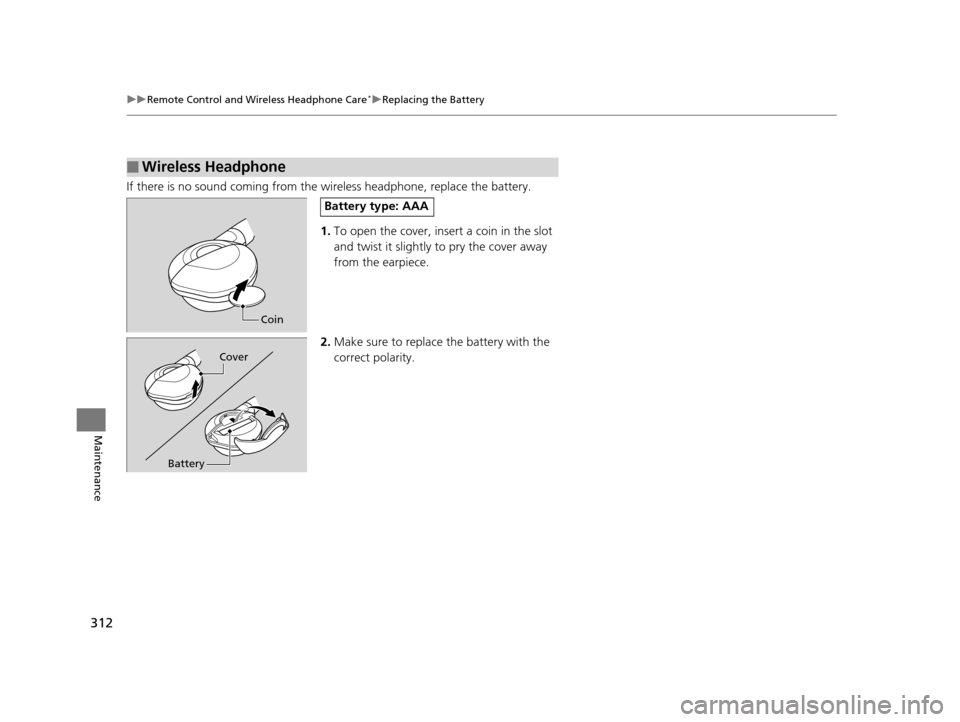

If there is no sound coming from the wireless headphone, replace the battery.
1.To open the cover, inse rt a coin in the slot
and twist it slightly to pry the cover away
from the earpiece.
2. Make sure to replace the battery with the
correct polarity.
■Wireless Headphone
Coin
Battery type: AAA
Battery Cover
14 CR-V-31T0A6200.book 312 ページ ２０１４年２月１０日　月曜日　午後７時１分

347
Information

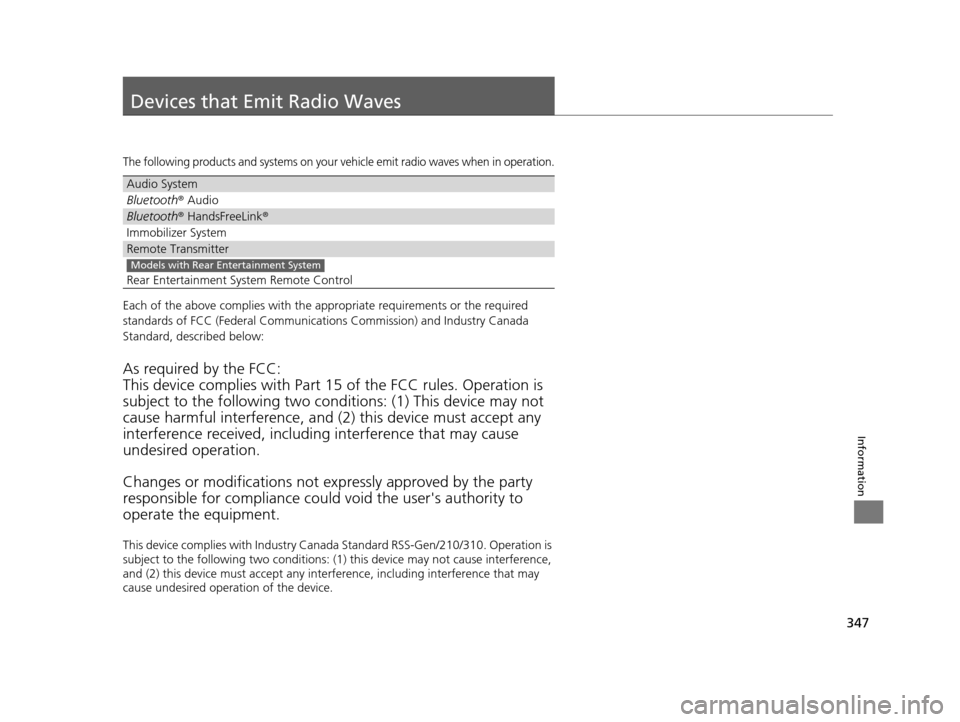

Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any inte rference, including interference that may
cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Immobilizer System
Remote Transmitter
Rear Entertainment System Remote Control
Models with Rear Entertainment System
14 CR-V-31T0A6200.book 347 ページ ２０１４年２月１０日　月曜日　午後７時１分

359
Index
Tailgate Open ........................................... 72
Transmission ............................................. 70
Turn Signal ............................................... 74
Vehicle Stability Assist (VSA®)
System ............................................ 72, 249
VSA ® OFF.......................................... 72, 250
Washer Level ............................................ 76
Information .............................................. 343
Information Display ................................... 78
Instrument Panel ........................................ 67
Brightness Control .................................. 117
intelligent Multi-Information Display (i-MID) ....................................................... 81
Interior Lights ........................................... 132
Interior Rearview Mirror ......................... 120
iPod ®......................................................... 164
J
Jack (Wheel Nut Wrench) ........................ 324
Jump Starting ........................................... 328
K
Key Number Tag ........................................ 98
Keyless Lockout Prevention ..................... 100
Keys ............................................................. 97
Lockout Prevention ................................. 100
Master Keys .............................................. 97
Number Tag.............................................. 98
Rear Door Won’t Open ........................... 102 Remote Transmitter ................................... 99
Types and Functions .................................. 97
Valet Key ................................................... 98
Won’t Turn ................................................ 19
Kickdown (Automatic Transmission) ....... 242
L
Language (HFL)......................................... 195
LATCH (Child Seats) .............................. 57, 61
Lights ................................................. 112, 289
Automatic ............................................... 113
Bulb Replacement .................................... 289
Daytime Running Lights ........................... 114
Fog Lights ................................................ 114
High Beam Indicator .................................. 74
Interior .................................................... 132
Light Switches ......................................... 112
Lights On Indicator .................................... 74
Turn Signals ............................................. 112
Load Limits ................................................ 229
Locking/Unlocking ...................................... 97
Auto Door Locking/Unlocking .................. 103
Childproof Door Locks ............................. 102
From Inside .............................................. 101
From Outside ............................................. 99
Keys .......................................................... 97
Using a Key ............................................. 100
Lockout Prevention System ...................... 100
Low Battery Charge .................................. 333
Low Fuel Indicator ...................................... 70 Low Oil Pressure Indicator
................. 68, 333
Lower Anchors ...................................... 57, 61
Luggage (Maximum Load Limit) ............. 229
M
Maintenance............................................. 267
Battery .................................................... 309
Brake Fluid .............................................. 287
Cleaning ................................................. 314
Climate Control System ........................... 313
Coolant ................................................... 284
Heating and Cooling System ................... 313
Maintenance Minder
TM............................ 271
Oil ........................................................... 280
Precautions ............................................. 268
Radiator .................................................. 285
Remote Control....................................... 311
Remote Transmitter ................................. 310
Replacing Light Bulbs .............................. 289
Safety...................................................... 269
Service Items ........................................... 274
Tires ........................................................ 300
Transmission Fluid ................................... 286
Under the Hood ...................................... 277
Wireless Headphone................................ 312
Malfunction Indicator Lamp .............. 69, 334
Map Lights ................................................ 132
Maximum Load Limit ............................... 229
Meters, Gauges ........................................... 77
14 CR-V-31T0A6200.book 359 ページ ２０１４年２月１０日　月曜日　午後７時１分

360
Index
Mirrors....................................................... 120
Adjusting ................................................. 120
Door ........................................................ 121
Exterior .................................................... 121
Interior Rearview...................................... 120
Modifications (and Accessories) ............... 266
Moonroof .................................................. 110
MP3 .................................................... 161, 169
Multi-View Rear Camera .......................... 261
N
Numbers (Identification).......................... 346
O
Odometer.................................................... 78
Off-Highway Driving Guidelines .............. 237
Oil (Engine) ............................................... 279
Adding .................................................... 281
Checking ................................................. 280
Displaying Oil Life .................................... 271
Low Oil Pressure Indicator .................. 68, 333
Recommended Engine Oil ........................ 279
Viscosity .................................................. 279
Opening/Closing
Hood ....................................................... 278
Moonroof ................................................ 110
Power Windows ...................................... 108
Tailgate ................................................... 104 Outside Temperature
................................. 80
Adjusting .................................................. 80
Overheating .............................................. 331
P
Pandora®................................................... 167
Panic Mode ............................................... 107
Parking ...................................................... 260
Parking Brake ........................................... 256
Parking Brake and Brake System Indicator ............................................ 68, 335
Passenger Airbag Off Indicator ................. 49
Passing Indicators ..................................... 112
Power Windows ....................................... 108
Precautions While Driving ....................... 241
Driving Guidelines for Your Utility Vehicle .................................................. 241
Rain ........................................................ 241
Pregnant Women ....................................... 35
Puncture (Tire) .......................................... 321
R
Radiator.................................................... 285
Radio (AM/FM) ......................................... 156
Radio (XM ®).............................................. 159
Radio Data System (RDS) ......................... 158
Range .................................................... 79, 82
RDS (Radio Data System) ......................... 158
Readiness Codes (Emissions Testing) ....... 349Real Time AWD with Intelligent Control
System
TM.................................................. 251
Rear Defogger/Heated Door Mirror Button ..................................................... 118
Rear Entertainment System ..................... 174
Rear Seat Back .......................................... 130
Rear Seats (Folding Down) ...................... 129
Rearview Camera ..................................... 261
Rearview Mirror ....................................... 120
Refueling .................................................. 262
Fuel Gauge ............................................... 77
Gasoline ......................................... 262, 344
Low Fuel Indicator ..................................... 70
Regulations .............................. 254, 303, 347
Remote Transmitter ................................... 99
Replacement Battery .................................................... 310
Bulbs ...................................................... 289
Front Wiper Blade Rubber ....................... 296
Fuses .............................................. 337, 338
Rear Wiper Blade Rubber ........................ 298
Tires........................................................ 306
Reporting Safety Defects ......................... 348
Resetting a Trip Meter ............................... 79
S
Safe Driving................................................ 23
Safety Check ............................................... 28
Safety Labels .............................................. 66
Safety Message .......................................... 22
14 CR-V-31T0A6200.book 360 ページ ２０１４年２月１０日　月曜日　午後７時１分
