key HONDA CR-V 2014 RM1, RM3, RM4 / 4.G Owner's Manual

243
uuWhen Driving uShifting
Continued
Driving

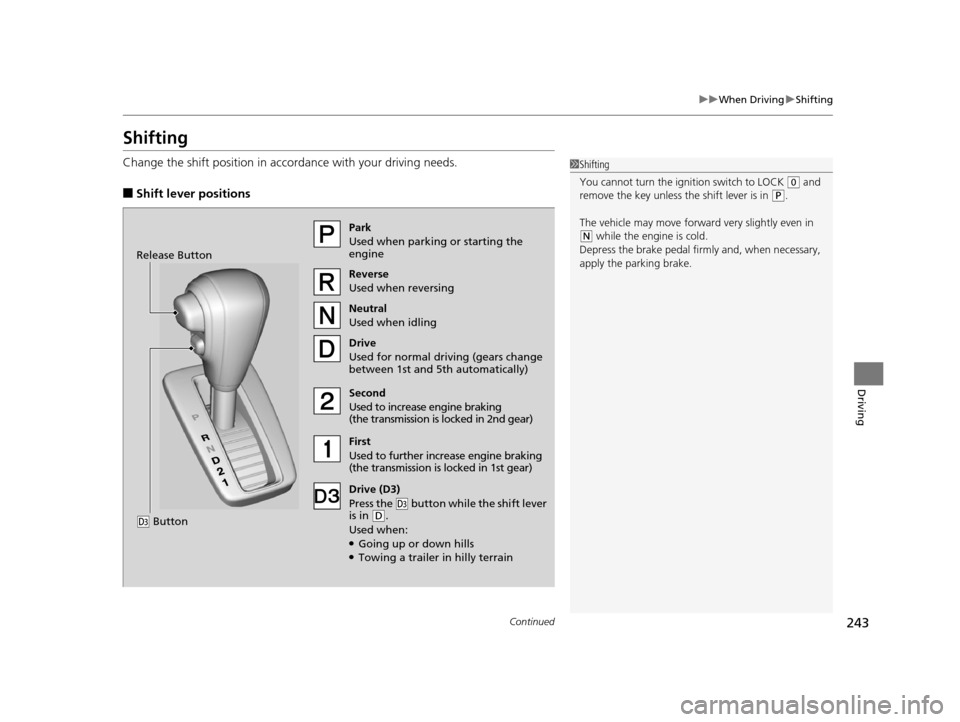

Shifting
Change the shift position in accordance with your driving needs.
■Shift lever positions
1Shifting
You cannot turn the ignition switch to LOCK
(0 and
remove the key unless the shift lever is in ( P.
The vehicle may move forward very slightly even in
(N while the engine is cold.
Depress the brake pe dal firmly and, when necessary,
apply the parking brake.Park
Used when parking or starting the
engine
Reverse
Used when reversing
Neutral
Used when idling
Drive
Used for normal driving (gears change
between 1st and 5th automatically)
Drive (D3)
Press the
( d button while the shift lever
is in ( D.
Used when:
●Going up or down hills●Towing a trailer in hilly terrain
Second
Used to increase engine braking
(the transmission is locked in 2nd gear)
First
Used to further increase engine braking
(the transmission is locked in 1st gear)
Release Button
(
d Button
14 CR-V-31T0A6200.book 243 ページ ２０１４年２月１０日　月曜日　午後７時１分

330
Handling the Unexpected

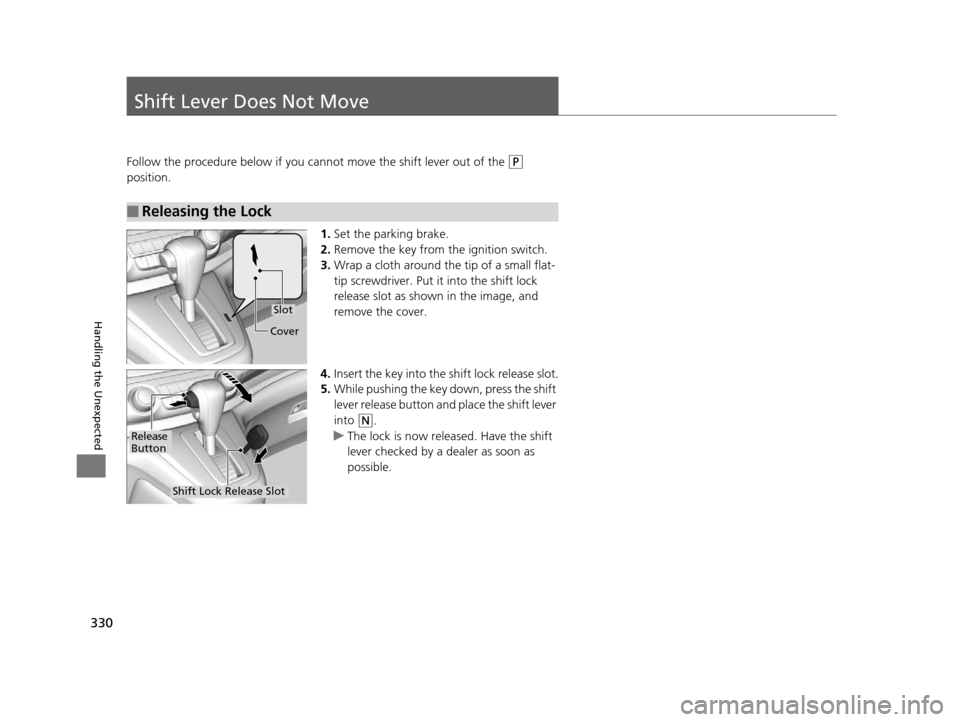

Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Remove the key from the ignition switch.
3. Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.
4. Insert the key into the sh ift lock release slot.
5. While pushing the key down, press the shift
lever release button and place the shift lever
into
(N.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■Releasing the Lock
Slot
Cover
Release
Button
Shift Lock Release Slot
14 CR-V-31T0A6200.book 330 ページ ２０１４年２月１０日　月曜日　午後７時１分

338
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the cover.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Fuse Box
Circuit ProtectedAmps
1−−
2ACG10 A
3SRS10 A
4Fuel Pump15 A
5Meter10 A
6Power Window7.5 A
7VB SOL7.5 A
8Door Lock Motor 2 (Unlock)15 A
9Door Lock Motor 1 (Unlock)15 A
10Trailer*(7.5 A)
11 Moonroof*(20 A)
12Accessory Power Socket (Center Console)(20 A)
13 − −
14Seat Heaters*(20 A)
15 Driver’s Door Lock Motor
(Unlock) 10 A
16Driver's Power Seat Sliding*(20 A)
17 Driver's Power Seat
Reclining
*(20 A)
18−−
19 ACC 7.5 A
20ACC Key Lock7.5 A
21 Daytime Running Lights 7.5 A
22A/C7.5 A
23 Rear Wiper 10 A
24ABS/VSA7.5 A
25 Audio 10 A
26−−
27 Accessory Power Socket
(Front) 20 A
28Washer15 A
29 ODS 7.5 A
30Driver’s Door Lock Motor (Lock)*10 A
31 − −
Circuit ProtectedAmps
32Door Lock Motor 2 (Lock)15 A
33 Door Lock Motor 1 (Lock) 15 A
34Small Lights10 A
35 Illumination 7.5 A
36−−
37 − −
38Left Headlight High Beam10 A
39 Right Headlight High Beam 10 A
40−−
41 Door Lock 20 A
42Driver’s Power Window20 A
43 Rear Passenger’s Side
Power Window 20 A
44Front Passenger’s Side
Power Window20 A
45 Rear Driver’s Side Power
Window 20 A
46−−
Circuit ProtectedAmps
* Not available on all models
14 CR-V-31T0A6200.book 338 ページ ２０１４年２月１０日　月曜日　午後７時１分

357
Index
Rearview Mirror ...................................... 120
Dipstick (Engine Oil) ................................ 280
Directional Signals (Turn Signal) ............. 112
Display Button ............................................ 81
Door Mirrors ............................................. 121
Doors .......................................................... 97
Auto Door Locking.................................. 103
Auto Door Unlocking .............................. 103
Door Open Indicator ........................... 28, 72
Keys.......................................................... 97
Locking/Unlocking the Doors from the
Inside .................................................... 101
Locking/Unlocking the Doors from the Outside ................................................... 99
Lockout Prevention System ..................... 100
DOT Tire Quality Grading ........................ 303
Driver’s Seat Lumbar Support ................. 122
Driving ...................................................... 225
Automatic Transmission .......................... 242
Braking ................................................... 256
Cruise Control ........................................ 246
Off-Highway Driving Guidelines .............. 237
Shifting Gear .......................................... 243
Starting the Engine ................................. 239
Dust and Pollen Filter .............................. 313
DVD Player ............................................... 174
E
Eco Assist System .......................................... 7
ECON Button ............................................ 245 Elapsed Time
............................................... 82
Electric Power Steering (EPS) System
Indicator ............................................ 73, 335
Electronic Stability Control (ESC) ............. 249
Emergency ................................................ 340
Emissions Testing (Readiness Codes) ....... 349
Engine ....................................................... 346
Coolant ................................................... 284
Jump Starting .......................................... 328
Oil ........................................................... 279
Starting ................................................... 239
Switch Buzzer .......................................... 111
Engine Coolant ......................................... 284
Adding to the Radiator ............................ 285
Adding to the Reserve Tank ..................... 284
Overheating ............................................ 331
Temperature Gauge .................................. 77
Engine Oil ................................................. 279
Adding .................................................... 281
Checking ................................................. 280
Displaying Oil Life .................................... 271
Low Oil Pressure Indicator .................. 68, 333
Recommended Engine Oil ........................ 279
EPS (Electric Power Steering) System ............................................... 73, 335
Exhaust Gas Hazard (Carbon Monoxide) .. 65
Exterior Care (Cleaning) ........................... 316
Exterior Mirrors ........................................ 121
F
Features.................................................... 149
Filters Dust and Pollen ....................................... 313
Oil ........................................................... 282
Flat Tire ..................................................... 321
Floor Mats ................................................. 315
Fluids
Automatic Transmission .......................... 286
Brake ...................................................... 287
Engine Coolant ....................................... 284
Windshield Washer ................................. 288
Fog Light Indicator ..................................... 74
Folding Down the Rear Seats .................. 129
Foot Brake ................................................ 257
Front Airbags (SRS) ..................................... 40
Front Seats ................................................ 122
Adjusting ................................................ 122
Fuel ...................................................... 16, 262
Economy ................................................. 265
Gauge ....................................................... 77
Low Fuel Indicator ..................................... 70
Range ................................................. 79, 82
Recommendation .................................... 262
Refueling................................................. 262
Fuel Economy ........................................... 265
Fuel Fill Cap .............................................. 264
Message.................................................. 334
Fuel Fill Door ............................................ 263
14 CR-V-31T0A6200.book 357 ページ ２０１４年２月１０日　月曜日　午後７時１分

359
Index
Tailgate Open ........................................... 72
Transmission ............................................. 70
Turn Signal ............................................... 74
Vehicle Stability Assist (VSA®)
System ............................................ 72, 249
VSA ® OFF.......................................... 72, 250
Washer Level ............................................ 76
Information .............................................. 343
Information Display ................................... 78
Instrument Panel ........................................ 67
Brightness Control .................................. 117
intelligent Multi-Information Display (i-MID) ....................................................... 81
Interior Lights ........................................... 132
Interior Rearview Mirror ......................... 120
iPod ®......................................................... 164
J
Jack (Wheel Nut Wrench) ........................ 324
Jump Starting ........................................... 328
K
Key Number Tag ........................................ 98
Keyless Lockout Prevention ..................... 100
Keys ............................................................. 97
Lockout Prevention ................................. 100
Master Keys .............................................. 97
Number Tag.............................................. 98
Rear Door Won’t Open ........................... 102 Remote Transmitter ................................... 99
Types and Functions .................................. 97
Valet Key ................................................... 98
Won’t Turn ................................................ 19
Kickdown (Automatic Transmission) ....... 242
L
Language (HFL)......................................... 195
LATCH (Child Seats) .............................. 57, 61
Lights ................................................. 112, 289
Automatic ............................................... 113
Bulb Replacement .................................... 289
Daytime Running Lights ........................... 114
Fog Lights ................................................ 114
High Beam Indicator .................................. 74
Interior .................................................... 132
Light Switches ......................................... 112
Lights On Indicator .................................... 74
Turn Signals ............................................. 112
Load Limits ................................................ 229
Locking/Unlocking ...................................... 97
Auto Door Locking/Unlocking .................. 103
Childproof Door Locks ............................. 102
From Inside .............................................. 101
From Outside ............................................. 99
Keys .......................................................... 97
Using a Key ............................................. 100
Lockout Prevention System ...................... 100
Low Battery Charge .................................. 333
Low Fuel Indicator ...................................... 70 Low Oil Pressure Indicator
................. 68, 333
Lower Anchors ...................................... 57, 61
Luggage (Maximum Load Limit) ............. 229
M
Maintenance............................................. 267
Battery .................................................... 309
Brake Fluid .............................................. 287
Cleaning ................................................. 314
Climate Control System ........................... 313
Coolant ................................................... 284
Heating and Cooling System ................... 313
Maintenance Minder
TM............................ 271
Oil ........................................................... 280
Precautions ............................................. 268
Radiator .................................................. 285
Remote Control....................................... 311
Remote Transmitter ................................. 310
Replacing Light Bulbs .............................. 289
Safety...................................................... 269
Service Items ........................................... 274
Tires ........................................................ 300
Transmission Fluid ................................... 286
Under the Hood ...................................... 277
Wireless Headphone................................ 312
Malfunction Indicator Lamp .............. 69, 334
Map Lights ................................................ 132
Maximum Load Limit ............................... 229
Meters, Gauges ........................................... 77
14 CR-V-31T0A6200.book 359 ページ ２０１４年２月１０日　月曜日　午後７時１分

362
Index
TPMS (Tire Pressure Monitoring System) .................................................... 252
Button ..................................................... 252
Indicator .................................................... 73
Transmission .............................................. 243
Automatic ............................................... 243
Fluid ........................................................ 286
Number ................................................... 346
Shift Lever Position Indicator .............. 69, 244
Trip Meter ................................................... 79
Troubleshooting ....................................... 319
Blown Fuse ...................................... 337, 338
Brake Pedal Vibrates .................................. 19
Buzzer Sounds When Opening Door .......... 20
Emergency Towing .................................. 340
Engine Won’t Start .................................. 327
Noise When Braking .................................. 20
Overheating............................................. 331
Puncture/Flat Tire ..................................... 321
Rear Door Won’t Open ...................... 19, 102
Select Lever Won’t Move ......................... 330
Warning Indicators .................................... 68
Turn Signals ............................................... 112
Indicators (Instrum ent Panel) ...................... 74
U
Unlocking the Doors ................................... 99
Unlocking the Fron t Doors from the
Inside ......................................................... 11
USB Adapter Cable ........................... 150, 151 USB Flash Drives
....................................... 193
V
Valet Key..................................................... 98
Vanity Mirrors ............................................... 5
Vehicle Identification Number ................ 346
Vehicle Stability Assist (VSA ®).................. 249
Off Button............................................... 250
Off Indicator.............................................. 72
System Indicator ........................................ 72
Viscosity (Oil) .................................... 279, 345
VSA ® (Vehicle Stability Assist) .................. 249
W
Wallpaper................................................... 90
Warning Indicator On/Blinking ............... 333
Warning Labels ........................................... 66
Warranties (Warranty Manual provided
separately) .............................................. 351
Watts ......................................................... 344
Wear Indicators (Tire) .............................. 305
Wheel Nut Wrench (Jack Handle) ........... 324
Window Washers ..................................... 115
Adding/Refilling Fluid .............................. 288
Switch ..................................................... 115
Windows (Opening and Closing) ............ 108
Windshield ................................................ 115
Cleaning ................................................. 317
Defrosting/Defogging ...................... 144, 146 Washer Fluid ........................................... 288
Wiper Blades........................................... 296
Wipers and Washers ............................... 115
Winter Tires .............................................. 308
Snow Tires .............................................. 308
Tire Chains.............................................. 308
Wipers and Washers ................................ 115
Checking and Replacing Wiper Blades..... 296
Front....................................................... 115
Rear ........................................................ 116
WMA ................................................. 161, 169
Worn Tires ................................................ 300
X
XM® Radio ................................................ 159
14 CR-V-31T0A6200.book 362 ページ ２０１４年２月１０日　月曜日　午後７時１分
