tow HONDA CR-V 2014 RM1, RM3, RM4 / 4.G Owner's Guide

340
Handling the Unexpected

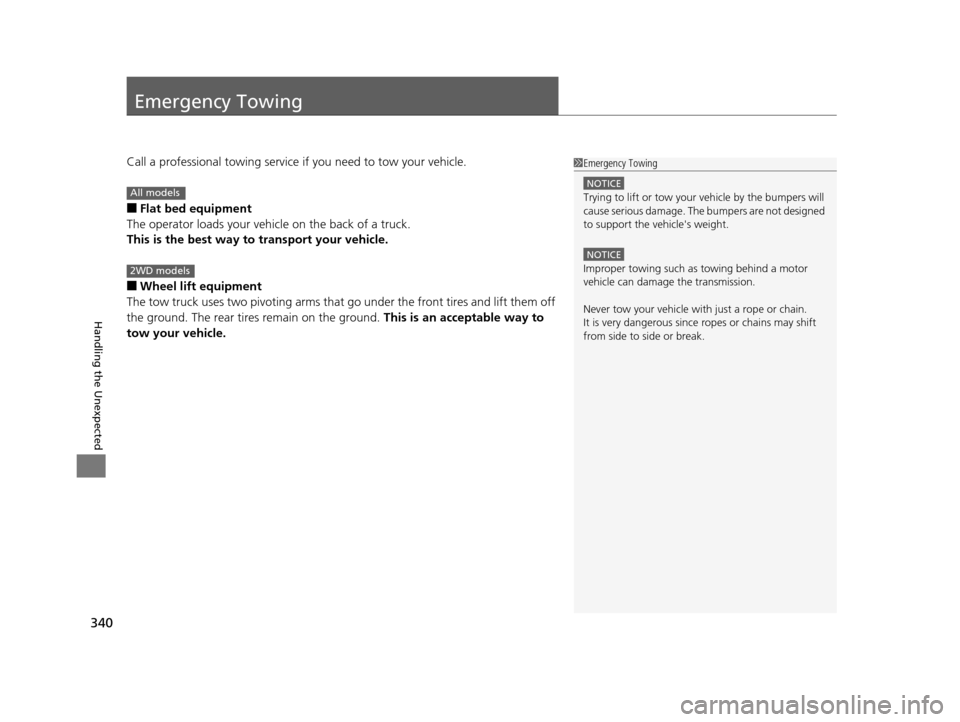

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a motor
vehicle can damage the transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
All models
2WD models
14 CR-V-31T0A6200.book 340 ページ ２０１４年２月１０日　月曜日　午後７時１分

361
Index
Seat Belts.................................................... 29
Adjusting the Shoulder Anchor ................. 33
Automatic Seat Belt Tensioners ................. 31
Checking .................................................. 36
Detachable Anchor ................................... 34
Fastening .................................................. 32
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 60
Pregnant Women...................................... 35
Reminder .................................................. 30
Warning Indicator ............................... 30, 70
Seat Heaters ............................................. 139
Seats .......................................................... 122
Adjusting ................................................ 122
Driver’s Seat Lumbar Support .................. 122
Front Seats.............................................. 122
Rear Seats ............................................... 129
Seat Heaters ........................................... 139
Security System ........................................ 106
Immobilizer System Indicator..................... 75
Security System Alarm Indicator ................ 75
Select Lever ........................................ 15, 243
Operation ......................................... 15, 244
Releasing ................................................ 330
Won’t Move ........................................... 330
Select/Reset Knob ...................................... 78
Selecting a Child Seat ................................ 56
Selector Knob (Audio) ............................. 153
Setting the Clock ........................................ 96
Shift Lever .......................................... 15, 243
Shift Lever Position Indicator ............ 69, 244Shifting (Transmission)
............................. 243
Shoulder Anchor ......................................... 33
Side Airbags ................................................ 44
Cutoff System ........................................... 46
Off Indicator .............................................. 46
Side Curtain Airbags ................................... 47
SMS Text Message ............................ 206, 218
Snow Tires ................................................. 308
Spare Tire .......................................... 321, 345
Spark Plugs ................................................ 344
Specifications ............................................ 344
Specified Fuel .................................... 262, 344
Speedometer .............................................. 77
SRS Airbags (Airbags) ................................. 40
Starting the Engine .................................. 239
Does Not Start ......................................... 327
Engine Switch Buzzer .............................. 111
Jump Starting .......................................... 328
Steering Wheel ......................................... 119
Adjusting ................................................. 119
Stopping .................................................... 260
Summer Tires ............................................ 308
Sunglasses Holder ..................................... 138
Supplemental Restraint System (SRS) ........ 40
Switches (Around the Steering
Wheel) ............................................. 2, 3, 111
Synchronized Mode .................................. 147
T
Tachometer................................................. 77 Tailgate
..................................................... 104
Unable to Open....................................... 341
Temperature Gauge ................................... 77
Temperature Sensor ................................. 148
Text Message .................................... 206, 218
Time (Setting) ............................................. 96
Tire Pressure Monitoring System (TPMS) ..................................................... 252
Button..................................................... 252
Indicator.................................................... 73
Tires ........................................................... 300
Air Pressure ..................................... 301, 345
Checking and Maintaining ...................... 300
Inspection ............................................... 300
Labeling .................................................. 301
Puncture (Flat Tire) .................................. 321
Regulations ............................................. 303
Rotation .................................................. 307
Spare Tire ........................................ 321, 345
Summer .................................................. 308
Tire Chains .............................................. 308
Wear Indicators ....................................... 305
Winter..................................................... 308
Tonneau Cover ......................................... 140
Tools .......................................................... 320
Towing a Trailer ....................................... 231
Equipment and Accessories ..................... 232
Load Limits .............................................. 231
Towing Your Vehicle ................................ 235
Behind a Motorhome .............................. 235
Emergency .............................................. 340
14 CR-V-31T0A6200.book 361 ページ ２０１４年２月１０日　月曜日　午後７時１分

362
Index
TPMS (Tire Pressure Monitoring System) .................................................... 252
Button ..................................................... 252
Indicator .................................................... 73
Transmission .............................................. 243
Automatic ............................................... 243
Fluid ........................................................ 286
Number ................................................... 346
Shift Lever Position Indicator .............. 69, 244
Trip Meter ................................................... 79
Troubleshooting ....................................... 319
Blown Fuse ...................................... 337, 338
Brake Pedal Vibrates .................................. 19
Buzzer Sounds When Opening Door .......... 20
Emergency Towing .................................. 340
Engine Won’t Start .................................. 327
Noise When Braking .................................. 20
Overheating............................................. 331
Puncture/Flat Tire ..................................... 321
Rear Door Won’t Open ...................... 19, 102
Select Lever Won’t Move ......................... 330
Warning Indicators .................................... 68
Turn Signals ............................................... 112
Indicators (Instrum ent Panel) ...................... 74
U
Unlocking the Doors ................................... 99
Unlocking the Fron t Doors from the
Inside ......................................................... 11
USB Adapter Cable ........................... 150, 151 USB Flash Drives
....................................... 193
V
Valet Key..................................................... 98
Vanity Mirrors ............................................... 5
Vehicle Identification Number ................ 346
Vehicle Stability Assist (VSA ®).................. 249
Off Button............................................... 250
Off Indicator.............................................. 72
System Indicator ........................................ 72
Viscosity (Oil) .................................... 279, 345
VSA ® (Vehicle Stability Assist) .................. 249
W
Wallpaper................................................... 90
Warning Indicator On/Blinking ............... 333
Warning Labels ........................................... 66
Warranties (Warranty Manual provided
separately) .............................................. 351
Watts ......................................................... 344
Wear Indicators (Tire) .............................. 305
Wheel Nut Wrench (Jack Handle) ........... 324
Window Washers ..................................... 115
Adding/Refilling Fluid .............................. 288
Switch ..................................................... 115
Windows (Opening and Closing) ............ 108
Windshield ................................................ 115
Cleaning ................................................. 317
Defrosting/Defogging ...................... 144, 146 Washer Fluid ........................................... 288
Wiper Blades........................................... 296
Wipers and Washers ............................... 115
Winter Tires .............................................. 308
Snow Tires .............................................. 308
Tire Chains.............................................. 308
Wipers and Washers ................................ 115
Checking and Replacing Wiper Blades..... 296
Front....................................................... 115
Rear ........................................................ 116
WMA ................................................. 161, 169
Worn Tires ................................................ 300
X
XM® Radio ................................................ 159
14 CR-V-31T0A6200.book 362 ページ ２０１４年２月１０日　月曜日　午後７時１分
