uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Turn Signal
Indicators
●Blinks when you operate the turn signal
lever.
●Blinks along with all turn signals if you press
the hazard warning button.
●Does not blink or blinks rapidly - A turn signal
light bulb has blown. Change the bulb immediately.
2 Replacing Light Bulbs P. 292
High Beam
Indicator●Comes on when the high beam headlights
are on.—
Lights On
Indicator●Comes on whenever the light switch is on, or
in AUTO* when the exterior lights are on.
●If you remove the key from the ignition switch while
the lights are on, a chime s ounds when the driver's
door is opened.
Fog Light
Indicator*
●Comes on when the fog lights are on.—
Side Airbag Off
Indicator
●Comes on for a few seconds when you turn
the ignition switch to ON
(w, then goes off.●Comes on when the passenger side airbag
system is automatically shut off.
●It does not mean there is a problem with your side
airbags.
●Comes on when nobody is sitting in the
passenger seat - Have your vehicle checked by a
dealer.
●Comes on when someone is sitting in the seat -
Have the passenger sit properly.
U.S.
Canada
* Not available on all models
14 CR-V-31T0A6200.book 74 ページ ２０１４年２月１０日　月曜日　午後７時１分

289Continued
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Remove the coupler.
2. Remove the rubber weather seal.
3. Remove the hold-down wire, then remove
the bulb.
4. Insert a new bulb.
High/Low beam headlight:60/55W (H4/HB2)
■High/Low Beam Headlight
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
The H4/HB2 type is a halogen bulb.
When replacing a bulb, ha ndle it by its base, and
protect the glass from contact with your skin or hard
objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
The exterior lights' inside lenses (headlights, brake
lights, etc.) may fog temporarily after a car wash or
while driving in the rain. This does not impact the
exterior light function.
However, if you see a larg e amount of water or ice
accumulated inside the le nses, have your vehicle
inspected by a dealer.Halogen Bulb Types
Coupler
Rubber Weather
Seal
Bulb
Hold-down Wire
14 CR-V-31T0A6200.book 289 ページ ２０１４年２月１０日　月曜日　午後７時１分

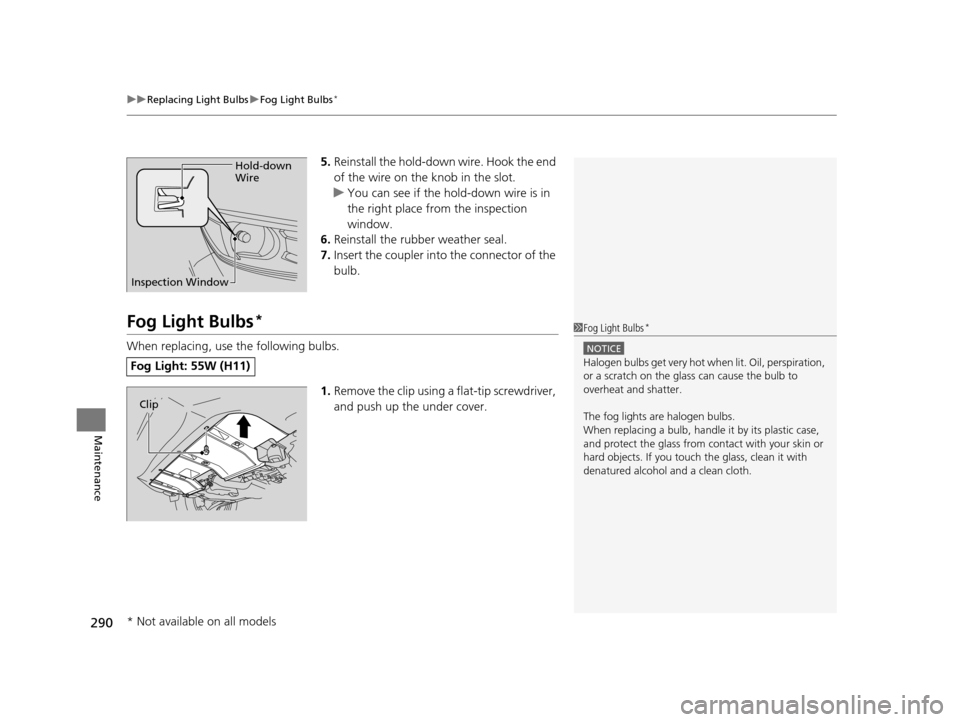

uuReplacing Light Bulbs uFog Light Bulbs*
290
Maintenance
5. Reinstall the hold-down wire. Hook the end
of the wire on the knob in the slot.
u You can see if the hold-down wire is in
the right place from the inspection
window.
6. Reinstall the rubber weather seal.
7. Insert the coupler into the connector of the
bulb.
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Remove the clip using a flat-tip screwdriver,
and push up the under cover.
Inspection Window Hold-down
Wire
Fog Light: 55W (H11)
1
Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
The fog lights ar e halogen bulbs.
When replacing a bulb, handl e it by its plastic case,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Clip
* Not available on all models
14 CR-V-31T0A6200.book 290 ページ ２０１４年２月１０日　月曜日　午後７時１分

291

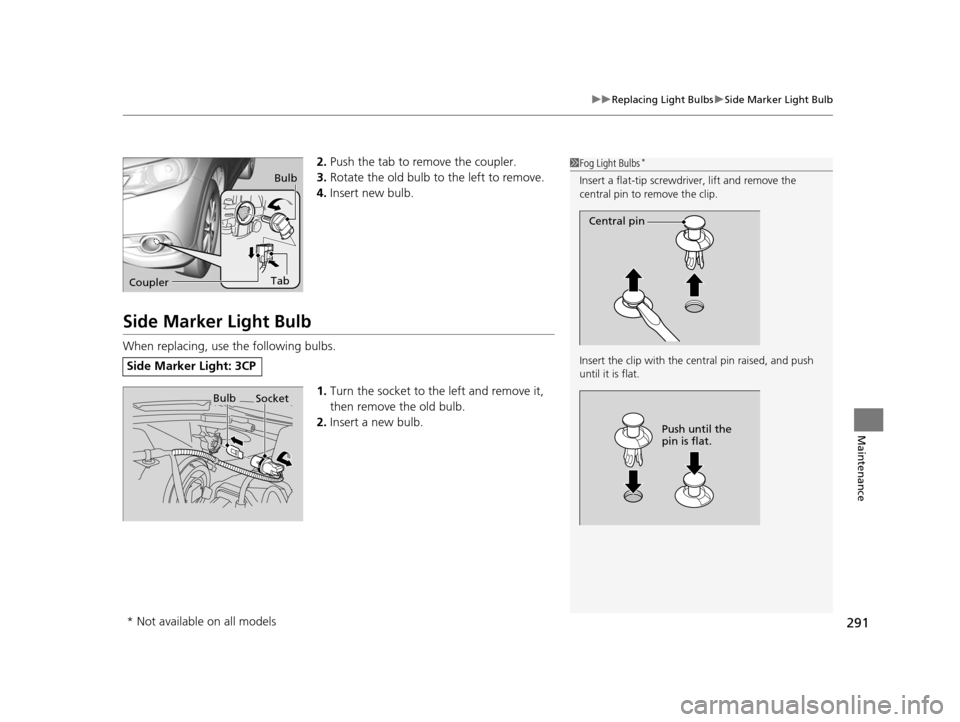

uuReplacing Light Bulbs uSide Marker Light Bulb
Maintenance
2. Push the tab to remove the coupler.
3. Rotate the old bulb to the left to remove.
4. Insert new bulb.
Side Marker Light Bulb
When replacing, use the following bulbs.
1.Turn the socket to th e left and remove it,
then remove the old bulb.
2. Insert a new bulb.
Bulb
Coupler Tab
Side Marker Light: 3CP
1
Fog Light Bulbs*
Insert a flat-tip screwdriver, lift and remove the
central pin to remove the clip.
Insert the clip with the central pin raised, and push
until it is flat.
Central pin
Push until the
pin is flat.
BulbSocket
* Not available on all models
14 CR-V-31T0A6200.book 291 ページ ２０１４年２月１０日　月曜日　午後７時１分

344
Information
Specifications
■Vehicle Specifications
*1: 16 inch wheel with 2WD models
*2: 17 inch wheel with 2WD models and 16 inch wheel with 4WD
models
*3: 17 inch wheel with 4WD models
ModelHonda CR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,332 lbs (1,965 kg)*1
4,464 lbs (2,025 kg)*2
4,564 lbs (2,070 kg)*3
Canada: 1,965 kg*1
2,025 kg*2
2,070 kg*3
Gross Axle Weight
Rating (Front)U.S.: 2,227 lbs (1,010 kg)*1
2,271 lbs (1,030 kg)*2
2,326 lbs (1,055 kg)*3
Canada: 1,010 kg*1
1,030 kg*2
1,055 kg*3
Gross Axle Weight
Rating (Rear)U.S.: 2,150 lbs (975 kg)*1
2,238 lbs (1,015 kg)*2
2,282 lbs (1,035 kg)*3
Canada: 975 kg*1
1,015 kg*2
1,035 kg*3
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity13.6 – 15.4 oz (385 – 435 g)Lubricant TypeSP-10
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,354 cm3)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 15.3 US gal (58 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
*1: Not available on all models
Headlights (High/Low Beams)60/55W (H4/HB2)
Fog Lights 55W (H11)
Front Turn Signal/Parking Lights24/2.2CP
Side Marker Lights 3CP
Upper Rear Side Marker/Taillights3CP
Lower Rear Side Marker/Brake/
Taillights 21/5W
Back-Up Lights21W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightLED
Rear License Plate Light 3CP
Cargo Area Light8W
Vanity Mirror Lights*12WInterior LightsMap Lights8WCeiling Light8W
