fuse HONDA CR-V 2014 RM1, RM3, RM4 / 4.G Owners Manual

Contents
Child Safety P. 52Exhaust Gas Hazard P. 65Safety Labels P. 66
Opening and Closing the Tailgate P. 104 Security System P. 106 Opening and Closing the Windows P. 108
Operating the Switches Around the Steering Wheel P. 111 Adjusting the Mirrors P. 120
Interior Lights/Interior Convenience Items P. 132 Heating and Cooling System
* P. 142
Rear Entertainment System* P. 174 Audio Error Messages P. 186
Bluetooth ® HandsFreeLink ® P. 194 Compass P. 223
Off-Highway Driving Guidelines P. 237 When Driving P. 239 Braking P. 256
Refueling P. 262 Fuel Economy P. 265Accessories and Modifications P. 266
Maintenance Under the Hood P. 277 Replacing Light Bulbs P. 289
Checking and Maintaining Tires P. 300 Battery P. 309 Remote Transmitter Care P. 310
Heating and Cooling System
*/Climate Control System* Maintenance P. 313 Cleaning P. 314
Engine Does Not Start P. 327 Jump Starting P. 328 Shift Lever Does Not Move P. 330
Fuses P. 337 Emergency Towing P. 340
When You Cannot Open the Tailgate P. 341
Devices that Emit Radio Waves P. 347 Reporting Safety Defects P. 348
Authorized Manuals P. 353 Customer Service Information P. 354
Quick Reference GuideP. 2
Safe DrivingP. 23
Instrument PanelP. 67
ControlsP. 95
FeaturesP. 149
DrivingP. 225
MaintenanceP. 267
Handling the UnexpectedP. 319
InformationP. 343
IndexP. 355
14 CR-V-31T0A6200.book 1 ページ ２０１４年２月１０日　月曜日　午後７時１分

Visual Index
4
Quick Reference Guide
❙Power Door Lock Master Switch (P 102)
❙Power Window Switches (P 108)
❙Rearview Mirror (P 120)
❙Interior Fuse Box (P 338)
❙Parking Brake (P 256)
❙Hood Release Handle (P 278)
❙Accessory Power Socket
(P 135)
❙Seat Heater Switches*
(P 139)
❙Shift Lever
Automatic Transmission
(P 242)
❙Glove Box (P 133)
❙Driver's Front Airbag (P 40)
❙Door Mirror Controls (P 121)
❙Driver’s Pocket
❙Passenger's Front Airbag
(P 40)
❙Fuel Fill Door Release Handle (P 263)
14 CR-V-31T0A6200.book 4 ページ ２０１４年２月１０日　月曜日　午後７時１分

18
Quick Reference Guide
Handling the Unexpected (P319)
Flat Tire (P321)
● Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P333)
●Identify the indicator and consult the
owner's manual.
Engine Won't Start (P327)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P337)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P331)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P340)
●Call a professional towing service if you
need to tow your vehicle.
14 CR-V-31T0A6200.book 18 ページ ２０１４年２月１０日　月曜日　午後７時１分

236
uuTowing a Trailer uTowing Your Vehicle
Driving
■Extended towing
If you tow more than eight hours in one da y, you should repeat the “before towing
your vehicle procedure” at least every eight hours. You also need to perform the
following procedure to prevent the battery from running down.
1.Remove the 7.5 A accessory radio fuse. This
fuse is located in the interior fuse box.
2 Interior Fuse Box P. 338
2.Store the fuse in a safe place so you do not
lose it.
u Make sure to reinstall the fuse before
you start driving your vehicle.
Accessory Radio Fuse
14 CR-V-31T0A6200.book 236 ページ ２０１４年２月１０日　月曜日　午後７時１分

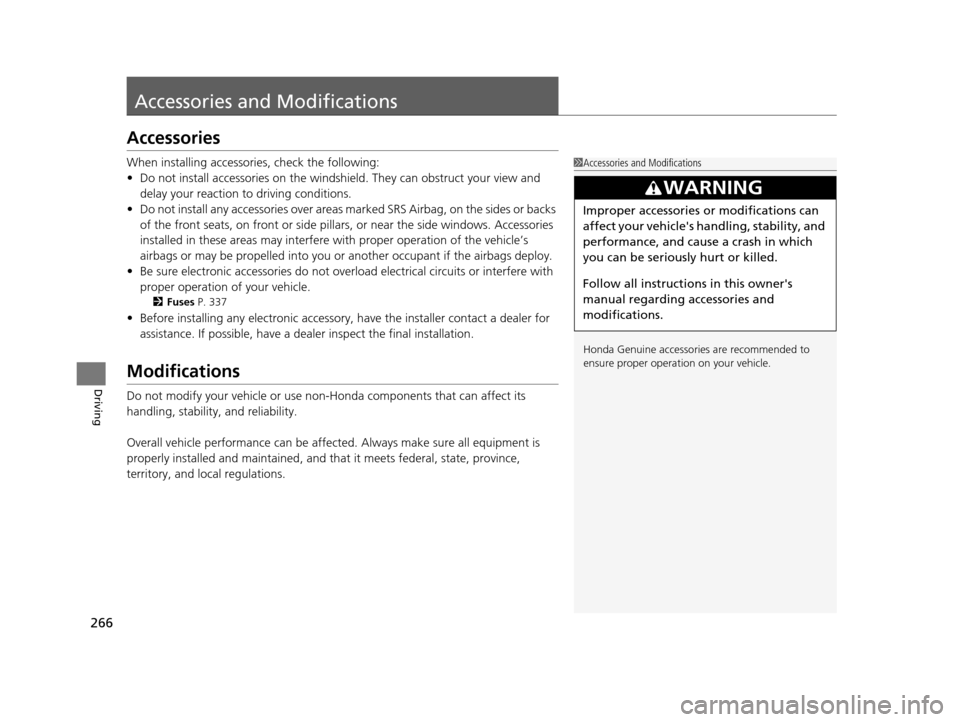

266
Driving
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessorie s over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows. Accessories
installed in these areas may interfere with proper operation of the vehicle’s
airbags or may be propelled into you or another occupant if the airbags deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 337
•Before installing any electron ic accessory, have the installer contact a dealer for
assistance. If possible, have a d ealer inspect the final installation.
Modifications
Do not modify your vehicle or use non-Honda components that can affect its
handling, stability, and reliability.
Overall vehicle performance can be affect ed. Always make sure all equipment is
properly installed and maintained, and th at it meets federal, state, province,
territory, and local regulations.
1 Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle's handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner's
manual regarding accessories and
modifications.
14 CR-V-31T0A6200.book 266 ページ ２０１４年２月１０日　月曜日　午後７時１分

319
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 320
If a Tire Goes Flat Changing a Flat Tire ......................... 321
Engine Does Not Start Checking the Engine ........................ 327
Jump Starting .................................... 328
Shift Lever Does Not Move .............. 330
Overheating How to Handle Overheating ............. 331 Indicator, Coming On/Blinking
If the Low Oil Pressu
re Indicator Comes
On................................................ 333
If the Charging System Indicator Comes
On ................................................. 333
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 334
If the Brake System Indicator Comes On (Red) .............................................. 335
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 335 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 336
Fuses Fuse Locations ................................. 337
Inspecting and Changing Fuses ........ 339
Emergency Towing ........................... 340
When You Cannot Open the Tailgate.. 341
14 CR-V-31T0A6200.book 319 ページ ２０１４年２月１０日　月曜日　午後７時１分

327
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 309●If the interior lights come on normally 2 Inspecting and Changing Fuses P. 339
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2 Starting the Engine P. 239
Check the immobilize r system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 106
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 77
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 339
If the problem continues:
2Emergency Towing P. 340
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 328
14 CR-V-31T0A6200.book 327 ページ ２０１４年２月１０日　月曜日　午後７時１分

337Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0 and
check to see if any appl icable fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
−−
ABS/VSA Motor40 A
ABS/VSA FSR20 A
E-DPS*(30 A)
Main Fuse100 A
2
IG Main50 A
Fuse Box Main 60 A
Fuse Box Main 260 A
Headlight Main 30 A
−−
Rear Defogger 30 A −−
Blower 40 A
Front Wiper Main 30 A Sub Fan Motor 20 A
Main Fan Motor 20 A
3−−
4− −
5−−
6− −
7−−
8 Sub Fan Rly CL 7.5 A
9−−
10 Heated Door Mirror*(7.5 A)
11STRLD7.5 A
12 Fog Lights*(20 A)
13Premium Amp*(20 A)
14 Horn 10 A
15Hazard10 A
16 Stop 10 A
17IG Coil15 A
18 IGP2 15 A
19−−
20 − −
21−−
22 DBW 15 A
23IGP15 A
24 Left Headlight Low Beam 10 A
25Right Headlight Low Beam10 A
26 SMALL 20 A
27MG Clutch7.5 A
28 Interior Lights 7.5 A
29Backup10 A
Circuit ProtectedAmps
* Not available on all models
14 CR-V-31T0A6200.book 337 ページ ２０１４年２月１０日　月曜日　午後７時１分

338
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the cover.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Fuse Box
Circuit ProtectedAmps
1−−
2ACG10 A
3SRS10 A
4Fuel Pump15 A
5Meter10 A
6Power Window7.5 A
7VB SOL7.5 A
8Door Lock Motor 2 (Unlock)15 A
9Door Lock Motor 1 (Unlock)15 A
10Trailer*(7.5 A)
11 Moonroof*(20 A)
12Accessory Power Socket (Center Console)(20 A)
13 − −
14Seat Heaters*(20 A)
15 Driver’s Door Lock Motor
(Unlock) 10 A
16Driver's Power Seat Sliding*(20 A)
17 Driver's Power Seat
Reclining
*(20 A)
18−−
19 ACC 7.5 A
20ACC Key Lock7.5 A
21 Daytime Running Lights 7.5 A
22A/C7.5 A
23 Rear Wiper 10 A
24ABS/VSA7.5 A
25 Audio 10 A
26−−
27 Accessory Power Socket
(Front) 20 A
28Washer15 A
29 ODS 7.5 A
30Driver’s Door Lock Motor (Lock)*10 A
31 − −
Circuit ProtectedAmps
32Door Lock Motor 2 (Lock)15 A
33 Door Lock Motor 1 (Lock) 15 A
34Small Lights10 A
35 Illumination 7.5 A
36−−
37 − −
38Left Headlight High Beam10 A
39 Right Headlight High Beam 10 A
40−−
41 Door Lock 20 A
42Driver’s Power Window20 A
43 Rear Passenger’s Side
Power Window 20 A
44Front Passenger’s Side
Power Window20 A
45 Rear Driver’s Side Power
Window 20 A
46−−
Circuit ProtectedAmps
* Not available on all models
14 CR-V-31T0A6200.book 338 ページ ２０１４年２月１０日　月曜日　午後７時１分

339
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 337 to 338.
Use the charts to locate the fuse in question and
conform the specific ampe rage on the fuse label.
2 Fuse Locations P. 337
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
14 CR-V-31T0A6200.book 339 ページ ２０１４年２月１０日　月曜日　午後７時１分
