Visual Index
4
Quick Reference Guide
❙Power Door Lock Master Switch (P 102)
❙Power Window Switches (P 108)
❙Rearview Mirror (P 120)
❙Interior Fuse Box (P 338)
❙Parking Brake (P 256)
❙Hood Release Handle (P 278)
❙Accessory Power Socket
(P 135)
❙Seat Heater Switches*
(P 139)
❙Shift Lever
Automatic Transmission
(P 242)
❙Glove Box (P 133)
❙Driver's Front Airbag (P 40)
❙Door Mirror Controls (P 121)
❙Driver’s Pocket
❙Passenger's Front Airbag
(P 40)
❙Fuel Fill Door Release Handle (P 263)
14 CR-V-31T0A6200.book 4 ページ ２０１４年２月１０日　月曜日　午後７時１分

236

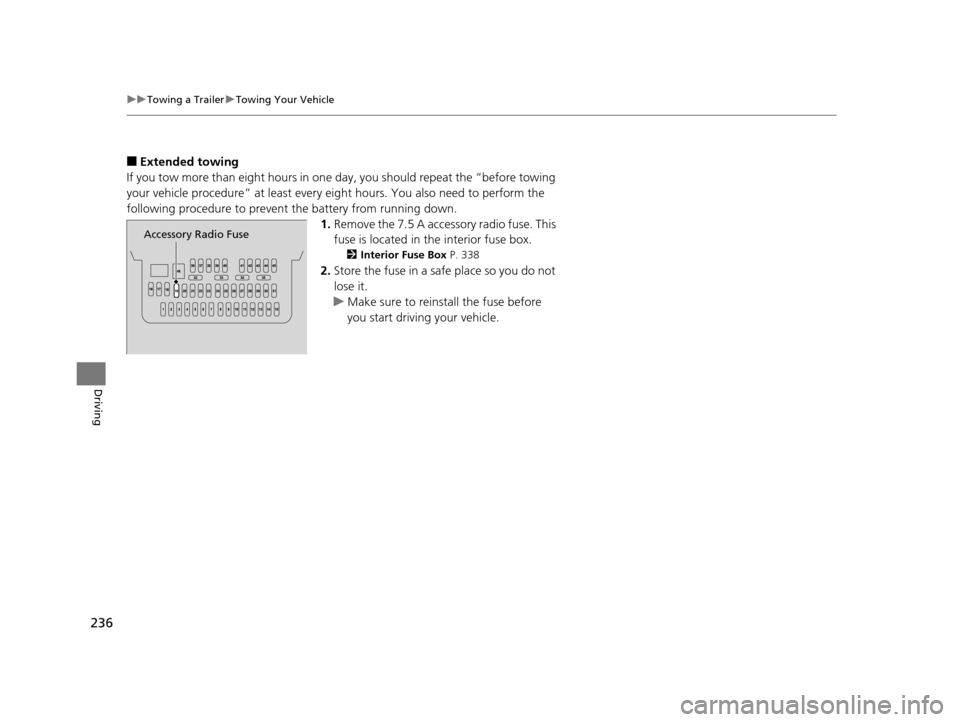

uuTowing a Trailer uTowing Your Vehicle
Driving
■Extended towing
If you tow more than eight hours in one da y, you should repeat the “before towing
your vehicle procedure” at least every eight hours. You also need to perform the
following procedure to prevent the battery from running down.
1.Remove the 7.5 A accessory radio fuse. This
fuse is located in the interior fuse box.
2 Interior Fuse Box P. 338
2.Store the fuse in a safe place so you do not
lose it.
u Make sure to reinstall the fuse before
you start driving your vehicle.
Accessory Radio Fuse
14 CR-V-31T0A6200.book 236 ページ ２０１４年２月１０日　月曜日　午後７時１分

337Continued
Handling the Unexpected

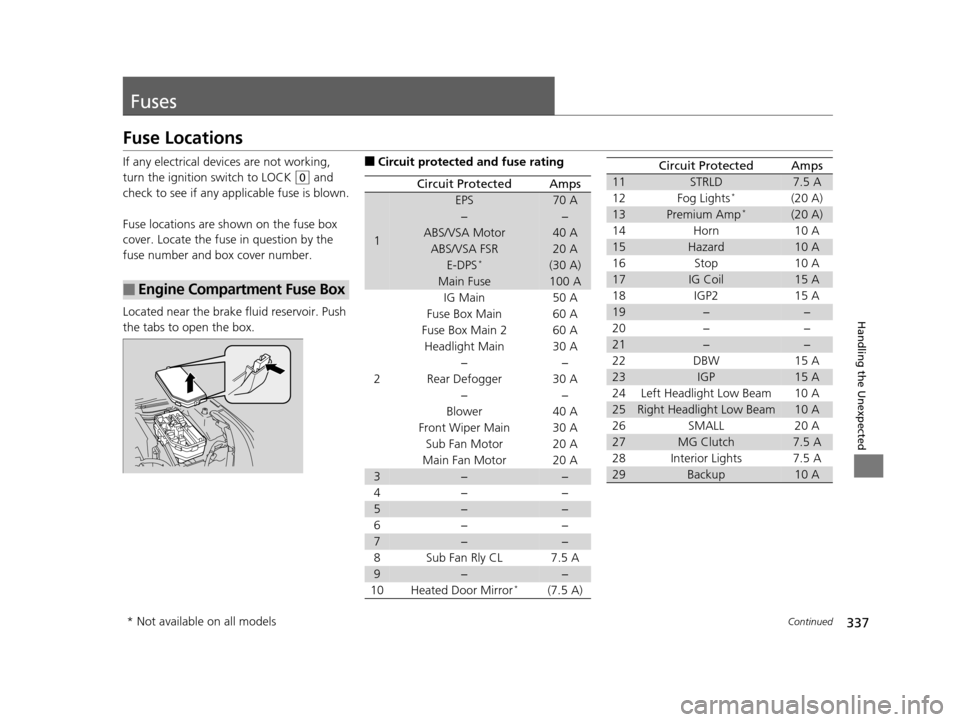

Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0 and
check to see if any appl icable fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
−−
ABS/VSA Motor40 A
ABS/VSA FSR20 A
E-DPS*(30 A)
Main Fuse100 A
2
IG Main50 A
Fuse Box Main 60 A
Fuse Box Main 260 A
Headlight Main 30 A
−−
Rear Defogger 30 A −−
Blower 40 A
Front Wiper Main 30 A Sub Fan Motor 20 A
Main Fan Motor 20 A
3−−
4− −
5−−
6− −
7−−
8 Sub Fan Rly CL 7.5 A
9−−
10 Heated Door Mirror*(7.5 A)
11STRLD7.5 A
12 Fog Lights*(20 A)
13Premium Amp*(20 A)
14 Horn 10 A
15Hazard10 A
16 Stop 10 A
17IG Coil15 A
18 IGP2 15 A
19−−
20 − −
21−−
22 DBW 15 A
23IGP15 A
24 Left Headlight Low Beam 10 A
25Right Headlight Low Beam10 A
26 SMALL 20 A
27MG Clutch7.5 A
28 Interior Lights 7.5 A
29Backup10 A
Circuit ProtectedAmps
* Not available on all models
14 CR-V-31T0A6200.book 337 ページ ２０１４年２月１０日　月曜日　午後７時１分

338

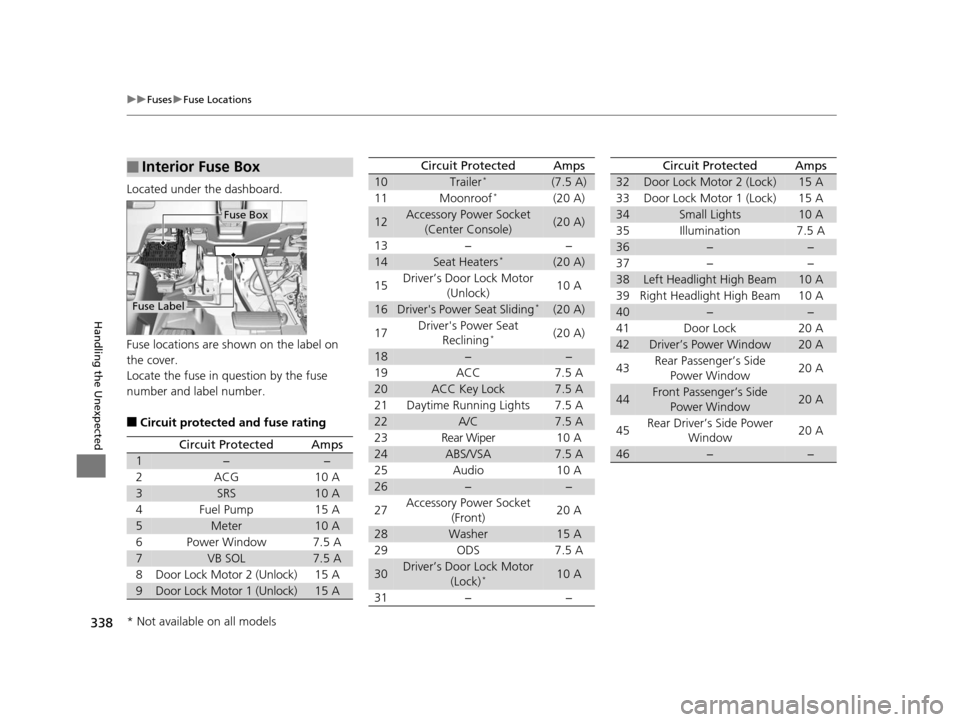

uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the cover.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Fuse Box
Circuit ProtectedAmps
1−−
2ACG10 A
3SRS10 A
4Fuel Pump15 A
5Meter10 A
6Power Window7.5 A
7VB SOL7.5 A
8Door Lock Motor 2 (Unlock)15 A
9Door Lock Motor 1 (Unlock)15 A
10Trailer*(7.5 A)
11 Moonroof*(20 A)
12Accessory Power Socket (Center Console)(20 A)
13 − −
14Seat Heaters*(20 A)
15 Driver’s Door Lock Motor
(Unlock) 10 A
16Driver's Power Seat Sliding*(20 A)
17 Driver's Power Seat
Reclining
*(20 A)
18−−
19 ACC 7.5 A
20ACC Key Lock7.5 A
21 Daytime Running Lights 7.5 A
22A/C7.5 A
23 Rear Wiper 10 A
24ABS/VSA7.5 A
25 Audio 10 A
26−−
27 Accessory Power Socket
(Front) 20 A
28Washer15 A
29 ODS 7.5 A
30Driver’s Door Lock Motor (Lock)*10 A
31 − −
Circuit ProtectedAmps
32Door Lock Motor 2 (Lock)15 A
33 Door Lock Motor 1 (Lock) 15 A
34Small Lights10 A
35 Illumination 7.5 A
36−−
37 − −
38Left Headlight High Beam10 A
39 Right Headlight High Beam 10 A
40−−
41 Door Lock 20 A
42Driver’s Power Window20 A
43 Rear Passenger’s Side
Power Window 20 A
44Front Passenger’s Side
Power Window20 A
45 Rear Driver’s Side Power
Window 20 A
46−−
Circuit ProtectedAmps
* Not available on all models
14 CR-V-31T0A6200.book 338 ページ ２０１４年２月１０日　月曜日　午後７時１分

339
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

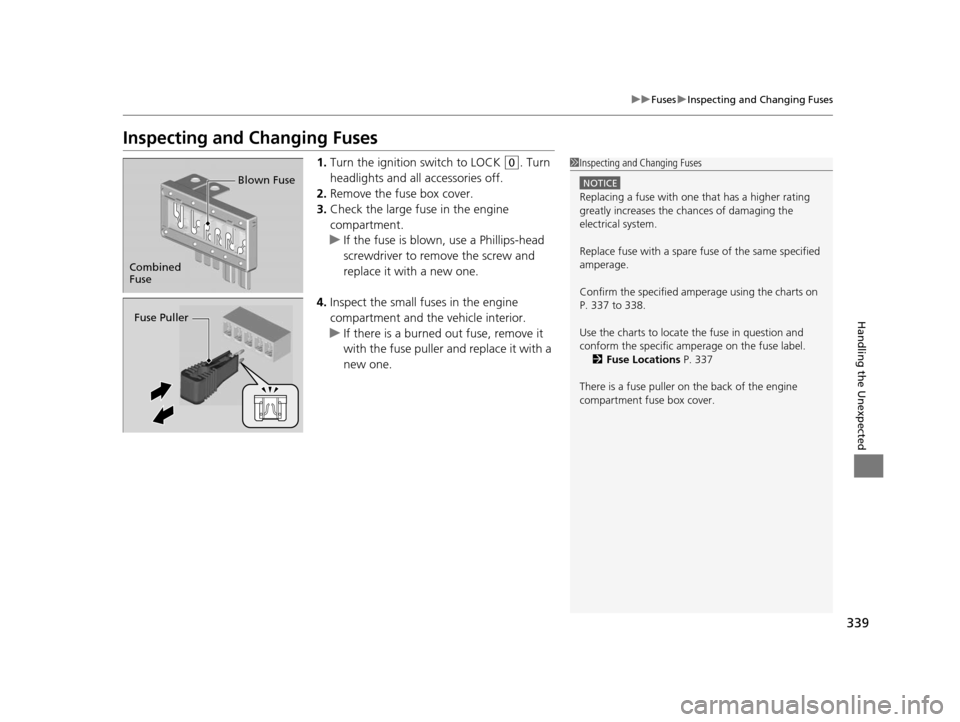

Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 337 to 338.
Use the charts to locate the fuse in question and
conform the specific ampe rage on the fuse label.
2 Fuse Locations P. 337
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
14 CR-V-31T0A6200.book 339 ページ ２０１４年２月１０日　月曜日　午後７時１分

358

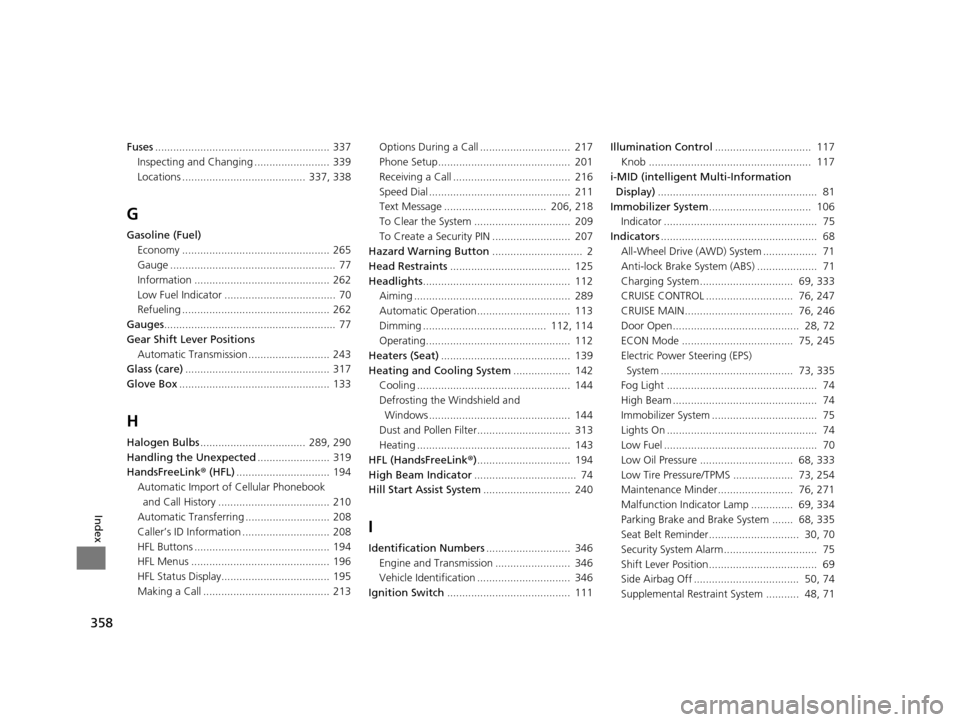

Index
Fuses.......................................................... 337
Inspecting and Changing ......................... 339
Locations ......................................... 337, 338
G
Gasoline (Fuel)
Economy ................................................. 265
Gauge ....................................................... 77
Information ............................................. 262
Low Fuel Indicator ..................................... 70
Refueling ................................................. 262
Gauges ......................................................... 77
Gear Shift Lever Positions Automatic Transmission ........................... 243
Glass (care) ................................................ 317
Glove Box .................................................. 133
H
Halogen Bulbs ................................... 289, 290
Handling the Unexpected ........................ 319
HandsFreeLink® (HFL)............................... 194
Automatic Import of Cellular Phonebook
and Call History ..................................... 210
Automatic Transferring ............................ 208
Caller’s ID Information ............................. 208
HFL Buttons ............................................. 194
HFL Menus .............................................. 196
HFL Status Display.................................... 195
Making a Call .......................................... 213 Options During a Call .............................. 217
Phone Setup............................................ 201
Receiving a Call ....................................... 216
Speed Dial ............................................... 211
Text Message .................................. 206, 218
To Clear the System ................................ 209
To Create a Security PIN .......................... 207
Hazard Warning Button .............................. 2
Head Restraints ........................................ 125
Headlights ................................................. 112
Aiming .................................................... 289
Automatic Operation............................... 113
Dimming ......................................... 112, 114
Operating................................................ 112
Heaters (Seat) ........................................... 139
Heating and Cooling System ................... 142
Cooling ................................................... 144
Defrosting the Windshield and Windows ............................................... 144
Dust and Pollen Filter............................... 313
Heating ................................................... 143
HFL (HandsFreeLink ®)............................... 194
High Beam Indicator .................................. 74
Hill Start Assist System ............................. 240
I
Identification Numbers ............................ 346
Engine and Transmission ......................... 346
Vehicle Identification ............................... 346
Ignition Switch ......................................... 111 Illumination Control
................................ 117
Knob ...................................................... 117
i-MID (intelligent Multi-Information Display) ..................................................... 81
Immobilizer System .................................. 106
Indicator ................................................... 75
Indicators .................................................... 68
All-Wheel Drive (AWD) System .................. 71
Anti-lock Brake System (ABS) .................... 71
Charging System............................... 69, 333
CRUISE CONTROL ............................. 76, 247
CRUISE MAIN.................................... 76, 246
Door Open.......................................... 28, 72
ECON Mode ..................................... 75, 245
Electric Power Steering (EPS) System ............................................ 73, 335
Fog Light .................................................. 74
High Beam ................................................ 74
Immobilizer System ................................... 75
Lights On .................................................. 74
Low Fuel ................................................... 70
Low Oil Pressure ............................... 68, 333
Low Tire Pressure/TPMS .................... 73, 254
Maintenance Minder......................... 76, 271
Malfunction Indicator Lamp .............. 69, 334
Parking Brake and Brak e System ....... 68, 335
Seat Belt Reminder .............................. 30, 70
Security System Alarm............................... 75
Shift Lever Position.................................... 69
Side Airbag Off ................................... 50, 74
Supplemental Restraint System ........... 48, 71
