remote start HONDA CR-V 2014 RM1, RM3, RM4 / 4.G Owners Manual

Contents
Child Safety P. 52Exhaust Gas Hazard P. 65Safety Labels P. 66
Opening and Closing the Tailgate P. 104 Security System P. 106 Opening and Closing the Windows P. 108
Operating the Switches Around the Steering Wheel P. 111 Adjusting the Mirrors P. 120
Interior Lights/Interior Convenience Items P. 132 Heating and Cooling System
* P. 142
Rear Entertainment System* P. 174 Audio Error Messages P. 186
Bluetooth ® HandsFreeLink ® P. 194 Compass P. 223
Off-Highway Driving Guidelines P. 237 When Driving P. 239 Braking P. 256
Refueling P. 262 Fuel Economy P. 265Accessories and Modifications P. 266
Maintenance Under the Hood P. 277 Replacing Light Bulbs P. 289
Checking and Maintaining Tires P. 300 Battery P. 309 Remote Transmitter Care P. 310
Heating and Cooling System
*/Climate Control System* Maintenance P. 313 Cleaning P. 314
Engine Does Not Start P. 327 Jump Starting P. 328 Shift Lever Does Not Move P. 330
Fuses P. 337 Emergency Towing P. 340
When You Cannot Open the Tailgate P. 341
Devices that Emit Radio Waves P. 347 Reporting Safety Defects P. 348
Authorized Manuals P. 353 Customer Service Information P. 354
Quick Reference GuideP. 2
Safe DrivingP. 23
Instrument PanelP. 67
ControlsP. 95
FeaturesP. 149
DrivingP. 225
MaintenanceP. 267
Handling the UnexpectedP. 319
InformationP. 343
IndexP. 355
14 CR-V-31T0A6200.book 1 ページ ２０１４年２月１０日　月曜日　午後７時１分

20

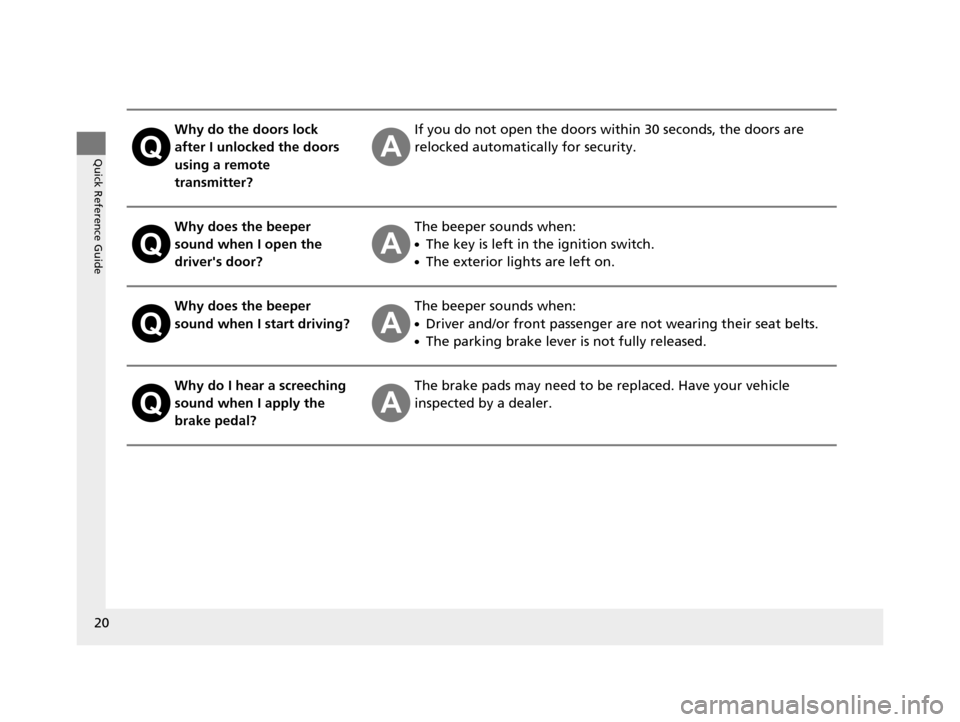

Quick Reference Guide
Why do the doors lock
after I unlocked the doors
using a remote
transmitter?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?The beeper sounds when:
●The key is left in the ignition switch.
●The exterior lights are left on.
Why does the beeper
sound when I start driving?The beeper sounds when:
●Driver and/or front passenger are not wearing their seat belts.
●The parking brake lever is not fully released.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
14 CR-V-31T0A6200.book 20 ページ ２０１４年２月１０日　月曜日　午後７時１分

97Continued
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following key:Use the key to start and stop the engine, and
to lock and unlock the doors and tailgate. You
can also lock and unlock the doors and
tailgate pressing the buttons on remote
transmitter.
■Master Keys
1Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 106
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
14 CR-V-31T0A6200.book 97 ページ ２０１４年２月１０日　月曜日　午後７時１分

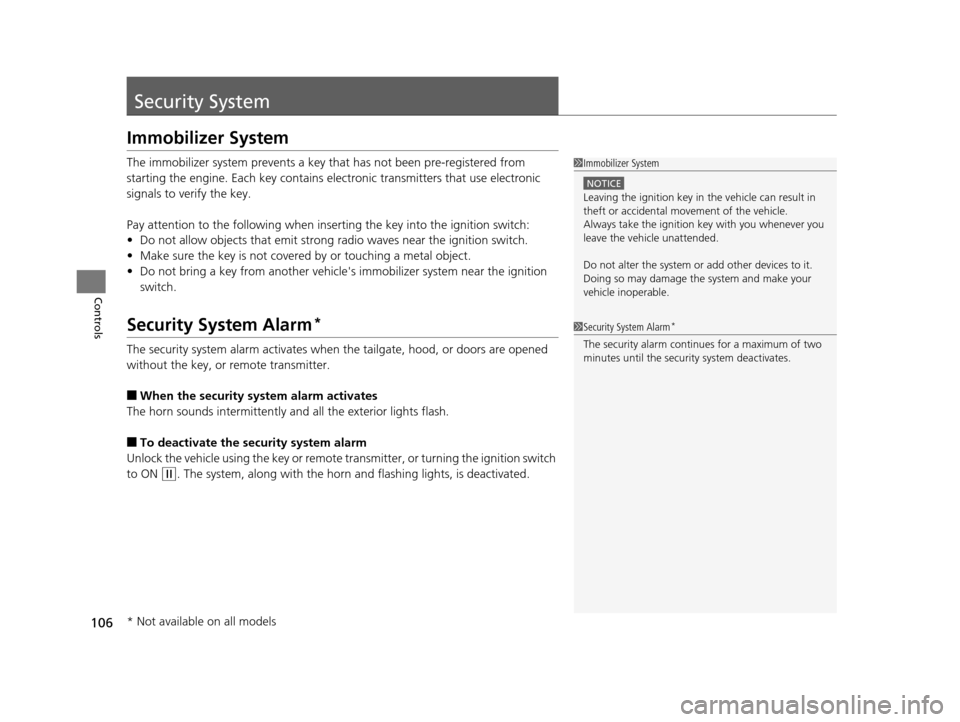

106
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains el ectronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when inserting the key into th e ignition switch:
• Do not allow objects that emit strong radio waves near the ignition switch.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from anot her vehicle's immobilizer system near the ignition
switch.
Security System Alarm*
The security system alarm activates when the tailgate, hood, or doors are opened
without the key, or remote transmitter.
■When the security sy stem alarm activates
The horn sounds intermittently and all the exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the key or remote transmitter, or turning the ignition switch
to ON
( w. The system, along with the horn and flashing lights, is deactivated.
1 Immobilizer System
NOTICE
Leaving the ignition key in the vehicle can result in
theft or accidental move ment of the vehicle.
Always take the ignition key with you whenever you
leave the vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1 Security System Alarm*
The security alarm continues for a maximum of two
minutes until the security system deactivates.
* Not available on all models
14 CR-V-31T0A6200.book 106 ページ ２０１４年２月１０日　月曜日　午後７時１分

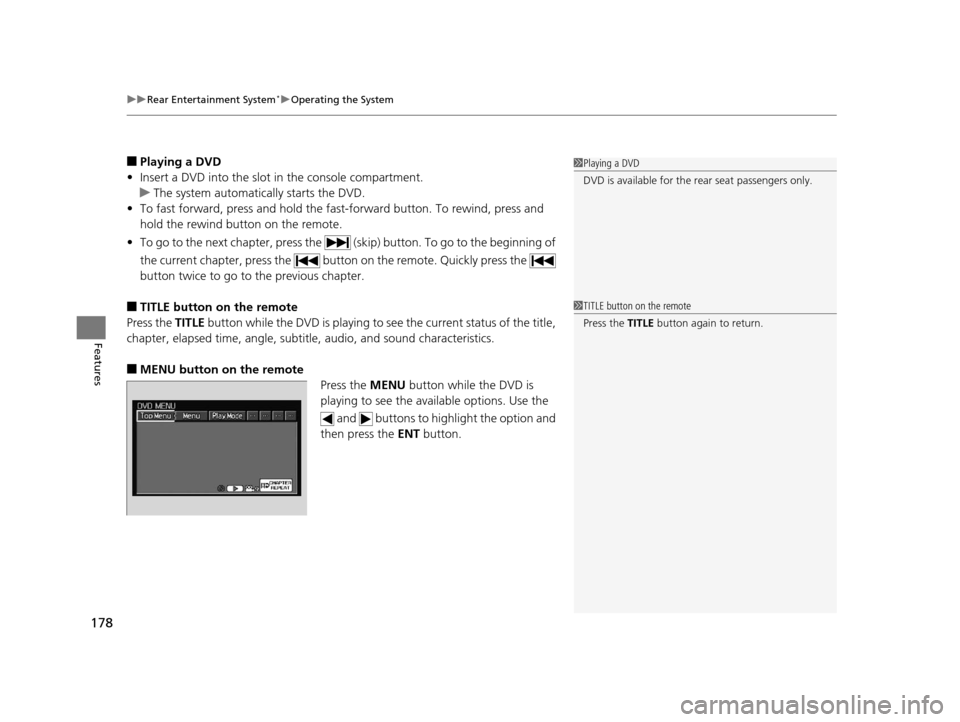

uuRear Entertainment System*uOperating the System
178
Features
■Playing a DVD
• Insert a DVD into the slot in the console compartment.
u The system automatically starts the DVD.
• To fast forward, press and hold the fa st-forward button. To rewind, press and
hold the rewind button on the remote.
• To go to the next chapter, press the (skip) button. To go to the beginning of
the current chapter, press the butt on on the remote. Quickly press the
button twice to go to the previous chapter.
■TITLE button on the remote
Press the TITLE button while the DVD is playing to se e the current status of the title,
chapter, elapsed time, angle, subtitle, audio, and sound characteristics.
■MENU button on the remote Press the MENU button while the DVD is
playing to see the ava ilable options. Use the
and buttons to highlight the option and
then press the ENT button.
1Playing a DVD
DVD is available for the re ar seat passengers only.
1TITLE button on the remote
Press the TITLE button again to return.
14 CR-V-31T0A6200.book 178 ページ ２０１４年２月１０日　月曜日　午後７時１分

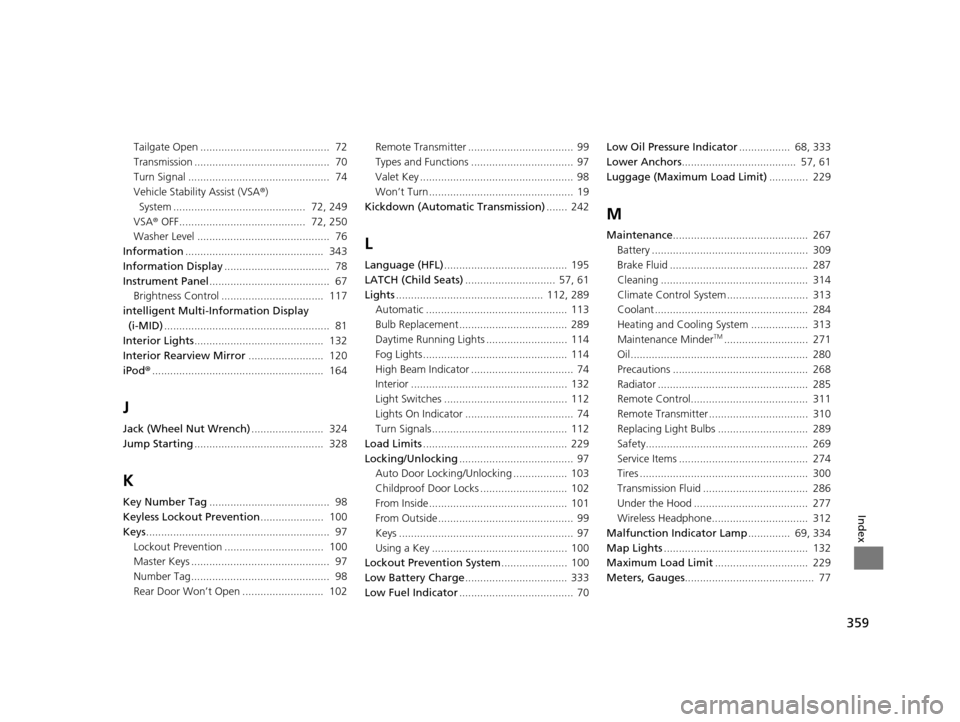

359
Index
Tailgate Open ........................................... 72
Transmission ............................................. 70
Turn Signal ............................................... 74
Vehicle Stability Assist (VSA®)
System ............................................ 72, 249
VSA ® OFF.......................................... 72, 250
Washer Level ............................................ 76
Information .............................................. 343
Information Display ................................... 78
Instrument Panel ........................................ 67
Brightness Control .................................. 117
intelligent Multi-Information Display (i-MID) ....................................................... 81
Interior Lights ........................................... 132
Interior Rearview Mirror ......................... 120
iPod ®......................................................... 164
J
Jack (Wheel Nut Wrench) ........................ 324
Jump Starting ........................................... 328
K
Key Number Tag ........................................ 98
Keyless Lockout Prevention ..................... 100
Keys ............................................................. 97
Lockout Prevention ................................. 100
Master Keys .............................................. 97
Number Tag.............................................. 98
Rear Door Won’t Open ........................... 102 Remote Transmitter ................................... 99
Types and Functions .................................. 97
Valet Key ................................................... 98
Won’t Turn ................................................ 19
Kickdown (Automatic Transmission) ....... 242
L
Language (HFL)......................................... 195
LATCH (Child Seats) .............................. 57, 61
Lights ................................................. 112, 289
Automatic ............................................... 113
Bulb Replacement .................................... 289
Daytime Running Lights ........................... 114
Fog Lights ................................................ 114
High Beam Indicator .................................. 74
Interior .................................................... 132
Light Switches ......................................... 112
Lights On Indicator .................................... 74
Turn Signals ............................................. 112
Load Limits ................................................ 229
Locking/Unlocking ...................................... 97
Auto Door Locking/Unlocking .................. 103
Childproof Door Locks ............................. 102
From Inside .............................................. 101
From Outside ............................................. 99
Keys .......................................................... 97
Using a Key ............................................. 100
Lockout Prevention System ...................... 100
Low Battery Charge .................................. 333
Low Fuel Indicator ...................................... 70 Low Oil Pressure Indicator
................. 68, 333
Lower Anchors ...................................... 57, 61
Luggage (Maximum Load Limit) ............. 229
M
Maintenance............................................. 267
Battery .................................................... 309
Brake Fluid .............................................. 287
Cleaning ................................................. 314
Climate Control System ........................... 313
Coolant ................................................... 284
Heating and Cooling System ................... 313
Maintenance Minder
TM............................ 271
Oil ........................................................... 280
Precautions ............................................. 268
Radiator .................................................. 285
Remote Control....................................... 311
Remote Transmitter ................................. 310
Replacing Light Bulbs .............................. 289
Safety...................................................... 269
Service Items ........................................... 274
Tires ........................................................ 300
Transmission Fluid ................................... 286
Under the Hood ...................................... 277
Wireless Headphone................................ 312
Malfunction Indicator Lamp .............. 69, 334
Map Lights ................................................ 132
Maximum Load Limit ............................... 229
Meters, Gauges ........................................... 77
14 CR-V-31T0A6200.book 359 ページ ２０１４年２月１０日　月曜日　午後７時１分
