spark plugs HONDA CR-V 2014 RM1, RM3, RM4 / 4.G Owners Manual

274
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder
Message
System Message
Indicator
Sub Items
Main
Item
*1: If a message
SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: If you tow your vehicle behind a motorhome, the transmission fluid must be changed every 2 years or 30,000 miles (48,000 km), whichever comes first.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*
* Not available on all models
14 CR-V-31T0A6200.book 274 ページ ２０１４年２月１０日　月曜日　午後７時１分

344
Information

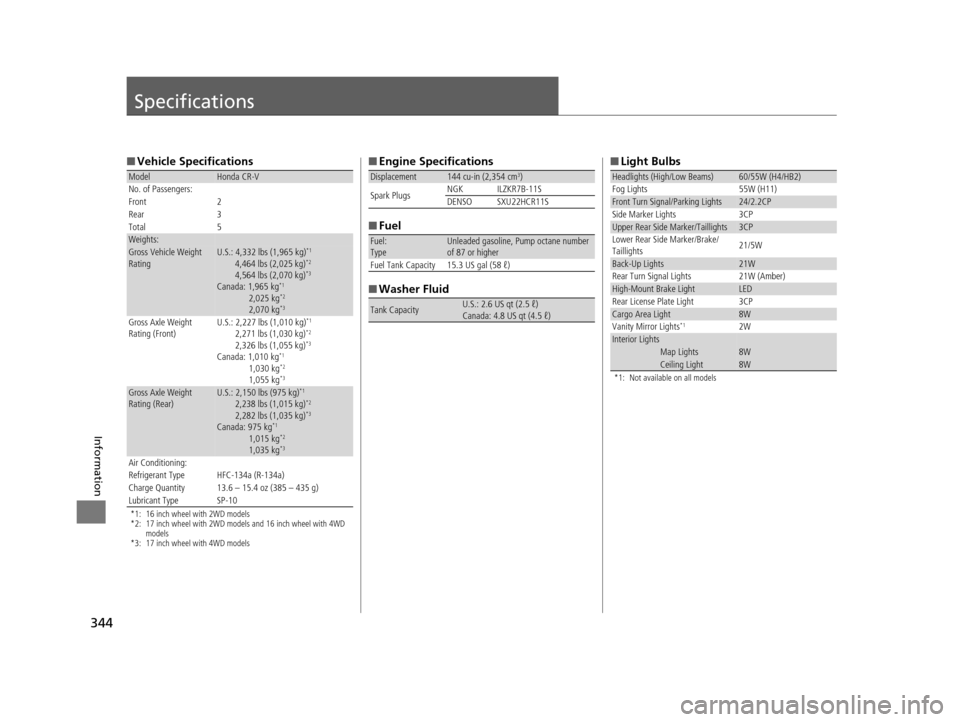

Specifications
■Vehicle Specifications
*1: 16 inch wheel with 2WD models
*2: 17 inch wheel with 2WD models and 16 inch wheel with 4WD
models
*3: 17 inch wheel with 4WD models
ModelHonda CR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,332 lbs (1,965 kg)*1
4,464 lbs (2,025 kg)*2
4,564 lbs (2,070 kg)*3
Canada: 1,965 kg*1
2,025 kg*2
2,070 kg*3
Gross Axle Weight
Rating (Front)U.S.: 2,227 lbs (1,010 kg)*1
2,271 lbs (1,030 kg)*2
2,326 lbs (1,055 kg)*3
Canada: 1,010 kg*1
1,030 kg*2
1,055 kg*3
Gross Axle Weight
Rating (Rear)U.S.: 2,150 lbs (975 kg)*1
2,238 lbs (1,015 kg)*2
2,282 lbs (1,035 kg)*3
Canada: 975 kg*1
1,015 kg*2
1,035 kg*3
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity13.6 – 15.4 oz (385 – 435 g)Lubricant TypeSP-10
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,354 cm3)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 15.3 US gal (58 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
*1: Not available on all models
Headlights (High/Low Beams)60/55W (H4/HB2)
Fog Lights 55W (H11)
Front Turn Signal/Parking Lights24/2.2CP
Side Marker Lights 3CP
Upper Rear Side Marker/Taillights3CP
Lower Rear Side Marker/Brake/
Taillights 21/5W
Back-Up Lights21W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightLED
Rear License Plate Light 3CP
Cargo Area Light8W
Vanity Mirror Lights*12WInterior LightsMap Lights8WCeiling Light8W
14 CR-V-31T0A6200.book 344 ページ ２０１４年２月１０日　月曜日　午後７時１分

361
Index
Seat Belts.................................................... 29
Adjusting the Shoulder Anchor ................. 33
Automatic Seat Belt Tensioners ................. 31
Checking .................................................. 36
Detachable Anchor ................................... 34
Fastening .................................................. 32
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 60
Pregnant Women...................................... 35
Reminder .................................................. 30
Warning Indicator ............................... 30, 70
Seat Heaters ............................................. 139
Seats .......................................................... 122
Adjusting ................................................ 122
Driver’s Seat Lumbar Support .................. 122
Front Seats.............................................. 122
Rear Seats ............................................... 129
Seat Heaters ........................................... 139
Security System ........................................ 106
Immobilizer System Indicator..................... 75
Security System Alarm Indicator ................ 75
Select Lever ........................................ 15, 243
Operation ......................................... 15, 244
Releasing ................................................ 330
Won’t Move ........................................... 330
Select/Reset Knob ...................................... 78
Selecting a Child Seat ................................ 56
Selector Knob (Audio) ............................. 153
Setting the Clock ........................................ 96
Shift Lever .......................................... 15, 243
Shift Lever Position Indicator ............ 69, 244Shifting (Transmission)
............................. 243
Shoulder Anchor ......................................... 33
Side Airbags ................................................ 44
Cutoff System ........................................... 46
Off Indicator .............................................. 46
Side Curtain Airbags ................................... 47
SMS Text Message ............................ 206, 218
Snow Tires ................................................. 308
Spare Tire .......................................... 321, 345
Spark Plugs ................................................ 344
Specifications ............................................ 344
Specified Fuel .................................... 262, 344
Speedometer .............................................. 77
SRS Airbags (Airbags) ................................. 40
Starting the Engine .................................. 239
Does Not Start ......................................... 327
Engine Switch Buzzer .............................. 111
Jump Starting .......................................... 328
Steering Wheel ......................................... 119
Adjusting ................................................. 119
Stopping .................................................... 260
Summer Tires ............................................ 308
Sunglasses Holder ..................................... 138
Supplemental Restraint System (SRS) ........ 40
Switches (Around the Steering
Wheel) ............................................. 2, 3, 111
Synchronized Mode .................................. 147
T
Tachometer................................................. 77 Tailgate
..................................................... 104
Unable to Open....................................... 341
Temperature Gauge ................................... 77
Temperature Sensor ................................. 148
Text Message .................................... 206, 218
Time (Setting) ............................................. 96
Tire Pressure Monitoring System (TPMS) ..................................................... 252
Button..................................................... 252
Indicator.................................................... 73
Tires ........................................................... 300
Air Pressure ..................................... 301, 345
Checking and Maintaining ...................... 300
Inspection ............................................... 300
Labeling .................................................. 301
Puncture (Flat Tire) .................................. 321
Regulations ............................................. 303
Rotation .................................................. 307
Spare Tire ........................................ 321, 345
Summer .................................................. 308
Tire Chains .............................................. 308
Wear Indicators ....................................... 305
Winter..................................................... 308
Tonneau Cover ......................................... 140
Tools .......................................................... 320
Towing a Trailer ....................................... 231
Equipment and Accessories ..................... 232
Load Limits .............................................. 231
Towing Your Vehicle ................................ 235
Behind a Motorhome .............................. 235
Emergency .............................................. 340
