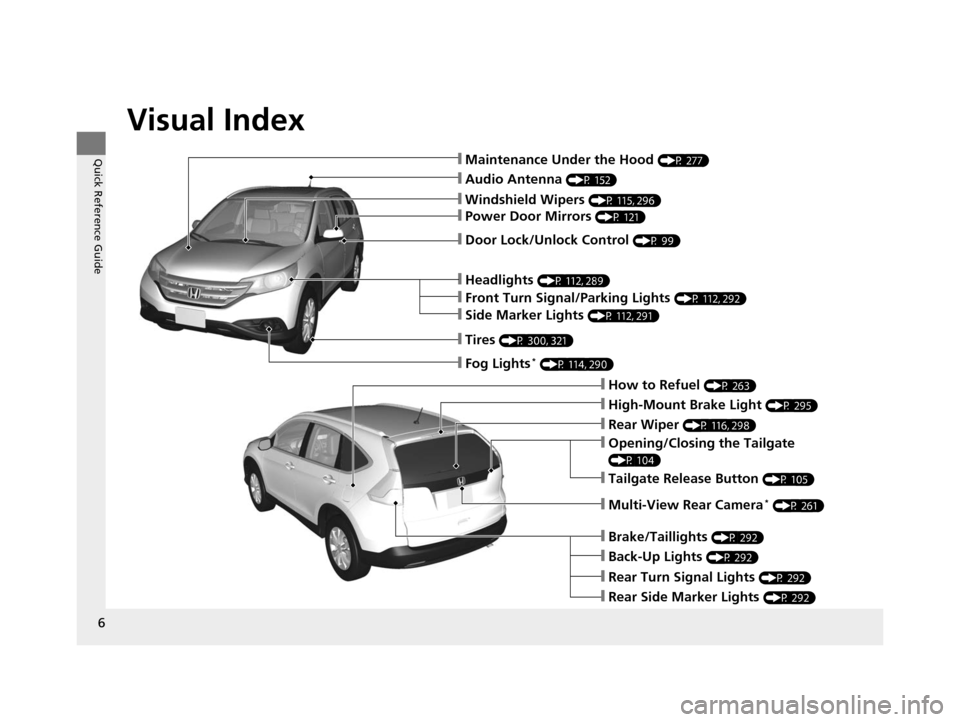

Visual Index
6
Quick Reference Guide
❙Audio Antenna (P 152)
❙Windshield Wipers (P 115, 296)
❙Door Lock/Unlock Control (P 99)
❙Headlights (P 112, 289)
❙How to Refuel (P 263)
❙High-Mount Brake Light (P 295)
❙Tailgate Release Button (P 105)
❙Opening/Closing the Tailgate
(P 104)
❙Rear Wiper (P 116, 298)
❙Back-Up Lights (P 292)
❙Brake/Taillights (P 292)
❙Rear Turn Signal Lights (P 292)
❙Rear Side Marker Lights (P 292)
❙Power Door Mirrors (P 121)
❙Maintenance Under the Hood (P 277)
❙Fog Lights* (P 114, 290)
❙Multi-View Rear Camera* (P 261)
❙Front Turn Signal/Parking Lights (P 112, 292)
❙Side Marker Lights (P 112, 291)
❙Tires (P 300, 321)
14 CR-V-31T0A6200.book 6 ページ ２０１４年２月１０日　月曜日　午後７時１分

115
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the ignition switch is in ON
(w.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT, LO, HI)
Change the wiper switch setting according to
the amount of rain.
■Adjusting the delay*
Turn the adjustment ring to adjust the wiper
delay.
■Washer
Sprays while you pull the lever toward you.
When you release the lever, the wipers make
two or three more sweeps before stopping.
■Windshield Wipers/Washers1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield, becoming stuck.
Operating the wipers in th is condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens. When the vehicle starts moving, the
wipers make a single sweep.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
Models with intermittent time adjustment ring
Intermittent Time
Adjustment Ring*
MIST
INT : Low speed with
intermittent OFF
LO : Low speed wipe
HI : High speed wipe Pull to
use
washer.
Long delay
Short delay
* Not available on all models
14 CR-V-31T0A6200.book 115 ページ ２０１４年２月１０日　月曜日　午後７時１分

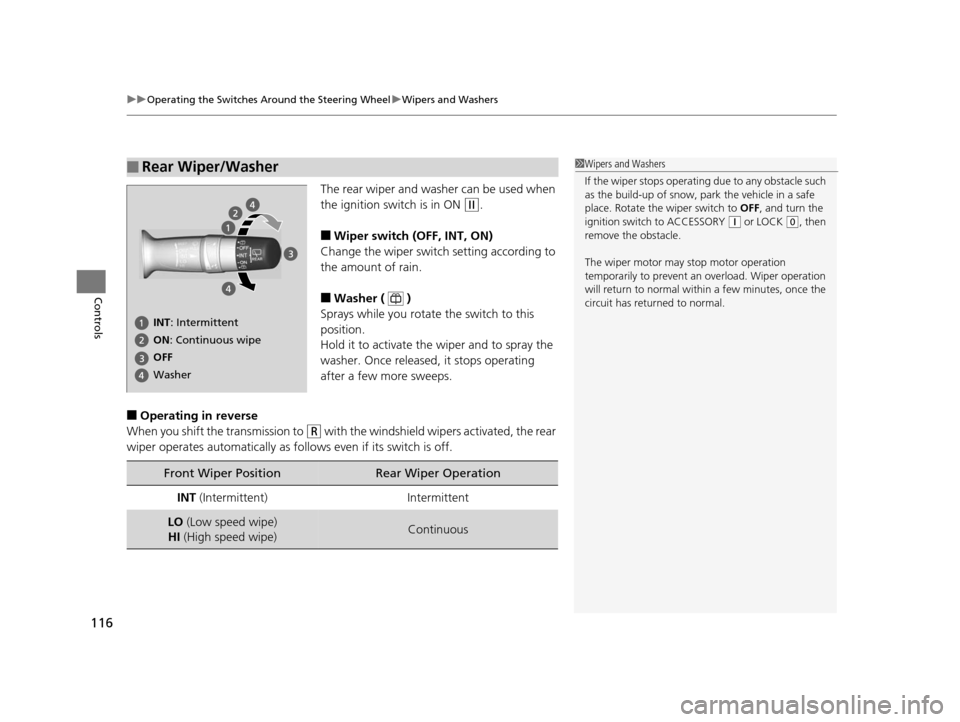

uuOperating the Switches Around the Steering Wheel uWipers and Washers
116
Controls
The rear wiper and washer can be used when
the ignition switch is in ON
(w.
■Wiper switch (OFF, INT, ON)
Change the wiper switch setting according to
the amount of rain.
■Washer ( )
Sprays while you rotate the switch to this
position.
Hold it to activate the wiper and to spray the
washer. Once released, it stops operating
after a few more sweeps.
■Operating in reverse
When you shift th e transmission to
(R with the windshield wipe rs activated, the rear
wiper operates automatically as fo llows even if its switch is off.
■Rear Wiper/Washer1Wipers and Washers
If the wiper stops operating due to any obstacle such
as the build-up of snow, pa rk the vehicle in a safe
place. Rotate the wiper switch to OFF , and turn the
ignition switch to ACCESSORY
( q or LOCK (0, then
remove the obstacle.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
INT : Intermittent
OFF ON : Continuous wipe
Washer
Front Wiper PositionRear Wiper Operation
INT (Intermittent)Intermittent
LO (Low speed wipe)
HI (High speed wipe)Continuous
14 CR-V-31T0A6200.book 116 ページ ２０１４年２月１０日　月曜日　午後７時１分

362
Index
TPMS (Tire Pressure Monitoring System) .................................................... 252
Button ..................................................... 252
Indicator .................................................... 73
Transmission .............................................. 243
Automatic ............................................... 243
Fluid ........................................................ 286
Number ................................................... 346
Shift Lever Position Indicator .............. 69, 244
Trip Meter ................................................... 79
Troubleshooting ....................................... 319
Blown Fuse ...................................... 337, 338
Brake Pedal Vibrates .................................. 19
Buzzer Sounds When Opening Door .......... 20
Emergency Towing .................................. 340
Engine Won’t Start .................................. 327
Noise When Braking .................................. 20
Overheating............................................. 331
Puncture/Flat Tire ..................................... 321
Rear Door Won’t Open ...................... 19, 102
Select Lever Won’t Move ......................... 330
Warning Indicators .................................... 68
Turn Signals ............................................... 112
Indicators (Instrum ent Panel) ...................... 74
U
Unlocking the Doors ................................... 99
Unlocking the Fron t Doors from the
Inside ......................................................... 11
USB Adapter Cable ........................... 150, 151 USB Flash Drives
....................................... 193
V
Valet Key..................................................... 98
Vanity Mirrors ............................................... 5
Vehicle Identification Number ................ 346
Vehicle Stability Assist (VSA ®).................. 249
Off Button............................................... 250
Off Indicator.............................................. 72
System Indicator ........................................ 72
Viscosity (Oil) .................................... 279, 345
VSA ® (Vehicle Stability Assist) .................. 249
W
Wallpaper................................................... 90
Warning Indicator On/Blinking ............... 333
Warning Labels ........................................... 66
Warranties (Warranty Manual provided
separately) .............................................. 351
Watts ......................................................... 344
Wear Indicators (Tire) .............................. 305
Wheel Nut Wrench (Jack Handle) ........... 324
Window Washers ..................................... 115
Adding/Refilling Fluid .............................. 288
Switch ..................................................... 115
Windows (Opening and Closing) ............ 108
Windshield ................................................ 115
Cleaning ................................................. 317
Defrosting/Defogging ...................... 144, 146 Washer Fluid ........................................... 288
Wiper Blades........................................... 296
Wipers and Washers ............................... 115
Winter Tires .............................................. 308
Snow Tires .............................................. 308
Tire Chains.............................................. 308
Wipers and Washers ................................ 115
Checking and Replacing Wiper Blades..... 296
Front....................................................... 115
Rear ........................................................ 116
WMA ................................................. 161, 169
Worn Tires ................................................ 300
X
XM® Radio ................................................ 159
