navigation system HONDA CR-V 2014 RM1, RM3, RM4 / 4.G Technology Reference Guide

SMS Text Messaging ................................................................................................21
iPod
®or USB Flash Drive .....................................................................................22
Bluetooth
®Audio ......................................................................................................23
Pandora
®...................................................................................................................24
MultiView Rear Camera ......................................................................................25
Honda Owners .......................................................................................................26
Safety Reminder ......................................................................................................26
Fuel Recommendation...........................................................................................27
Instrument Panel Indicators ...................................................................................2
Eco Assist
TM................................................................................................................4
Tire Pressure Monitoring System (TPMS)...........................................................5
Intelligent MultiInformation Display (iMID) ..................................................... 6
Auto Door Locks .....................................................................................................8
Voice Recognition ................................................................................................... 1\f
Navigation................................................................................................................ .14
Bluetooth
®HandsFreeLink®(HFL) .......................................................................17
T E C H N O L O G Y R E F E R E N C E G U I D E
This Technology Reference Guide is designed to help you get
acquainted with your 2\f14 Honda CRV EXL with Navigation
and provide basic instructions on some of its technology and
convenience features.
This guide is not intended to be a substitute \1for the Owner’s
Manual. For more detailed information on vehicle controls
and operation\b please refer to the respective sections in the
Owner’s Manual and Navigation Manual.
AUDIO p.22NAVIGATION p.\b4
INSTRUMENT
PANEL p. 2
ECO
ASSIST
TMp. 4
iMIDp. \f
14 CRV TRG_EXL NAVI\A_ATG_NEW STYLE \b/1\A3/2013 10\f11 AM P\Aage 2
One-Touch Turn Signal ........................................................................\
.....................9

1011
Key Functions by Voice Command
A U D I Op. 13
C L I M A T E C O N T R O Lp. 13
N A V I G A T I O Np. 14
B L U E T O O T H®H A N D S F R E E L I N K®p. 17
V O I C E R E C O G N I T I O N
Voice Command Tips
PickUp button: Answer an
incoming call\b or go directly to
the Phone screen.
HangUp\bBack button: End a
call\b decline an incoming call\b or
cancel a selection.
Talk button: Give navigation\b
HFL\b audio\b or climate control
commands.
Control four different systems with the steering wheel buttons and \1the ceiling
microphone.
To reduce the potential for driver distraction, certain manual and touch
screen functions may be inoperable or grayed out while the vehicle is
moving. Voice commands are always available.
To keep your eyes on the road and hands on the wheel\b use the Talk button to
say voice commands to operate certain vehicle features. For a full list of commands\b
say “Display Information” and “Voice Info.”
• Press and release the Talk button\b wait for a beep\b then say a command.
• All available voice commands are highlighted in blue when you press the Talkbutton.
• For a list of available commands\b press and release the Talk button and say “Help” at any time.
• Speak in a clear\b natural voice.
• Reduce all background noise.
• Adjust the dashboard and side vents away from the microphone in the ceiling.
• Close the windows.
• The system also uses a touchscreen display. You can select options or icons by touching them on the screen. This is limited while the vehicle is moving.
14 CRV TRG_EXL NAVI\A_ATG_NEW STYLE \b/1\A3/2013 10\f12 AM P\Aage 7

1415
N A V I G A T I O NRealtime navigation system uses GPS and a map database to show your current
location and help guide you to a desired destination.
Entering a Destination Using Voice Commands
Shows a more detailed view of the next maneuvers during route guidance on the
iMID. See your Owner’s Manual for instructions on how to turn this feature on
or off.
For information on setting other destination options\b see your Navigation Manual.
TurnbyTurn Directions
1. Say “Display menu.”
Say “Address.”
2. Say “Street,” then say the street
name on the next screen. Do not
include the direction (N\b S\b E\b W)
or type (St.\b Ave.\b Blvd.\b etc.).
3. A list of street names appears. Say the number next to the street you
want to select.
4. Say the entire street address number. For example\b “1\b34.” If
necessary\b say “OK” to proceed.
5. If the street address is in more than one city\b a list of city names
appears. Say the number next to
the city you want to select.
6. The system displays the “Calculate route to” screen. Say “Set as
destination” to set the route.
Note: It is recommended that you enter your destination before driving or when
the vehicle is stopped.
Direction of destination \falculated route
Distance to go
Time to go
\furrent vehicle
location
Distance to next
maneuver
Upcoming maneuver
\furrent route
Map Screen Legend
Press and release the Talk button before you say a command.
1. From the map screen\b say “Find
nearest ATM.”
2. A list of the nearest ATMs in your area is displayed by shortest
distance to destination.
3. Say the number next to the destination you want to select.
4. Say “Set as destination” to set the route.
Press and release the Talk button before you say a command.
Using the “Find Nearest” Command Using a Street Address
14 CRV TRG_EXL NAVI\A_ATG_NEW STYLE \b/1\A3/2013 10\f12 AM P\Aage 9

2021
Receiving a Call
A notification is heard and the following screen appears:
Use the audio selector knob to make and enter selections.
Using the Phonebook
When your phone is paired, its entire phonebook is automatically imported to
the system. This feature is inoperable when the vehicle is moving.4. The call is connected and heardthrough the vehicle speakers.
2. Select
Phonebook.
1. Press
the PickUp button
to go to the Phone screen. 3. Scroll
through the list to find
the name and number you
want to call, and select it.
Use the audio selector knob to make and enter selections.
Dialing a Number
Receiving a Call
Press
the HangUp button to
end or decline the call.
1. Press
the PickUp button to
go to the Phone screen.
2. Select Dial.

A notification is heard and the following screen appears:
Pr ess the PickUp button to
accept the c all. 3.

Enter
the phone n u
mber.
Select the green Dial icon or
press the PickUp button to call.
4. The call is connected and heard through the vehicle speakers.
Enter a 10digit phone number to call. This feature is inoperable when the
vehicle is moving.
12 CRV TRG_EX EXL EXLRES:ATG_NEW STYLE 6/20/2011 2:28PM
Page9
Use the audio selector knob to make and enter selections.
Using Speed Dial
Store up to 15 numbers for quick calling.
When a speed dial entry is stored with a voice tag, you can make a call \
using
voice commands at any time. Press the Talk button and follow the prompts\
. See
your Owner’s Manual for more information.4. The call is connected and heard
thr ough t he v

ehicle speakers.
2. Select
Speed Dial.
1. Press
the PickUp button
to g o to the Phone scr

een.3. Scroll
through the list to fi nd
the entry you want to call, and
select it using the PickUp
button.
Use the audio selector knob to make and enter selections.
Using the Phonebook
When your phone is paired, its entire phonebook is automatically imported to
the system. This feature is inoperable when the vehicle is moving.
4. The call is connected and heardthrough the vehicle speakers.
2. Select
Phonebook.
1. Press
the PickUp button
to go to the Phone screen. 3. Scroll
through the list to find
the name and number you
want to call, and select it.
Use the audio selector knob to make and enter selections.
Dialing a Number
Receiving a Call
Press
the HangUp button to
end or decline the call.
1. Press
the PickUp button to
go to the Phone screen.
2. Select Dial.

A notification is heard and the following screen appears:
Pr ess the PickUp button to
accept the c all. 3.

Enter
the phone n u
mber.
Select the green Dial icon or
press the PickUp button to call.
4. The call is connected and heard through the vehicle speakers.
Enter a 10digit phone number to call. This feature is inoperable when the
vehicle is moving.
12 CRV TRG_EX EXL EXLRES:ATG_NEW STYLE 6/20/2011 2:28PM
Page9
Use the audio selector knob to make and enter selections.
Using Speed Dial
Store up to 15 numbers for quick calling.
When a speed dial entry is stored with a voice tag, you can make a call \
using
voice commands at any time. Press the Talk button and follow the prompts\
. See
your Owner’s Manual for more information.4. The call is connected and heard
thr ough t he v

ehicle speakers.
2. Select
Speed Dial.
1. Press
the PickUp button
to g o to the Phone scr

een.3. Scroll
through the list to fi nd
the entry you want to call, and
select it using the PickUp
button.

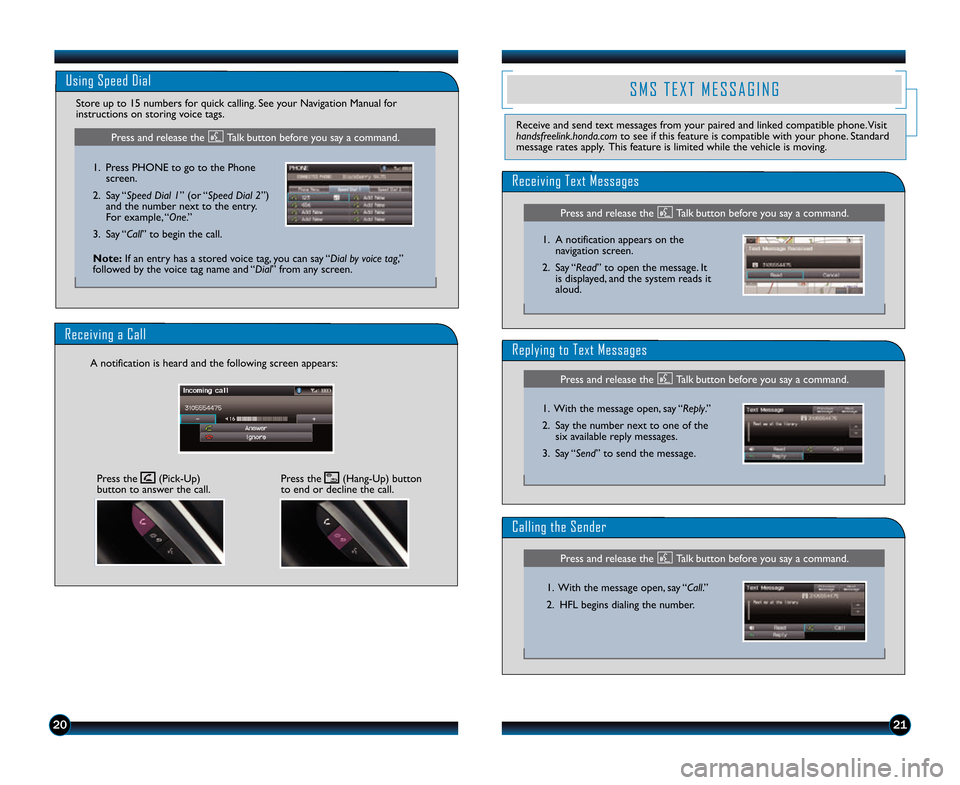

Using Speed Dial
Store up to 15 numbers for quick calling. See your Navigation Manual for
instructions on storing voice tags.
Press the (PickUp)
button to answer the call.Press the (HangUp) button
to end or decline the call.
1. Press PHONE to go to the Phone
screen.
2. Say “Speed Dial 1” (or “Speed Dial \b”) and the number next to the entry.
For example\b “One.”
3. Say “Call” to begin the call.
Press and release the Talk button before you say a command.
Note: If an entry has a stored voice tag\b you can say “Dial by voice tag\b”
followed by the voice tag name and “Dial” from any screen.
S M S T E X T M E S S A G I N G
Receive and send text messages from your paired and linked compatible phone. Visit
handsfreelink.honda.com to see if this feature is compatible with your phone. Standard
message rates apply. This feature is limited while the vehicle is moving.
Receiving Text Messages
Replying to Text Messages
Calling the Sender
1. With the message open\b say “Reply.”
2. Say the number next to one of the six available reply messages.
3. Say “Send” to send the message.
1. With the message open\b say “Call.”
2. HFL begins dialing the number.
1. A notification appears on the
navigation screen.
2. Say “Read” to open the message. It is displayed\b and the system reads it
aloud.
Press and release the Talk button before you say a command.
Press and release the Talk button before you say a command.
Press and release the Talk button before you say a command.
14 CRV TRG_EXL NAVI\A_ATG_NEW STYLE \b/1\A3/2013 10\f12 AM P\Aage 12

2425

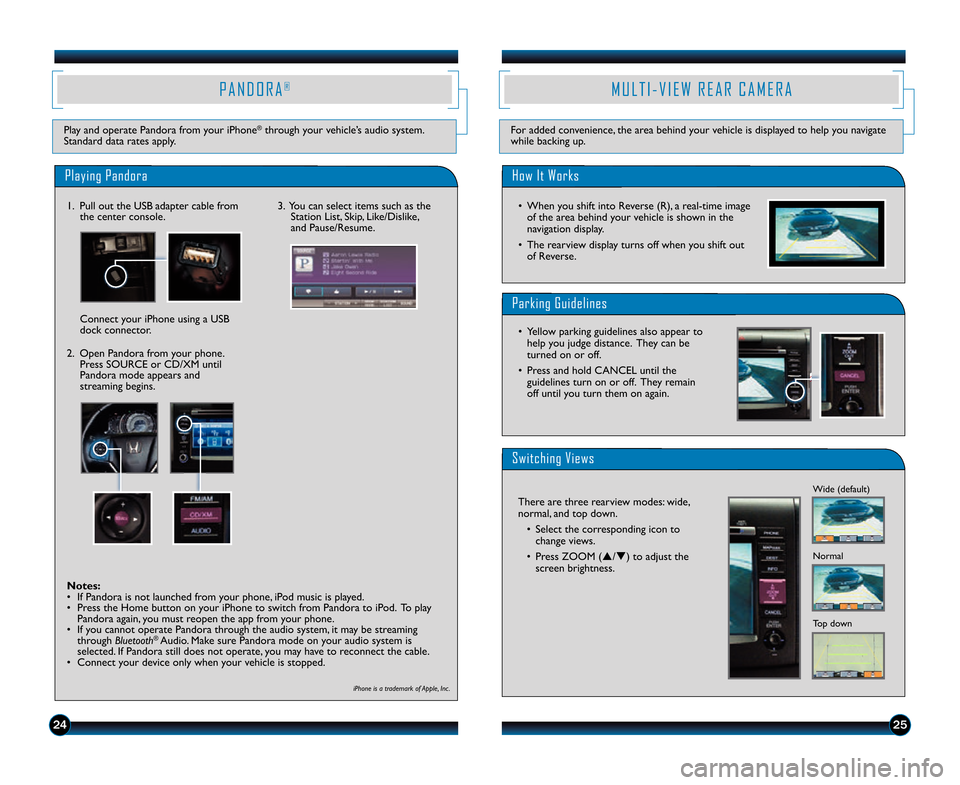

P A N D O R A®
Play and operate Pandora from your iPhone®through your vehicle’s audio system.
Standard data rates apply.
M U L T I V I E W R E A R C A M E R A
For added convenience\b the area behind your vehicle is displayed to help you navigate
while backing up.
Playing Pandora
1. Pull out the USB adapter cable from the center console.
2. Open Pandora from your phone. Press SOURCE or CD/XM until
Pandora mode appears and
streaming begins. Connect your iPhone using a USB
dock connector.
iPhone is a trademark of Apple, Inc .
Notes:
• If Pandora is not launched from your phone\b iPod music is played.
• Press the Home button on your iPhone to switch from Pandora to iPod. To playPandora again\b you must reopen the app from your phone.
• If you cannot operate Pandora through the audio system\b it may be streaming through Bluetooth
®Audio. Make sure Pandora mode on your audio system is
selected. If Pandora still does not operate\b you may have to reconnect the cable.
• Connect your device only when your vehicle is stopped. 3. You can select items such as the
Station List\b Skip\b Like/Dislike\b
and Pause/Resume.*Menu functions not available on all phones
iPhone is a registered trademark of Apple Computer, Inc ., registered in the U.S. and other countries.
Parking Guide Lines How It Works
• When you shift into Reverse (R), a realtime image of the area behind your vehicle is shown in the
navigation display.
• The rearview display turns off when you shift out of Reverse.
Switching Views
Playing Pandora
1. Pull out
the USB adapter cable
from the center console.
Connect your phone using a
U S B d o c k c o n n e c t o r.3. From the audio screen, select items such as Station List,
Like/Dislike, and Pause/Resume.*
2. Open Pandora from your phone.
Press SOURCE or CD/XM until
Pandora mode appears and
streaming begins.
There are three rearview modes: wide
(default view), normal,

and top down.
• Select the corresponding icon to change
views.
• Press
ZOOM () or() to adjust the
screen brightness.Wide (default)
Normal
Top down
• Yellow parking guide lines also appear to help you judge distance. They can be turned on or
off.
• Press and hold CANCEL until the guide lines turn on or off. They remain off until you
turn them on again.
12 CRV TRG_EXL NAVI_Japan Print:ATG_NEW STYLE 6/20/2011 3:54PM Page 16
Notes:
• If Pandora is not selected from your phone, iPod music is played.
•P
• Only connect your phone when your vehicle is stopped.ress the Home button on your iPhone to switch from Pandora to iPod. To play
Pandora again, you must reopen the app from your phone.
• If you cannot operate Pandora through the audio system, it may be streaming through Bluetooth
®Audio. Make sure Pandora mode on your audio system is
selected. If Pandora still does not operate, you may have to reconnect t\
he cable.
*Menu functions not available on all phones
iPhone is a registered trademark of Apple Computer, Inc ., registered in the U.S. and other countries.
Parking Guide Lines How It Works
• When you shift into Reverse (R), a realtime image of the area behind your vehicle is shown in the
navigation display.
• The rearview display turns off when you shift out of Reverse.
Switching Views
Playing Pandora
1. Pull out
the USB adapter cable
from the center console.
Connect your phone using a
U S B d o c k c o n n e c t o r.3. From the audio screen, select items such as Station List,
Like/Dislike, and Pause/Resume.*
2. Open Pandora from your phone.
Press SOURCE or CD/XM until
Pandora mode appears and
streaming begins.
There are three rearview modes: wide
(default view), normal,

and top down.
• Select the corresponding icon to change
views.
• Press
ZOOM () or() to adjust the
screen brightness.Wide (default)
Normal
Top down
• Yellow parking guide lines also appear to help you judge distance. They can be turned on or
off.
• Press and hold CANCEL until the guide lines turn on or off. They remain off until you
turn them on again.
12 CRV TRG_EXL NAVI_Japan Print:ATG_NEW STYLE 6/20/2011 3:54PM Page 16
Notes:
• If Pandora is not selected from your phone, iPod music is played.
•P
• Only connect your phone when your vehicle is stopped.ress the Home button on your iPhone to switch from Pandora to iPod. To play
Pandora again, you must reopen the app from your phone.
• If you cannot operate Pandora through the audio system, it may be streaming through Bluetooth
®Audio. Make sure Pandora mode on your audio system is
selected. If Pandora still does not operate, you may have to reconnect t\
he cable.
How It Works
• When you shift into Reverse (R)\b a realtime image
of the area behind your vehicle is shown in the
navigation display.
• The rearview display turns off when you shift out of Reverse.
Parking Guidelines
• Yellow parking guidelines also appear tohelp you judge distance. They can be
turned on or off.
• Press and hold CANCEL until the guidelines turn on or off. They remain
off until you turn them on again.
Switching Views
There are three rearview modes: wide\b
normal\b and top down.
• Select the corresponding icon tochange views.
• Press ZOOM (p/q) to adjust the screen brightness.
*Menu functions not available on all phones
iPhone is a registered trademark of Apple Computer, Inc ., registered in the U.S. and other countries.
Parking Guide Lines
How It Works
• When you shift into Reverse (R), a realtime image of the area behind your vehicle is shown in the
navigation display.
• The rearview display turns off when you shift out of Reverse.
Switching Views
Playing Pandora
1. Pull out
the USB adapter cable
from the center console.
Connect your phone using a
U S B d o c k c o n n e c t o r. 3. From the audio screen, select
items such as Station List,
Like/Dislik
e, and Pause/Resume.*
2. Open Pandora from your phone.
Press SOURCE or CD/XM until
Pandora mode appears and
streaming begins.
There are three rearview modes: wide
(default view), normal,

and top down.
• Select the corresponding icon to change
views.
• Press
ZOOM () or() to adjust the
screen brightness.Wide (default)
Normal
Top down
• Yellow parking guide lines also appear to help you judge distance. They can be turned on or
off.
• Press and hold CANCEL until the guide lines turn on or off. They remain off until you
turn them on again.
12 CRV TRG_EXL NAVI_Japan Print:ATG_NEW STYLE 6/20/2011 3:54PM Page 16
Notes:
• If Pandora is not selected from your phone, iPod music is played.
•P
• Only connect your phone when your vehicle is stopped.ress the Home button on your iPhone to switch from Pandora to iPod. To play
Pandora again, you must reopen the app from your phone.
• If you cannot operate Pandora through the audio system, it may be streaming through Bluetooth
®Audio. Make sure Pandora mode on your audio system is
selected. If Pandora still does not operate, you may have to reconnect t\
he cable.
*Menu functions not available on all phones
iPhone is a registered trademark of Apple Computer, Inc ., registered in the U.S. and other countries.
Parking Guide Lines
How It Works
• When you shift into Reverse (R), a realtime image of the area behind your vehicle is shown in the
navigation display.
• The rearview display turns off when you shift out of Reverse.
Switching Views
Playing Pandora
1. Pull out
the USB adapter cable
from the center console.
Connect your phone using a
U S B d o c k c o n n e c t o r. 3. From the audio screen, select
items such as Station List,
Like/Dislik
e, and Pause/Resume.*
2. Open Pandora from your phone.
Press SOURCE or CD/XM until
Pandora mode appears and
streaming begins.
There are three rearview modes: wide
(default view), normal,

and top down.
• Select the corresponding icon to change
views.
• Press
ZOOM () or() to adjust the
screen brightness.Wide (default)
Normal
Top down
• Yellow parking guide lines also appear to help you judge distance. They can be turned on or
off.
• Press and hold CANCEL until the guide lines turn on or off. They remain off until you
turn them on again.
12 CRV TRG_EXL NAVI_Japan Print:ATG_NEW STYLE 6/20/2011 3:54PM Page 16
Notes:
• If Pandora is not selected from your phone, iPod music is played.
•P
• Only connect your phone when your vehicle is stopped.ress the Home button on your iPhone to switch from Pandora to iPod. To play
Pandora again, you must reopen the app from your phone.
• If you cannot operate Pandora through the audio system, it may be streaming through Bluetooth
®Audio. Make sure Pandora mode on your audio system is
selected. If Pandora still does not operate, you may have to reconnect t\
he cable.
*Menu functions not available on all phones
iPhone is a registered trademark of Apple Computer, Inc ., registered in the U.S. and other countries.
Parking Guide Lines How It Works
• When you shift into Reverse (R), a realtime image of the area behind your vehicle is shown in the
navigation display.
• The rearview display turns off when you shift out of Reverse.
Switching Views
Playing Pandora
1. Pull out
the USB adapter cable
from the center console.
Connect your phone using a
U S B d o c k c o n n e c t o r. 3. From the audio screen, select
items such as Station List,
Like/Dislik
e, and Pause/Resume.*
2. Open Pandora from your phone.
Press SOURCE or CD/XM until
Pandora mode appears and
streaming begins.
There are three rearview modes: wide
(default view), normal, and top down.
• Select the corresponding icon to change
views.
• Press
ZOOM () or() to adjust the
screen brightness.Wide (default)
Normal
Top down
• Yellow parking guide lines also appear to help you judge distance. They can be turned on or
off.
• Press and hold CANCEL until the guide lines turn on or off. They remain off until you
turn them on again.
12 CRV TRG_EXL NAVI_Japan Print:ATG_NEW STYLE 6/20/2011 3:54PM Page 16
Notes:
• If Pandora is not selected from your phone, iPod music is played.
•P
• Only connect your phone when your vehicle is stopped.ress the Home button on your iPhone to switch from Pandora to iPod. To play
Pandora again, you must reopen the app from your phone.
• If you cannot operate Pandora through the audio system, it may be streaming through Bluetooth
®Audio. Make sure Pandora mode on your audio system is
selected. If Pandora still does not operate, you may have to reconnect t\
he cable.
14 CRV TRG_EXL NAVI\A_ATG_NEW STYLE \b/1\A3/2013 10\f12 AM P\Aage 14
