jump start HONDA CR-V 2015 RM1, RM3, RM4 / 4.G Owners Manual

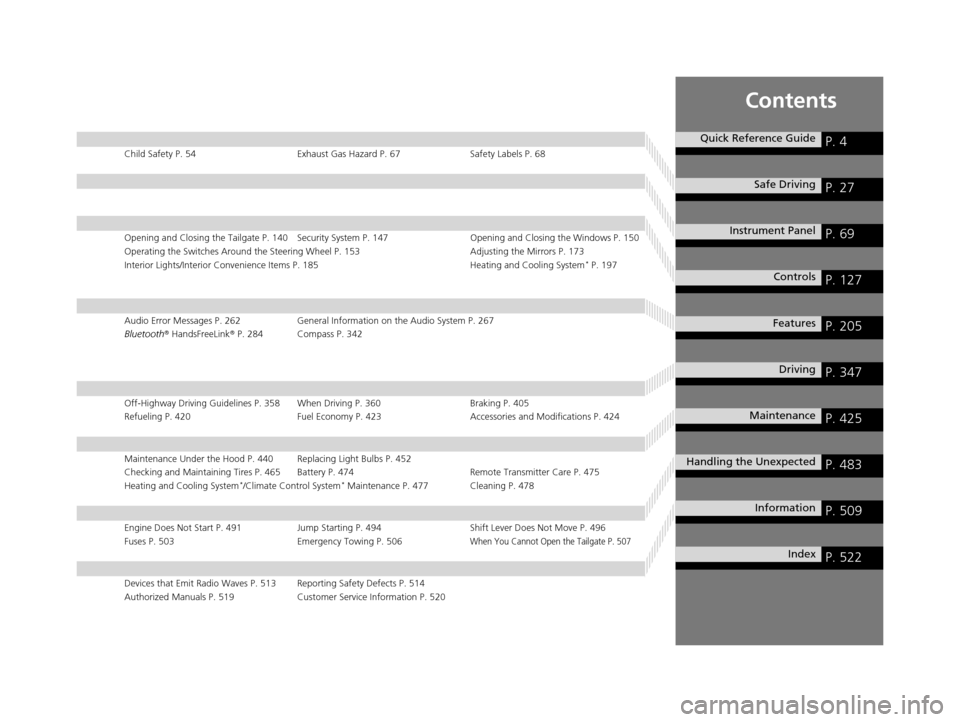

Contents
Child Safety P. 54Exhaust Gas Hazard P. 67Safety Labels P. 68
Opening and Closing the Tailgate P. 140 Security System P. 147 Opening and Closing the Windows P. 150
Operating the Switches Around the Steering Wheel P. 153 Adjusting the Mirrors P. 173
Interior Lights/Interior Convenience Items P. 185 Heating and Cooling System
* P. 197
Audio Error Messages P. 262General Information on the Audio System P. 267
Bluetooth ® HandsFreeLink ® P. 284 Compass P. 342
Off-Highway Driving Guidelines P. 358 When Driving P. 360 Braking P. 405
Refueling P. 420 Fuel Economy P. 423Accessories and Modifications P. 424
Maintenance Under the Hood P. 440 Replacing Light Bulbs P. 452
Checking and Maintaining Tires P. 465 Battery P. 474 Remote Transmitter Care P. 475
Heating and Cooling System
*/Climate Control System* Maintenance P. 477 Cleaning P. 478
Engine Does Not Start P. 491 Jump Starting P. 494 Shift Lever Does Not Move P. 496
Fuses P. 503 Emergency Towing P. 506
When You Cannot Open the Tailgate P. 507
Devices that Emit Radio Waves P. 513 Reporting Safety Defects P. 514
Authorized Manuals P. 519 Customer Service Information P. 520
Quick Reference GuideP. 4
Safe DrivingP. 27
Instrument PanelP. 69
ControlsP. 127
FeaturesP. 205
DrivingP. 347
MaintenanceP. 425
Handling the UnexpectedP. 483
InformationP. 509
IndexP. 522
15 CR-V-31T0A6300.book 3 ページ ２０１５年２月２日　月曜日　午前１０時３５分

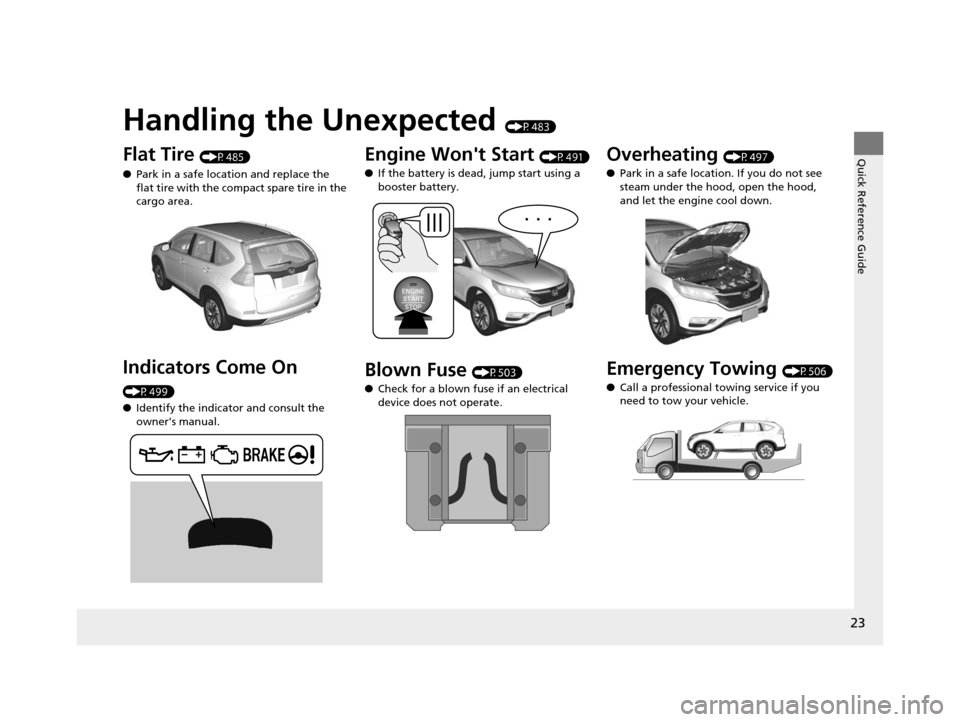

Quick Reference Guide
23
Handling the Unexpected (P483)
Flat Tire (P485)
● Park in a safe location and replace the
flat tire with the comp act spare tire in the
cargo area.
Indicators Come On
(P499)
● Identify the indica tor and consult the
owner's manual.
Engine Won't Start (P491)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P503)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P497)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P506)
● Call a professional towing service if you
need to tow your vehicle.
15 CR-V-31T0A6300.book 23 ページ ２０１５年２月２日　月曜日　午前１０時３５分

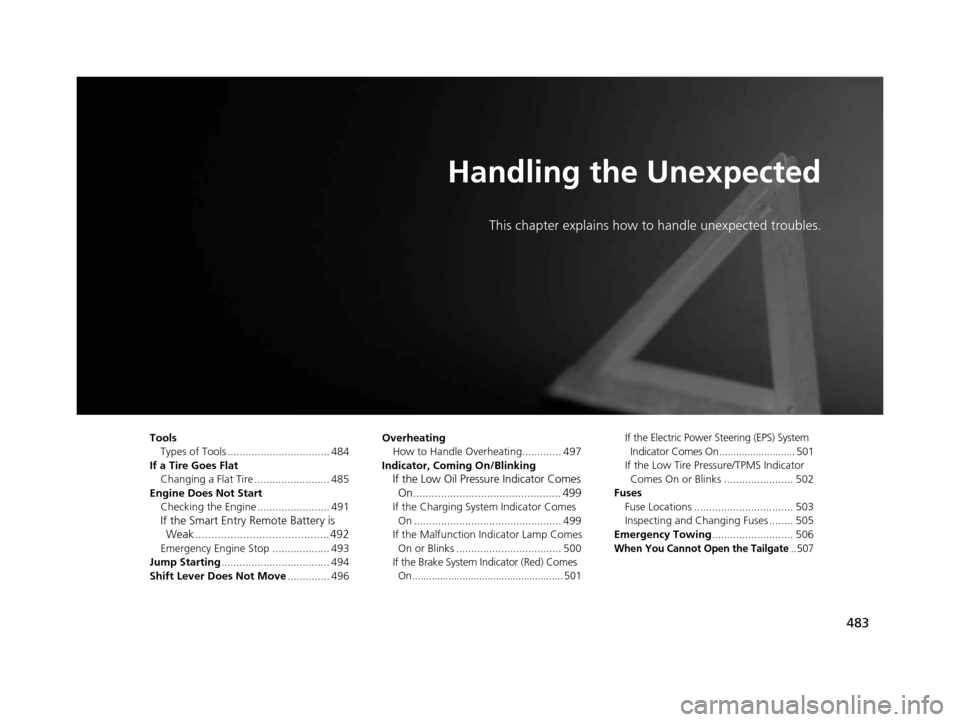

483
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 484
If a Tire Goes Flat Changing a Flat Tire ......................... 485
Engine Does Not Start Checking the Engine ........................ 491
If the Smart Entry Remote Battery is Weak .......................................... 492
Emergency Engine Stop ................... 493
Jump Starting .................................... 494
Shift Lever Does Not Move .............. 496Overheating
How to Handle Overheating............. 497
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On................................................ 499
If the Charging System Indicator Comes
On ................................................. 499
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 500
If the Brake System Indicator (Red) Comes On...................................................... 501 If the Electric Power Steering (EPS) System
Indicator Comes On ........................... 501
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 502
Fuses Fuse Locations ................................. 503
Inspecting and Changing Fuses ........ 505
Emergency Towing ........................... 506
When You Cannot Open the Tailgate.. 507
15 CR-V-31T0A6300.book 483 ページ ２０１５年２月２日　月曜日　午前１０時３５分

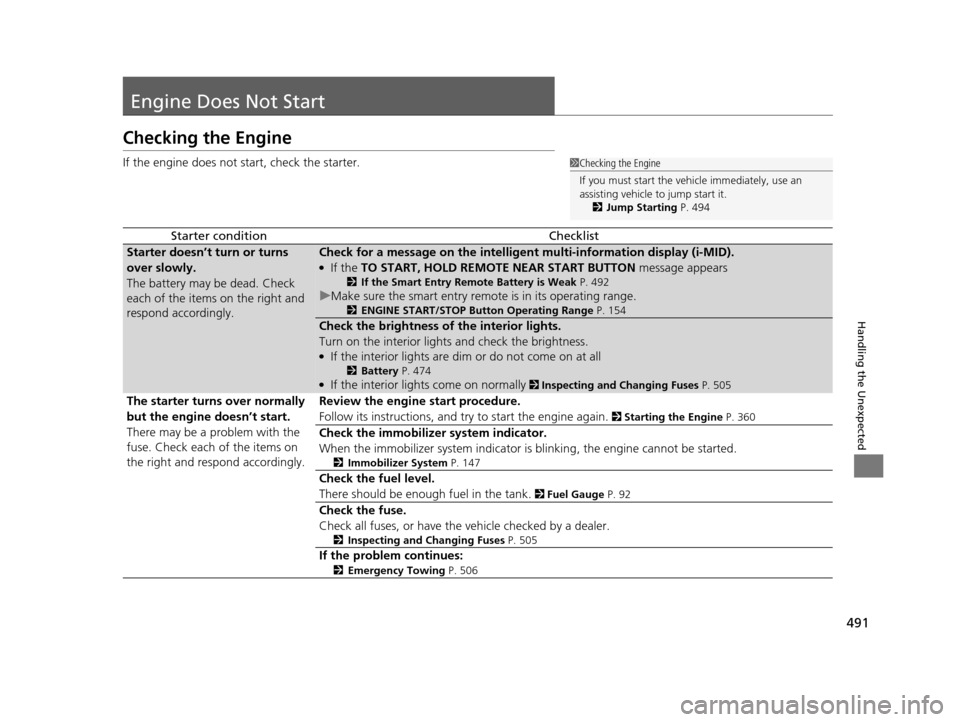

491
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the intelligent multi-information display (i-MID).
●If the TO START, HOLD REMOTE NEAR START BUTTON message appears
2If the Smart Entry Remote Battery is Weak P. 492
uMake sure the smart entry remote is in its operating range.
2 ENGINE START/STOP Button Operating Range P. 154
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2 Battery P. 474●If the interior lights come on normally 2 Inspecting and Changing Fuses P. 505
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 360
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 147
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 92
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 505
If the problem continues:
2Emergency Towing P. 506
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 494
15 CR-V-31T0A6300.book 491 ページ ２０１５年２月２日　月曜日　午前１０時３５分

494
Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect the first jump er cable to your
vehicle's + terminal.
2. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12 volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15
volts. Check the charger manual for the
proper setting.
3. Connect the second jumper cable to the
booster battery - terminal.
4. Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not conn ect this jumper cable
to any other part.
5. If your vehicle is connected to another
vehicle, start the assi sting vehicle's engine
and increase its rpm slightly.
6. Attempt to start your vehicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery
15 CR-V-31T0A6300.book 494 ページ ２０１５年２月２日　月曜日　午前１０時３５分

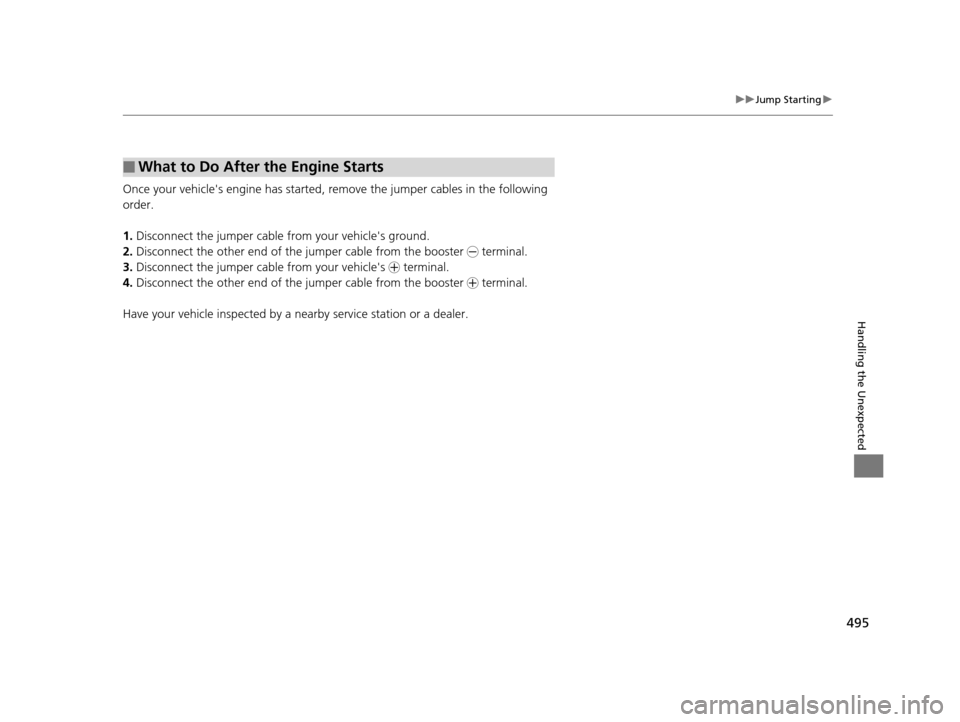

495
uuJump Starting u
Handling the Unexpected
Once your vehicle's engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster - terminal.
3. Disconnect the jumper cable from your vehicle's + terminal.
4. Disconnect the other end of the jumper cable from the booster + terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
15 CR-V-31T0A6300.book 495 ページ ２０１５年２月２日　月曜日　午前１０時３５分

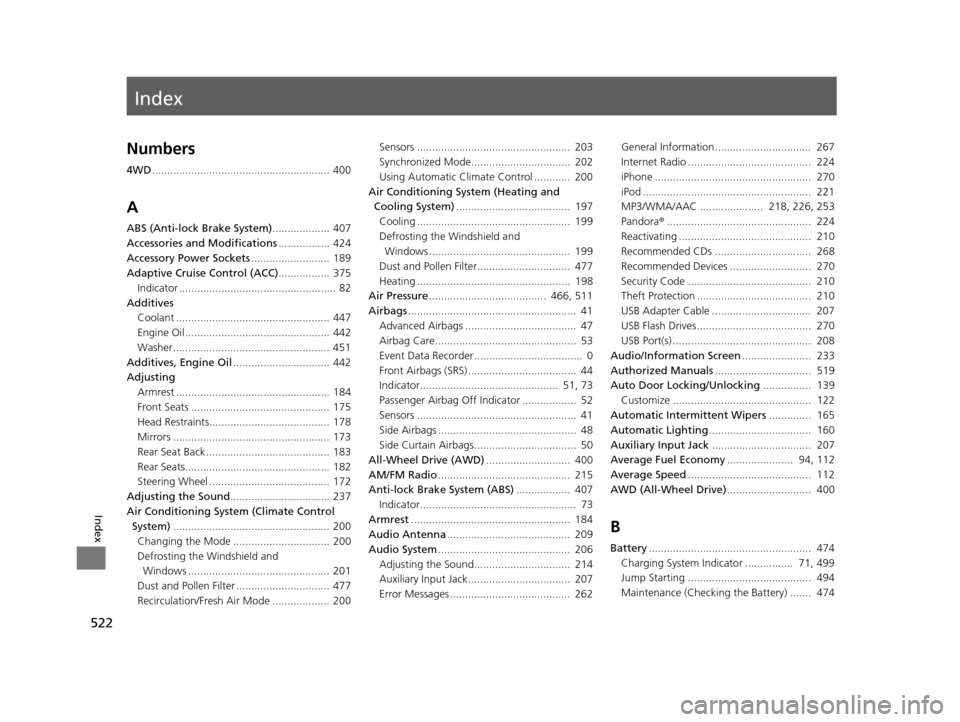

Index
522
Index
Index
Numbers
4WD........................................................... 400
A
ABS (Anti-lock Brake System) ................... 407
Accessories and Modifications ................. 424
Accessory Power Sockets .......................... 189
Adaptive Cruise Control (ACC) ................. 375
Indicator .................................................... 82
Additives Coolant ................................................... 447
Engine Oil ................................................ 442
Washer .................................................... 451
Additives, Engine Oil ................................ 442
Adjusting
Armrest ................................................... 184
Front Seats .............................................. 175
Head Restraints........................................ 178
Mirrors .................................................... 173
Rear Seat Back ......................................... 183
Rear Seats................................................ 182
Steering Wheel ........................................ 172
Adjusting the Sound ................................. 237
Air Conditioning System (Climate Control System) .................................................... 200
Changing the Mode ................................ 200
Defrosting the Windshield and Windows ............................................... 201
Dust and Pollen Filter ............................... 477
Recirculation/Fresh Air Mode ................... 200 Sensors ................................................... 203
Synchronized Mode................................. 202
Using Automatic Climate Control ............ 200
Air Conditioning System (Heating and Cooling System) ...................................... 197
Cooling ................................................... 199
Defrosting the Windshield and Windows ............................................... 199
Dust and Pollen Filter............................... 477
Heating ................................................... 198
Air Pressure ....................................... 466, 511
Airbags ........................................................ 41
Advanced Airbags ..................................... 47
Airbag Care............................................... 53
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator.............................................. 51, 73
Passenger Airbag Off Indicator .................. 52
Sensors ..................................................... 41
Side Airbags .............................................. 48
Side Curtain Airbags.................................. 50
All-Wheel Drive (AWD) ............................ 400
AM/FM Radio ............................................ 215
Anti-lock Brake System (ABS) .................. 407
Indicator.................................................... 73
Armrest ..................................................... 184
Audio Antenna ......................................... 209
Audio System ............................................ 206
Adjusting the Sound................................ 214
Auxiliary Input Jack.................................. 207
Error Messages ........................................ 262 General Information................................ 267
Internet Radio ......................................... 224
iPhone .................................................... 270
iPod ........................................................ 221
MP3/WMA/AAC ..................... 218, 226, 253
Pandora
®................................................ 224
Reactivating ............................................ 210
Recommended CDs ................................ 268
Recommended Devices ........................... 270
Security Code ......................................... 210
Theft Protection ...................................... 210
USB Adapter Cable ................................. 207
USB Flash Drives...................................... 270
USB Port(s) .............................................. 208
Audio/Information Screen ....................... 233
Authorized Manuals ................................ 519
Auto Door Locking/Unlocking ................ 139
Customize .............................................. 122
Automatic Intermittent Wipers .............. 165
Automatic Lighting .................................. 160
Auxiliary Input Jack ................................. 207
Average Fuel Economy ...................... 94, 112
Average Speed ......................................... 112
AWD (All-Wheel Drive) ............................ 400
B
Battery...................................................... 474
Charging System Indicator ................ 71, 499
Jump Starting ......................................... 494
Maintenance (Checking the Battery) ....... 474
15 CR-V-31T0A6300.book 522 ページ ２０１５年２月２日　月曜日　午前１０時３５分

524
Index
D
Daytime Running Lights........................... 163
Dead Battery ............................................. 494
Defrosting the Windshield and Windows .......................................... 199, 201
Detachable Anchor ..................................... 38
Devices that Emit Radio Waves ................ 513
Dimming
Headlights ............................................... 159
Rearview Mirror ....................................... 173
Dipstick (Engine Oil) ................................. 443
Directional Signals (Turn Signals) ............ 158
Display Button .......................................... 111
Display Setup ............................................ 238
Door Mirrors ............................................. 174
Doors ......................................................... 130
Auto Door Locking .................................. 139
Auto Door Unlocking ............................... 139
Door Open Indicator .................................. 32
Keys ........................................................ 130
Locking/Unlocking the Doors from the Inside ..................................................... 137
Locking/Unlocking the Doors from the Outside .................................................. 133
Lockout Prevention System ...................... 136
DOT Tire Quality Grading ........................ 468
Driver’s Seat Lumbar Support .................. 175
Driving ....................................................... 347
Adaptive Cruise Control (ACC) ................ 375
Braking .................................................... 405
Continuously Variable Transmission ......... 367 Cruise Control ......................................... 371
Off-Highway Driving Guidelines............... 358
Shifting Gear ........................................... 368
Starting the Engine.......................... 360, 362
Driving Position Memory System ............ 170
Dust and Pollen Filter ............................... 477
E
Eco Assist System.......................................... 9
ECON Button ............................................ 370
Elapsed Time ............................................. 112
Electric Power Steering (EPS) System
Indicator............................................ 76, 501
Electronic Stability Control (ESC) ............. 396
Emergency ................................................ 506
Emissions Testing (Readiness Codes) ....... 515
Engine ....................................................... 512
Coolant ................................................... 447
Jump Starting .......................................... 494
Oil ........................................................... 442
Starting ........................................... 360, 362
Switch Buzzer.................................. 153, 156
Engine Coolant ......................................... 447
Adding to the Radiator ............................ 448
Adding to the Reserve Tank..................... 447
Overheating ............................................ 497
Temperature Gauge .................................. 92
Engine Oil ................................................. 442
Adding .................................................... 444
Checking................................................. 443 Displaying Oil Life ................................... 429
Low Oil Pressure Indicator ................. 70, 499
Recommended Engine Oil ....................... 442
ENGINE START/STOP Button .................... 154
EPS (Electric Power Steering)
System ............................................... 76, 501
Exhaust Gas Hazard (Carbon Monoxide) ................................................ 67
Exterior Care (Cleaning) .......................... 480
Exterior Mirrors ........................................ 174
F
Features.................................................... 205
Filters Dust and Pollen....................................... 477
Oil .......................................................... 445
Flat Tire ..................................................... 485
Floor Mats ................................................ 479
Fluids Brake ...................................................... 450
Continuously Variable Transmission ........ 449
Engine Coolant ....................................... 447
Windshield Washer ................................. 451
Fog Light Indicator .................................... 77
Folding Down the Rear Seats .................. 182
Foot Brake ................................................ 406
Front Airbags (SRS) .................................... 44
Front Seats ................................................ 175
Adjusting ................................................ 175
Front Sensor Camera ............................... 374
15 CR-V-31T0A6300.book 524 ページ ２０１５年２月２日　月曜日　午前１０時３５分

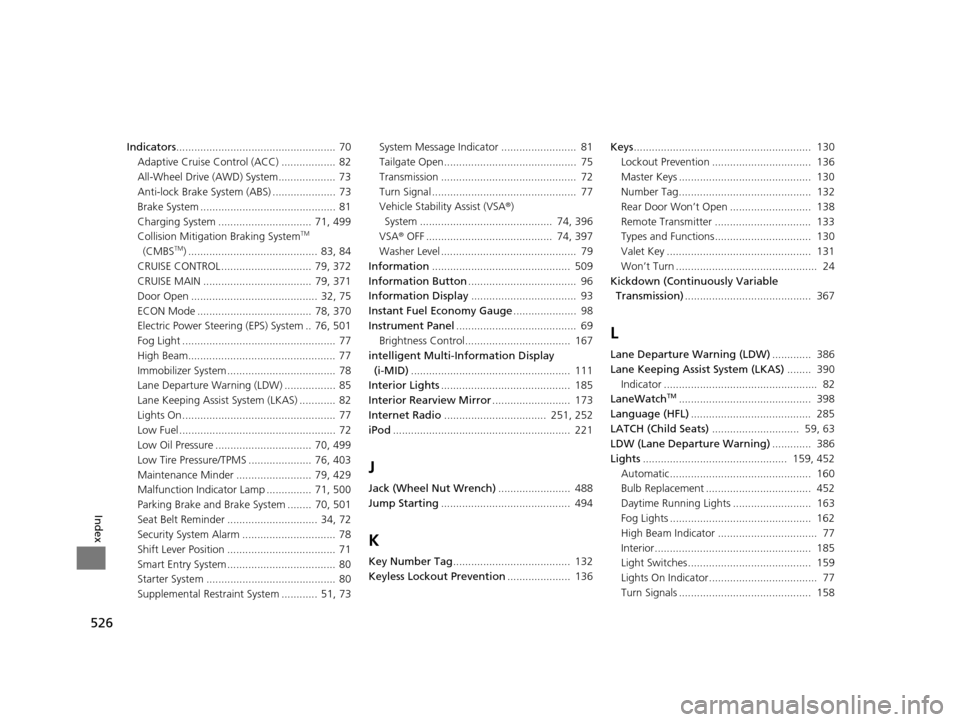

526
Index
Indicators..................................................... 70
Adaptive Cruise Control (ACC) .................. 82
All-Wheel Drive (AWD) System................... 73
Anti-lock Brake System (ABS) ..................... 73
Brake System ............................................. 81
Charging System ............................... 71, 499
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 83, 84
CRUISE CONTROL .............................. 79, 372
CRUISE MAIN .................................... 79, 371
Door Open .......................................... 32, 75
ECON Mode ...................................... 78, 370
Electric Power Steering (EPS) System .. 76, 501
Fog Light ................................................... 77
High Beam................................................. 77
Immobilizer System .................................... 78
Lane Departure Warning (LDW) ................. 85
Lane Keeping Assist System (LKAS) ............ 82
Lights On ................................................... 77
Low Fuel .................................................... 72
Low Oil Pressure ................................ 70, 499
Low Tire Pressure/TPMS ..................... 76, 403
Maintenance Minder ......................... 79, 429
Malfunction Indicator Lamp ............... 71, 500
Parking Brake and Brak e System ........ 70, 501
Seat Belt Reminder .............................. 34, 72
Security System Alarm ............................... 78
Shift Lever Position .................................... 71
Smart Entry System .................................... 80
Starter System ........................................... 80
Supplemental Restraint System ............ 51, 73 System Message Indicator ......................... 81
Tailgate Open............................................ 75
Transmission ............................................. 72
Turn Signal ................................................ 77
Vehicle Stability Assist (VSA
®)
System ............................................ 74, 396
VSA ® OFF .......................................... 74, 397
Washer Level ............................................. 79
Information .............................................. 509
Information Button .................................... 96
Information Display ................................... 93
Instant Fuel Economy Gauge ..................... 98
Instrument Panel ........................................ 69
Brightness Control................................... 167
intelligent Multi-Information Display (i-MID) ..................................................... 111
Interior Lights ........................................... 185
Interior Rearview Mirror .......................... 173
Internet Radio .................................. 251, 252
iPod ........................................................... 221
J
Jack (Wheel Nut Wrench) ........................ 488
Jump Starting ........................................... 494
K
Key Number Tag ....................................... 132
Keyless Lockout Prevention ..................... 136Keys
........................................................... 130
Lockout Prevention ................................. 136
Master Keys ............................................ 130
Number Tag............................................ 132
Rear Door Won’t Open ........................... 138
Remote Transmitter ................................ 133
Types and Functions................................ 130
Valet Key ................................................ 131
Won’t Turn ............................................... 24
Kickdown (Continuously Variable Transmission) .......................................... 367
L
Lane Departure Warning (LDW) ............. 386
Lane Keeping Assist System (LKAS) ........ 390
Indicator ................................................... 82
LaneWatch
TM............................................ 398
Language (HFL) ........................................ 285
LATCH (Child Seats) ............................. 59, 63
LDW (Lane Departure Warning) ............. 386
Lights ................................................ 159, 452
Automatic............................................... 160
Bulb Replacement ................................... 452
Daytime Running Lights .......................... 163
Fog Lights ............................................... 162
High Beam Indicator ................................. 77
Interior.................................................... 185
Light Switches......................................... 159
Lights On Indicator .................................... 77
Turn Signals ............................................ 158
15 CR-V-31T0A6300.book 526 ページ ２０１５年２月２日　月曜日　午前１０時３５分

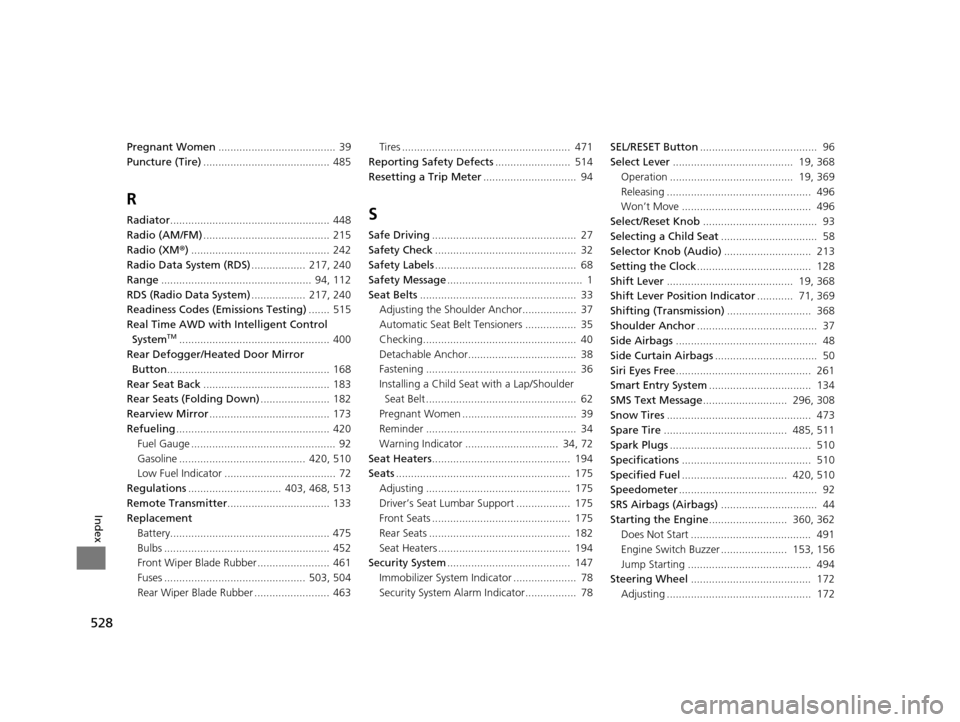

528
Index
Pregnant Women....................................... 39
Puncture (Tire) .......................................... 485
R
Radiator..................................................... 448
Radio (AM/FM) .......................................... 215
Radio (XM ®) .............................................. 242
Radio Data System (RDS) .................. 217, 240
Range .................................................. 94, 112
RDS (Radio Data System) .................. 217, 240
Readiness Codes (Emissions Testing) ....... 515
Real Time AWD with Intelligent Control
System
TM.................................................. 400
Rear Defogger/Heated Door Mirror Button ...................................................... 168
Rear Seat Back .......................................... 183
Rear Seats (Folding Down) ....................... 182
Rearview Mirror ........................................ 173
Refueling ................................................... 420
Fuel Gauge ................................................ 92
Gasoline .......................................... 420, 510
Low Fuel Indicator ..................................... 72
Regulations ............................... 403, 468, 513
Remote Transmitter .................................. 133
Replacement Battery..................................................... 475
Bulbs ....................................................... 452
Front Wiper Blade Rubber ........................ 461
Fuses ............................................... 503, 504
Rear Wiper Blade Rubber ......................... 463 Tires ........................................................ 471
Reporting Safety Defects ......................... 514
Resetting a Trip Meter ............................... 94
S
Safe Driving................................................ 27
Safety Check ............................................... 32
Safety Labels ............................................... 68
Safety Message ............................................. 1
Seat Belts .................................................... 33
Adjusting the Shoulder Anchor.................. 37
Automatic Seat Belt Tensioners ................. 35
Checking................................................... 40
Detachable Anchor.................................... 38
Fastening .................................................. 36
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 62
Pregnant Women ...................................... 39
Reminder .................................................. 34
Warning Indicator ............................... 34, 72
Seat Heaters .............................................. 194
Seats .......................................................... 175
Adjusting ................................................ 175
Driver’s Seat Lumbar Support .................. 175
Front Seats .............................................. 175
Rear Seats ............................................... 182
Seat Heaters ............................................ 194
Security System ......................................... 147
Immobilizer System Indicator ..................... 78
Security System Alarm Indicator................. 78 SEL/RESET Button
....................................... 96
Select Lever ........................................ 19, 368
Operation ......................................... 19, 369
Releasing ................................................ 496
Won’t Move ........................................... 496
Select/Reset Knob ...................................... 93
Selecting a Child Seat ................................ 58
Selector Knob (Audio) ............................. 213
Setting the Clock ...................................... 128
Shift Lever .......................................... 19, 368
Shift Lever Position Indicator ............ 71, 369
Shifting (Transmission) ............................ 368
Shoulder Anchor ........................................ 37
Side Airbags ............................................... 48
Side Curtain Airbags .................................. 50
Siri Eyes Free ............................................. 261
Smart Entry System .................................. 134
SMS Text Message ............................ 296, 308
Snow Tires ................................................ 473
Spare Tire ......................................... 485, 511
Spark Plugs ............................................... 510
Specifications ........................................... 510
Specified Fuel ................................... 420, 510
Speedometer .............................................. 92
SRS Airbags (Airbags) ................................ 44
Starting the Engine .......................... 360, 362
Does Not Start ........................................ 491
Engine Switch Buzzer ...................... 153, 156
Jump Starting ......................................... 494
Steering Wheel ........................................ 172
Adjusting ................................................ 172
15 CR-V-31T0A6300.book 528 ページ ２０１５年２月２日　月曜日　午前１０時３５分
