service interval HONDA CR-V 2015 RM1, RM3, RM4 / 4.G Quick Guide

124 || 125
MAINTENANCE
MAINTENANCE
U.S. Models
Maintenance, replacement, or repair of emissions control devices and sys\
tems
may be done by any automotive repair establishment or individuals using \
parts
that are certi ed to EPA standards.
According to state and federal regulations, failure to perform maintenan\
ce on the
maintenance main items marked with # will not void your emissions warran\
ties.
However, all maintenance services should be performed in accordance with the
intervals indicated by the multi-information display.

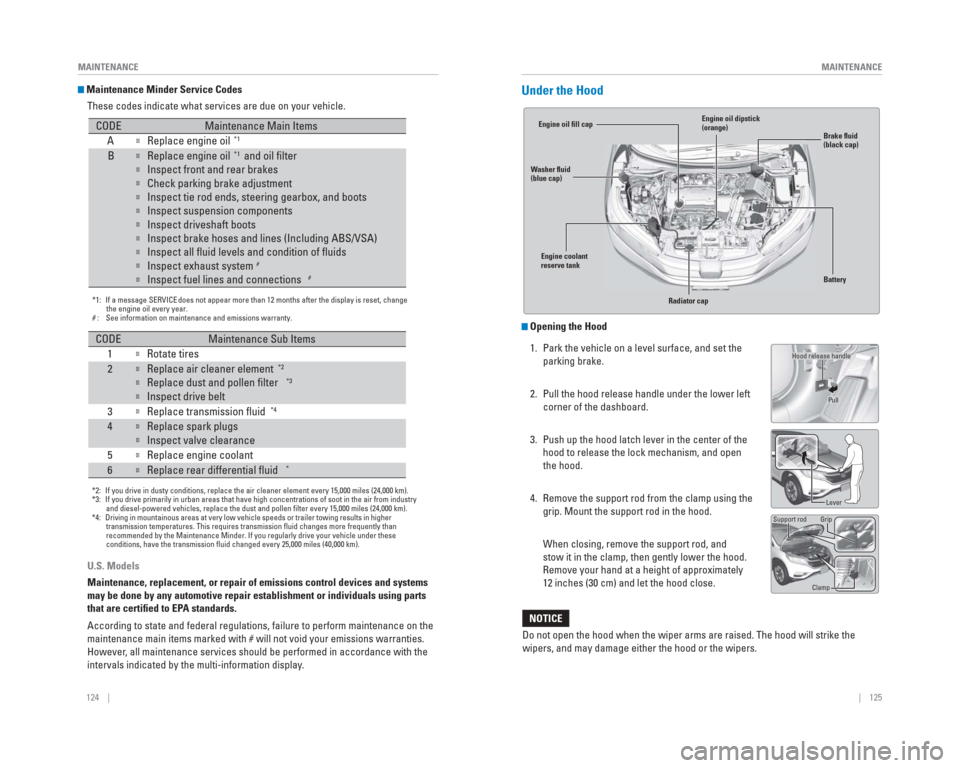

Maintenance Minder Service Codes
These codes indicate what services are due on your vehicle. Under the Hood
Opening the Hood
1. Park the vehicle on a level surface, and set the parking brake.
2. Pull the hood release handle under the lower left corner of the dashboard.
3. Push up the hood latch lever in the center of the hood to release the lock mechanism, and open
the hood.
4. Remove the support rod from the clamp using the grip. Mount the support rod in the hood.
When closing, remove the support rod, and stow it in the clamp, then gently lower the hood.
Remove your hand at a height of approximately
12 inches (30 cm) and let the hood close.
Hood release handle
Lever
Support rod Grip
ClampP
ull
Do not open the hood when the wiper arms are raised. The hood will strik\
e the
wipers, and may damage either the hood or the wipers.
NOTICE
Engine coolant
reserve tank
W
asher uid
(blue cap) Engine oil
ll cap Engine oil dipstick
(orange)
Brake uid
(black cap)
Battery
Radiator cap
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A

Replace engine oil*1
B
Replace engine oil*1 and oil filter

Inspect front and rear brakes

Check parking brake adjustment

Inspect tie rod ends, steering gearbox, and boots

Inspect suspension components

Inspect driveshaft boots

Inspect brake hoses and lines (Including ABS/VSA)

Inspect all fluid levels and condition of fluids

Inspect exhaust system#

Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry
and diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission temperatures. This requires transmission fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these
conditions, have the transmission fluid changed every 25,000 miles (40,000 km).
CODEMaintenance Sub Items
1

Rotate tires
2
Replace air cleaner element*2

Replace dust and pollen filter*3

Inspect drive belt
3

Replace transmission fluid*4
4
Replace spark plugs

Inspect valve clearance
5

Replace engine coolant
6
Replace rear differential fluid*

126 || 127
MAINTENANCE
MAINTENANCE
Recommended Engine Oil
Honda Genuine Motor Oil
Premium-grade 0W-20 detergent oil with an API Certi cation Seal on the
container
This seal indicates the oil is energy conserving and
that it meets the American Petroleum Institute’s
latest requirements.
Use Honda Genuine Motor Oil or another
commercial engine oil of suitable viscosity for the
ambient temperature as shown.
You may also use synthetic motor oil if it is labeled with the API Certifi\
cation Seal
and is of the specifi ed viscosity grade.

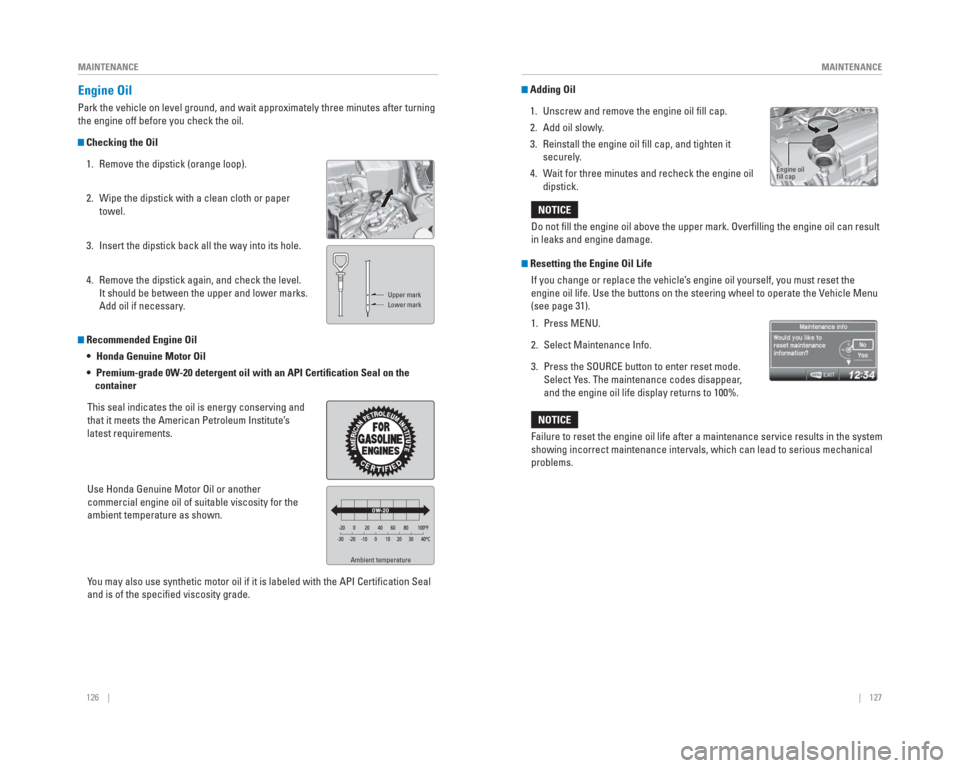

Engine Oil
Park the vehicle on level ground, and wait approximately three minutes a\
fter turning
the engine off before you check the oil.
Checking the Oil 1. Remove the dipstick (orange loop).
2. Wipe the dipstick with a clean cloth or paper towel.
3. Insert the dipstick back all the way into its hole.
4. Remove the dipstick again, and check the level. It should be between the upper and lower marks.
Add oil if necessary.
Upper mark
Lower mark
Ambient temperature
Adding Oil
1. Unscrew and remove the engine oil fi ll cap.
2. Add oil slowly.
3. Reinstall the engine oil fi ll cap, and tighten it securely.
4. Wait for three minutes and recheck the engine oil dipstick.
Resetting the Engine Oil Life
If you change or replace the vehicle’s engine oil yourself, you must reset the
engine oil life. Use the buttons on the steering wheel to operate the Vehicle Menu
(see page 31).
1. Press MENU.
2. Select Maintenance Info.
3. Press the SOURCE button to enter reset mode. Select Yes. The maintenance codes disappear,
and the engine oil life display returns to 100%.
Engine oil
fi ll cap
Do not fi ll the engine oil above the upper mark. Overfi lling the engine oil can result
in leaks and engine damage.
NOTICE
Failure to reset the engine oil life after a maintenance service results\
in the system
showing incorrect maintenance intervals, which can lead to serious mecha\
nical
problems.
NOTICE
