uuWhen Driving uTire Pressure Monitoring System (TPMS)
402
Driving
You can calibrate the system from the cust omized features on the multi-information
display.
1. Press button to select TPMS CALIBRATION, then press the SEL/RESET
button.
2. Press the SEL/RESET button.
u The display switches to th e customization setup screen, where you can select
Cancel or Calibrate .
3. Press the button and select Calibrate, then press the SEL/RESET button.
u Calibration Started screen appears, then th e display returns to the
customization menu screen.
If the Calibration Failed to Start message appears, repeat steps 2-3.
1TPMS Calibration
•TPMS cannot be calibrated if a compact spare tire is
installed.
•The calibration process requires approximately 30
minutes of cumulative dr iving at speeds between
30-60 mph (48-97 km/h).
•During this period, if the ignition is turned on*1 and
the vehicle is not move d within 45 seconds, you
may notice the low tire pressure indicator comes on
briefly. This is normal and indicates that the
calibration process is not yet complete.
If the snow chains are installed, remove them before
calibrating the TPMS.
If the low tire pressure/TPMS indicator comes on even
when the properly inflated specified regular tires are
installed, have the vehi cle checked by a dealer.
We recommend that the tires be replaced with the
same brand, model, and size as the originals. Ask a
dealer for details.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
Models with multi- information display
15 CR-V-31T0A6300.book 402 ページ ２０１５年２月２日　月曜日　午前１０時３５分

403
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Continued
Driving
Tire Pressure Monitoring System (TPMS) - Required
Federal Explanation
Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure
recommended by the vehicle manufa cturer on the vehicle placard
or tire inflation pressure label.
(If your vehicle has tires of a diff erent size than the size indicated
on the vehicle placard or tire inflation pressure label, you should
determine the proper tire inflat ion pressure for those tires.)
As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale
when one or more of your tires is significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate
them to the proper pressure.
Driving on a significantly under-inf lated tire causes the tire to
overheat and can lead to tire fail ure. Under-inflation also reduces
fuel efficiency and tire tread life, and may affect the vehicle's
handling and stopping ability.
U.S. models
15 CR-V-31T0A6300.book 403 ページ ２０１５年２月２日　月曜日　午前１０時３５分

404
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver ’s responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumina tion of the TPMS low ti re pressure telltale.
Your vehicle has also been eq uipped with a TPMS malfunction
indicator to indicate when the sy stem is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the system detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
15 CR-V-31T0A6300.book 404 ページ ２０１５年２月２日　月曜日　午前１０時３５分

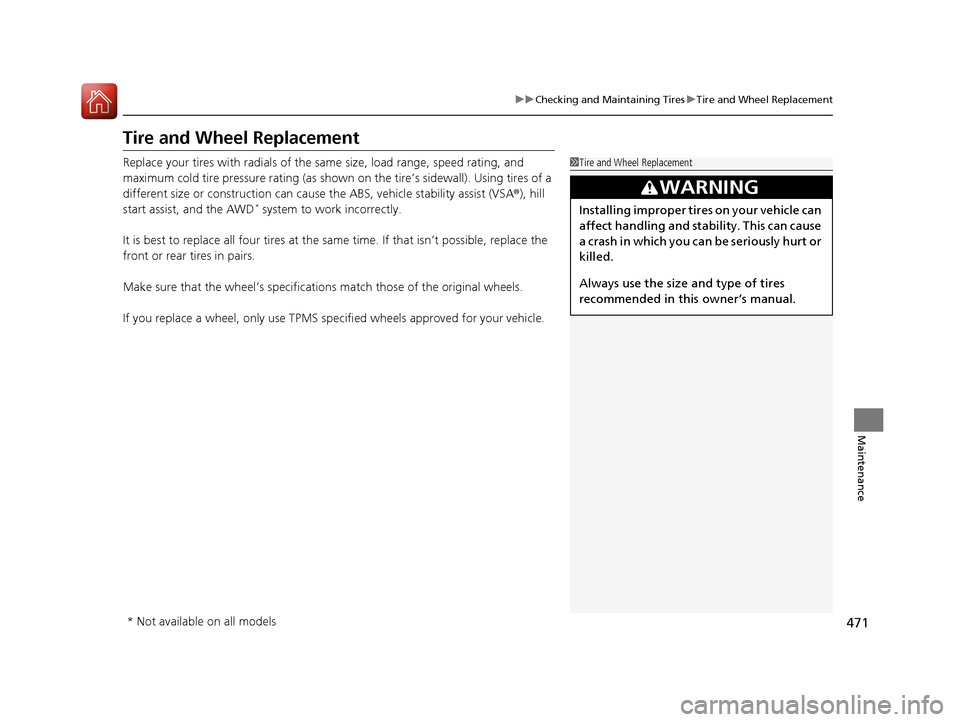

471
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance
Tire and Wheel Replacement
Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a
different size or construction can caus e the ABS, vehicle stability assist (VSA®), hill
start assist, and the AWD
* system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
Make sure that the wheel’s specificati ons match those of the original wheels.
If you replace a wheel, only use TPMS spec ified wheels approved for your vehicle.
1Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
* Not available on all models
15 CR-V-31T0A6300.book 471 ページ ２０１５年２月２日　月曜日　午前１０時３５分

483
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 484
If a Tire Goes Flat Changing a Flat Tire ......................... 485
Engine Does Not Start Checking the Engine ........................ 491
If the Smart Entry Remote Battery is Weak .......................................... 492
Emergency Engine Stop ................... 493
Jump Starting .................................... 494
Shift Lever Does Not Move .............. 496Overheating
How to Handle Overheating............. 497
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On................................................ 499
If the Charging System Indicator Comes
On ................................................. 499
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 500
If the Brake System Indicator (Red) Comes On...................................................... 501 If the Electric Power Steering (EPS) System
Indicator Comes On ........................... 501
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 502
Fuses Fuse Locations ................................. 503
Inspecting and Changing Fuses ........ 505
Emergency Towing ........................... 506
When You Cannot Open the Tailgate.. 507
15 CR-V-31T0A6300.book 483 ページ ２０１５年２月２日　月曜日　午前１０時３５分

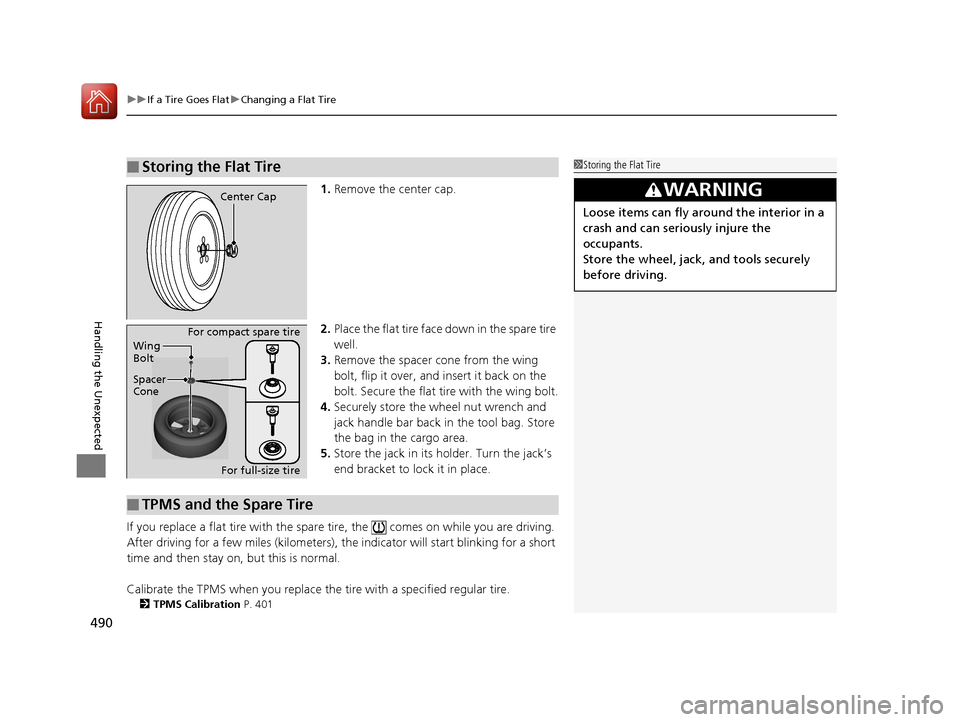

uuIf a Tire Goes Flat uChanging a Flat Tire
490
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely store the wheel nut wrench and
jack handle bar back in the tool bag. Store
the bag in the cargo area.
5. Store the jack in its holder. Turn the jack’s
end bracket to lock it in place.
If you replace a flat tire with the spare tire, the comes on while you are driving.
After driving for a few miles (kilometers), the indicator will start blinking for a short
time and then stay on, but this is normal.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 401
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Center Cap
Spacer
ConeWing
Bolt
For compact spare tire
For full-size tire
■TPMS and the Spare Tire
15 CR-V-31T0A6300.book 490 ページ ２０１５年２月２日　月曜日　午前１０時３５分

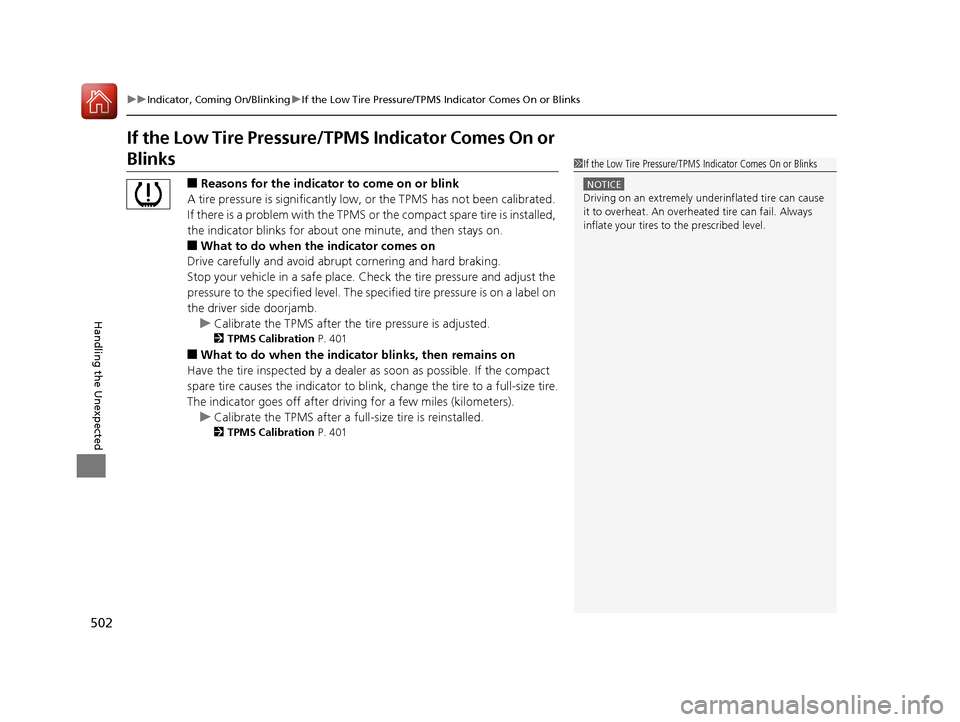

502
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is signifi cantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire is installed,
the indicator blinks for about one minute, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 401
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driv ing for a few miles (kilometers).
u Calibrate the TPMS after a full-size tire is reinstalled.
2 TPMS Calibration P. 401
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
15 CR-V-31T0A6300.book 502 ページ ２０１５年２月２日　月曜日　午前１０時３５分

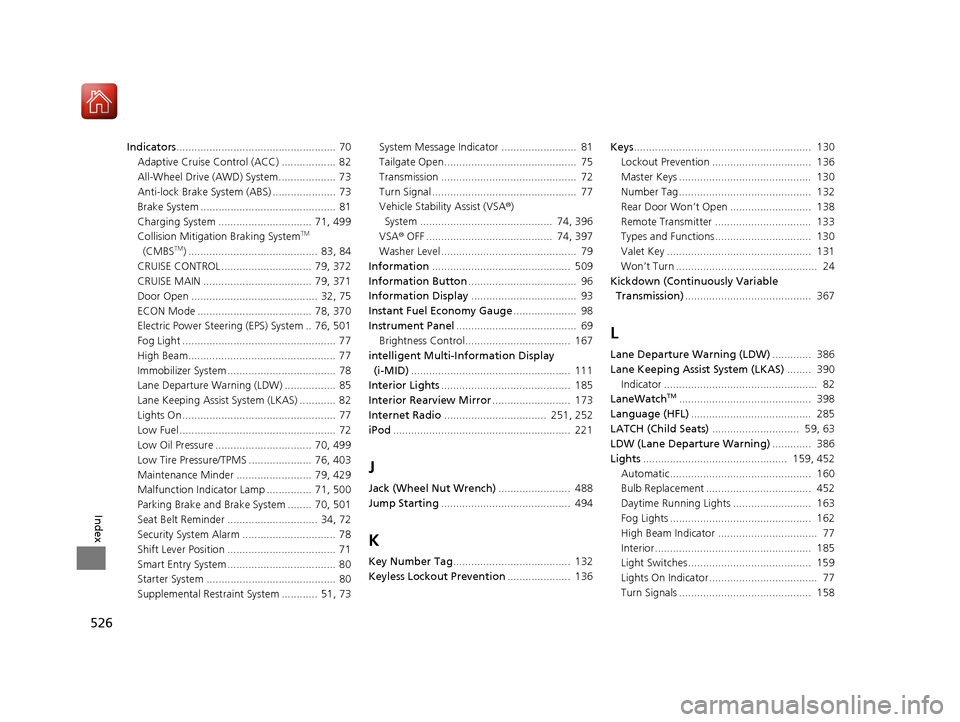

526
Index
Indicators..................................................... 70
Adaptive Cruise Control (ACC) .................. 82
All-Wheel Drive (AWD) System................... 73
Anti-lock Brake System (ABS) ..................... 73
Brake System ............................................. 81
Charging System ............................... 71, 499
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 83, 84
CRUISE CONTROL .............................. 79, 372
CRUISE MAIN .................................... 79, 371
Door Open .......................................... 32, 75
ECON Mode ...................................... 78, 370
Electric Power Steering (EPS) System .. 76, 501
Fog Light ................................................... 77
High Beam................................................. 77
Immobilizer System .................................... 78
Lane Departure Warning (LDW) ................. 85
Lane Keeping Assist System (LKAS) ............ 82
Lights On ................................................... 77
Low Fuel .................................................... 72
Low Oil Pressure ................................ 70, 499
Low Tire Pressure/TPMS ..................... 76, 403
Maintenance Minder ......................... 79, 429
Malfunction Indicator Lamp ............... 71, 500
Parking Brake and Brak e System ........ 70, 501
Seat Belt Reminder .............................. 34, 72
Security System Alarm ............................... 78
Shift Lever Position .................................... 71
Smart Entry System .................................... 80
Starter System ........................................... 80
Supplemental Restraint System ............ 51, 73 System Message Indicator ......................... 81
Tailgate Open............................................ 75
Transmission ............................................. 72
Turn Signal ................................................ 77
Vehicle Stability Assist (VSA
®)
System ............................................ 74, 396
VSA ® OFF .......................................... 74, 397
Washer Level ............................................. 79
Information .............................................. 509
Information Button .................................... 96
Information Display ................................... 93
Instant Fuel Economy Gauge ..................... 98
Instrument Panel ........................................ 69
Brightness Control................................... 167
intelligent Multi-Information Display (i-MID) ..................................................... 111
Interior Lights ........................................... 185
Interior Rearview Mirror .......................... 173
Internet Radio .................................. 251, 252
iPod ........................................................... 221
J
Jack (Wheel Nut Wrench) ........................ 488
Jump Starting ........................................... 494
K
Key Number Tag ....................................... 132
Keyless Lockout Prevention ..................... 136Keys
........................................................... 130
Lockout Prevention ................................. 136
Master Keys ............................................ 130
Number Tag............................................ 132
Rear Door Won’t Open ........................... 138
Remote Transmitter ................................ 133
Types and Functions................................ 130
Valet Key ................................................ 131
Won’t Turn ............................................... 24
Kickdown (Continuously Variable Transmission) .......................................... 367
L
Lane Departure Warning (LDW) ............. 386
Lane Keeping Assist System (LKAS) ........ 390
Indicator ................................................... 82
LaneWatch
TM............................................ 398
Language (HFL) ........................................ 285
LATCH (Child Seats) ............................. 59, 63
LDW (Lane Departure Warning) ............. 386
Lights ................................................ 159, 452
Automatic............................................... 160
Bulb Replacement ................................... 452
Daytime Running Lights .......................... 163
Fog Lights ............................................... 162
High Beam Indicator ................................. 77
Interior.................................................... 185
Light Switches......................................... 159
Lights On Indicator .................................... 77
Turn Signals ............................................ 158
15 CR-V-31T0A6300.book 526 ページ ２０１５年２月２日　月曜日　午前１０時３５分

529
Index
Stopping................................................... 416
Summer Tires ............................................ 473
Sunglasses Holder .................................... 193
Supplemental Restraint System (SRS) ....... 44
Switches (Around the Steering
Wheel) ............................................ 4, 5, 153
Synchronized Mode ................................. 202
T
Tachometer................................................ 92
Tailgate ..................................................... 140
Remote Transmitter ................................ 142
Unable to Open ...................................... 507
Temperature Gauge .................................. 92
Temperature Sensor ................................ 203
Text Message .................................... 296, 308
Time (Setting) ........................................... 128
Tire Pressure Monitoring System (TPMS) ..................................................... 401
Button .................................................... 401
Indicator ................................................... 76
Tires .......................................................... 465
Air Pressure..................................... 466, 511
Checking and Maintaining ...................... 465
Inspection ............................................... 465
Labeling .................................................. 466
Puncture (Flat Tire) .................................. 485
Regulations ............................................. 468
Rotation.................................................. 472
Spare Tire ....................................... 485, 511 Summer .................................................. 473
Tire Chains .............................................. 473
Wear Indicators ....................................... 470
Winter ..................................................... 473
Tonneau Cover ......................................... 195
Tools .......................................................... 484
Towing a Trailer ....................................... 353
Equipment and Accessories ..................... 354
Load Limits .............................................. 353
Towing Your Vehicle ................................ 357
Behind a Motorhome .............................. 357
Emergency .............................................. 506
TPMS (Tire Pressure Monitoring System) .................................................... 401
Button ..................................................... 401
Indicator .................................................... 76
Transmission ............................................. 368
Continuously Variable .............................. 368
Fluid ........................................................ 449
Number ................................................... 512
Shift Lever Position Indicator .............. 71, 369
Trip Meter ............................................. 94, 97
Troubleshooting ....................................... 483
Blown Fuse ...................................... 503, 504
Brake Pedal Vibrates .................................. 24
Buzzer Sounds When Opening Door .......... 25
Emergency Towing .................................. 506
Engine Won’t Start .................................. 491
Noise When Braking .................................. 26
Overheating ............................................ 497
Puncture/Flat Tire ..................................... 485 Rear Door Won’t Open...................... 25, 138
Select Lever Won’t Move ......................... 496
Warning Indicators .................................... 70
Turn Signals .............................................. 158
Indicators (Instrument Panel) ..................... 77
U
Unlocking the Doors ................................ 133
Unlocking the Fron t Doors from the
Inside ......................................................... 14
USB Adapter Cable ........................... 206, 207
USB Flash Drives ....................................... 270
USB Port(s) ........................................ 206, 208
V
Valet Key................................................... 131
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 512
Vehicle Stability Assist (VSA ®).................. 396
Off Button............................................... 397
Off Indicator.............................................. 74
System Indicator ........................................ 74
Viscosity (Oil) .................................... 442, 511
VSA ® (Vehicle Stability Assist) .................. 396
W
Wallpaper......................................... 123, 235
Warning and Info rmation Messages ......... 86
Warning Indicator On/Blinking ............... 499
15 CR-V-31T0A6300.book 529 ページ ２０１５年２月２日　月曜日　午前１０時３５分
