tailgate HONDA CR-V 2016 RM1, RM3, RM4 / 4.G Owner's Manual

137
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Continued
Controls

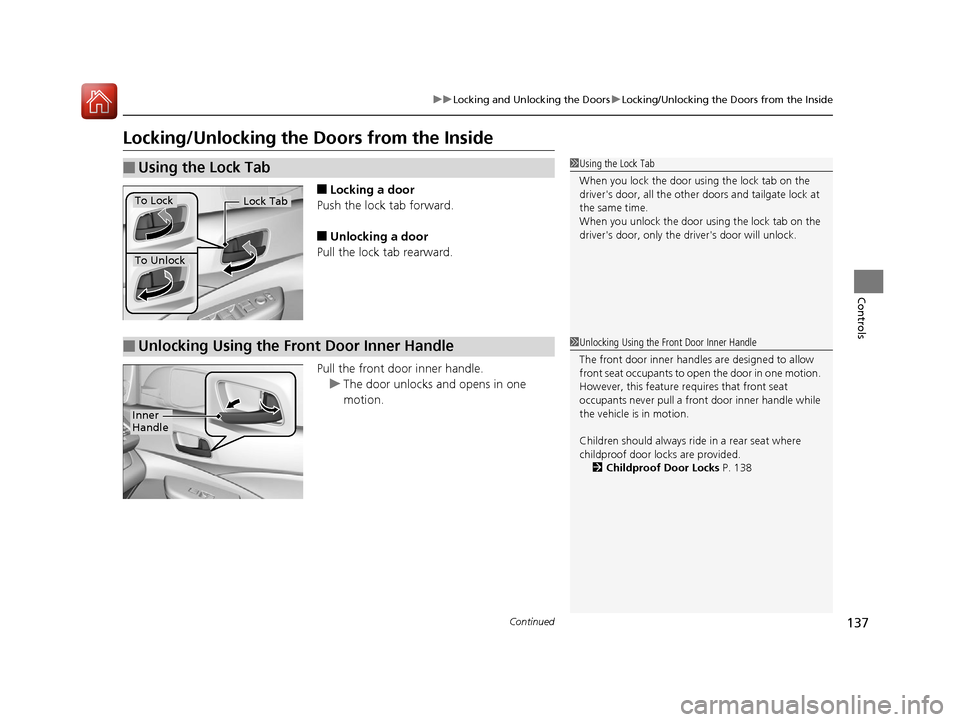

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
Pull the front door inner handle. u The door unlocks and opens in one
motion.
■Using the Lock Tab1Using the Lock Tab
When you lock the door using the lock tab on the
driver's door, all the other d oors and tailgate lock at
the same time.
When you unlock the door using the lock tab on the
driver's door, only the driv er's door will unlock.
To Unlock
Lock TabTo Lock
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided. 2 Childproof Door Locks P. 138
Inner
Handle
15 CR-V-31T0A6300.book 137 ページ ２０１５年２月２日　月曜日　午前１０時３５分

uuLocking and Unlocking the Doors uChildproof Door Locks
138
Controls
Press the master door lock switch in as shown
to lock or unlock all doors and the tailgate.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock the driver’s door using the
master door lock switch, all the other doors and the
tailgate lock/unlock at the same time.
The front passenger’s door al so has the master door
lock switch.
To Unlock
Master Door
Lock Switch
To Lock
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Lock
Unlock
15 CR-V-31T0A6300.book 138 ページ ２０１５年２月２日　月曜日　午前１０時３５分

139
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls

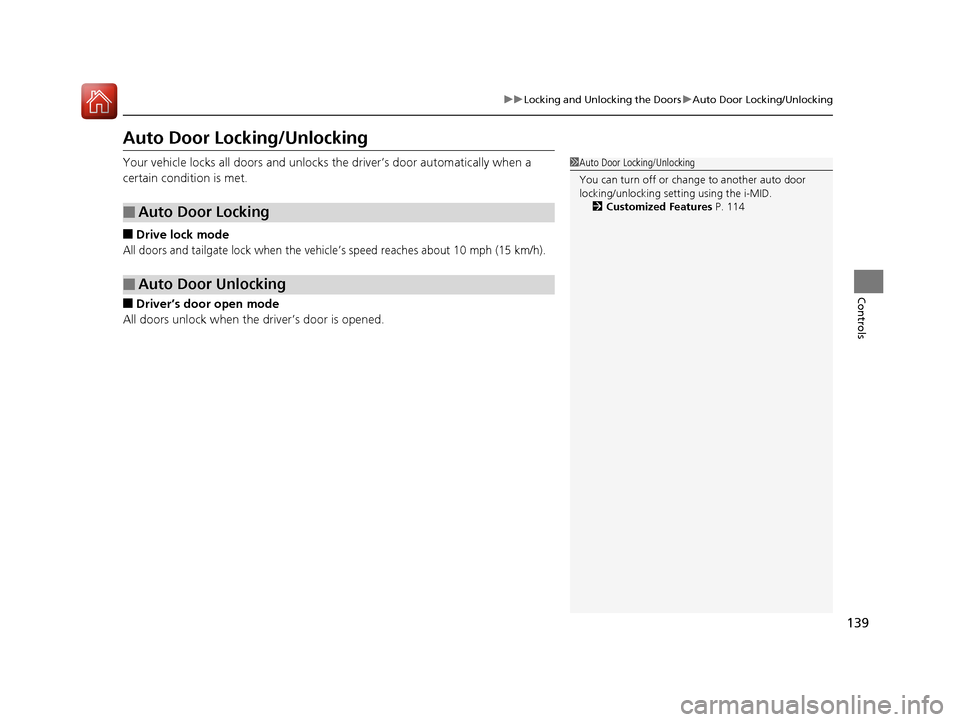

Auto Door Locking/Unlocking
Your vehicle locks all doors and unlocks the driver’s door automatically when a
certain condition is met.
■Drive lock mode
All doors and tailgate lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking setting using the i-MID.
2 Customized Features P. 114
15 CR-V-31T0A6300.book 139 ページ ２０１５年２月２日　月曜日　午前１０時３５分

140
Controls
Opening and Closing the Tailgate
Precautions for Opening/Closing the Tailgate
Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
■Opening the tailgate
• Open the tailgate all the way.
u If it is not fully opened, the tailgate may begin to close under its own weight.
• Be careful when it is windy. The wind may cause the tailgate to close.
■Closing the tailgate
Keep the tailgate closed while driving to: u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Carbon Monoxide Gas P. 67
1Precautions for Opening/Closing the Tailgate
Be careful not to hit your head on the tailgate or to
put your hands between th e tailgate and the cargo
area when closing the tailgate.
When you are storing or pi cking up luggage from the
cargo area while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.
15 CR-V-31T0A6300.book 140 ページ ２０１５年２月２日　月曜日　午前１０時３５分

Continued141
uuOpening and Closing the Tailgate uPrecautions for Opening/Closing the Tailgate
Controls

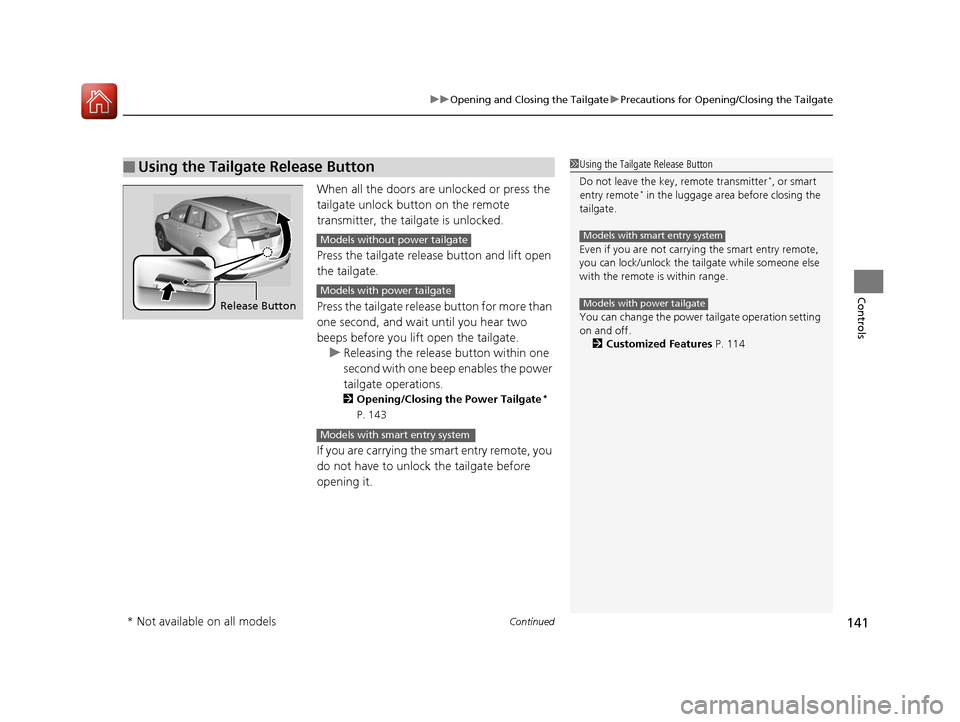

When all the doors are unlocked or press the
tailgate unlock button on the remote
transmitter, the tailgate is unlocked.
Press the tailgate release button and lift open
the tailgate.
Press the tailgate release button for more than
one second, and wait until you hear two
beeps before you lift open the tailgate. u Releasing the releas e button within one
second with one beep enables the power
tailgate operations.
2 Opening/Closing the Power Tailgate*
P. 143
If you are carrying the smart entry remote, you
do not have to unlock the tailgate before
opening it.
■Using the Tailgate Release Button1 Using the Tailgate Release Button
Do not leave the key, remote transmitter
*, or smart
entry remote* in the luggage area before closing the
tailgate.
Even if you are not carrying the smart entry remote,
you can lock/unlock the tail gate while someone else
with the remote is within range.
You can change the power tailgate operation setting
on and off. 2 Customized Features P. 114
Models with smart entry system
Models with power tailgateRelease Button
Models without power tailgate
Models with power tailgate
Models with smart entry system
* Not available on all models
15 CR-V-31T0A6300.book 141 ページ ２０１５年２月２日　月曜日　午前１０時３５分

uuOpening and Closing the Tailgate uPrecautions for Openi ng/Closing the Tailgate
142
Controls

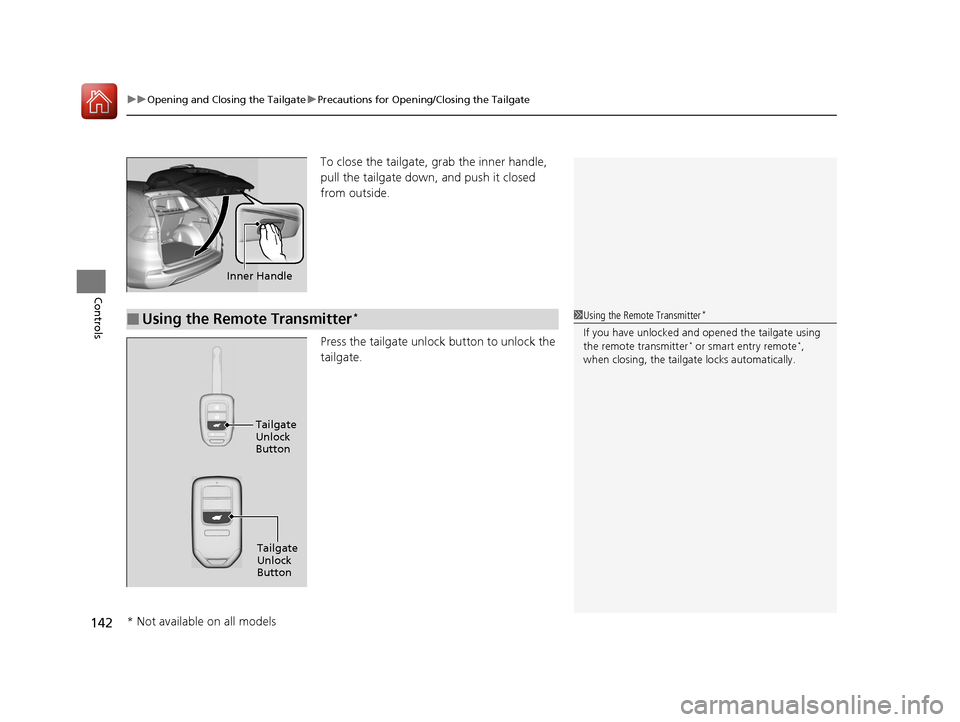

To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
Press the tailgate unlock button to unlock the
tailgate.
Inner Handle
■Using the Remote Transmitter*1Using the Remote Transmitter*
If you have unlocked and opened the tailgate using
the remote transmitter* or smart entry remote*,
when closing, the tailga te locks automatically.
Tailgate
Unlock
Button
Tailgate
Unlock
Button
* Not available on all models
15 CR-V-31T0A6300.book 142 ページ ２０１５年２月２日　月曜日　午前１０時３５分

143
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Continued
Controls
Opening/Closing the Power Tailgate*
The power tailgate can be operated by pr essing the power tailgate button on the
remote transmitter, pressing the power tail gate button in the driver side control
panel, or pressing the button on the tailgate.
■The power tailgate can be opened when:
• The tailgate is fully closed.
• The shift lever is in
(P.
■The power tailgate ca n be closed when:
• The tailgate is fully open.
• The shift lever is in
(P.
1Opening/Closing the Power Tailgate*
NOTICE
Do not push or pull on the power tailgate when it is
being automatically opened or closed.
Forcibly opening or closing the power tailgate while
in operation can deform the tailgate frame.
When operating the power tailgate, make sure there
is enough space around your ve hicle. People near the
tailgate may be se riously hurt if the tailgate hits or
closes on their heads. Be especially cautious if
children are around.
The power tailgate may not open or close under the
following conditions:
•You start the engine while the tailgate is
automatically openi ng or closing.
•The vehicle is parked on a steep hill.•The vehicle is swayed in a strong wind.•The tailgate or the roof is covered with snow or ice.
If you close the power tail gate with all the doors
locked, the power tailgate locks automatically.
3WARNING
Closing a power tailgate while anyone is in
the path of the tailgate can cause serious
injury.
Make sure everyone is clear before closing
the power tailgate.
* Not available on all models
15 CR-V-31T0A6300.book 143 ページ ２０１５年２月２日　月曜日　午前１０時３５分

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
144
Controls
Press the power tailgate button for more than
one second to operate when the power mode
is in VEHICLE OFF (LOCK).
To reverse direction whil e the power tailgate is
in operation, press the button again. The
beeper sounds three times and the tailgate
reverses direction.
■Customizing when to open the tailgate
ANYTIME: The power tailgate unlocks and open s at the same time. This is the
default setting.
WHEN UNLOCKED: The tailgate opens when all doors are unlocked.
2Customized Features P. 100, 114
■Remote Transmitter1Opening/Closing the Power Tailgate*
If you close the power tail gate when all the doors are
locked, the power tailgate locks automatically.
If you replace the battery or the power tailgate fuse
while the tailgate is open, the power tailgate may be
disabled. The power tail gate resumes once you
manually close the tailgate.
Installing aftermarket components other than
genuine Honda a ccessories on the power tailgate
may prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you
get your luggage in and out.
Make sure the power tailgat e is fully closed before
you start the vehicle.
The beeper sounds when you start driving while the
power tailgate is still open, or closing.
Power
Tailgate
Button
* Not available on all models
15 CR-V-31T0A6300.book 144 ページ ２０１５年２月２日　月曜日　午前１０時３５分

Continued145
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Controls
To open: Press and hold the tailgate button in
the driver side control panel for about one
second.
u Some exterior lights flash and the beeper
sounds.
To close: Press and hold the tailgate button in
the driver side control panel for about one
second.
u Some exterior lights flash and the beeper
sounds.
To reverse direction while the power tailgate is
in operation, press the button again.
Press the button on the tailgate to close the
power tailgate.
If you press the button again while the power
tailgate is closing, it stops and reverses
direction.
■Power Tailgate Button1 Opening/Closing the Power Tailgate*
If the power tailgate meet s resistance while opening
or closing, the auto reverse feature reverses the
direction. The beeper sounds three times.
The auto reverse function stops sensing when the
tailgate is almost closed to make sure that it fully
closes.
Do not touch the sensors located on both sides of the
tailgate. The power tailga te does not close if you
touch either sensor when you are trying to close the
tailgate.
Be careful not to scratch the sensors with a sharp
object. If scratched, they can be damaged, and the
power tailgate closing feature malfunctions.
■Power Tailgate Close Button1Power Tailgate Close Button
If you press the tailgate release button inside the
handle while the tailgate is automatically opening or
closing, the power tailga te operation stops. Use
caution if the tailgate stop s in the middle of either
operation. It may sudde nly swing up or down.
* Not available on all models
15 CR-V-31T0A6300.book 145 ページ ２０１５年２月２日　月曜日　午前１０時３５分

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
146
Controls

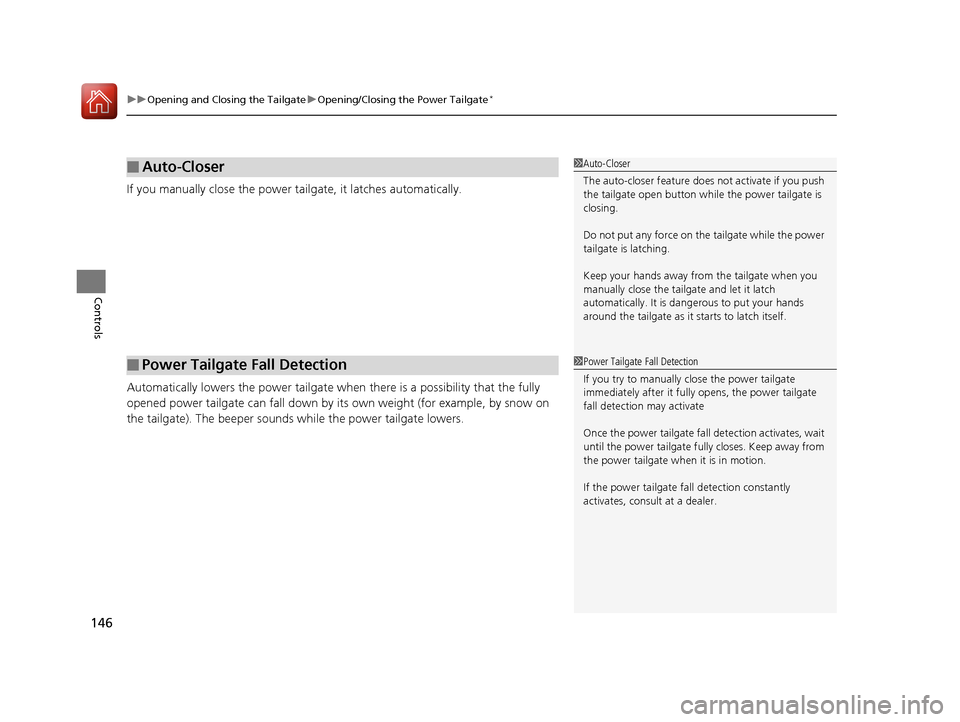

If you manually close the power ta ilgate, it latches automatically.
Automatically lowers the power tailgate when there is a possibility that the fully
opened power tailgate can fall down by it s own weight (for example, by snow on
the tailgate). The beeper sounds while the power tailgate lowers.
■Auto-Closer
■Power Tailgate Fall Detection
1 Auto-Closer
The auto-closer feature does not activate if you push
the tailgate open button whil e the power tailgate is
closing.
Do not put any force on the tailgate while the power
tailgate is latching.
Keep your hands away from the tailgate when you
manually close the tailga te and let it latch
automatically. It is dange rous to put your hands
around the tailgate as it st arts to latch itself.
1Power Tailgate Fall Detection
If you try to manually close the power tailgate
immediately after it full y opens, the power tailgate
fall detection may activate
Once the power tailgate fall detection activates, wait
until the power tailgate full y closes. Keep away from
the power tailgate when it is in motion.
If the power tailgate fa ll detection constantly
activates, consult at a dealer.
15 CR-V-31T0A6300.book 146 ページ ２０１５年２月２日　月曜日　午前１０時３５分
