Page 78 of 532
77
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Turn Signal
Indicators
●Blinks when you operate the turn
signal lever.
●Blinks along with all turn signals if
you press the hazard warning
button.
●Does not blink or blinks rapidly - A turn
signal light bulb has blown. Change the bulb
immediately.
2 Replacing Light Bulbs P. 457
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator●Comes on whenever the light switch
is on, or in AUTO* when the exterior
lights are on.
●If you remove the key from the ignition
switch*1 while the lights are on, a chime
sounds when the driv er's door is opened.—
Fog Light
Indicator*
●Comes on when the fog lights are
on.——
* Not available on all models
15 CR-V-31T0A6300.book 77 ページ 2015年2月2日 月曜日 午前10時35分
Page 456 of 532
455

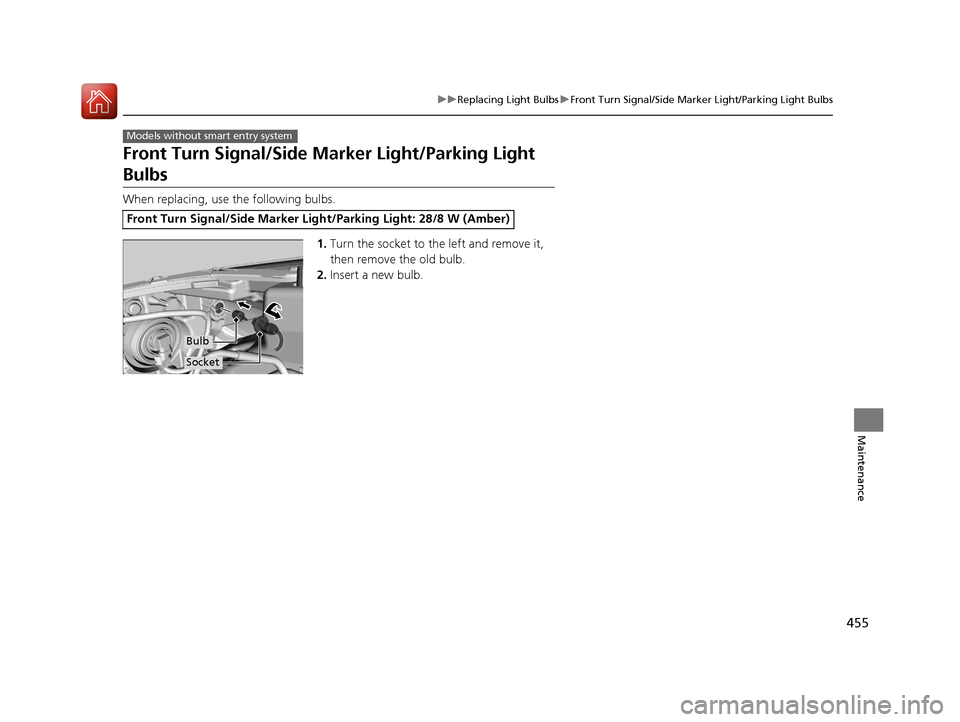

uuReplacing Light Bulbs uFront Turn Signal/Side Marker Light/Parking Light Bulbs
Maintenance
Front Turn Signal/Side Marker Light/Parking Light
Bulbs
When replacing, use the following bulbs.
1.Turn the socket to th e left and remove it,
then remove the old bulb.
2. Insert a new bulb.
Front Turn Signal/Side Marker Ligh t/Parking Light: 28/8 W (Amber)
Models without smart entry system
Bulb
Socket
15 CR-V-31T0A6300.book 455 ページ 2015年2月2日 月曜日 午前10時35分
Page 457 of 532
456

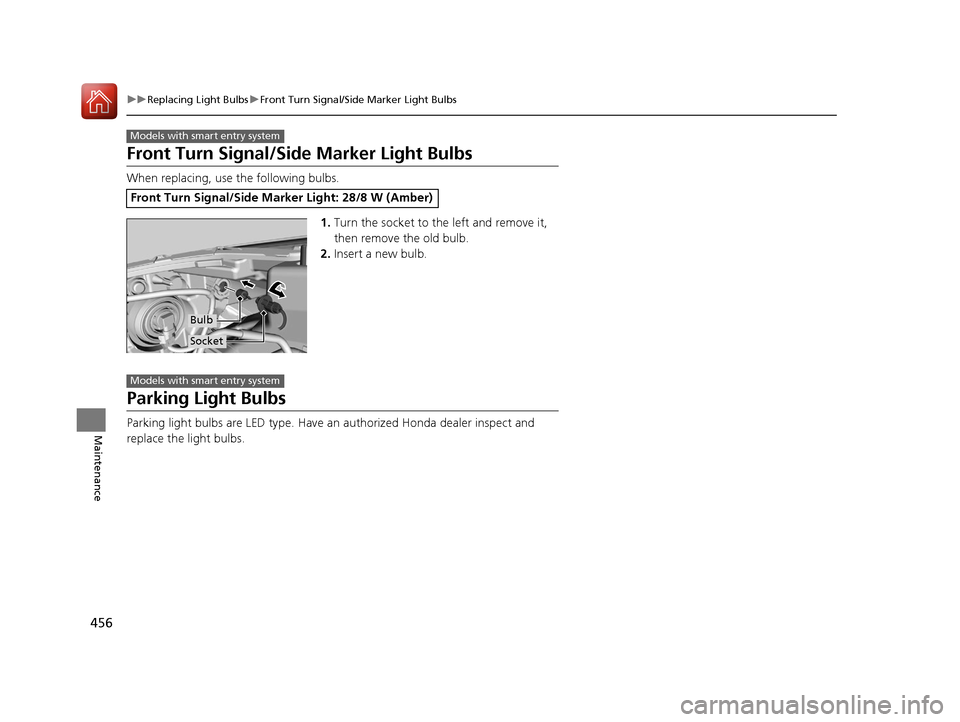

uuReplacing Light Bulbs uFront Turn Signal/Side Marker Light Bulbs
Maintenance
Front Turn Signal/Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket to the left and remove it,
then remove the old bulb.
2. Insert a new bulb.
Parking Light Bulbs
Parking light bulbs are LED type. Have an authorized Honda dealer inspect and
replace the light bulbs.
Front Turn Signal/Side Mark er Light: 28/8 W (Amber)
Models with smart entry system
Bulb
Socket
Models with smart entry system
15 CR-V-31T0A6300.book 456 ページ 2015年2月2日 月曜日 午前10時35分
Page 458 of 532
457

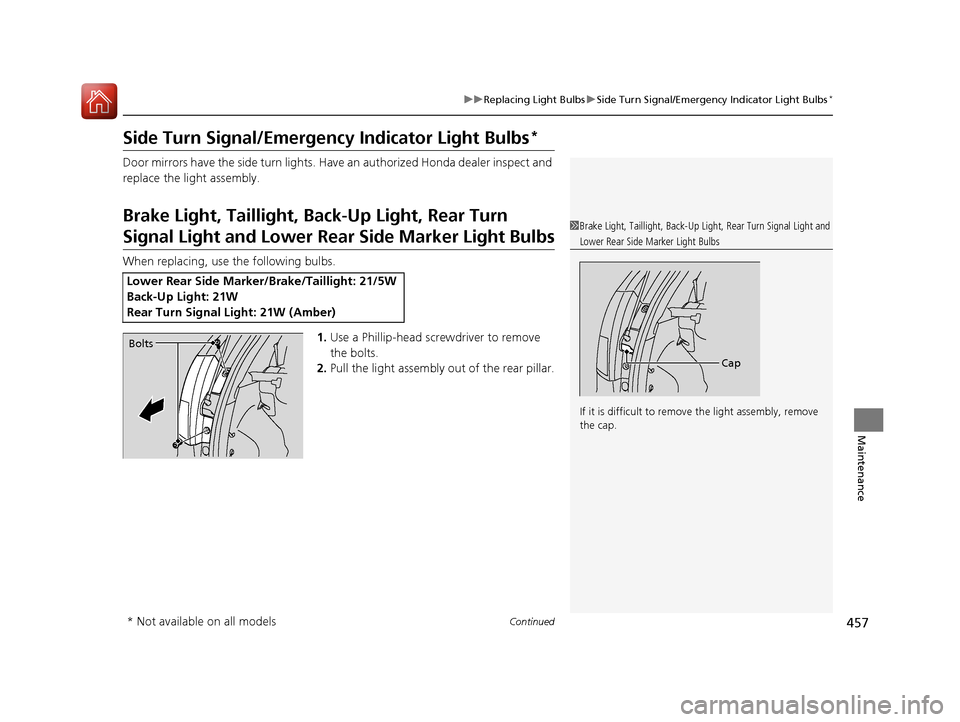

uuReplacing Light Bulbs uSide Turn Signal/Emergency Indicator Light Bulbs*
Continued
Maintenance
Side Turn Signal/Emerge ncy Indicator Light Bulbs*
Door mirrors have the side turn lights. Ha ve an authorized Honda dealer inspect and
replace the light assembly.
Brake Light, Taillight, Back-Up Light, Rear Turn
Signal Light and Lower Rear Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillip-head screwdriver to remove
the bolts.
2. Pull the light assembly out of the rear pillar.
Lower Rear Side Marker/Brake/Taillight: 21/5W
Back-Up Light: 21W
Rear Turn Signal Light: 21W (Amber)
1Brake Light, Taillight, Back-Up Light, Rear Turn Signal Light and
Lower Rear Side Marker Light Bulbs
If it is difficult to remove the light assembly, remove
the cap.
Cap
Bolts
* Not available on all models
15 CR-V-31T0A6300.book 457 ページ 2015年2月2日 月曜日 午前10時35分
Page 460 of 532
459
uuReplacing Light Bulbs uUpper Rear Side Marker/Taillight Bulbs
Maintenance

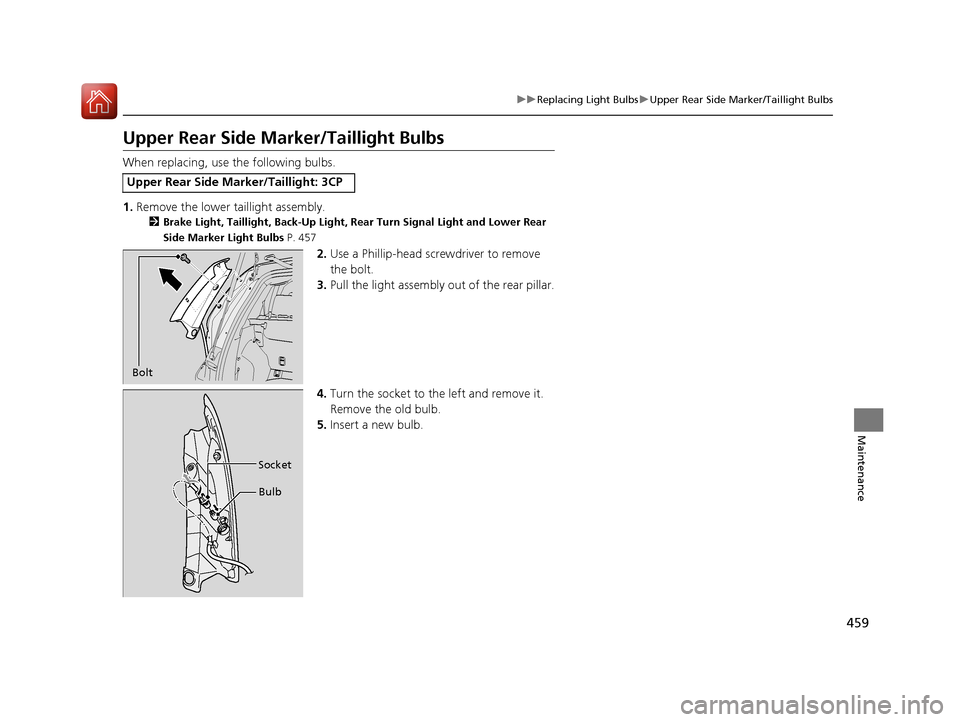

Upper Rear Side Ma rker/Taillight Bulbs
When replacing, use the following bulbs.
1.Remove the lower taillight assembly.
2 Brake Light, Taillight, Back-Up Light, Rear Turn Signal Light and Lower Rear
Side Marker Light Bulbs P. 457
2.Use a Phillip-head screwdriver to remove
the bolt.
3. Pull the light assembly out of the rear pillar.
4. Turn the socket to th e left and remove it.
Remove the old bulb.
5. Insert a new bulb.
Upper Rear Side Marker/Taillight: 3CP
Bolt
Bulb
Socket
15 CR-V-31T0A6300.book 459 ページ 2015年2月2日 月曜日 午前10時35分
Page 511 of 532
510
Information
Specifications
■Vehicle Specifications
*1: LX and EX models with 2WD
*2: EXL and TOURING models with 2WD
*3: LX models with AWD
*4: EX models with AWD
*5: EXL and TOURING models with AWD
*6: LX models with 2WD
*7: LX models with AWD
*8: EX and SE models with 4WD
*9: EXL and TOURING models with AWD
ModelHonda CR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.:4,464 lbs (2,025 kg)*1
4,519 lbs (2,050 kg)*2, *3
4,564 lbs (2,070 kg)*4
4,630 lbs (2,100 kg)*5
Canada:2,025 kg*6
2,050 kg*7
2,070 kg*8
2,100 kg*9
Gross Axle Weight
Rating (Front)U.S.:2,271 lbs (1,030 kg)*1
2,326 lbs (1,055 kg)*2, *3, *4
2,348 lbs (1,065 kg)*5
Canada:1,030 kg*6
1,055 kg*7, *8
1,065 kg*9
Gross Axle Weight
Rating (Rear)U.S.:2,238 lbs (1,015 kg)*1, *2, *3
2,282 lbs (1,035 kg)*4
2,326 lbs (1,055 kg)*5
Canada:1,015 kg*6, *7
1,035 kg*8
1,055 kg*9
■ Vehicle Specifications
■ Engine Specifications
■ Fuel
■ Washer Fluid
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity13.6 – 15.4 oz (385 – 435 g)Lubricant TypeSP-10
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7H11GS
DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 15.3 US gal (58 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
*1: Models without smart entry system
*2: Models with smart entry system
*3: Except Canadian models
Headlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights*35W (H8)
Front Turn Signal/Side Marker/
Parking Lights
*128/8W (Amber)
Front Turn Signal/
Side Marker Lights*228/8W (Amber)
Side Turn Signal Lights
(on Door Mirrors)
*, *3LED
Parking Lights*2LED
Upper Rear Side Marker/Taillights 3CP
Lower Rear Side Marker/Brake/
Taillights21/5W
Back-Up Lights 21W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Light3CP
Cargo Area Light 8W
Vanity Mirror Lights*1.4W
Interior Lights Map Lights 8W
Ceiling Light 8W
* Not available on all models
15 CR-V-31T0A6300.book 510 ページ 2015年2月2日 月曜日 午前10時35分
