uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
ECON Mode
Indicator●Comes on when you press the
ECON button.
2ECON Button P. 455
CRUISE MAIN
Indicator*
●Comes on when you press the
CRUISE button.2 Cruise Control* P. 459—
CRUISE
CONTROL
Indicator
*
●Comes on if you have set a speed
for cruise control.
2 Cruise Control* P. 459—
Maintenance
Minder
Indicator
*
●Comes on a few seconds when
you turn the igniti on switch to ON
(w*1, then goes off.●Comes on when the scheduled
maintenance is due soon.
2Maintenance MinderTM P. 541—
Transmission
Temperature
Indicator
*
●Comes on when the transmission
fluid temperature is too high.Stop in a safe place and move the shift
position to
(P.—
Power Reduced
Indicator*
●Comes on if there is a problem
with the shutter grill, and the
radiator coolant temperature is
too high.●Power output will be reduced, so you may
not be able to accelerate or maintain your
current speed. Have your vehicle checked
by a dealer.
—
* Not available on all models
17 CR-V-31TLA6000.book 93 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

451
uuWhen Driving uPrecautions While Driving
Driving
Precautions While Driving
Utility vehicles have a significantly higher rollover rate than other types of vehicles.
To prevent rollovers or loss of control:
• Take corners at slower speeds than yo u would with a passenger vehicle.
• Avoid sharp turns and abrupt maneuvers whenever possible.
• Do not modify your vehicle in any way th at you would raise the center of gravity.
• Roof load capacity is 165 lbs (75 kg), av ailable roof racks/carriers may have lower
capacities. Please check accessory' s information (Honda accessory).
Avoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
■Driving Guidelines for Your Utility Vehicle
■In Rain
■Other Precautions
1 Precautions While Driving
NOTICE
Do not operate the shift lever while pressing the
accelerator pedal. You could damage the
transmission.
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel in
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode, and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored.
Repeated operation under these conditions can
eventually damage the system.
17 CR-V-31TLA6000.book 451 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

537
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 538
Safety When Performing Maintenance...539Parts and Fluids Used in Maintenance Service ........................................... 540
Maintenance Minder
TM..................... 541
Maintenance Under the Hood Maintenance Items Under the Hood .. 551
Opening the Hood ........................... 553
Recommended Engine Oil ................ 554
Oil Check ......................................... 555
Adding Engine Oil ............................ 557
Changing the Engine Oil and Oil Filter ...558
Engine Coolant ................................ 561
Transmission Fluid ............................ 565
Brake Fluid ....................................... 566
Refilling Window Washer Fluid......... 567
Replacing Light Bulbs ....................... 568
Checking and Maintaining Wiper Blades... 575Checking and Maintaining Tires
Checking Tires ................................. 579
Tire and Loading Information Label ...... 580Tire Labeling .................................... 580DOT Tire Quality Grading (U.S. Vehicles).. 582Wear Indicators................................ 584
Tire Service Life ................................ 584 Tire and Wheel Replacement ........... 585
Tire Rotation .................................... 586
Winter Tires ..................................... 587
Battery ............................................... 588
Remote Transmitter Care Replacing the Button Battery ........... 590
Climate Control System Maintenance .. 592Cleaning
Interior Care .................................... 593
Exterior Care.................................... 595
Accessories and Modifications .......... 598
17 CR-V-31TLA6000.book 537 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

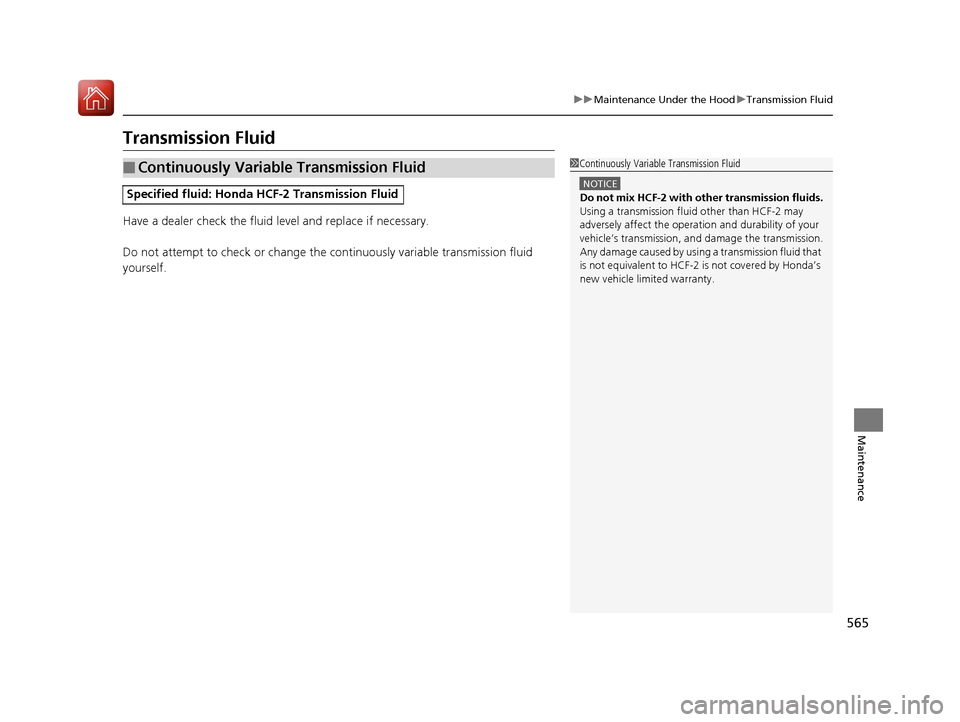

565
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change the continuously variable transmission fluid
yourself.
■Continuously Variable Transmission Fluid
Specified fluid: Honda HC F-2 Transmission Fluid
1Continuously Variable Transmission Fluid
NOTICE
Do not mix HCF-2 with other transmission fluids.
Using a transmission fluid other than HCF-2 may
adversely affect the operati on and durability of your
vehicle’s transmission, and damage the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to HCF-2 is not covered by Honda’s
new vehicle limited warranty.
17 CR-V-31TLA6000.book 565 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

621
uuIndicator, Comi ng On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indica tor comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reason for the indicator to blink
• There is a problem with the electric parking brake system.
■What to do when the indicator blinks
Avoid using the parking brake and have your vehicle checked by a dealer
immediately.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately. 2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 622U.S.
Canada
(Red)
17 CR-V-31TLA6000.book 621 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

625Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
Audio AMP*(30 A)
Electric Brake Booster40 A
Main Fan Motor30 A
Relay Module 130 A
IG Main 2*230 A
Relay Module 230 A
Battery125 A
2
EPS70 A
IG Main 130 A*2
50 A*3
Fuse Box Option(40 A)
Fuse Box60 A
Front Wiper Motor30 A
Sub Fan Motor30 A
3
Rear Defroster40 A
Starter Motor30 A
Fuse Box40 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
4
Option Block 1*(40 A)
Option Block 2*(40 A)
−−
Power Tail Gate*(40 A)
5VB ACT*4(7.5 A)
*1:Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
*2:Models with smart entry system
*3:Models without smart entry system
*4:1.5L engine models
*5:2.4L engine models
6Washer15 A
7FI Main15 A
8FI Sub*415 ADBW*5
9Stop Lights10 A
10Injector20 A
11LAF7.5 A
12FI ECU*4
−*510 A
−
13Front Wiper Deicer*(15 A)
14Hazard10 A
15IG Coil15 A
16Transmission*4
−*5(15 A) −
17−−
18Back Up10 A
19Audio15 A
20AWD*(20 A)
Circuit ProtectedAmps
* Not available on all models
17 CR-V-31TLA6000.book 625 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

648
Index
Auto Door Locking/Unlocking................. 146
Auto High-Beam System .......................... 178
Automatic Brake Hold .............................. 510
Indicator ............................................ 82, 510
Automatic Intermittent Wipers ............... 183
Automatic Lighting .................................. 175
Average Fuel Economy ..................... 119, 124
Average Speed .......................................... 124
AWD (All-Wheel Drive) ............................ 500
B
Battery....................................................... 588
Charging System Indicator ................. 83, 619
Jump Starting .......................................... 611
Maintenance (Checking the Battery) ........ 588
Maintenance (Replacing).......................... 590
Belts (Seat) .................................................. 40
Beverage Holders ...................................... 210
Blind spot information (BSI) System ........ 495
Bluetooth ® Audio ............................. 252, 308
Bluetooth ® HandsFreeLink ®............. 371, 394
Booster Seats (For Children) ....................... 75
Brake System ............................................. 506
Anti-lock Brake System (ABS) ................... 512
Automatic Brake Hold.............................. 510
Brake Assist System ................................. 513
Fluid ........................................................ 566
Foot Brake ............................................... 509
Indicator (Red) ........................... 80, 621, 622
Parking Brake .......................................... 506 Brightness Control
(Instrument Panel).... 185
Bulb Replacement .................................... 568
Brake/Taillight, Rear Turn Signal Light and
Rear Side Marker Lights ......................... 572
Fog Lights ............................................... 570
Front Turn Signal/ Front Side Marker Lights .................................................... 572
Headlights ............................................... 568
High-Mount Brake Light .......................... 574
Parking/Daytime Running Lights .............. 572
Rear License Plate Light ........................... 574
Side Turn Signal/Emergency Indicator Lights .................................................... 572
Taillight and Back-Up Lights .................... 573
Bulb Specifications ................................... 634
C
Carbon Monoxide Gas ............................... 76
Cargo Hook ............................................... 215
Carrying Cargo ................................. 433, 435
Certification Label .................................... 636
Changing Bulbs ........................................ 568
Charging System Indicator ................. 83, 619
Child Safety ................................................. 63
Childproof Door Locks............................. 145
Child Seat .................................................... 63
Booster Seats ............................................ 75
Child Seat for Infants................................. 65
Child Seat for Small Children ..................... 66 Installing a Child Seat
with a Lap/Shoulder
Seat Belt ................................................. 71
Larger Children ......................................... 74
Rear-facing Child Seat............................... 65
Selecting a Child Seat ............................... 67
Childproof Door Locks ............................. 145
Cleaning the Exterior ............................... 595
Cleaning the Interior ............................... 593
Climate Control System ........................... 221
Changing the Mode................................ 221
Defrosting the Windshield and
Windows .............................................. 222
Dust and Pollen Filter .............................. 592
Recirculation/Fresh Air Mode................... 222
Sensors ................................................... 225
Synchronized Mode ................................ 224
Using Automatic Climate Control............ 221
Clock ......................................................... 132
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 514
Coat Hook ................................................ 214
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 514
Compact Spare Tire .......................... 601, 635
Compass .................................................... 428
Continuously Variable Transmission ....... 452
Creeping................................................. 452
Fluid ....................................................... 565
Kickdown ............................................... 452
Operating the Shift Lever .................. 23, 454
Shift Lever Does Not Move ...................... 614
17 CR-V-31TLA6000.book 648 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

652
Index
Daytime Running Lights ........................... 181
Fog Lights ................................................ 177
High Beam Indicator .................................. 90
Interior .................................................... 203
Light Switches ......................................... 174
Lights On Indicator .................................... 90
Turn Signals ............................................. 173
Load Limits ................................................ 435
Locking/Unlocking .................................... 134
Auto Door Locking/Unlocking .................. 146
Childproof Door Locks ............................. 145
From Inside .............................................. 144
From Outside ........................................... 137
Keys ........................................................ 134
Using a Key ............................................. 142
Lockout Prevention System ...................... 143
Low Battery Charge .................................. 619
Low Fuel Indicator ...................................... 84
Low Oil Pressure Indicator ................. 82, 619
Low Smart Entry Remote Signal Strength ................................................... 136
Lower Anchors ...................................... 68, 72
Luggage (Maximum Load Limit) .............. 435
Lumbar Support ........................................ 195
Lumbar Support Adjustment Switch ....... 195
M
Maintenance............................................. 537
Adding the Coolant ................................. 562
Battery..................................................... 588 Brake Fluid .............................................. 566
Cleaning ................................................. 593
Coolant ........................................... 561, 563
Maintenance Minder
TM............................ 541
Oil ........................................................... 555
Precautions ............................................. 538
Radiator .................................................. 564
Remote Transmitter ................................. 590
Replacing Light Bulbs .............................. 568
Safety...................................................... 539
Service Items ................................... 543, 548
Tires ........................................................ 579
Transmission Fluid ................................... 565
Under the Hood ...................................... 551
Malfunction Indicator Lamp .............. 83, 620
Map Lights ................................................ 204
Maximum Load Limit ............................... 435
Meters, Gauges ......................................... 117
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 598
Moonroof ................................................. 164
MP3 ................................................... 249, 305
Multi-View Rear Camera .......................... 529
N
Numbers (Identification) ......................... 636
O
Odometer......................................... 118, 122
Off-Highway Driving Guidelines ............. 442
Oil (Engine) .............................................. 554
Adding ................................................... 557
Checking ................................................ 555
Displaying Oil Life ........................... 541, 546
Low Oil Pressure Indicator ................. 82, 619
Recommended Engine Oil ....................... 554
Viscosity.................................................. 554
Open Source Licenses .............................. 334
Opening/Closing
Hood ...................................................... 553
Moonroof ............................................... 164
Power Windows...................................... 161
Tailgate................................................... 147
Outside Temperature Display ......... 120, 128
Overheating ............................................. 615
P
Pandora®.......................................... 247, 303
Panic Mode ............................................... 160
Panoramic Roof ........................................ 165
Parking ..................................................... 524
Parking Brake ........................................... 506
17 CR-V-31TLA6000.book 652 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

654
Index
Snow Tires................................................. 587
Song By VoiceTM (SBV) .............................. 299
Spare Tire .......................................... 601, 635
Spark Plugs ................................................ 634
Specifications ............................................ 634
Specified Fuel .................................... 531, 634
Speedometer ............................................. 117
SRS Airbags (Airbags) ................................. 52
Starting the Engine .......................... 444, 446
Does Not Start ......................................... 608
Engine Switch Buzzer....................... 168, 171
Jump Starting .......................................... 611
Steering Wheel ......................................... 191
Adjusting ................................................. 191
Stopping .................................................... 524
Summer Tires ............................................ 587
Sunglasses Holder ..................................... 216
Supplemental Restraint System (SRS) ........ 52
Switches (Around the Steering
Wheel) ............................................. 4, 5, 168
System Message Indicator .......................... 90
T
Tachometer............................................... 117
Tailgate ..................................................... 147
Tailgate Open Indicator.............................. 87
Unable to Open ....................................... 630
Temperature Outside Temperature Display ........... 120, 128
Temperature Sensor ......................... 120, 128 Theft Protection
....................................... 230
Time (Setting) ........................................... 132
Tire Pressure Monitoring System (TPMS) ..................................................... 501
Button..................................................... 501
Indicator.................................................... 89
Tires ........................................................... 579
Air Pressure ..................................... 580, 635
Checking and Maintaining ...................... 579
Inspection ............................................... 579
Labeling .................................................. 580
Puncture (Flat Tire) .................................. 601
Regulations ............................................. 582
Rotation .................................................. 586
Spare Tire ........................................ 601, 635
Summer .................................................. 587
Tire Chains .............................................. 587
Wear Indicators ....................................... 584
Winter..................................................... 587
Tonneau Cover ......................................... 220
Tools .......................................................... 600
Towing a Trailer ....................................... 437
Equipment and Accessories ..................... 438
Load Limits .............................................. 437
Towing Your Vehicle ................................ 441
Behind a Motorhome .............................. 441
Emergency .............................................. 629
TPMS (Tire Pressure Monitoring
System) .................................................... 501
Button..................................................... 501
Indicator.................................................... 89 Transmission
............................................. 453
Continuously Variable ............................. 453
Fluid ....................................................... 565
Number .................................................. 636
Shift Lever Position Indicator ............. 83, 454
TRIP Knob ......................................... 118, 122
Trip Meter ........................................ 118, 122
Troubleshooting ...................................... 599
Blown Fuse ..................................... 625, 626
Brake Pedal Vibrates ................................. 30
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 629
Engine Won’t Start ................................. 608
Noise When Braking ................................. 31
Overheating ............................................ 615
Puncture/Flat Tire .................................... 601
Rear Door Won’t Open ..................... 30, 145
Select Lever Won’t Move ........................ 614
Warning Indicators.................................... 80
Turbo Engine Vehicle .............................. 535
Turn Signals .............................................. 173
Indicators (Instru ment Panel) ..................... 90U
Under-floor Storage Area ....................... 209
Unlocking the Doors ................................ 137
Unlocking the Fron t Doors from the
Inside ......................................................... 15
USB Flash Drives ....................... 249, 305, 331
USB Port(s) ................................................ 229
17 CR-V-31TLA6000.book 654 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
