keyless HONDA CR-V 2017 RM1, RM3, RM4 / 4.G Owners Manual

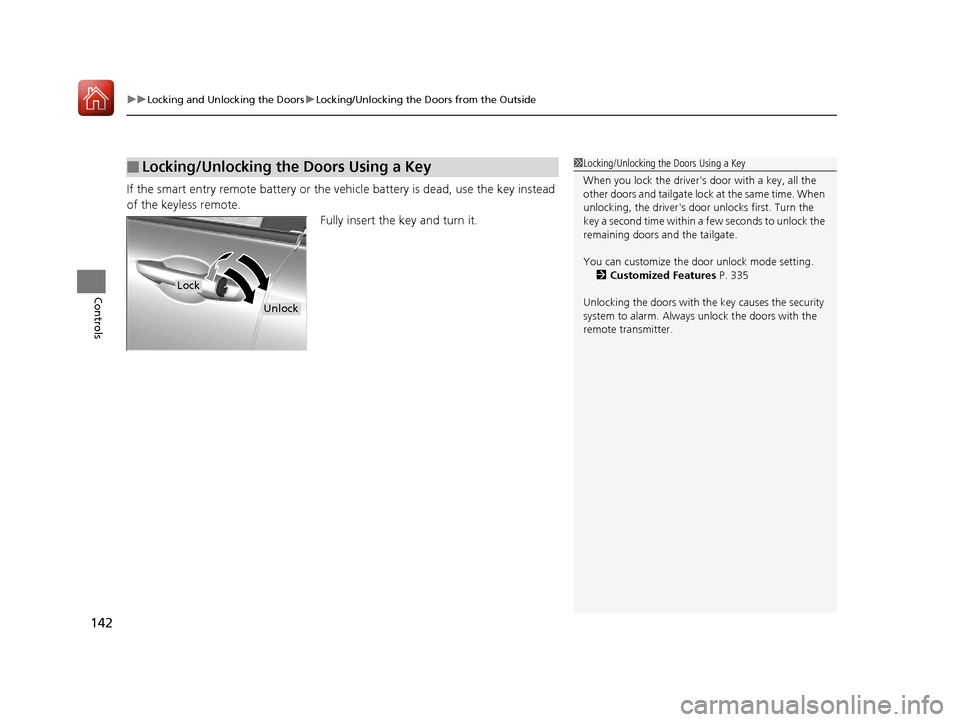

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
142
Controls
If the smart entry remote battery or the ve hicle battery is dead, use the key instead
of the keyless remote. Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver's door with a key, all the
other doors and tail gate lock at the same time. When
unlocking, the driver's door unlocks first. Turn the
key a second time within a few seconds to unlock the
remaining doors a nd the tailgate.
You can customize the door unlock mode setting. 2 Customized Features P. 335
Unlocking the doors with the key causes the security
system to alarm. Always unlock the doors with the
remote transmitter.
Lock
Unlock
17 CR-V-31TLA6000.book 142 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

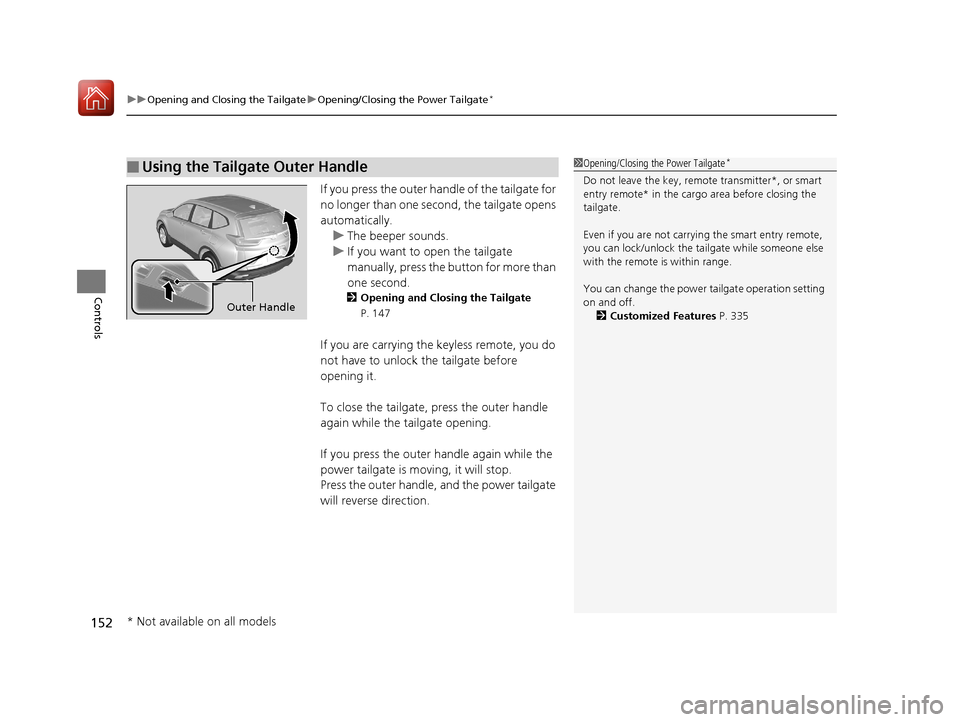

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
152
Controls
If you press the outer handle of the tailgate for
no longer than one second, the tailgate opens
automatically.
u The beeper sounds.
u If you want to open the tailgate
manually, press the button for more than
one second.
2 Opening and Closing the Tailgate
P. 147
If you are carrying the keyless remote, you do
not have to unlock the tailgate before
opening it.
To close the tailgate, press the outer handle
again while the tailgate opening.
If you press the outer handle again while the
power tailgate is moving, it will stop.
Press the outer handle, and the power tailgate
will reverse direction.
■Using the Tailgate Outer Handle1 Opening/Closing the Power Tailgate*
Do not leave the key, remote transmitter*, or smart
entry remote* in the cargo area before closing the
tailgate.
Even if you are not carrying the smart entry remote,
you can lock/unlock the tail gate while someone else
with the remote is within range.
You can change the power tailgate operation setting
on and off. 2 Customized Features P. 335
Outer Handle
* Not available on all models
17 CR-V-31TLA6000.book 152 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

169
uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button*
Continued
Controls
ENGINE START/STOP Button*
*1:Except U.S. models
■Changing the Power Mode1ENGINE START/STOP Button*
ENGINE START/STOP Button Operating Range
You can start the engine when the smart entry
remote is inside the vehicle.
The engine may also run if the smart entry remote is
close to the door or window, ev en if it is outside the
vehicle.
If the smart entry remote battery is weak, beeper
sounds and the To Start, Hold Remote Near Start
Button message appears on the MID. 2 If the Smart Entry Remote Battery is Weak
P. 609
The power system may also start if the keyless access
remote is close to the door or window, even if it is
outside the vehicle.
Operating RangeVEHICLE OFF (LOCK)
The button is off.
The steering wheel is locked
*1.
The power to all electrical components is turned off.
ACCESSORY
The button blinks (in red).
Operate the audio system and other accessories
in this position.
ON
The button blinks (in red).
All electrical components can be used.
Press the button without the
shift lever in
( P.
Without
pressing the
brake pedal
Shift to
(P then press the
button. Press the button.
Shift to
(
P.
U.S. models
* Not available on all models
17 CR-V-31TLA6000.book 169 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

350
uuCustomized Features u
Features
Hand Free Access Function
Keyless Open Mode
Lighting SetupInterior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Auto Interior Illumination Sensitivity
Auto Door Lock
Key and Remote Unlock Mode
Door/Window Setup
Apple CarPlay
Maintenance Info.
Android Auto
Keyless Lock Answer Back
Security Relock Timer
Walk Away Auto Lock
Keyless Access Setup*
Keyless Access Light Flash
Door Unlock Mode
Remote Start System On/Off
Keyless Access Beep
Smartphone
Power Tailgate Setup
Power Open By Outer Handle
Default
Auto Door Unlock
Auto Headlight ON With Wiper ON
* Not available on all models
17 CR-V-31TLA6000.book 350 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

364
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Vehicle
Driving
Position
Setup
*Memory Position LinkTurns the driving position memory system on and
off.On*1/Off
Keyless
Access
Setup
*
Remote Start System
On/OffTurns the remote engine start feature on and off.On*1/Off
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only*1/All
Doors
Keyless Access Light
FlashCauses some exterior lights to flash when you
unlock/lock the doors.On*1/ Off
Keyless Access BeepCauses the beeper to so und when you unlock/lock
the doors.On*1/ Off
Lighting
Setup
Interior Light
Dimming TimeChanges the length of time the interior lights stay
on after you close the doors.60seconds /30seconds*1/
15seconds
Headlight Auto Off
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60seconds /30seconds /
15seconds*1/ 0seconds
Auto Light SensitivityChanges the timing for the headlights to come on.Max /High /Mid*1/Low /Min
Auto Interior
Illumination
SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in
the AUTO position.
Min/Low /Mid*1/High/ Max
* Not available on all models
17 CR-V-31TLA6000.book 364 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

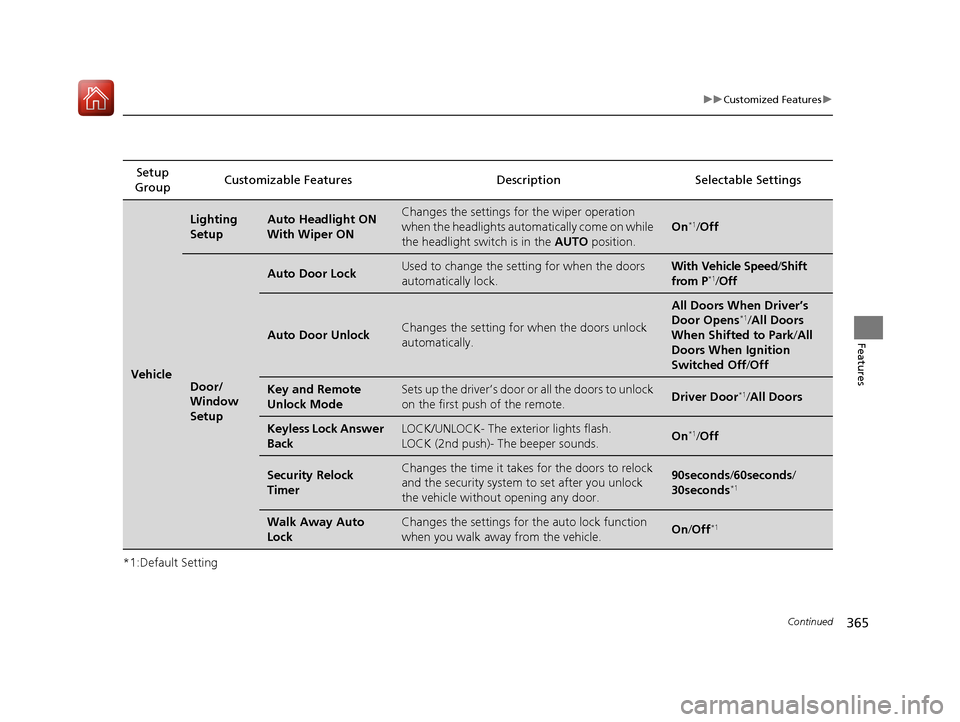

365
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Vehicle
Lighting
SetupAuto Headlight ON
With Wiper ONChanges the settings for the wiper operation
when the headlights automatically come on while
the headlight switch is in the AUTO position.
On*1/Off
Door/
Window
Setup
Auto Door LockUsed to change the se tting for when the doors
automatically lock.With Vehicle Speed /Shift
from P*1/ Off
Auto Door UnlockChanges the setting for when the doors unlock
automatically.
All Doors When Driver’s
Door Opens*1/ All Doors
When Shifted to Park /All
Doors When Ignition
Switched Off /Off
Key and Remote
Unlock ModeSets up the driver’s door or all the doors to unlock
on the first push of the remote.Driver Door*1/All Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.On*1/Off
Security Relock
TimerChanges the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening any door.90seconds /60seconds /
30seconds*1
Walk Away Auto
LockChanges the settings for the auto lock function
when you walk away from the vehicle.On /Off*1
17 CR-V-31TLA6000.book 365 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

366
uuCustomized Features u
Features
Setup Group Customizabl e Features Description Selectable Settings
Vehicle
Power
Tailgate
Setup
*
Hand Free Access
FunctionChanges the setting to open power tailgate by a
swift forward in and out kicking motion under
the rear bumper.
On*1/Off
Keyless Open ModeChanges the keyless setting for when the power
tailgate opens.Anytime*1/When
Unlocked
Power Open By Outer
HandleChanges the setting to open power tailgate by
tailgate outer handle.Off (Manual only)*1/
On (Power/Manual)
Maintenance Info.Used to reset the engine oil life display when the
maintenance service has been performed.—
DefaultCancels/Resets all customized items in the Vehicle
settings group as default.Yes /No
Smartphone Apple CarPlay
Sets up the Apple CarPlay
TM connection.—
Android Auto Sets up the Android Auto
TM connection.—
* Not available on all models
17 CR-V-31TLA6000.book 366 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

651
Index
HomeLink® Universal Transceiver ........... 368
Honda SensingTM........................................ 26
HondaLink® .............................................. 310
I
Identification Numbers ............................ 636
Engine and Transmission ......................... 636
Vehicle Identification............................... 636
Ignition Switch ......................................... 168
Illumination Control ................................ 185
Knob ...................................................... 185
Immobilizer System .................................. 158
Immobilizer System Indicator..................... 91
Indicators .................................................... 80
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) .......................... 98, 465
Anti-lock Brake System (ABS) .................... 85
Automatic Brake Hold ....................... 82, 510
Blind spot information (BSI) ..................... 496
Brake Depressing ...................................... 94
Charging System............................... 83, 619
Collision Mitigati on Braking System
TM
(CMBSTM) ................................ 99, 100, 101
Cruise Control .......................... 93, 457, 460
Cruise Main .............................. 93, 456, 459
Door Open.......................................... 38, 87
ECON Mode ..................................... 93, 455
Electric Power Steering (EPS) System ............................................ 88, 623
Fog Light .................................................. 91 High Beam ................................................ 90
Immobilizer System .................................... 91
Lane Keeping Assist System (LKAS) ...... 98, 99
Lights On ................................................... 90
Low Fuel .................................................... 84
Low Oil Pressure ................................ 82, 619
Low Tire Pressure/TPMS ..................... 89, 504
Maintenance Minder ......................... 93, 541
Malfunction Indicator Lamp ............... 83, 620
Parking Brake and Brake System (Amber) ... 81
Parking Brake and Brake System
(Red)........................................ 80, 621, 622
Road Departure Mitigation (RDM) ........ 95, 96
Seat Belt Reminder .............................. 42, 84
Security System Alarm ............................... 92
Shift Lever Position .................................... 83
Supplemental Restraint System ............ 60, 85
System Message ........................................ 90
Tailgate Open ............................................ 87
Transmission .............................................. 84
Turn Signal ................................................ 90
Vehicle Stability Assist (VSA ®)
System............................................. 86, 492
VSA ® OFF .......................................... 87, 493
Information ............................................... 633
Information Display .................................. 118
Instant Fuel Economy ....................... 119, 128
Instrument Panel ........................................ 79
Brightness Control ................................... 185
Interior Lights ........................................... 203
Interior Rearview Mirror .......................... 192iPod
................................................... 244, 296
J
Jack (Wheel Nut Wrench) ........................ 604
Jump Starting ........................................... 611
K
Key Number Tag ....................................... 136
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 134
Lockout Prevention.................................. 143
Master Keys ............................................ 134
Number Tag ............................................ 136
Rear Door Won’t Open............................ 145
Remote Transmitter ................................. 141
Types and Functions ................................ 134
Valet Key................................................. 135
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 452
L
Lane Keeping Assist System (LKAS) ......... 484
LaneWatchTM............................................ 498
Language (HFL) ................................ 372, 396
LATCH (Child Seats) .............................. 68, 72
Lights ................................................. 174, 568
Automatic ............................................... 175
Bulb Replacement ................................... 568
17 CR-V-31TLA6000.book 651 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
