Continued471

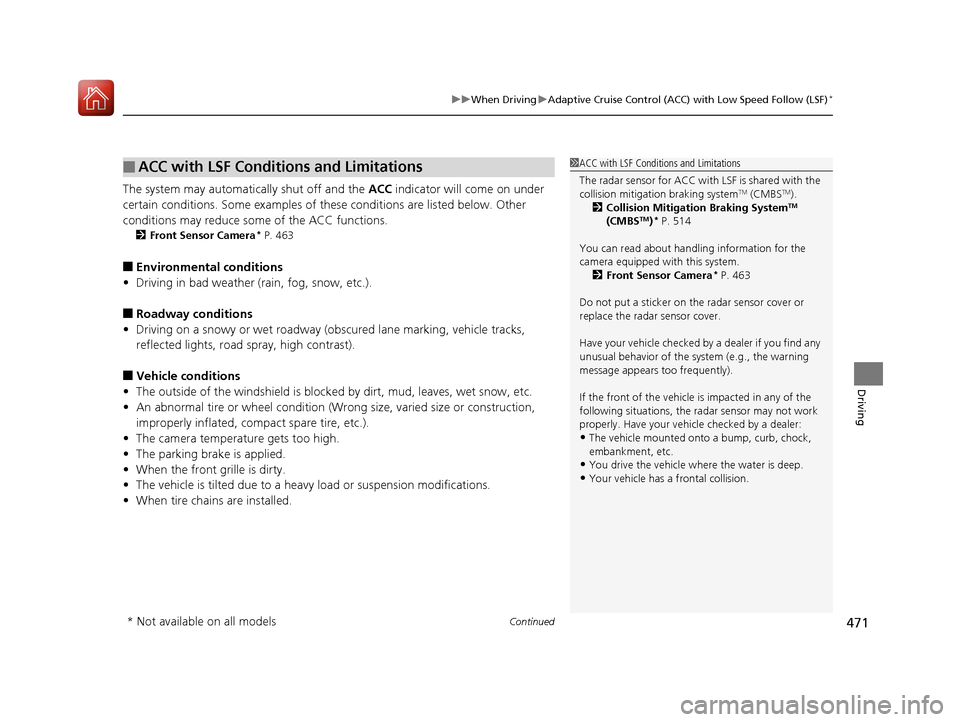

uuWhen Driving uAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
Driving
The system may automatically shut off and the ACC indicator will come on under
certain conditions. Some examples of thes e conditions are listed below. Other
conditions may reduce some of the ACC functions.
2 Front Sensor Camera* P. 463
■Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
■Roadway conditions
• Driving on a snowy or wet roadway (obs cured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
■Vehicle conditions
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• An abnormal tire or wheel condition (Wro ng size, varied size or construction,
improperly inflated, co mpact spare tire, etc.).
• The camera temperature gets too high.
• The parking brake is applied.
• When the front grille is dirty.
• The vehicle is tilted due to a heavy load or suspension modifications.
• When tire chains are installed.
■ACC with LSF Conditions and Limitations1ACC with LSF Conditions and Limitations
The radar sensor for ACC with LSF is shared with the
collision mitigation braking system
TM (CMBSTM).
2 Collision Mitigation Braking SystemTM
(CMBSTM)* P. 514
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera
* P. 463
Do not put a sticker on the radar sensor cover or
replace the radar sensor cover.
Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).
If the front of the vehicle is impacted in any of the
following situations, the ra dar sensor may not work
properly. Have your vehi cle checked by a dealer:
•The vehicle mounted onto a bump, curb, chock,
embankment, etc.
•You drive the vehicle where the water is deep.
•Your vehicle has a frontal collision.
* Not available on all models
17 CR-V-31TLA6000.book 471 ページ 2016年10月11日 火曜日 午後6時37分
Page 484 of 657

483

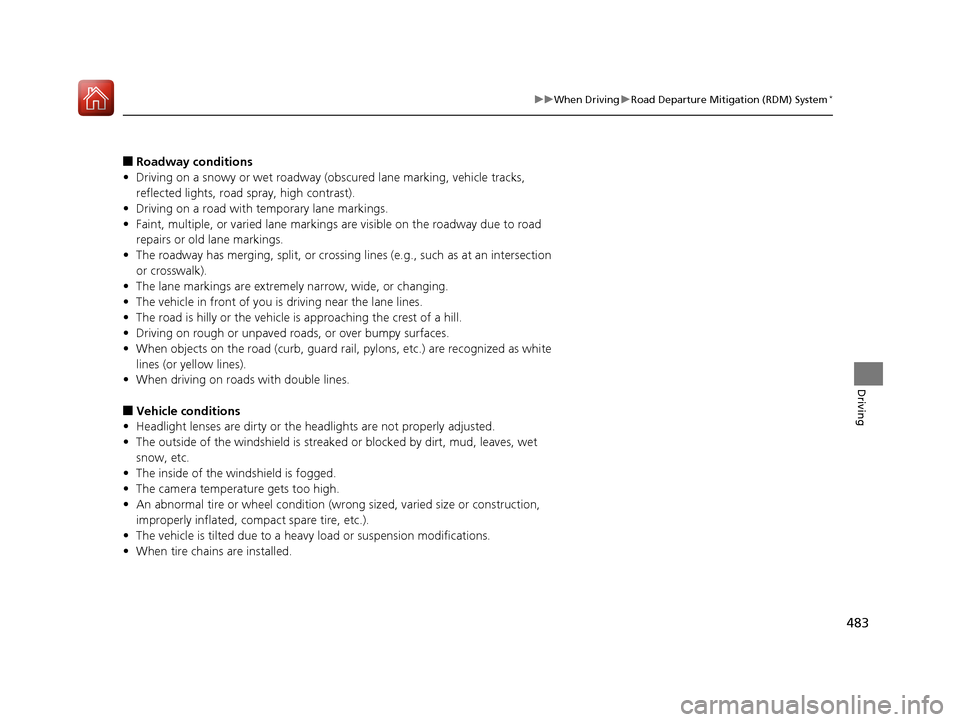

uuWhen Driving uRoad Departure Mitigation (RDM) System*
Driving
■Roadway conditions
• Driving on a snowy or wet roadway (obs cured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.
• The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).
• The lane markings are extremel y narrow, wide, or changing.
• The vehicle in front of you is driving near the lane lines.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Driving on rough or unpaved roads, or over bumpy surfaces.
• When objects on the road (curb, guard rail, pylons, etc.) are recognized as white
lines (or yellow lines).
• When driving on roads with double lines.
■Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet
snow, etc.
• The inside of the windshield is fogged.
• The camera temperature gets too high.
• An abnormal tire or wheel condition (wro ng sized, varied size or construction,
improperly inflated, co mpact spare tire, etc.).
• The vehicle is tilted due to a heavy load or suspension modifications.
• When tire chains are installed.
17 CR-V-31TLA6000.book 483 ページ 2016年10月11日 火曜日 午後6時37分
Page 502 of 657

501
uuWhen Driving uTire Pressure Monitoring System (TPMS)
Continued
Driving
Tire Pressure Monitoring System (TPMS)
Instead of directly measuring the pressure in each tire, the TPMS on this vehicle
monitors and compares the rolling radius and rotational characteristics of each
wheel and tire while you are driving to determine if one or more tires are
significantly under-inflated. This will caus e the low tire pressure/TPMS indicator to
come on and a message to appear on the driver information interface
*.
You must start TPMS calibration every time you:
• Adjust the pressure in one or more tires.
• Rotate the tires.
• Replace one or more tires.
Before calibrating the TPMS:
• Set the cold tire pressure in all four tires.
2 Checking Tires P. 579
Make sure:
•The vehicle is at a complete stop.
• The shift lever is in
(P.
• The ignition switch is in ON
(w*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■TPMS Calibration
1 Tire Pressure Monitoring System (TPMS)
The system does not monitor the tires when driving
at low speed.
Conditions such as low ambient temperature and
altitude change directly a ffect tire pressure and can
trigger the low tire pressure/TPMS indicator to come on.
Tire pressure checked and inflated in:
•Warm weather can beco me under-inflated in
colder weather.
•Cold weather can become over-inflated in warmer
weather.
The low tire pressure indica tor will not come on as a
result of over inflation.
The TPMS may not function pr operly if tire type and
size are mixed. Make sure to use the same size and
type of tire. 2 Checking and Maintaining Tires P. 579
The low tire pressure/TPMS indicator may come on
with a delay or may not come on at all when:
•You rapidly accelerate, decelerate, or turn the
steering wheel.
•You drive on snowy or slippery roads.•Snow chains are used.
The low tire pressure/TPMS indicator may come on
under the following conditions:
•A compact spare tire is used.•There is a heavier and une ven load on the tires,
such as when towing a trailer, than the condition at
calibration.
•Snow chains are used.
* Not available on all models
17 CR-V-31TLA6000.book 501 ページ 2016年10月11日 火曜日 午後6時37分
Page 503 of 657

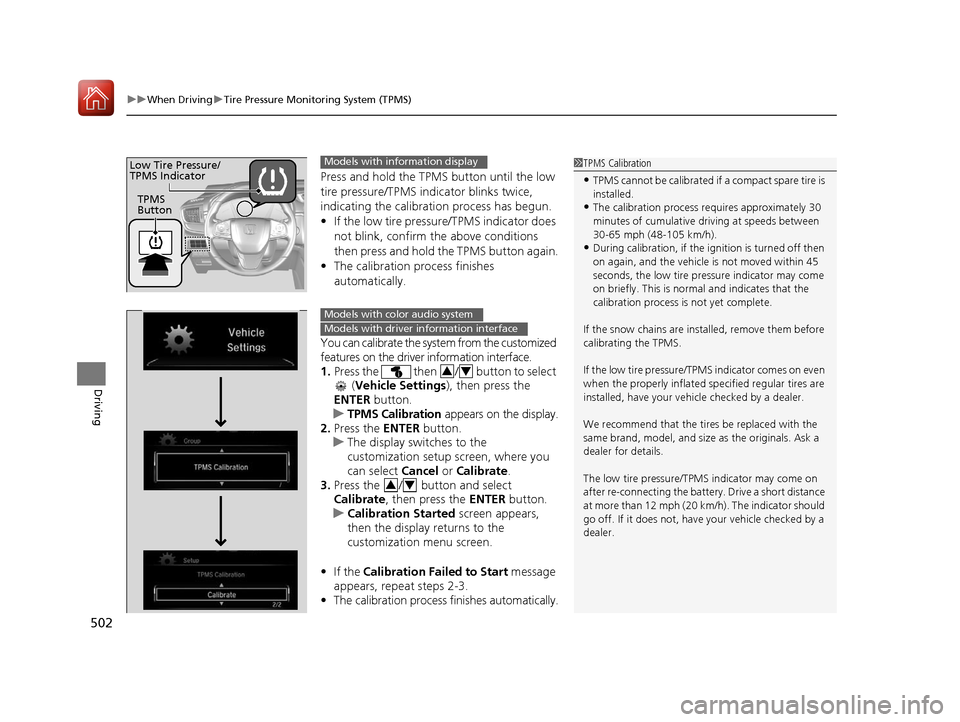

uuWhen Driving uTire Pressure Monitoring System (TPMS)
502
Driving
Press and hold the TPMS button until the low
tire pressure/TPMS indi cator blinks twice,
indicating the calibration process has begun.
• If the low tire pressure/TPMS indicator does
not blink, confirm the above conditions
then press and hold the TPMS button again.
• The calibration pr ocess finishes
automatically.
You can calibrate the system from the customized
features on the driver information interface.
1. Press the then / button to select
(Vehicle Settings ), then press the
ENTER button.
u TPMS Calibration appears on the display.
2. Press the ENTER button.
u The display switches to the
customization setup screen, where you
can select Cancel or Calibrate .
3. Press the / button and select
Calibrate , then press the ENTER button.
u Calibration Started screen appears,
then the display returns to the
customization menu screen.
• If the Calibration Failed to Start message
appears, repeat steps 2-3.
• The calibration process finishes automatically.
1TPMS Calibration
•TPMS cannot be calibrated if a compact spare tire is
installed.
•The calibration process requires approximately 30
minutes of cumulative dr iving at speeds between
30-65 mph (48-105 km/h).
•During calibration, if the ignition is turned off then
on again, and the vehicle is not moved within 45
seconds, the low tire pres sure indicator may come
on briefly. This is norma l and indicates that the
calibration process is not yet complete.
If the snow chains are installed, remove them before
calibrating the TPMS.
If the low tire pressure/TPMS indicator comes on even
when the properly inflated specified regular tires are
installed, have your vehicle checked by a dealer.
We recommend that the tires be replaced with the
same brand, model, and size as the originals. Ask a
dealer for details.
The low tire pressure/TPMS indicator may come on
after re-connecting th e battery. Drive a short distance
at more than 12 mph (20 km/h). The indicator should
go off. If it does not, have your vehicle checked by a
dealer.
TPMS
Button
Low Tire Pressure/
TPMS IndicatorModels with info rmation display
Models with color audio system
Models with driver information interface
34
34
17 CR-V-31TLA6000.book 502 ページ 2016年10月11日 火曜日 午後6時37分
Page 513 of 657

512
uuBraking uAnti-lock Brake System (ABS)
Driving
Anti-lock Brake System (ABS)
Helps prevent the wheels from locking up, an d helps you retain steering control by
pumping the brakes rapidly, much faster than you.
The electronic brake distribution (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distri bution according to vehicle loading.
You should never pump the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pe dal. This is sometimes referred to as
“stomp and steer.“
■ABS operation
The brake pedal may pulsate slightly when the ABS is working. Keep holding the
pedal firmly down. On dry pavement, you need to press on the brake pedal very
hard before the ABS activates. However, you may feel the ABS activate immediately
if you are trying to stop on snow or ice.
When the vehicle speed goes unde r 6 mph (10 km/h), the ABS stops.
1Anti-lock Brake System (ABS)
NOTICE
The ABS may not function correctly if you use an
incorrect tire type and size.
When the ABS indicator comes on while driving,
there may be a problem with the system.
While normal braking is not affected, there is a
possibility of the ABS not operating. Have the vehicle
checked by a dealer immediately.
The ABS does not reduce the ti me or distance it takes
to stop the vehicle. It only helps with steering control
during hard braking.
In the following cases, yo ur vehicle may need more
stopping distance than a vehicle without the ABS:
•When driving on rough road surfaces, including
when driving on uneven surf aces, such as gravel or
snow.
•When tire chains are installed.
You may hear a motor sound coming from the
engine compartment while system checks are being
performed immediately after starting the engine or
while driving. This is normal.
17 CR-V-31TLA6000.book 512 ページ 2016年10月11日 火曜日 午後6時37分
Page 522 of 657

521

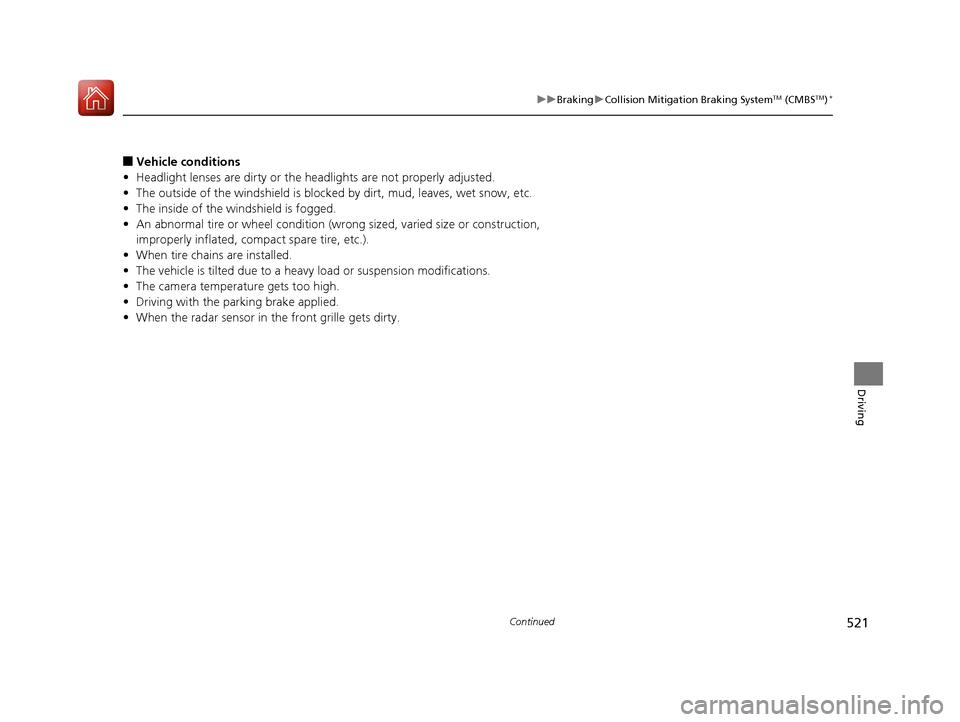

uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Continued
Driving
■Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wro ng sized, varied size or construction,
improperly inflated, co mpact spare tire, etc.).
• When tire chains are installed.
• The vehicle is tilted due to a heavy load or suspension modifications.
• The camera temperature gets too high.
• Driving with the parking brake applied.
• When the radar sensor in the front grille gets dirty.
17 CR-V-31TLA6000.book 521 ページ 2016年10月11日 火曜日 午後6時37分
Page 588 of 657

587

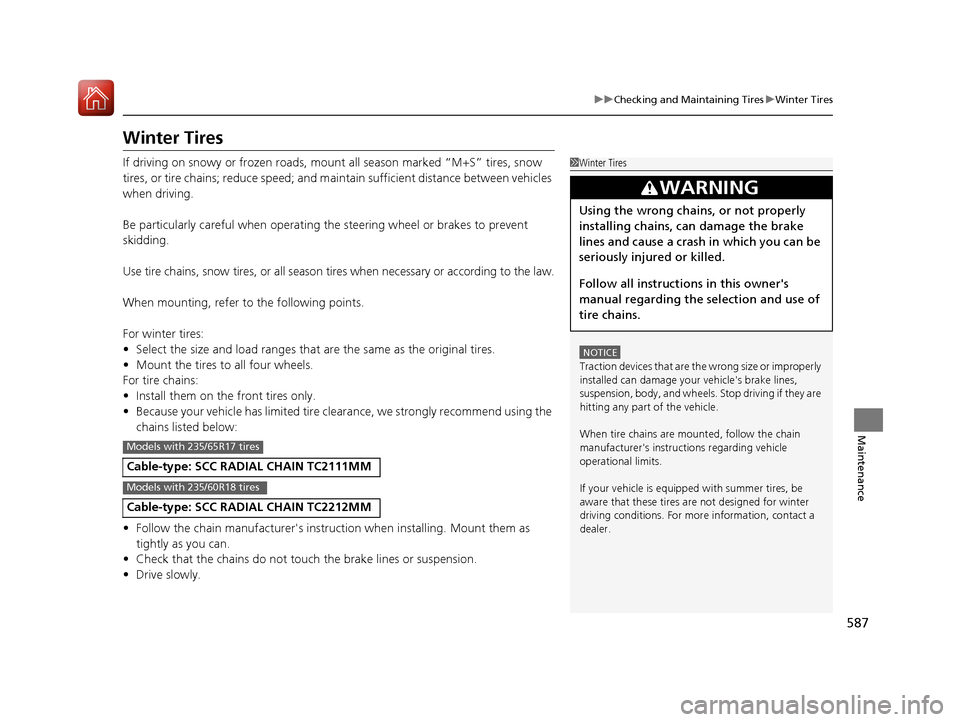

uuChecking and Maintaining Tires uWinter Tires
Maintenance
Winter Tires
If driving on snowy or frozen roads, mount all season marked “M+S” tires, snow
tires, or tire chains; reduce speed; and main tain sufficient distance between vehicles
when driving.
Be particularly careful wh en operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season tires when necessary or according to the law.
When mounting, refer to the following points.
For winter tires:
• Select the size and load ranges that are the same as the original tires.
• Mount the tires to all four wheels.
For tire chains:
• Install them on the front tires only.
• Because your vehicle has limited tire clea rance, we strongly recommend using the
chains listed below:
• Follow the chain manufactur er's instruction when installing. Mount them as
tightly as you can.
• Check that the chains do not touch the brake lines or suspension.
• Drive slowly.
Cable-type: SCC RADIAL CHAIN TC2111MM
Cable-type: SCC RADIAL CHAIN TC2212MM
1Winter Tires
NOTICE
Traction devices that are th e wrong size or improperly
installed can damage your vehicle's brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.
When tire chains are mounted, follow the chain
manufacturer's instructi ons regarding vehicle
operational limits.
If your vehicle is equipped with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact a
dealer.
3WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.
Follow all instruction s in this owner's
manual regarding the selection and use of
tire chains.
Models with 235/65R17 tires
Models with 235/60R18 tires
17 CR-V-31TLA6000.book 587 ページ 2016年10月11日 火曜日 午後6時37分
Page 655 of 657

654
Index
Snow Tires................................................. 587
Song By VoiceTM (SBV) .............................. 299
Spare Tire .......................................... 601, 635
Spark Plugs ................................................ 634
Specifications ............................................ 634
Specified Fuel .................................... 531, 634
Speedometer ............................................. 117
SRS Airbags (Airbags) ................................. 52
Starting the Engine .......................... 444, 446
Does Not Start ......................................... 608
Engine Switch Buzzer....................... 168, 171
Jump Starting .......................................... 611
Steering Wheel ......................................... 191
Adjusting ................................................. 191
Stopping .................................................... 524
Summer Tires ............................................ 587
Sunglasses Holder ..................................... 216
Supplemental Restraint System (SRS) ........ 52
Switches (Around the Steering
Wheel) ............................................. 4, 5, 168
System Message Indicator .......................... 90
T
Tachometer............................................... 117
Tailgate ..................................................... 147
Tailgate Open Indicator.............................. 87
Unable to Open ....................................... 630
Temperature Outside Temperature Display ........... 120, 128
Temperature Sensor ......................... 120, 128 Theft Protection
....................................... 230
Time (Setting) ........................................... 132
Tire Pressure Monitoring System (TPMS) ..................................................... 501
Button..................................................... 501
Indicator.................................................... 89
Tires ........................................................... 579
Air Pressure ..................................... 580, 635
Checking and Maintaining ...................... 579
Inspection ............................................... 579
Labeling .................................................. 580
Puncture (Flat Tire) .................................. 601
Regulations ............................................. 582
Rotation .................................................. 586
Spare Tire ........................................ 601, 635
Summer .................................................. 587
Tire Chains .............................................. 587
Wear Indicators ....................................... 584
Winter..................................................... 587
Tonneau Cover ......................................... 220
Tools .......................................................... 600
Towing a Trailer ....................................... 437
Equipment and Accessories ..................... 438
Load Limits .............................................. 437
Towing Your Vehicle ................................ 441
Behind a Motorhome .............................. 441
Emergency .............................................. 629
TPMS (Tire Pressure Monitoring
System) .................................................... 501
Button..................................................... 501
Indicator.................................................... 89 Transmission
............................................. 453
Continuously Variable ............................. 453
Fluid ....................................................... 565
Number .................................................. 636
Shift Lever Position Indicator ............. 83, 454
TRIP Knob ......................................... 118, 122
Trip Meter ........................................ 118, 122
Troubleshooting ...................................... 599
Blown Fuse ..................................... 625, 626
Brake Pedal Vibrates ................................. 30
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 629
Engine Won’t Start ................................. 608
Noise When Braking ................................. 31
Overheating ............................................ 615
Puncture/Flat Tire .................................... 601
Rear Door Won’t Open ..................... 30, 145
Select Lever Won’t Move ........................ 614
Warning Indicators.................................... 80
Turbo Engine Vehicle .............................. 535
Turn Signals .............................................. 173
Indicators (Instru ment Panel) ..................... 90U
Under-floor Storage Area ....................... 209
Unlocking the Doors ................................ 137
Unlocking the Fron t Doors from the
Inside ......................................................... 15
USB Flash Drives ....................... 249, 305, 331
USB Port(s) ................................................ 229
17 CR-V-31TLA6000.book 654 ページ 2016年10月11日 火曜日 午後6時37分
Page 656 of 657

655
Index
V
Valet Key.................................................. 135
Vanity Mirrors .............................................. 7
Vehicle Identification Number ................ 636
Vehicle Stability Assist (VSA ®) ................. 492
Off Button .............................................. 493
Off Indicator ............................................. 87
System Indicator ....................................... 86
Viscosity (Oil) .................................... 554, 635
Voice Control Operation ......................... 281
Audio Commands ................................... 283
Climate Control Commands.................... 284
General Commands ................................ 284
Music Search Commands ........................ 284
On Screen Commands ............................ 284
Phone Commands .................................. 283
Useful Commands .................................. 283
Voice Portal Screen ................................. 282
Voice Recognition ................................... 281
VSA ® (Vehicle Stability Assist) ................. 492
W
Wallpaper......................................... 238, 266
Warning and Information
Messages ......................................... 102, 103
Warning Indicator On/Blinking ............... 619
Warning Labels .......................................... 77
Warranties (Warranty Manual provided separately) .............................................. 642
Watts ........................................................ 634 WAV
.......................................................... 249
Wear Indicators (Tire) ............................... 584
Wheel Nut Wrench (Jack Handle) ........... 604
Wi-Fi Connection ...................................... 315
Window Washers ...................................... 182
Adding/Refilling Fluid ............................... 567
Switch ..................................................... 182
Windows (Opening and Closing) ............. 161
Windshield ................................................ 182
Cleaning .......................................... 593, 596
Defrosting/Defogging .............................. 222
Washer Fluid ........................................... 567
Wiper Blades ........................................... 575
Wipers and Washers ................................ 182
Winter Tires .............................................. 587
Snow Tires ............................................... 587
Tire Chains .............................................. 587
Wipers and Washers ................................. 182
Automatic Intermittent Wipers................. 183
Checking and Replacing Wiper Blades ..... 575
Front ....................................................... 182
Rear ........................................................ 184
WMA ................................................. 249, 305
Worn Tires ................................................. 579
17 CR-V-31TLA6000.book 655 ページ 2016年10月11日 火曜日 午後6時37分
