602
uuChecking and Maintaining Tires uTire Rotation
Maintenance

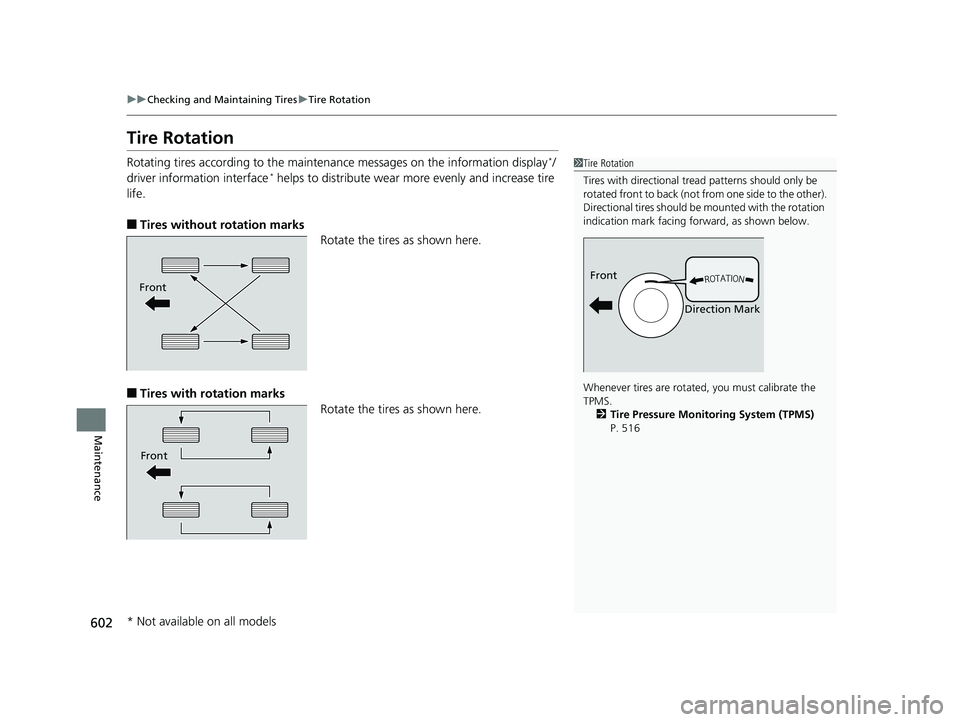

Tire Rotation
Rotating tires according to the maintena nce messages on the information display*/
driver information interface* helps to distribute wear mo re evenly and increase tire
life.
■Tires without rotation marks Rotate the tires as shown here.
■Tires with rotation marks
Rotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 Tire Pressure Monitoring System (TPMS)
P. 516
Front
Direction MarkFront
Front
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 602 ページ ２０１８年８月２２日 水曜日 午後２時５９分
Page 606 of 675
604
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information in terface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery terminal s for corrosion monthly.
If your vehicle's battery is disconnected or goes dead:
• The audio system is disabled.
2 Audio System Theft Protection P. 232
•The clock resets*.
2 Clock P. 130
•Canadian models only: The immob ilizer system needs to be reset.
2Immobilizer System Indicator P. 90
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 604 ページ ２０１８年８月２２日 水曜日 午後２時５９分
Page 663 of 675
Index
661
Index
Index
Numbers
4WD.......................................................... 515
A
ABS (Anti-lock Brake System) .................. 528
Accessories and Modifications ................ 614
Accessory Power Sockets ......................... 215
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................................. 479
Adding the Coolant ................................. 578
Additives Coolant .......................................... 577, 579
Engine Oil ............................................... 570
Washer ................................................... 583
Additives, Engine Oil ............................... 570
Adjusting Armrest .................................................. 204
Front Seats.............................................. 195
Head Restraints ....................................... 201
Mirrors.................................................... 193
Rear Seats ............................................... 199
Steering Wheel ....................................... 192
Temperature ................................... 119, 126
Adjusting the Sound ........................ 242, 280
Agile Handling Assist ............................... 509
Air Conditioning System (Climate
Control System) ........................................ 224
Changing the Mode................................ 225
Defrosting the Windshield and
Windows .............................................. 225 Dust and Pollen Filter ............................... 608
Recirculation/Fresh Air Mode ................... 225
Sensor ..................................................... 228
Synchronized Mode ................................. 227
Using Automatic Climate Control ............ 224
Air Pressure ....................................... 596, 649
Airbags ........................................................ 49
Advanced Airbags ..................................... 55
Airbag Care ............................................... 62
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 52
Indicator .............................................. 60, 85
Passenger Airbag Off Indicator .................. 61
Sensors ...................................................... 49
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
All-Wheel Drive (AWD) ............................ 515
AM/FM Radio .................................... 244, 287
Android Auto
TM........................................ 323
Anti-lock Brake System (ABS) .................. 528
Indicator .................................................... 85
Apple CarPlay
TM........................................ 320
Armrest ..................................................... 204
Audio Remote Controls ............................ 233
Audio System ............................ 230, 237, 258
Adjusting the Sound ........................ 242, 280
AM/FM Radio .................................. 244, 287
Android Auto
TM....................................... 323
Apple CarPlayTM....................................... 320
Audio/Information Screen ................ 238, 259
Changing the Home Screen Icon Layout .. 263 Changing the Screen Interface ................ 277
Closing Apps ........................................... 279
Customizing the Meter............................ 264
Display Setup .................................. 243, 281
Error Messages ........................................ 327
General Information ................................ 332
Home Screen........................................... 270
HondaLink
®............................................. 312
How to use Siri ® Eyes Free .............. 257, 319
iPod ................................................ 246, 298
Limitations for Manual Operation ............ 282
Menu Customize ..................................... 278
MP3/WMA/AAC .............................. 251, 307
Pandora ®......................................... 249, 305
Playing Bluetooth ® Audio ................ 254, 310
Playing SiriusXM ® Radio .......................... 291
Reactivating ............................................ 232
Recommended Devices............................ 333
Remote Controls ..................................... 233
Security Code .......................................... 232
Selecting an Audio Source ....................... 282
Song By Voice
TM (SBV) ............................. 301
Status Area ............................................. 276
Theft Protection ...................................... 232
USB Flash Drives ...................... 251, 307, 333
USB Port(s) .............................................. 231
Voice Control Operation.......................... 283
Wallpaper Setup.............................. 240, 268
Wi-Fi Connection .................................... 317
Audio/Information Screen ............... 238, 259
Authorized Manuals ................................ 658
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 661 ページ ２０１８年８月２２日 水曜日 午後２時５９分
Page 665 of 675
663
Index
Shift Lever Does Not Move ...................... 630
Shifting ................................................... 467
Controls .................................................... 129
Coolant (Engine) .............................. 577, 579
Adding the Coolant ................................ 578
Adding to the Radiator ........................... 580
Adding to the Reserve Tank .................... 579
Overheating ............................................ 631
Creeping (Continuously Variable Transmission) .......................................... 466
Cross Traffic Monitor ............................... 542
Cruise Control .................................. 470, 473
Indicator ................................................... 92
Cup Holders .............................................. 213
Customer Service Information ................ 659
Customized Features ............................... 349
Customizing the Auto Door Locking/
Unlocking Setting .................................. 145
D
Daytime Running Lights .......................... 182
Dead Battery ............................................ 627
Defaulting All the Settings ...................... 381
Defrosting the Windshield and Windows ................................................. 225
Detachable Anchor .................................... 46
Devices that Emit Radio Waves ............... 652
Dimming Headlights .............................................. 175
Rearview Mirror ...................................... 193 Dipstick (Engine Oil)
................................. 571
Directional Signals (Turn Signals) ............ 174
Display Setup .................................... 243, 281
Display/Information Button ..................... 120
Door Mirrors ............................................. 194
Doors ......................................................... 132
Auto Door Locking .................................. 144
Auto Door Unlocking ............................... 144
Door Open Indicator ............................ 38, 87
Keys ........................................................ 132
Locking/Unlocking the Doors from the
Inside..................................................... 142
Locking/Unlocking the Doors from the Outside.................................................. 135
Lockout Prevention System ...................... 141
DOT Tire Quality Grading ........................ 598
Driver Information Interface ................... 120
Driver’s Seat Lumbar Support .................. 195
Driving ....................................................... 445
Braking .................................................... 522
Continuously Variable Transmission ......... 466
Cruise Control ................................. 470, 473
Off-Highway Driving Guidelines ............... 456
Shifting Gear ........................................... 467
Starting the Engine .......................... 458, 460
Driving Position Memory System ............. 190
Dust and Pollen Filter ............................... 608
E
Eco Assist® System ........................................ 9
ECON Button ............................................ 469
Elapsed Time ............................................. 122
Electric Power Steering (EPS) System
Indicator............................................ 87, 638
Electronic Stability Control (ESC) ............. 507
Emergency ................................................ 644
Emissions Testing (Readiness Codes) ....... 654
Engine Coolant ........................................... 577, 579
Jump Starting .......................................... 627
Number................................................... 650
Oil ........................................................... 570
Starting ........................................... 458, 460
Switch Buzzer.................................. 169, 172
Engine Coolant ................................. 577, 579
Adding the Coolant................................. 578
Adding to the Radiator ............................ 580
Adding to the Reserve Tank..................... 579
Overheating ............................................ 631
Temperature Gauge ................................ 116
Engine Oil ................................................. 570
Adding .................................................... 573
Checking................................................. 571
Displaying Oil Life ............................ 557, 562
Low Oil Pressure Indicator ................. 83, 634
Recommended Engine Oil ....................... 570
ENGINE START/STOP Button .................... 170
EPS (Electric Power Steering) System ...... 638
Exhaust Gas Hazard (Carbon Monoxide) .. 76
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 663 ページ ２０１８年８月２２日 水曜日 午後２時５９分
Page 666 of 675
664
Index
Exterior Care (Cleaning)........................... 611
Exterior Mirrors ......................................... 194
F
Features..................................................... 229
Filters
Dust and Pollen ....................................... 608
Oil ........................................................... 574
Flat Tire ..................................................... 617
Floor Mats ................................................. 610
Fluids Brake ....................................................... 582
Continuously Variable Transmission ......... 581
Engine Coolant ................................ 577, 579
Windshield Washer .................................. 583
FM/AM Radio .................................... 244, 287
Fog Light Indicator ..................................... 90
Folding Down the Rear Seats ................... 199
Foot Brake ................................................. 525
Front Airbags (SRS) ..................................... 52
Front Seat Heaters .................................... 221
Front Seats ................................................ 195
Adjusting ................................................. 195
Front Sensor Camera ................................ 477
Fuel ...................................................... 25, 548
Fuel Economy and CO
2 Emissions............. 551
Gauge ..................................................... 116
Instant Fuel Economy ....................... 118, 126
Low Fuel Indicator ..................................... 85
Range .............................................. 118, 122 Recommendation .................................... 548
Refueling................................................. 548
Fuel Economy and CO
2 Emissions ............ 551
Fuel Fill Door ...................................... 25, 549
Fuses .......................................................... 640
Inspecting and Changing......................... 643
Locations......................................... 640, 641
G
Gasoline (Fuel) Fuel Economy and CO
2 Emissions ............ 551
Gauge ..................................................... 116
Information ............................................. 548
Instant Fuel Economy ...................... 118, 126
Low Fuel Indicator ..................................... 85
Refueling................................................. 548
Gauges ...................................................... 116
Gear Shift Lever Positions Continuously Variable Transmission ......... 467
Glass (care) ........................................ 609, 612
Glove Box .................................................. 209
H
Handling the Unexpected ........................ 615
HandsFreeLink ® (HFL) ....................... 385, 408
Automatic Import of Cellular Phonebook
and Call History ............................. 398, 421
Caller’s ID Information............................. 396
Displaying Messages................................ 436 HFL Buttons .................................... 385, 408
HFL Menus...................................... 387, 411
HFL Status Display ........................... 386, 410
In Case of Emergency ............................. 440
Limitations for Manual Operation .... 386, 410
Making a Call ................................. 402, 429
Options During a Call...................... 407, 433
Phone Setup ................................... 391, 416
Phonebook Phonetic M
odification........... 425
Receiving a Call............................... 406, 432
Receiving a Text Message/E-mail ............. 434
Ring Tone ....................................... 396, 420
Selecting a Mail Account......................... 435
Speed Dial ...................................... 399, 422
To Clear the System ................................ 397
To Set Up Text Message/E-mail Options .. 419
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 287
Head Restraints ........................................ 201
Headlights ................................................ 175
Aiming.................................................... 584
Auto High-Beam System ......................... 179
Automatic Operation .............................. 176
Dimming................................................. 175
Operating ............................................... 175
Heated Door Mirror Button .................... 188
Heated Steering Wheel ........................... 220
Heated Windshield Button ...................... 189
Heaters (Front Seat) ................................. 221
Heaters (Seat) ........................................... 222
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 664 ページ ２０１８年８月２２日 水曜日 午後２時５９分
Page 667 of 675
665
Index
Heating and Cooling SystemDust and Pollen Filter .............................. 608
HFL (HandsFreeLink ®) ...................... 385, 408
High Beam Indicator .................................. 89
Hill Start Assist System ..................... 459, 464
HomeLink ® Universal Transceiver ........... 382
Honda App License Agreement .............. 334
Honda Sensing ®......................................... 26
HondaLink ®.............................................. 312
I
Identification Numbers ............................ 650
Engine and Transmission ......................... 650
Vehicle Identification............................... 650
Ignition Switch ......................................... 169
Illumination Control ................................ 186
Knob ...................................................... 186
Immobilizer System .................................. 159
Immobilizer System Indicator..................... 90
Indicators .................................................... 80
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 96, 97, 479
Anti-lock Brake System (ABS) .................... 85
Automatic Brake Hold ....................... 82, 526
Blind spot information (BSI) ............... 91, 511
Brake Depressing ...................................... 93
Charging System............................... 83, 634
Collision Mitigati on Braking System
TM
(CMBSTM) .................................. 98, 99, 100
Cruise Control .......................... 92, 471, 474 Cruise Main ............................... 92, 470, 473
Door Open .......................................... 38, 87
ECON Mode ...................................... 92, 469
Electric Power Steering (EPS) System .. 87, 638
Fog Light ................................................... 90
High Beam ................................................ 89
Immobilizer System .................................... 90
Lane Keeping Assist System (LKAS) ............ 98
Lights On ................................................... 89
Low Fuel .................................................... 85
Low Oil Pressure ................................ 83, 634
Low Tire Pressure/TPMS ..................... 88, 520
Maintenance Minder ......................... 92, 557
Malfunction Indicator Lamp ............... 83, 635
Parking Brake and Brake System
(Amber) ............................................. 81, 82
Parking Brake and Brake System
(Red)........................................ 80, 636, 637
Road Departure Mitigation (RDM) .. 94, 95, 96
Seat Belt Reminder .............................. 42, 84
Security System Alarm ............................... 91
Shift Lever Position .................................... 84
Starter System ........................................... 93
Supplemental Restraint System ............ 60, 85
System Message ........................................ 89
Tailgate Open ............................................ 87
Transmission .............................................. 84
Turn Signal ................................................ 89
Vehicle Stability Assist (VSA ®)
System............................................. 86, 507
VSA ® OFF .......................................... 86, 508 Information
.............................................. 647
Information Display ................................. 117
Instant Fuel Economy ....................... 118, 126
Instrument Panel ........................................ 79
Brightness Control................................... 186
Interior Lights ........................................... 205
Interior Rearview Mirror .......................... 193
iPod ................................................... 246, 298
J
Jack (Wheel Nut Wrench) ........................ 620
Jump Starting ........................................... 627
K
Key Number Tag ....................................... 133
Keyless Lockout Prevention ..................... 141
Keys ........................................................... 132
Lockout Prevention.................................. 141
Master Keys ............................................ 132
Number Tag ............................................ 133
Rear Door Won’t Open............................ 143
Remote Transmitter ................................. 139
Types and Functions ................................ 132
Valet Key................................................. 133
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 466
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 665 ページ ２０１８年８月２２日 水曜日 午後２時５９分
Page 668 of 675
666
Index
L
Lane Keeping Assist System (LKAS)......... 499
LaneWatchTM............................................. 513
LATCH (Child Seats) .............................. 68, 72
Lights ................................................. 175, 584
Automatic ............................................... 176
Bulb Replacement .................................... 584
Daytime Running Lights ........................... 182
Fog Lights ................................................ 178
High Beam Indicator .................................. 89
Interior .................................................... 205
Light Switches ......................................... 175
Lights On Indicator .................................... 89
Turn Signals ............................................. 174
Load Limits ................................................ 449
Locking/Unlocking .................................... 132
Auto Door Locking/Unlocking .................. 144
Childproof Door Locks ............................. 143
From Inside .............................................. 142
From Outside ........................................... 135
Keys ........................................................ 132
Using a Key ............................................. 140
Lockout Prevention System ...................... 141
Low Battery Charge .................................. 634
Low Fuel Indicator ...................................... 85
Low Oil Pressure Indicator ................. 83, 634
Low Smart Entry Remote Signal Strength ................................................... 134
Lower Anchors ...................................... 68, 72
Luggage (Maximum Load Limit) .............. 449
Lumbar Support ........................................ 196 Lumbar Support Adjustment Switch
....... 196M
Maintenance............................................. 553
Adding the Coolant................................. 578
Battery .................................................... 604
Brake Fluid .............................................. 582
Cleaning ................................................. 609
Coolant ........................................... 577, 579
Maintenance Minder
TM............................ 557
Oil ........................................................... 571
Precautions ............................................. 554
Radiator .................................................. 580
Remote Transmitter ................................. 606
Replacing Light Bulbs .............................. 584
Safety...................................................... 555
Service Items ................................... 559, 564
Tires ........................................................ 595
Transmission Fluid ................................... 581
Under the Hood ...................................... 567
Malfunction Indicator Lamp .............. 83, 635
Map Lights ................................................ 207
Maximum Load Limit ............................... 449
Meters, Gauges ......................................... 116
Mirrors ...................................................... 193
Adjusting ................................................ 193
Door ....................................................... 194
Exterior ................................................... 194
Interior Rearview ..................................... 193
Modifications (and Accessories) .............. 614Moonroof
................................................. 165
MP3 ................................................... 251, 307
Multi-View Rear Camera ......................... 546
N
Numbers (Identification)......................... 650
O
Odometer......................................... 117, 121
Off-Highway Driving Guidelines ............. 456
Oil (Engine) .............................................. 570
Adding ................................................... 573
Checking ................................................ 571
Displaying Oil Life ........................... 557, 562
Low Oil Pressure Indicator ................. 83, 634
Recommended Engine Oil ....................... 570
Viscosity.................................................. 570
Open Source Licenses .............................. 348
Opening/Closing Hood ...................................................... 569
Moonroof ............................................... 165
Power Windows...................................... 162
Tailgate................................................... 148
Outside Temperature Display ......... 119, 126
Overheating ............................................. 631
P
Pandora®.......................................... 249, 305
Panic Mode ............................................... 161
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 666 ページ ２０１８年８月２２日 水曜日 午後２時５９分
Page 670 of 675
668
Index
Smart Entry System................................... 135
Snow Tires ................................................. 603
Song By Voice
TM (SBV) .............................. 301
Spare Tire .......................................... 617, 649
Spark Plugs ................................................ 648
Specifications ............................................ 648
Specified Fuel .................................... 548, 648
Speedometer ............................................. 116
SRS Airbags (Airbags) ................................. 52
Starter System Indicator ............................. 93
Starting the Engine .......................... 458, 460
Does Not Start ......................................... 624
Engine Switch Buzzer....................... 169, 172
Jump Starting .......................................... 627
Steering Wheel ......................................... 192
Adjusting ................................................. 192
Stopping .................................................... 540
Summer Tires ............................................ 603
Sunglasses Holder ..................................... 219
Supplemental Restraint System (SRS) ........ 52
Switches (Around the Steering Wheel) ............................................. 4, 5, 169
System Message Indicator .......................... 89
T
Tachometer............................................... 116
Tailgate ..................................................... 148
Tailgate Open Indicator.............................. 87
Unable to Open ....................................... 645 Temperature
Outside Temperature Display ........... 119, 126
Temperature Sensor ......................... 119, 126
Theft Protection ....................................... 232
Time (Setting) ........................................... 130
Tire Pressure Monitoring System (TPMS) ..................................................... 516
Button..................................................... 516
Indicator.................................................... 88
Tires ........................................................... 595
Air Pressure ..................................... 596, 649
Checking and Maintaining ...................... 595
Inspection ............................................... 595
Labeling .................................................. 596
Puncture (Flat Tire) .................................. 617
Regulations ............................................. 598
Rotation .................................................. 602
Spare Tire ........................................ 617, 649
Summer .................................................. 603
Tire Chains .............................................. 603
Wear Indicators ....................................... 600
Winter..................................................... 603
Tonneau Cover ......................................... 223
Tools .......................................................... 616
Towing a Trailer ....................................... 451
Equipment and Accessories ..................... 452
Load Limits .............................................. 451
Towing Your Vehicle ................................ 455
Behind a Motorhome .............................. 455
Emergency .............................................. 644 TPMS (Tire Pressure Monitoring
System) .................................................... 516
Button .................................................... 516
Indicator ................................................... 88
Transmission ............................................. 467
Continuously Variable ............................. 467
Fluid ....................................................... 581
Number .................................................. 650
Shift Lever Position Indicator ............. 84, 468
TRIP Knob ......................................... 117, 121
Trip Meter ........................................ 117, 121
Troubleshooting ...................................... 615
Blown Fuse ..................................... 640, 641
Brake Pedal Vibrates ................................. 30
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 644
Engine Won’t Start ................................. 624
Noise When Braking ................................. 31
Overheating ............................................ 631
Puncture/Flat Tire .................................... 617
Rear Door Won’t Open ..................... 30, 143
Select Lever Won’t Move ........................ 630
Warning Indicators.................................... 80
Turbo Engine Vehicle .............................. 552
Turn Signals .............................................. 174
Indicators (Instru ment Panel) ..................... 89
U
Under-floor Storage Area ....................... 212
Unlocking the Doors ................................ 135
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 668 ページ ２０１８年８月２２日 水曜日 午後２時５９分
