TPMS HONDA CR-V 2019 (in English) Owner's Guide

602
uuChecking and Maintaining Tires uTire Rotation
Maintenance
Tire Rotation
Rotating tires according to the maintena nce messages on the information display*/
driver information interface* helps to distribute wear mo re evenly and increase tire
life.
■Tires without rotation marks Rotate the tires as shown here.
■Tires with rotation marks
Rotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 Tire Pressure Monitoring System (TPMS)
P. 516
Front
Direction MarkFront
Front
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 602 ページ ２０１８年８月２２日　水曜日　午後２時５９分

605
uuBattery uCharging the Battery
Maintenance
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Battery
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow (LSF)
*, Road Departure
Mitigation (RDM) System*, Vehicle Stability Assist®
(VSA ®) system, Vehicle Stability Assist ® (VSA ®) OFF,
Collision Mitigati on Braking System
TM (CMBSTM)*,
Low Tire Pressure/TPMS, and Parking Brake and Brake
System (Amber) may come on along with a message
in the Driver Information Interface
* when you turn
the ignition switch to ON
( w*1 after re-connecting
the battery.
Drive a short distance at more than 12 mph
(20 km/h). The indicator shoul d go off. If it does not,
have your vehicle ch ecked by a dealer.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 605 ページ ２０１８年８月２２日　水曜日　午後２時５９分

615
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 616
If a Tire Goes Flat Changing a Flat Tire ......................... 617
Engine Does Not Start Checking the Engine ........................ 624
If the Smart Entry Remote Battery is Weak .......................................... 625
Emergency Engine Stop ................... 626
Jump Starting .................................... 627
Shift Lever Does Not Move .............. 630
Overheating How to Handle Overheating ............. 631 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On................................................ 634
If the Charging System Indicator Comes
On ................................................. 634
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 635
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 636
If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On ..... 637
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 638
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 639
Fuses Fuse Locations ................................. 640
Inspecting and Changing Fuses ........ 643
Emergency Towing ........................... 644
When You Cannot Open the Tailgate.. 645Refueling................................................. 646
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 615 ページ ２０１８年８月２２日　水曜日　午後２時５９分

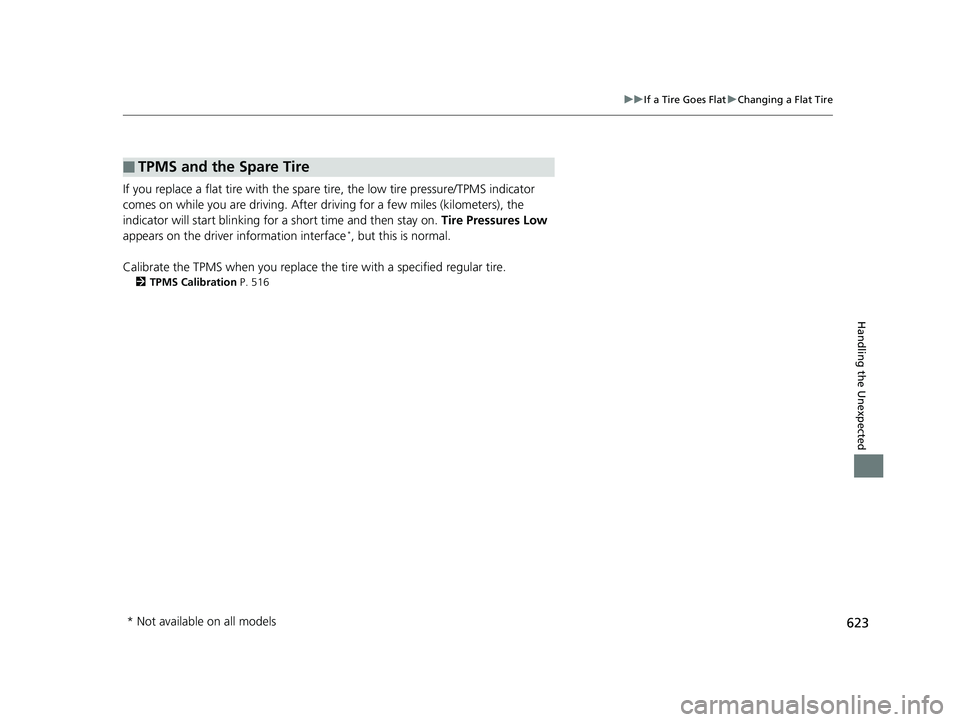

623
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After dr iving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressures Low
appears on the driver information interface
*, but this is normal.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 516
■TPMS and the Spare Tire
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 623 ページ ２０１８年８月２２日　水曜日　午後２時５９分

629
uuJump Starting u
Handling the Unexpected
Once your vehicle's engine has started, re move the jumper cables in the following
order:
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jump er cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's battery + terminal.
4. Disconnect the other end of the jump er cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■What to Do After the Engine Starts1 What to Do After the Engine Starts
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow (LSF)
*, Road Departure
Mitigation (RDM)*, Vehicle Stability Assist ® (VSA ®)
system, Vehicle Stability Assist ® (VSA ®) OFF, Collision
Mitigation Braking System
TM (CMBSTM)*, low tire
pressure/TPMS, and Parking Brake and Brake System
(Amber) may come on along with a message in the
Driver Information Interface
* when you turn the
ignition switch to ON
( w*1 after reconnecting the
battery.
Drive a short distance at more than 12 mph (20 km/
h). The indicator should go of f. If it does not, have
your vehicle checked by a dealer.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 629 ページ ２０１８年８月２２日　水曜日　午後２時５９分

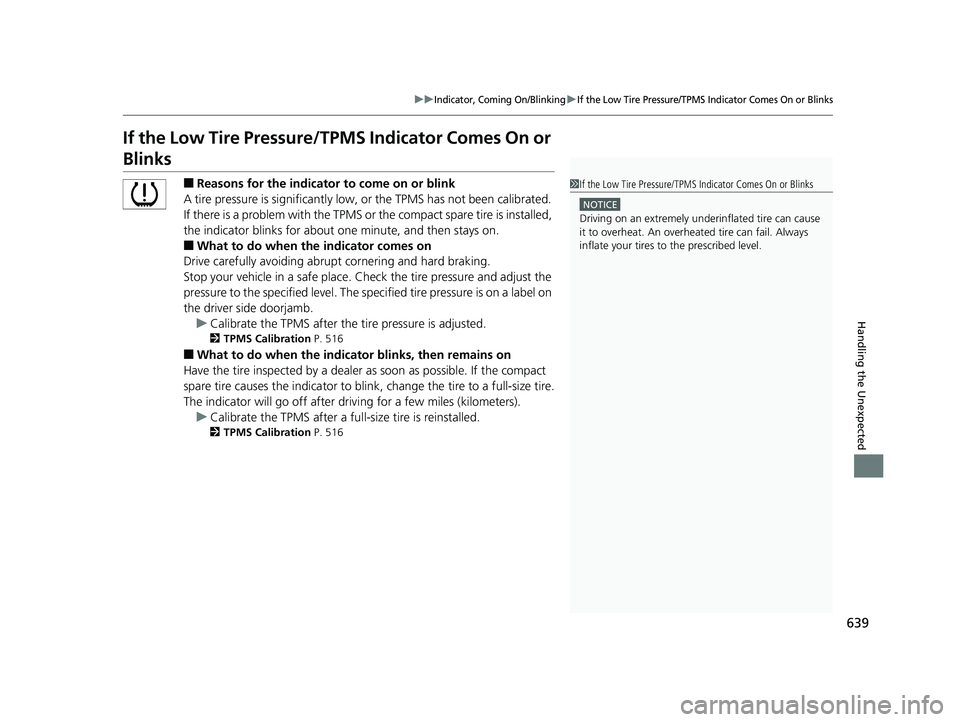

639
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire is installed,
the indicator blinks for about one minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully avoiding abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 516
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indica tor to blink, change the tire to a full-size tire.
The indicator will go off after driv ing for a few miles (kilometers).
u Calibrate the TPMS after a full-size tire is reinstalled.
2 TPMS Calibration P. 516
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 639 ページ ２０１８年８月２２日　水曜日　午後２時５９分

665
Index
Heating and Cooling SystemDust and Pollen Filter .............................. 608
HFL (HandsFreeLink ®) ...................... 385, 408
High Beam Indicator .................................. 89
Hill Start Assist System ..................... 459, 464
HomeLink ® Universal Transceiver ........... 382
Honda App License Agreement .............. 334
Honda Sensing ®......................................... 26
HondaLink ®.............................................. 312
I
Identification Numbers ............................ 650
Engine and Transmission ......................... 650
Vehicle Identification............................... 650
Ignition Switch ......................................... 169
Illumination Control ................................ 186
Knob ...................................................... 186
Immobilizer System .................................. 159
Immobilizer System Indicator..................... 90
Indicators .................................................... 80
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 96, 97, 479
Anti-lock Brake System (ABS) .................... 85
Automatic Brake Hold ....................... 82, 526
Blind spot information (BSI) ............... 91, 511
Brake Depressing ...................................... 93
Charging System............................... 83, 634
Collision Mitigati on Braking System
TM
(CMBSTM) .................................. 98, 99, 100
Cruise Control .......................... 92, 471, 474 Cruise Main ............................... 92, 470, 473
Door Open .......................................... 38, 87
ECON Mode ...................................... 92, 469
Electric Power Steering (EPS) System .. 87, 638
Fog Light ................................................... 90
High Beam ................................................ 89
Immobilizer System .................................... 90
Lane Keeping Assist System (LKAS) ............ 98
Lights On ................................................... 89
Low Fuel .................................................... 85
Low Oil Pressure ................................ 83, 634
Low Tire Pressure/TPMS ..................... 88, 520
Maintenance Minder ......................... 92, 557
Malfunction Indicator Lamp ............... 83, 635
Parking Brake and Brake System
(Amber) ............................................. 81, 82
Parking Brake and Brake System
(Red)........................................ 80, 636, 637
Road Departure Mitigation (RDM) .. 94, 95, 96
Seat Belt Reminder .............................. 42, 84
Security System Alarm ............................... 91
Shift Lever Position .................................... 84
Starter System ........................................... 93
Supplemental Restraint System ............ 60, 85
System Message ........................................ 89
Tailgate Open ............................................ 87
Transmission .............................................. 84
Turn Signal ................................................ 89
Vehicle Stability Assist (VSA ®)
System............................................. 86, 507
VSA ® OFF .......................................... 86, 508 Information
.............................................. 647
Information Display ................................. 117
Instant Fuel Economy ....................... 118, 126
Instrument Panel ........................................ 79
Brightness Control................................... 186
Interior Lights ........................................... 205
Interior Rearview Mirror .......................... 193
iPod ................................................... 246, 298
J
Jack (Wheel Nut Wrench) ........................ 620
Jump Starting ........................................... 627
K
Key Number Tag ....................................... 133
Keyless Lockout Prevention ..................... 141
Keys ........................................................... 132
Lockout Prevention.................................. 141
Master Keys ............................................ 132
Number Tag ............................................ 133
Rear Door Won’t Open............................ 143
Remote Transmitter ................................. 139
Types and Functions ................................ 132
Valet Key................................................. 133
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 466
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 665 ページ ２０１８年８月２２日　水曜日　午後２時５９分

668
Index
Smart Entry System................................... 135
Snow Tires ................................................. 603
Song By Voice
TM (SBV) .............................. 301
Spare Tire .......................................... 617, 649
Spark Plugs ................................................ 648
Specifications ............................................ 648
Specified Fuel .................................... 548, 648
Speedometer ............................................. 116
SRS Airbags (Airbags) ................................. 52
Starter System Indicator ............................. 93
Starting the Engine .......................... 458, 460
Does Not Start ......................................... 624
Engine Switch Buzzer....................... 169, 172
Jump Starting .......................................... 627
Steering Wheel ......................................... 192
Adjusting ................................................. 192
Stopping .................................................... 540
Summer Tires ............................................ 603
Sunglasses Holder ..................................... 219
Supplemental Restraint System (SRS) ........ 52
Switches (Around the Steering Wheel) ............................................. 4, 5, 169
System Message Indicator .......................... 89
T
Tachometer............................................... 116
Tailgate ..................................................... 148
Tailgate Open Indicator.............................. 87
Unable to Open ....................................... 645 Temperature
Outside Temperature Display ........... 119, 126
Temperature Sensor ......................... 119, 126
Theft Protection ....................................... 232
Time (Setting) ........................................... 130
Tire Pressure Monitoring System (TPMS) ..................................................... 516
Button..................................................... 516
Indicator.................................................... 88
Tires ........................................................... 595
Air Pressure ..................................... 596, 649
Checking and Maintaining ...................... 595
Inspection ............................................... 595
Labeling .................................................. 596
Puncture (Flat Tire) .................................. 617
Regulations ............................................. 598
Rotation .................................................. 602
Spare Tire ........................................ 617, 649
Summer .................................................. 603
Tire Chains .............................................. 603
Wear Indicators ....................................... 600
Winter..................................................... 603
Tonneau Cover ......................................... 223
Tools .......................................................... 616
Towing a Trailer ....................................... 451
Equipment and Accessories ..................... 452
Load Limits .............................................. 451
Towing Your Vehicle ................................ 455
Behind a Motorhome .............................. 455
Emergency .............................................. 644 TPMS (Tire Pressure Monitoring
System) .................................................... 516
Button .................................................... 516
Indicator ................................................... 88
Transmission ............................................. 467
Continuously Variable ............................. 467
Fluid ....................................................... 581
Number .................................................. 650
Shift Lever Position Indicator ............. 84, 468
TRIP Knob ......................................... 117, 121
Trip Meter ........................................ 117, 121
Troubleshooting ...................................... 615
Blown Fuse ..................................... 640, 641
Brake Pedal Vibrates ................................. 30
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 644
Engine Won’t Start ................................. 624
Noise When Braking ................................. 31
Overheating ............................................ 631
Puncture/Flat Tire .................................... 617
Rear Door Won’t Open ..................... 30, 143
Select Lever Won’t Move ........................ 630
Warning Indicators.................................... 80
Turbo Engine Vehicle .............................. 552
Turn Signals .............................................. 174
Indicators (Instru ment Panel) ..................... 89
U
Under-floor Storage Area ....................... 212
Unlocking the Doors ................................ 135
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 668 ページ ２０１８年８月２２日　水曜日　午後２時５９分
