uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
536
Driving
The system may automatically shut off and the CMBSTM indicator will come on under
certain conditions. Some examples of th ese conditions are listed below. Other
conditions may reduce some of the CMBS
TM functions.
2 Front Sensor Camera* P. 477
■Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, such as an entrance or exit of a tunnel.
• There is little contrast between objects and the background.
• Driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflected onto the roadway.
• Driving in the shadows of trees, buildings, etc.
• Roadway objects or structures are misint erpreted as vehicles and pedestrians.
• Reflections on the interior of the front windshield.
■Roadway conditions
• Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high co ntrast on a snowy or wet roadway).
• Driving on curvy, winding, or undulating roads.
• The road is hilly or the vehicle is approaching the crest of a hill.
■CMBSTM Conditions and Limitations1CMBSTM Conditions and Limitations
Do not put a sticker on the radar sensor cover or
replace the radar sensor cover.
If you need the radar sensor to be repaired, or
removed, or the radar se nsor cover is strongly
impacted, turn off the system by pressing the
CMBS
TM off button and take your vehicle to a dealer.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 536 ページ ２０１８年８月２２日　水曜日　午後２時５９分

537
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Continued
Driving

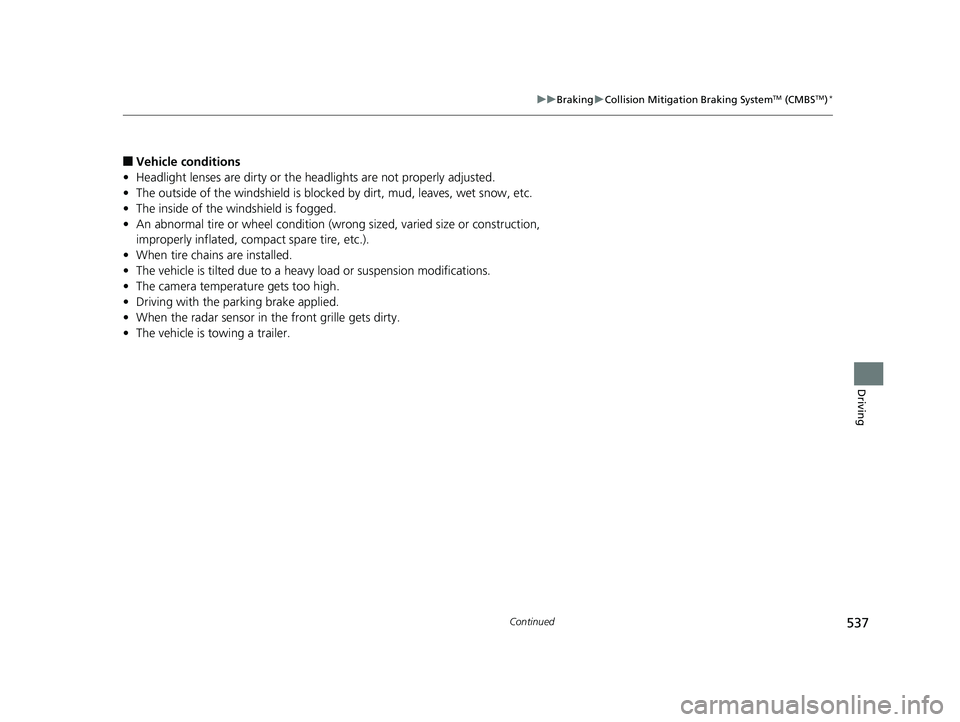

■Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wro ng sized, varied size or construction,
improperly inflated, co mpact spare tire, etc.).
• When tire chains are installed.
• The vehicle is tilted due to a heavy load or suspension modifications.
• The camera temperature gets too high.
• Driving with the parking brake applied.
• When the radar sensor in the front grille gets dirty.
• The vehicle is towing a trailer.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 537 ページ ２０１８年８月２２日　水曜日　午後２時５９分

538
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Driving

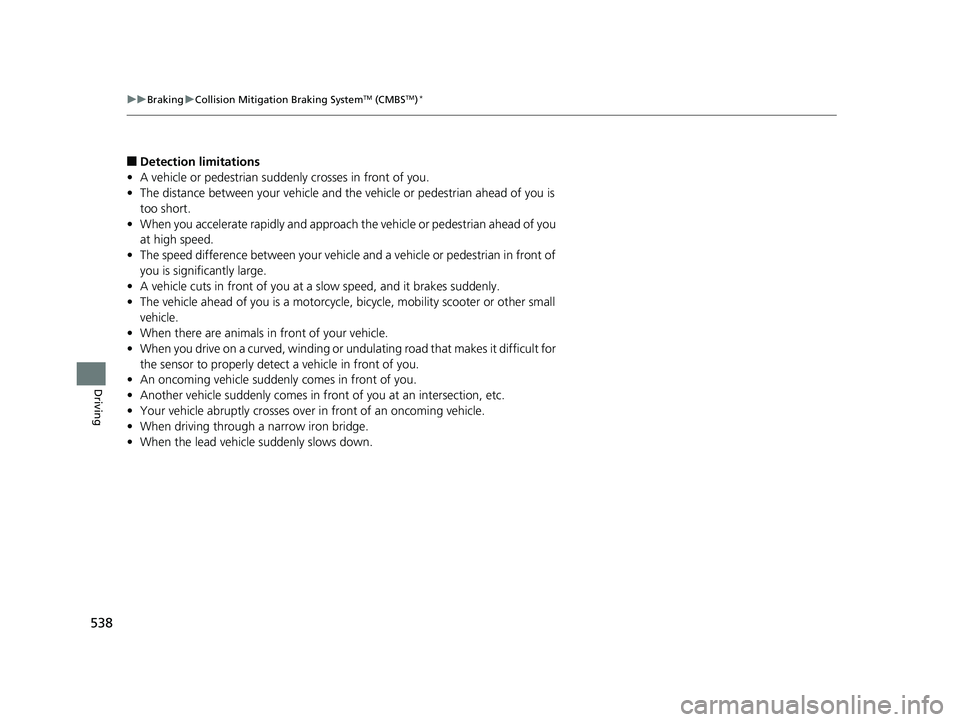

■Detection limitations
• A vehicle or pedestrian suddenly crosses in front of you.
• The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
• The speed difference between your vehicle an d a vehicle or pedestrian in front of
you is significantly large.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a cu rved, winding or undulating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.
• An oncoming vehicle suddenly comes in front of you.
• Another vehicle suddenly comes in front of you at an intersection, etc.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When the lead vehicle suddenly slows down.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 538 ページ ２０１８年８月２２日　水曜日　午後２時５９分

542
uuParking Your Vehicle uCross Traffic Monitor*
Driving

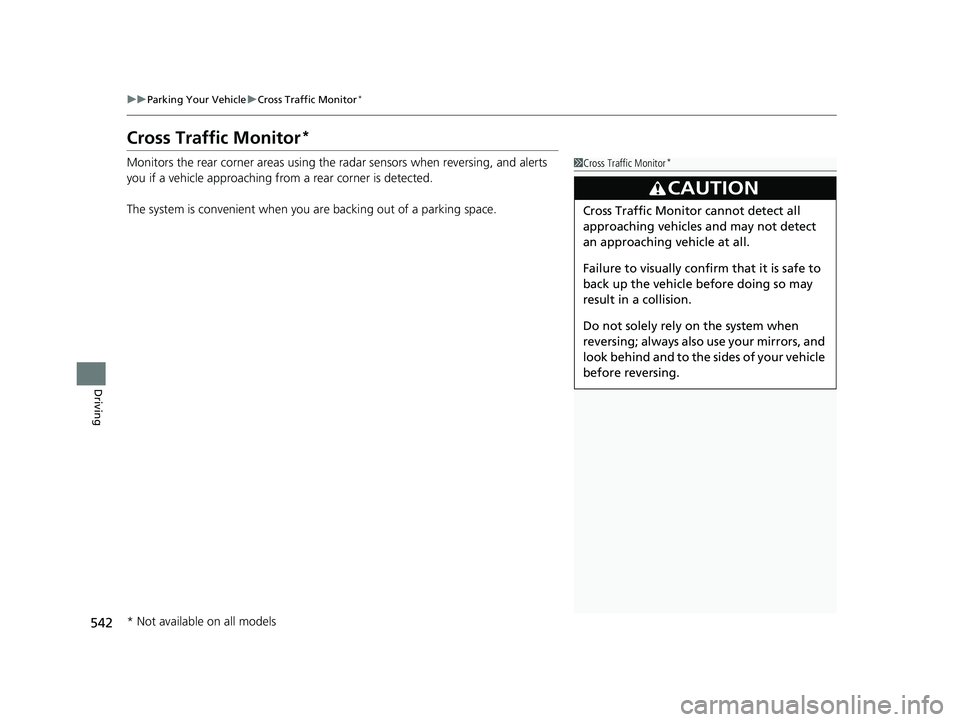

Cross Traffic Monitor*
Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching fro m a rear corner is detected.
The system is convenient when you are backing out of a parking space.1 Cross Traffic Monitor*
3CAUTION
Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 542 ページ ２０１８年８月２２日　水曜日　午後２時５９分

Continued543
uuParking Your Vehicle uCross Traffic Monitor*
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monito r system is turned
on.
2 Cross Traffic Monitor On and Off P. 545
•The transmission is in (R.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not detect or provide alerts for a vehicle that is moving away from
your vehicle, and it may alert for pedest rians, bicycles, or stationary objects.

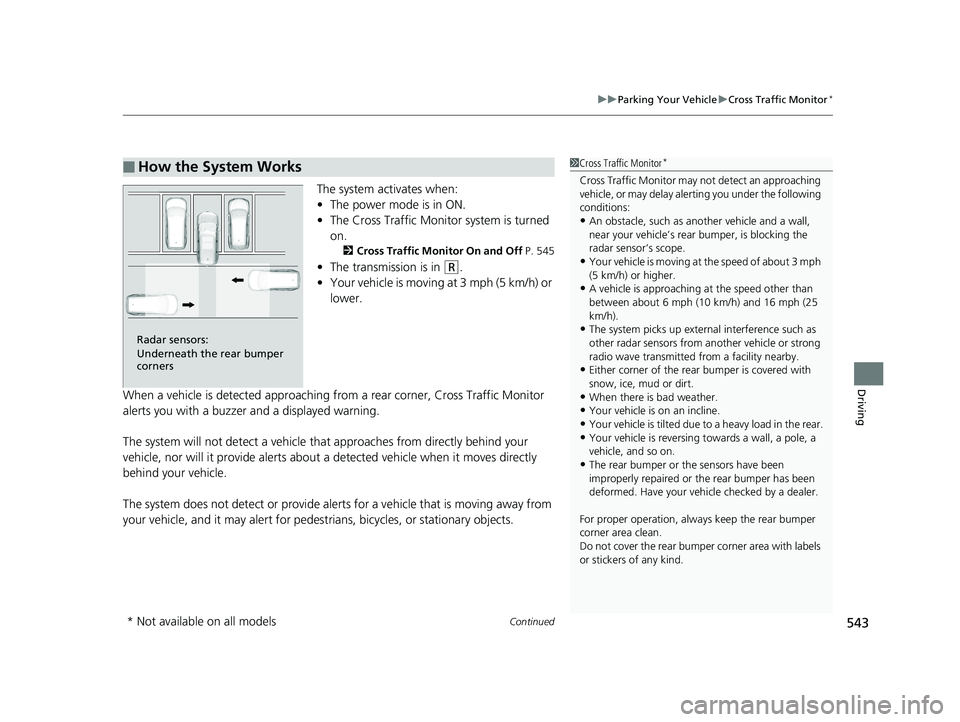

■How the System Works1Cross Traffic Monitor*
Cross Traffic Monitor may not detect an approaching
vehicle, or may delay aler ting you under the following
conditions:
•An obstacle, such as a nother vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.
•Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.
•A vehicle is approaching at the speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).
•The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
•Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
•When there is bad weather.
•Your vehicle is on an incline.
•Your vehicle is tilted due to a heavy load in the rear.
•Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
•The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed. Have your vehi cle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
Radar sensors:
Underneath the rear bumper
corners
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 543 ページ ２０１８年８月２２日　水曜日　午後２時５９分

uuParking Your Vehicle uCross Traffic Monitor*
544
Driving
An arrow icon appears on the side a vehicle is approaching on the audio/information
screen.

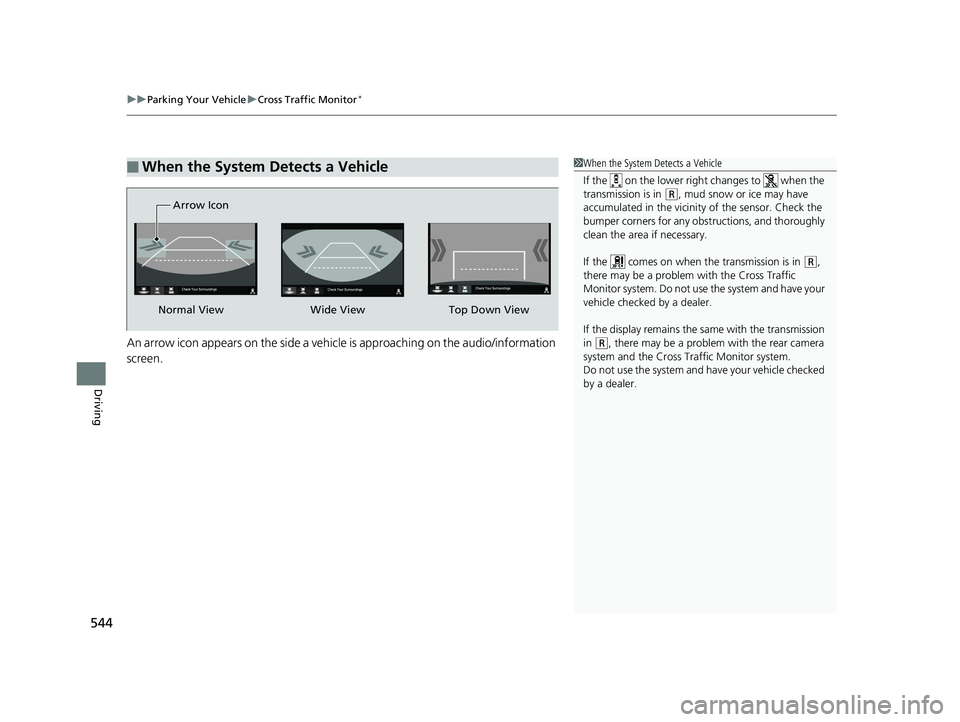

■When the System Detects a Vehicle1When the System Detects a Vehicle
If the on the lower right changes to when the
transmission is in
(R, mud snow or ice may have
accumulated in the vicinity of the sensor. Check the
bumper corners for any obs tructions, and thoroughly
clean the area if necessary.
If the comes on when the transmission is in
( R,
there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.
If the display remains the same with the transmission
in
( R, there may be a problem with the rear camera
system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.
Wide View
Normal View Arrow IconTop Down View
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 544 ページ ２０１８年８月２２日　水曜日　午後２時５９分

604
Maintenance

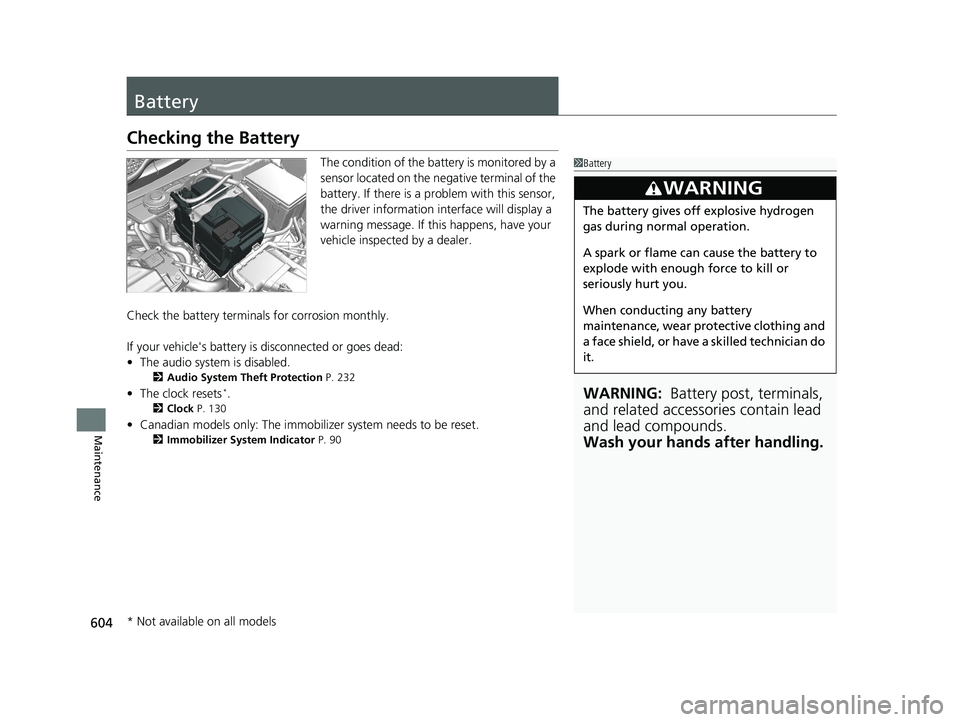

Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information in terface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery terminal s for corrosion monthly.
If your vehicle's battery is disconnected or goes dead:
• The audio system is disabled.
2 Audio System Theft Protection P. 232
•The clock resets*.
2 Clock P. 130
•Canadian models only: The immob ilizer system needs to be reset.
2Immobilizer System Indicator P. 90
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 604 ページ ２０１８年８月２２日　水曜日　午後２時５９分

609Continued
Maintenance

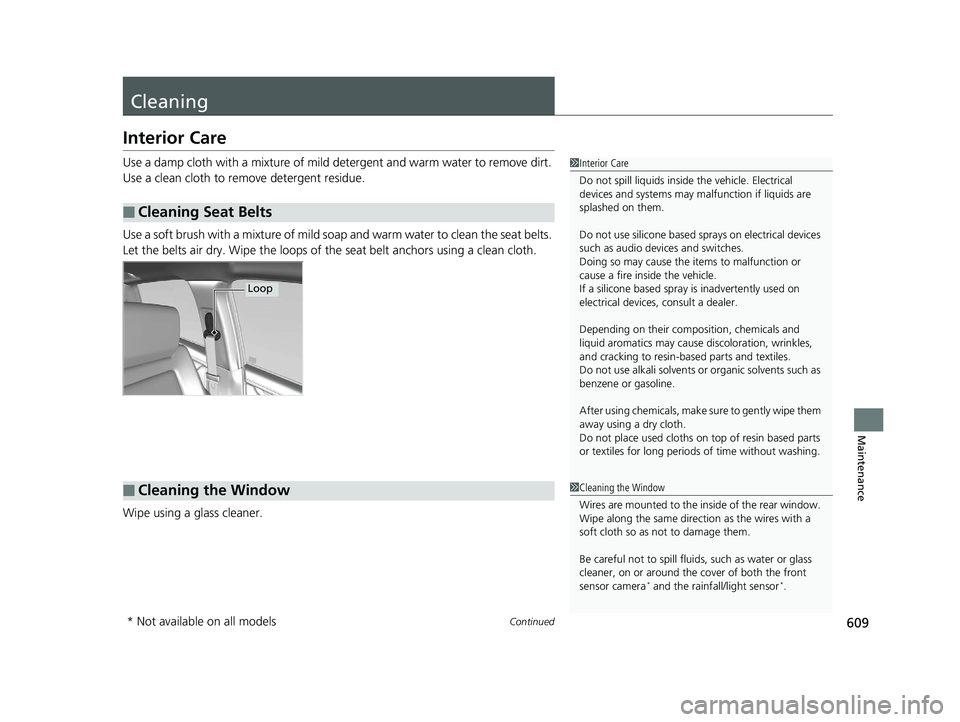

Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.
■Cleaning Seat Belts
1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sp rays on electrical devices
such as audio devices and switches.
Doing so may cause the items to malfunction or
cause a fire inside the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemical s, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Loop
■Cleaning the Window1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera
* and the rainfall/light sensor*.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 609 ページ ２０１８年８月２２日　水曜日　午後２時５９分

Index

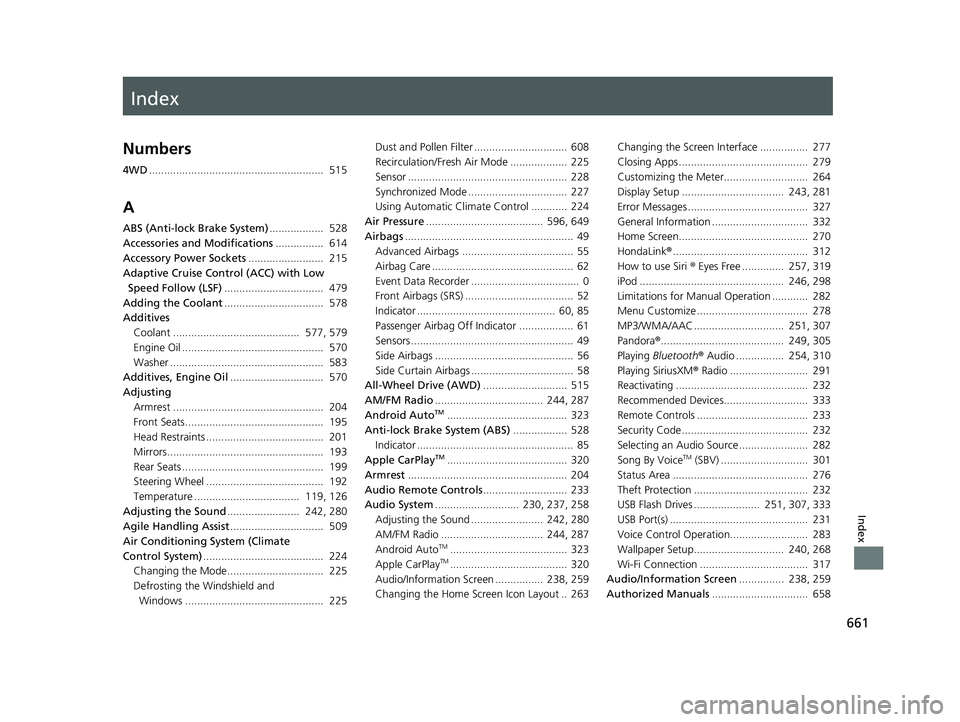

661
Index
Index
Numbers
4WD.......................................................... 515
A
ABS (Anti-lock Brake System) .................. 528
Accessories and Modifications ................ 614
Accessory Power Sockets ......................... 215
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................................. 479
Adding the Coolant ................................. 578
Additives Coolant .......................................... 577, 579
Engine Oil ............................................... 570
Washer ................................................... 583
Additives, Engine Oil ............................... 570
Adjusting Armrest .................................................. 204
Front Seats.............................................. 195
Head Restraints ....................................... 201
Mirrors.................................................... 193
Rear Seats ............................................... 199
Steering Wheel ....................................... 192
Temperature ................................... 119, 126
Adjusting the Sound ........................ 242, 280
Agile Handling Assist ............................... 509
Air Conditioning System (Climate
Control System) ........................................ 224
Changing the Mode................................ 225
Defrosting the Windshield and
Windows .............................................. 225 Dust and Pollen Filter ............................... 608
Recirculation/Fresh Air Mode ................... 225
Sensor ..................................................... 228
Synchronized Mode ................................. 227
Using Automatic Climate Control ............ 224
Air Pressure ....................................... 596, 649
Airbags ........................................................ 49
Advanced Airbags ..................................... 55
Airbag Care ............................................... 62
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 52
Indicator .............................................. 60, 85
Passenger Airbag Off Indicator .................. 61
Sensors ...................................................... 49
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
All-Wheel Drive (AWD) ............................ 515
AM/FM Radio .................................... 244, 287
Android Auto
TM........................................ 323
Anti-lock Brake System (ABS) .................. 528
Indicator .................................................... 85
Apple CarPlay
TM........................................ 320
Armrest ..................................................... 204
Audio Remote Controls ............................ 233
Audio System ............................ 230, 237, 258
Adjusting the Sound ........................ 242, 280
AM/FM Radio .................................. 244, 287
Android Auto
TM....................................... 323
Apple CarPlayTM....................................... 320
Audio/Information Screen ................ 238, 259
Changing the Home Screen Icon Layout .. 263 Changing the Screen Interface ................ 277
Closing Apps ........................................... 279
Customizing the Meter............................ 264
Display Setup .................................. 243, 281
Error Messages ........................................ 327
General Information ................................ 332
Home Screen........................................... 270
HondaLink
®............................................. 312
How to use Siri ® Eyes Free .............. 257, 319
iPod ................................................ 246, 298
Limitations for Manual Operation ............ 282
Menu Customize ..................................... 278
MP3/WMA/AAC .............................. 251, 307
Pandora ®......................................... 249, 305
Playing Bluetooth ® Audio ................ 254, 310
Playing SiriusXM ® Radio .......................... 291
Reactivating ............................................ 232
Recommended Devices............................ 333
Remote Controls ..................................... 233
Security Code .......................................... 232
Selecting an Audio Source ....................... 282
Song By Voice
TM (SBV) ............................. 301
Status Area ............................................. 276
Theft Protection ...................................... 232
USB Flash Drives ...................... 251, 307, 333
USB Port(s) .............................................. 231
Voice Control Operation.......................... 283
Wallpaper Setup.............................. 240, 268
Wi-Fi Connection .................................... 317
Audio/Information Screen ............... 238, 259
Authorized Manuals ................................ 658
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 661 ページ ２０１８年８月２２日　水曜日　午後２時５９分

662
Index
Auto Door Locking/Unlocking................. 144
Customize ............................................... 145
Auto High-Beam System .......................... 179
Automatic Brake Hold .............................. 526
Indicator ............................................ 82, 526
Automatic Intermittent Wipers ............... 184
Automatic Lighting .................................. 176
Average Fuel Economy ..................... 118, 122
Average Speed .......................................... 122
AWD (All-Wheel Drive) ............................ 515
B
Battery....................................................... 604
Charging System Indicator ................. 83, 634
Jump Starting .......................................... 627
Maintenance (Checking the Battery) ........ 604
Maintenance (Replacing).......................... 606
Belts (Seat) .................................................. 40
Beverage Holders ...................................... 213
Blind spot information (BSI) System ........ 510
Indicator .................................................... 91
Bluetooth ® Audio ............................. 254, 310
Bluetooth ® HandsFreeLink ®............. 385, 408
Booster Seats (For Children) ....................... 75
Brake System ............................................. 522
Anti-lock Brake System (ABS) ................... 528
Automatic Brake Hold.............................. 526
Brake Assist System ................................. 529
Fluid ........................................................ 582
Foot Brake ............................................... 525 Indicator (Red) ........................... 80, 636, 637
Parking Brake .......................................... 522
Brightness Control (Instrument Panel).... 186
Bulb Replacement .................................... 584
Brake/Taillight, Rear Turn Signal Light and
Rear Side Marker Lights ......................... 588
Fog Lights ............................................... 586
Front Turn Signal/ Front Side Marker
Lights .................................................... 588
Headlights ............................................... 584
High-Mount Brake Light .......................... 590
Parking/Daytime Running Lights .............. 588
Rear License Plate Light ........................... 590
Side Turn Signal/Emergency Indicator
Lights .................................................... 588
Taillight and Back-Up Lights .................... 589
Bulb Specifications ................................... 648
C
Carbon Monoxide Gas ............................... 76
Cargo Hooks ............................................. 218
Carrying Cargo ................................. 447, 449
Certification Label .................................... 650
Changing Bulbs ........................................ 584
Charging System Indicator ................. 83, 634
Child Safety ................................................. 63
Childproof Door Locks............................. 143
Child Seat .................................................... 63
Booster Seats ............................................ 75
Child Seat for Infants................................. 65 Child Seat for Small Children .................... 66
Installing a Child Seat
with a Lap/Shoulder
Seat Belt ................................................. 71
Larger Children ......................................... 74
Rear-facing Child Seat............................... 65
Selecting a Child Seat ............................... 67
Childproof Door Locks ............................. 143
Cleaning the Exterior ............................... 611
Cleaning the Interior ............................... 609
Climate Control System ........................... 224
Changing the Mode................................ 224
Defrosting the Windshield and Windows .............................................. 225
Dust and Pollen Filter .............................. 608
Recirculation/Fresh Air Mode................... 225
Sensors ................................................... 228
Synchronization Mode ............................ 227
Using Automatic Climate Control............ 224
Clock ......................................................... 130
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 530
Coat Hook ................................................ 217
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 530
Compact Spare Tire .......................... 617, 649
Compass .................................................... 442
Continuously Variable Transmission ....... 466
Creeping................................................. 466
Fluid ....................................................... 581
Kickdown ............................................... 466
Operating the Shift Lever .................. 23, 468
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 662 ページ ２０１８年８月２２日　水曜日　午後２時５９分
