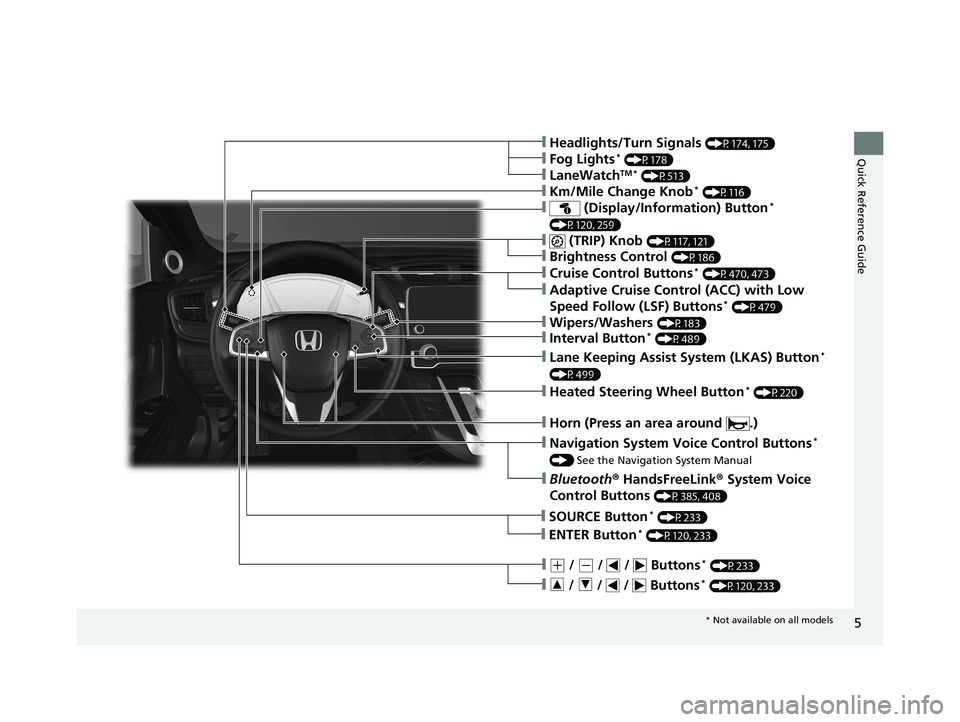

5
Quick Reference Guide
❙ (TRIP) Knob (P117, 121)
❙Brightness Control (P186)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
❙Bluetooth ® HandsFreeLink ® System Voice
Control Buttons
(P385, 408)
❙Cruise Control Buttons* (P470, 473)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons* (P479)
❙(+ / (- / / Buttons* (P233)
❙SOURCE Button* (P233)
❙ / / / Buttons* (P120, 233)
❙ENTER Button* (P120, 233)
❙Wipers/Washers (P183)
❙Headlights/Turn Signals (P174, 175)
❙Fog Lights* (P178)
❙LaneWatchTM * (P513)
❙Km/Mile Change Knob* (P116)
❙Interval Button* (P489)
❙Heated Steering Wheel Button* (P220)
❙Lane Keeping Assist System (LKAS) Button*
(P499)
❙ (Display/Information) Button*
(P120, 259)
❙Horn (Press an area around .)
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 5 ページ ２０１８年８月２２日　水曜日　 午後２時５９分

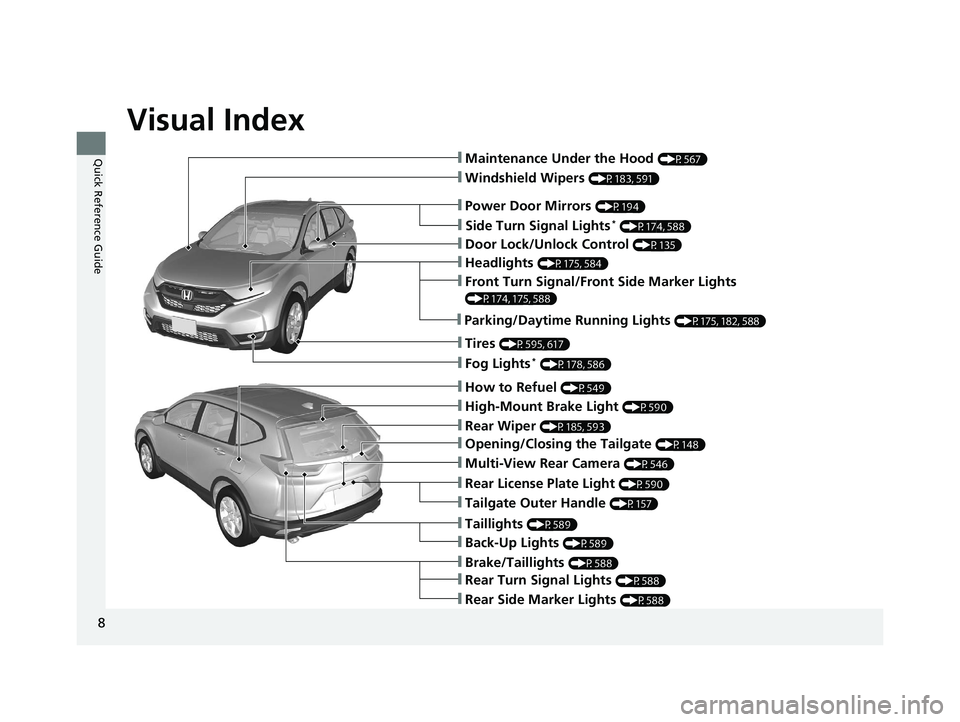

Visual Index
8
Quick Reference Guide
❙Windshield Wipers (P183, 591)
❙Door Lock/Unlock Control (P135)
❙How to Refuel (P549)
❙High-Mount Brake Light (P590)
❙Rear Wiper (P185, 593)
❙Brake/Taillights (P588)
❙Power Door Mirrors (P194)
❙Maintenance Under the Hood (P567)
❙Fog Lights* (P178, 586)
❙Multi-View Rear Camera (P546)
❙Front Turn Signal/Front Side Marker Lights
(P174, 175, 588)
❙Tires (P595, 617)
❙Opening/Closing the Tailgate (P148)
❙Side Turn Signal Lights* (P174, 588)
❙Headlights (P175, 584)
❙Tailgate Outer Handle (P157)
❙Taillights (P589)
❙Rear Turn Signal Lights (P588)
❙Rear Side Marker Lights (P588)
❙Back-Up Lights (P589)
❙Rear License Plate Light (P590)
❙Parking/Daytime Running Lights (P175, 182, 588)
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 8 ページ ２０１８年８月２２日　水曜日　午後２時５９分

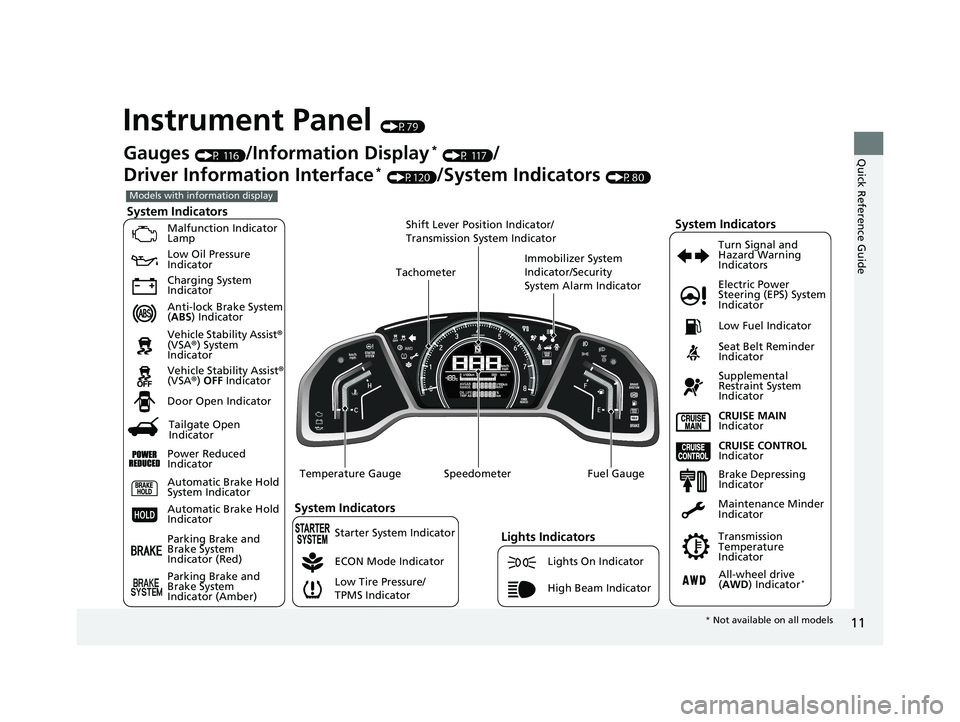

11
Quick Reference Guide
Instrument Panel (P79)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist ®
(VSA ®) System
Indicator
Vehicle Stability Assist ®
(VSA ®) OFF Indicator
Low Tire Pressure/
TPMS Indicator Electric Power
Steering (EPS) System
Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL

Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Door Open Indicator
CRUISE MAIN
Indicator
Immobilizer System
Indicator/Security
System Alarm Indicator
Speedometer Fuel Gauge
Tachometer
Shift Lever Position Indicator/
Transmission System Indicator
Low Fuel Indicator
Gauges (P 116)/Information Display* (P 117)/
Driver Information Interface
* (P120)/System Indicators (P80)
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Maintenance Minder
Indicator
Transmission
Temperature
Indicator
Models with information display
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
Temperature Gauge
Brake Depressing
Indicator
Tailgate Open
Indicator
Power Reduced
Indicator
All-wheel drive
( AWD ) Indicator*
Starter System Indicator
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 11 ページ ２０１８年８月２２日　水曜日　午後２時５９分

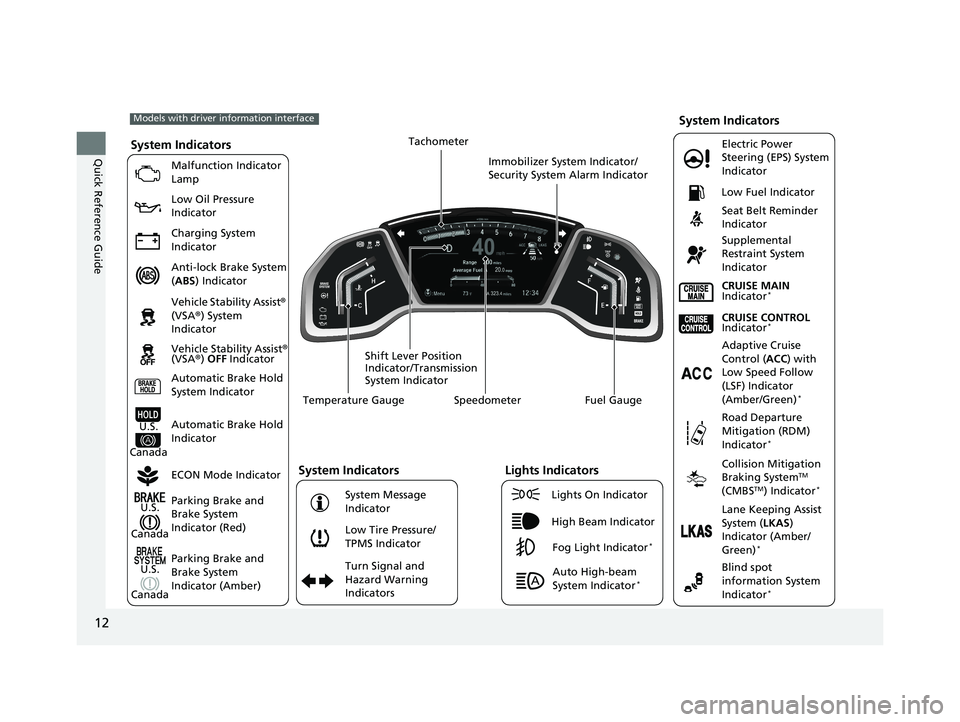

12
Quick Reference GuideSystem Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist ®
(VSA ®) System
Indicator
Low Tire Pressure/
TPMS Indicator Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red)
Supplemental
Restraint System
Indicator
Speedometer Fuel Gauge
Shift Lever Position
Indicator/Transmission
System Indicator Immobilizer System Indicator/
Security System Alarm Indicator
Low Fuel Indicator
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Models with driver information interface
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada Temperature Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (
ACC) with
Low Speed Follow
(LSF) Indicator
(Amber/Green)
*
System Message
Indicator Collision Mitigation
Braking System
TM
(CMBSTM) Indicator*
Road Departure
Mitigation (RDM)
Indicator
*
Lane Keeping Assist
System ( LKAS)
Indicator (Amber/
Green)
*
Tachometer
Auto High-beam
System Indicator*
CRUISE CONTROL
Indicator*
CRUISE MAIN
Indicator*
Blind spot
information System
Indicator
*
Vehicle Stability Assist ®
(VSA ®) OFF Indicator
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 12 ページ ２０１８年８月２２日　水曜日　午後２時５９分

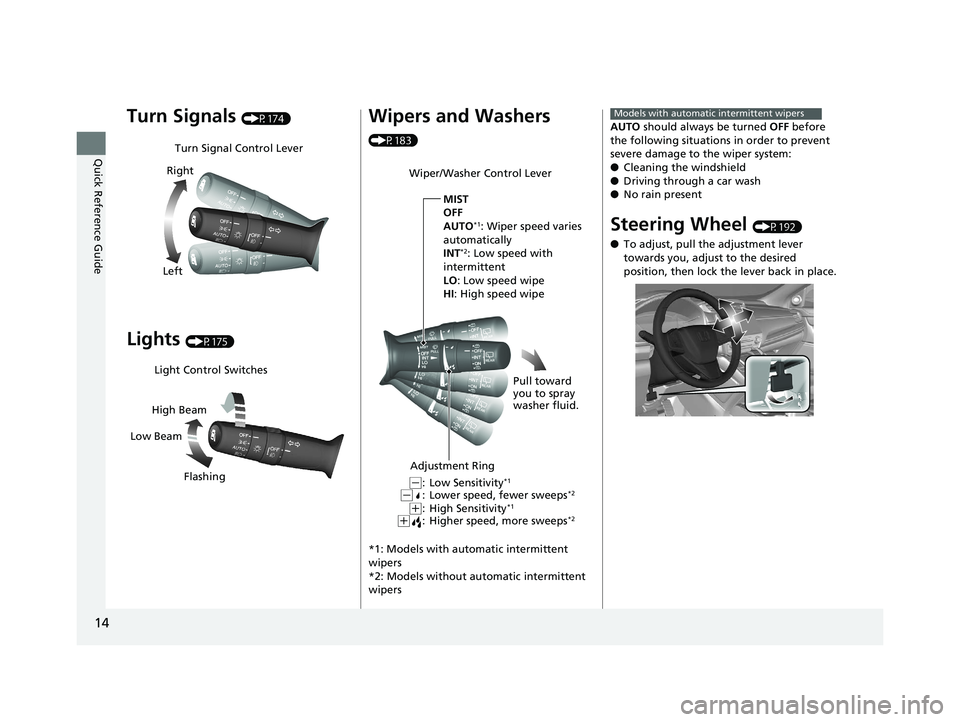

14
Quick Reference Guide
Turn Signals (P174)
Lights (P175)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P183)
*1: Models with automatic intermittent
wipers
*2: Models without automatic intermittent
wipers
Wiper/Washer Control Lever
Adjustment Ring MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Low Sensitivity*1
Lower speed, fewer sweeps*2
High Sensitivity*1
Higher speed, more sweeps*2(+:(+:
(-:(-:
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Steering Wheel (P192)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Models with automatic intermittent wipers
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 14 ページ ２０１８年８月２２日　水曜日　午後２時５９分

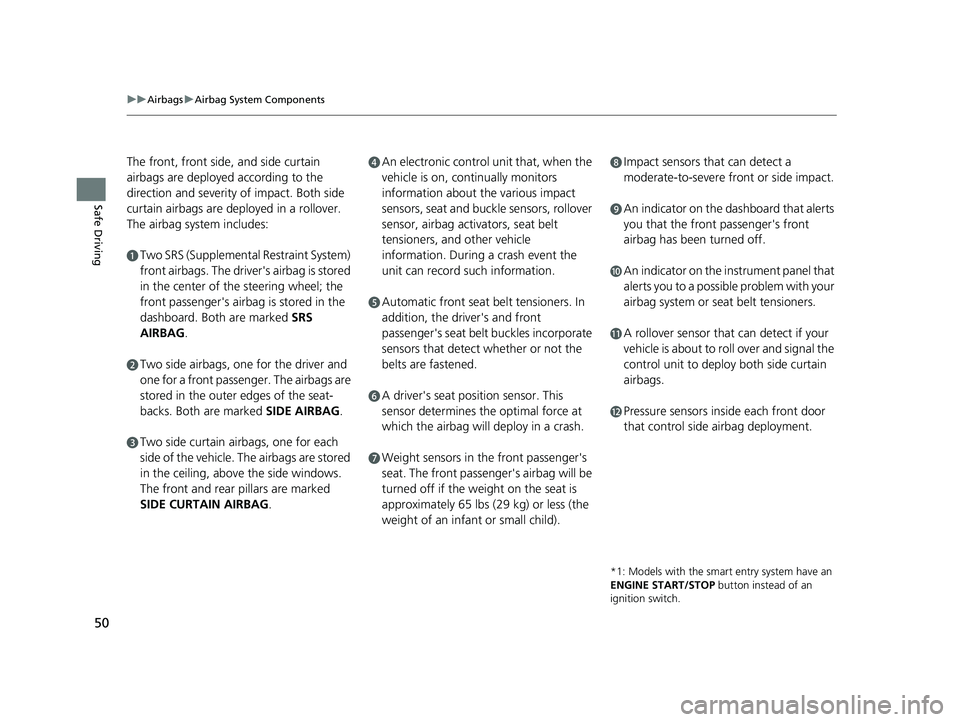

50
uuAirbags uAirbag System Components
Safe Driving
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. Both side
curtain airbags are depl oyed in a rollover.
The airbag system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver's airbag is stored
in the center of the steering wheel; the
front passenger's airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG .
cTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG.
dAn electronic control unit that, when the
vehicle is on, continually monitors
information about the various impact
sensors, seat and buckle sensors, rollover
sensor, airbag activators, seat belt
tensioners, and other vehicle
information. During a crash event the
unit can record such information.
eAutomatic front seat belt tensioners. In
addition, the driver's and front
passenger's seat belt buckles incorporate
sensors that detect whether or not the
belts are fastened.
fA driver's seat position sensor. This
sensor determines the optimal force at
which the airbag will deploy in a crash.
gWeight sensors in the front passenger's
seat. The front passenger's airbag will be
turned off if the weight on the seat is
approximately 65 lbs (29 kg) or less (the
weight of an infant or small child).
hImpact sensors that can detect a
moderate-to-severe front or side impact.
iAn indicator on the dashboard that alerts
you that the front passenger's front
airbag has been turned off.
jAn indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
kA rollover sensor that can detect if your
vehicle is about to roll over and signal the
control unit to deploy both side curtain
airbags.
lPressure sensors inside each front door
that control side airbag deployment.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an
ignition switch.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 50 ページ ２０１８年８月２２日　水曜日　午後２時５９分

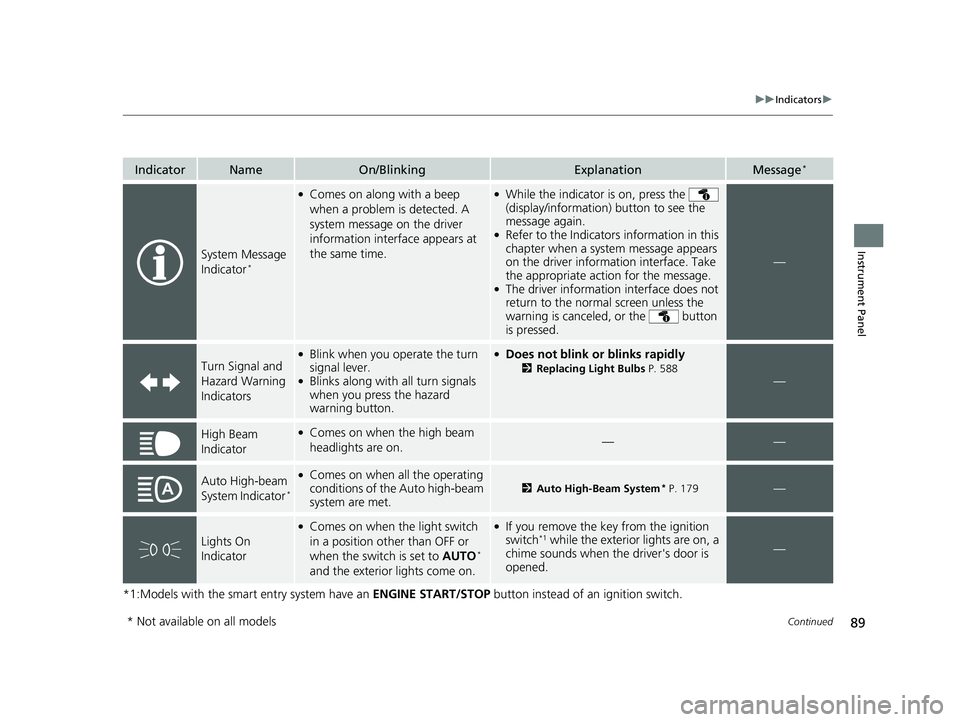

89
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
System Message
Indicator*
●Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.●While the indicator is on, press the
(display/information) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
●The driver information interface does not
return to the normal screen unless the
warning is canceled, or the button
is pressed.
—
Turn Signal and
Hazard Warning
Indicators
●Blink when you operate the turn
signal lever.
●Blinks along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 588—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Auto High-beam
System Indicator*
●Comes on when all the operating
conditions of the Auto high-beam
system are met.2Auto High-Beam System* P. 179—
Lights On
Indicator
●Comes on when the light switch
in a position other than OFF or
when the switch is set to AUTO
*
and the exterior lights come on.
●If you remove the key from the ignition
switch*1 while the exterior lights are on, a
chime sounds when the driver's door is
opened.—
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 89 ページ ２０１８年８月２２日　水曜日　午後２時５９分

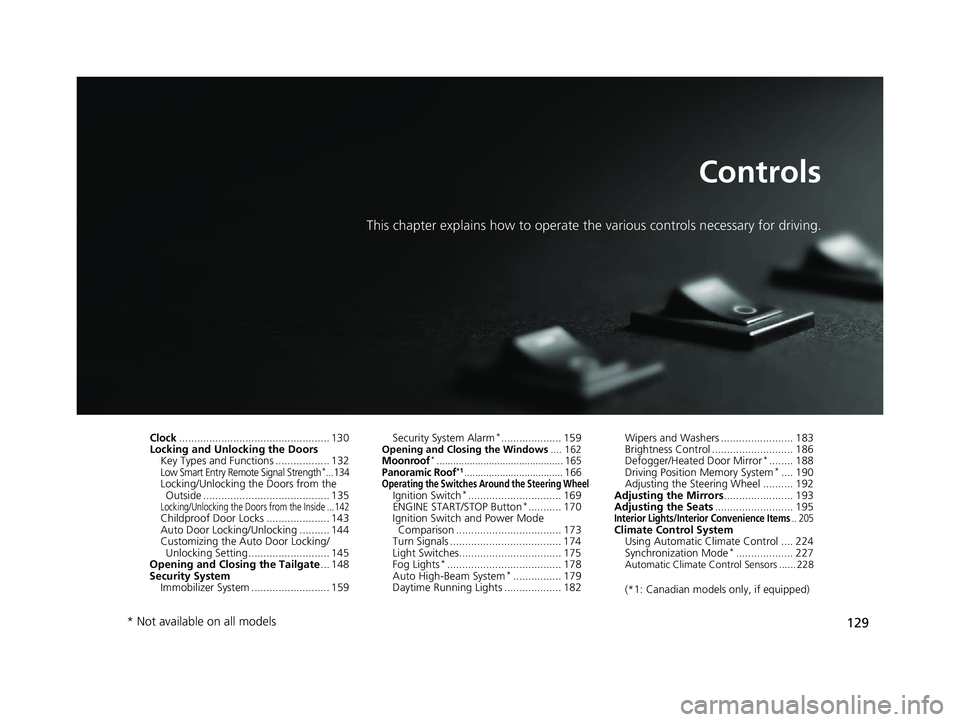

129
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 130
Locking and Unlocking the Doors
Key Types and Functions .................. 132
Low Smart Entry Remote Signal Strength*...134Locking/Unlocking the Doors from the Outside .......................................... 135
Locking/Unlocking the Doors from the Inside ... 142Childproof Door Locks ..................... 143
Auto Door Locking/Unlocking .......... 144
Customizing the Auto Door Locking/Unlocking Setting ........................... 145
Opening and Closing the Tailgate ... 148

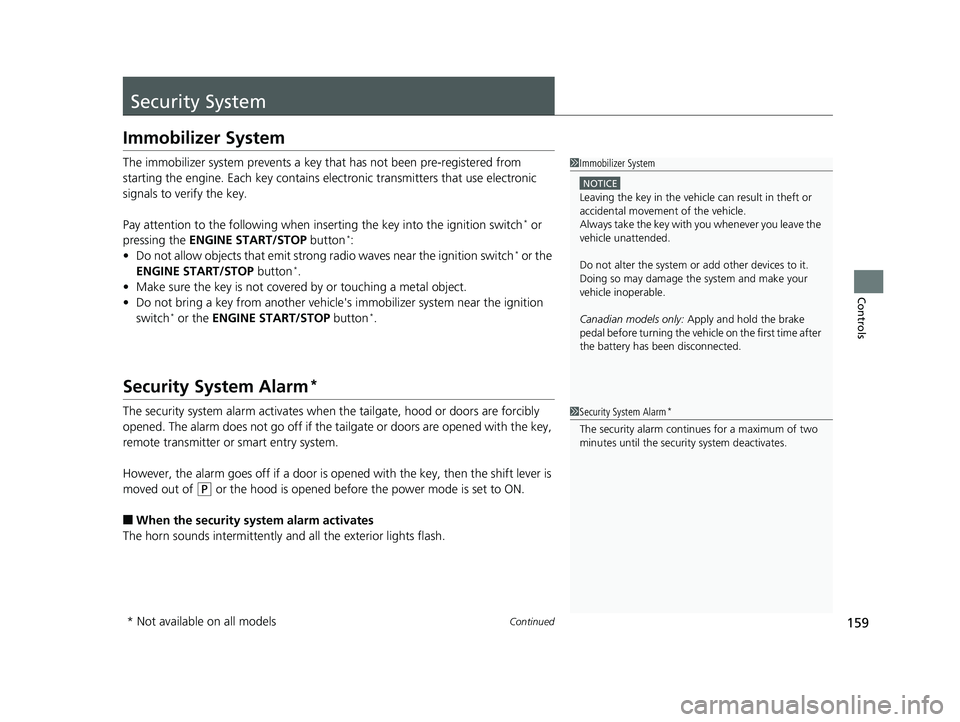

Security System Immobilizer System .......................... 159 Security System Alarm
*.................... 159Opening and Closing the Windows
.... 162Moonroof*.............................................. 165Panoramic Roof*1.................................... 166Operating the Switches Around the Steering WheelIgnition Switch*............................... 169
ENGINE START/STOP Button*........... 170
Ignition Switch and Power Mode
Comparison ................................... 173

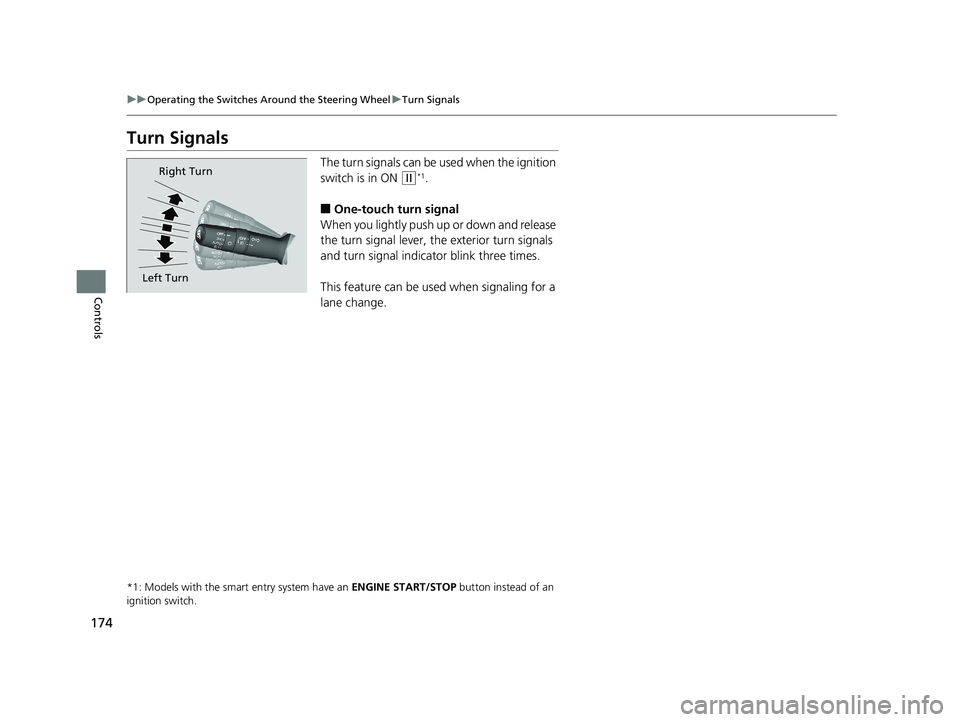

Turn Signals ..................................... 174
Light Switches.................................. 175
Fog Lights
*...................................... 178
Auto High-Beam System*................ 179
Daytime Running Lights ................... 182 Wipers and Washers ........................ 183
Brightness Control ........................... 186
Defogger/Heated Door Mirror
*........ 188
Driving Position Memory System*.... 190
Adjusting the Steering Wheel .......... 192
Adjusting the Mirrors ....................... 193
Adjusting the Seats .......................... 195
Interior Lights/Interior Convenience Items.. 205Climate Control System
Using Automatic Climate Control .... 224
Synchronization Mode
*................... 227Automatic Climate Control Sensors ...... 228
(*1: Canadian models only, if equipped)
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 129 ページ ２０１８年８月２２日　水曜日　午後２時５９分

159Continued
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when in serting the key into the ignition switch
* or
pressing the ENGINE START/STOP button*:
• Do not allow objects that emit strong radio waves near the ignition switch* or the
ENGINE START/STOP button*.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle's immobilizer system near the ignition
switch
* or the ENGINE START/STOP button*.
Security System Alarm*
The security system alarm activates when the tailgate, hood or doors are forcibly
opened. The alarm does not go off if the tailgate or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm goes off if a door is op ened with the key, then the shift lever is
moved out of
(P or the hood is opened before the power mode is set to ON.
■When the security system alarm activates
The horn sounds intermittently and all the exterior lights flash.
1Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Canadian models only: Apply and hold the brake
pedal before turning the vehicle on the first time after
the battery has been disconnected.
1 Security System Alarm*
The security alarm continues for a maximum of two
minutes until the security system deactivates.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 159 ページ ２０１８年８月２２日　水曜日　午後２時５９分

174
uuOperating the Switches Around the Steering Wheel uTurn Signals
Controls
Turn Signals
The turn signals can be used when the ignition
switch is in ON
(w*1.
■One-touch turn signal
When you lightly push up or down and release
the turn signal lever, th e exterior turn signals
and turn signal indica tor blink three times.
This feature can be used when signaling for a
lane change.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Right Turn
Left Turn
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 174 ページ ２０１８年８月２２日　水曜日　午後２時５９分
