640
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
Audio AMP*2(30 A)
−*3−
Electric Brake Booster40 A
Main Fan Motor30 A
Relay Module 130 A
IG Main 2*230 A
−*3−
Relay Module 230 A
Battery125 A
2
EPS70 A
IG Main 130 A*2
50 A*3
Fuse Box Option40 A
Fuse Box 160 A
Front Wiper Motor30 A
Sub Fan Motor30 A
3
Rear Defroster40 A
Starter Motor30 A
Fuse Box 240 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
*2:Models with smart entry system
*3:Models without smart entry system
4
Option Block 1*2(40 A)
−*3−
Option Block 2*2(40 A)
−*3−
−−
Power Tail Gate*2(40 A)
−*3−
5VB ACT*27.5 A
−*3−
6Washer15 A
7FI Main15 A
8FI Sub*215 ADBW*3
9Stop Lights10 A
10Injector20 A
11LAF7.5 A
Circuit ProtectedAmps
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 640 ページ ２０１８年８月２２日　水曜日　午後２時５９分

641
uuFuses uFuse Locations
Continued
Handling the Unexpected
Circuit ProtectedAmps
12FI ECU*110 A
−*2−
13Front Wiper Deicer*1(15 A)
−*2−
14Hazard10 A
15IG Coil15 A
16Transmission*115 A
−*2−
17−−
18Back Up10 A
19Audio15 A
20E-DPS*(20 A)
21Rear Seat Heater*1(20 A)
−*2−
22Front Fog Lights*/Lower
Shutter Grille(15 A)
23Magnetic Clutch/Upper Shutter Grille10 A
24Horn10 A
25Cooling Fan7.5 A
26−−
27−−
28−*1−
ST Magnetic Switch*2(7.5 A)
29−−
30−−
*1:Models with smart entry system
*2:Models without smart entry system Located under the dashboard.
Fuse locations are shown on the label on
the steering column lower cover.
Locate the fuse in question by the fuse

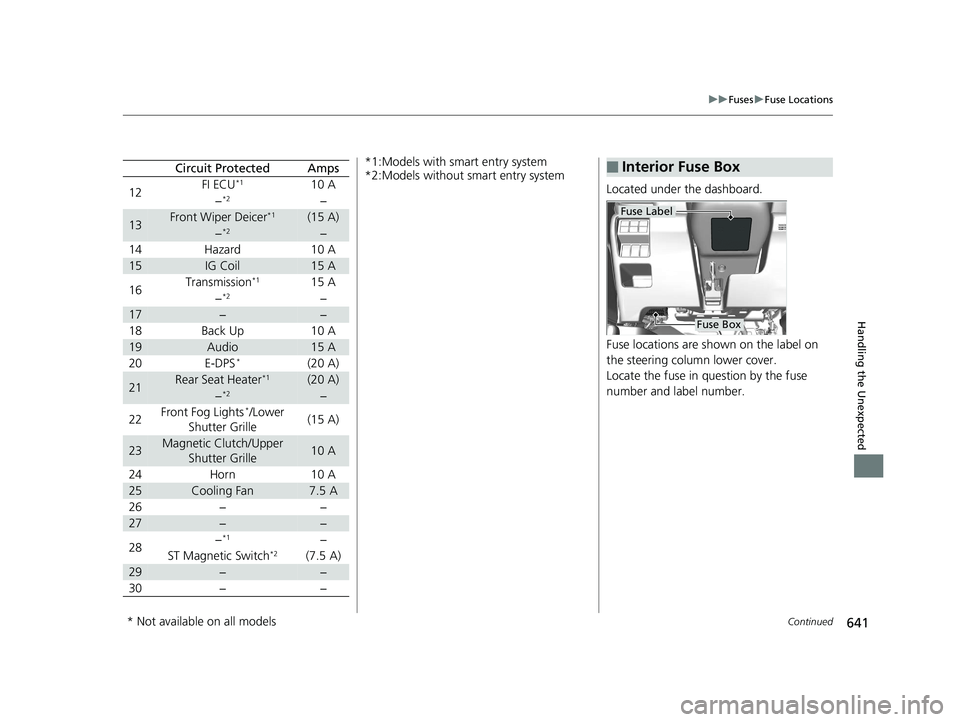

number and label number.■Interior Fuse Box
Fuse Label
Fuse Box
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 641 ページ ２０１８年８月２２日　水曜日　午後２時５９分

643
uuFusesuInspecting and Changing Fuses
Handling the Unexpected

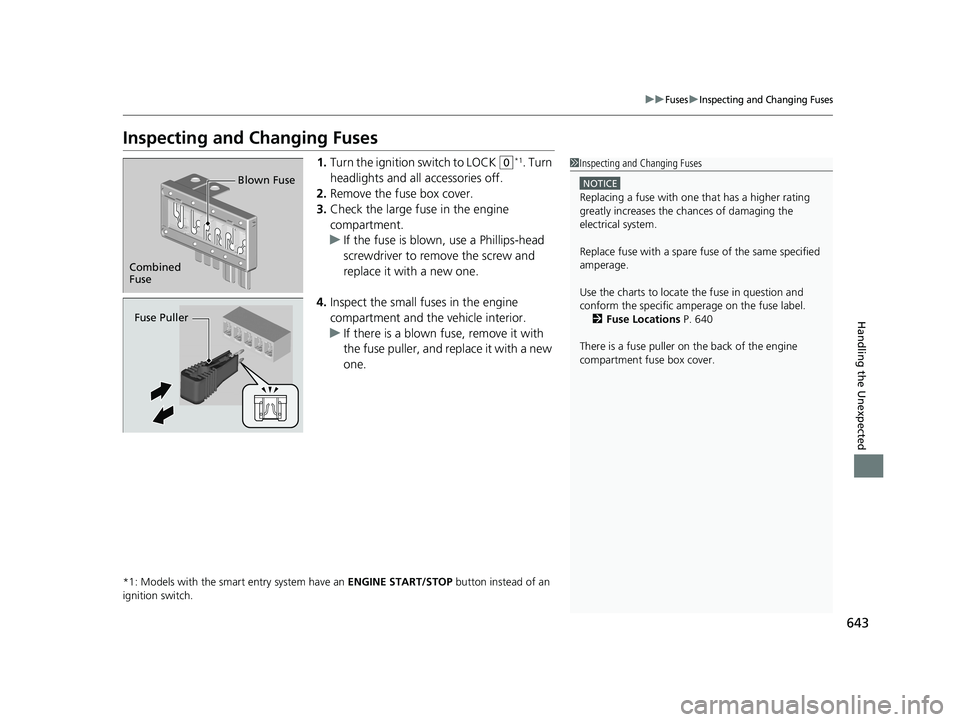

Inspecting and Changing Fuses
1.Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
conform the specific amperage on the fuse label.
2 Fuse Locations P. 640
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 643 ページ ２０１８年８月２２日　水曜日　午後２時５９分
