Page 5 of 675
Contents
Child Safety P. 63Exhaust Gas Hazard P. 76Safety Labels P. 77
Opening and Closing the Tailgate P. 148 Security System P. 159 Opening and Closing the Windows P. 162
Operating the Switches Around the Steering Wheel P. 169 Adjusting the Mirrors P. 193
Interior Lights/Interior Convenience It ems P. 205 Climate Control System P. 224
Audio Error Messages P. 327General Information on the Audio System P. 332
Bluetooth ® HandsFreeLink ® P. 385, 408 Compass* P. 442
Off-Highway Driving Guidelines P. 456 When Driving P. 458 Braking P. 522
Refueling P. 548 Fuel Economy and CO
2 Emissions P. 551 Turbo Engine Vehicle* P. 552
Maintenance Under the Hood P. 567 Replacing Light Bulbs P. 584
Checking and Maintaining Tires P. 595 Battery P. 604 Remote Transmitter Care P. 606
Cleaning P. 609 Accessories and Modifications P. 614
Engine Does Not Start P. 624Jump Starting P. 627 Shift Lever Does Not Move P. 630
Fuses P. 640 Emergency Towing P. 644
Refueling P. 646
Devices that Emit Radio Waves P. 652 Reporting Safety Defects P. 653
Authorized Manuals P. 658 Customer Service Information P. 659
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 79
ControlsP. 129
FeaturesP. 229
DrivingP. 445
MaintenanceP. 553
Handling the UnexpectedP. 615
InformationP. 647
IndexP. 661
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 3 ページ 2018年8月22日 水曜日 午後2時59分
Page 108 of 675
106
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Move the shift lever to (P, then press the ENGINE
START/STOP button twice.
●Appears if you push the ENGINE START/STOP
button and the parking brake is not activated or the
shift lever is in
(N position.
●Move the shift lever to (P position and start the engine.
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2 ENGINE START/STOP Button* P. 170
●Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.●Disappears when you bring the smart entry remote back
inside the vehicle and close the door.
2Smart Entry Remote Reminder P. 172
●Appears when the smart entry remote battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 606
U.S. models
Canadian models
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 106 ページ 2018年8月22日 水曜日 午後2時59分
Page 109 of 675
107
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the smart entry remote battery is too
weak to start the engine or the key is not within
operating range to start the engine.
A beeper sounds six times.●Bring the smart entry remote in front of the ENGINE
START/STOP button to be touched with.
2If the Smart Entry Remote Battery is Weak P. 625
●Appears when the starter system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while pressing
the brake pedal and manually start the engine.
Have your vehicle checked by a dealer.
●Appears as soon as a problem is detected in the
smart entry system or push button starting system.●Appears constantly - Have your vehicle checked by a
dealer.
●Appears if the vehicle is being driven in a manner
consistent with drowsy or inattentive driving.
2 Driver Attention Monitor P. 123
U.S.
Canada
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 107 ページ 2018年8月22日 水曜日 午後2時59分
Page 115 of 675
113
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Continued
Instrument Panel
•Appears if the temperature inside the front sensor
camera is too high and some driver assist systems
cannot be activated.• Use the climate control system to cool down the camera.
• Disappears - The camera has been cooled down and
the systems are activated normally.
2 Front Sensor Camera* P. 477
2 Auto High-Beam System* P. 179
•Appears if the area around the front sensor camera
is blocked by dirt, mud, etc. and be prevented from
detecting a vehicle in front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)• When the front window gets dirty, stop your vehicle in a
safe place, and wipe it off with a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even after you cleaned the area
around the camera.
2 Front Sensor Camera* P. 477
2 Auto High-Beam System* P. 179
MessageConditionExplanation
●Appears when you unlock and open the driver’s
door while the engine is running by remote engine
start.
2Remote Engine Start with Vehicle Feedback* P. 462
MessageConditionExplanation
Models with remote engine starter
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 113 ページ 2018年8月22日 水曜日 午後2時59分
Page 131 of 675
129
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 130
Locking and Unlocking the Doors
Key Types and Functions .................. 132
Low Smart Entry Remote Signal Strength*...134Locking/Unlocking the Doors from the Outside .......................................... 135
Locking/Unlocking the Doors from the Inside ... 142Childproof Door Locks ..................... 143
Auto Door Locking/Unlocking .......... 144
Customizing the Auto Door Locking/Unlocking Setting ........................... 145
Opening and Closing the Tailgate ... 148
Security System Immobilizer System .......................... 159 Security System Alarm
*.................... 159Opening and Closing the Windows
.... 162Moonroof*.............................................. 165Panoramic Roof*1.................................... 166Operating the Switches Around the Steering WheelIgnition Switch*............................... 169
ENGINE START/STOP Button*........... 170
Ignition Switch and Power Mode
Comparison ................................... 173
Turn Signals ..................................... 174
Light Switches.................................. 175
Fog Lights
*...................................... 178
Auto High-Beam System*................ 179
Daytime Running Lights ................... 182 Wipers and Washers ........................ 183
Brightness Control ........................... 186
Defogger/Heated Door Mirror
*........ 188
Driving Position Memory System*.... 190
Adjusting the Steering Wheel .......... 192
Adjusting the Mirrors ....................... 193
Adjusting the Seats .......................... 195
Interior Lights/Interior Convenience Items.. 205Climate Control System
Using Automatic Climate Control .... 224
Synchronization Mode
*................... 227Automatic Climate Control Sensors ...... 228
(*1: Canadian models only, if equipped)
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 129 ページ 2018年8月22日 水曜日 午後2時59分
Page 134 of 675
132
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the key to start and stop the engine, and to lock and unlock the doors and
tailgate. You can also lock and unlock the doors and tailgate pressing the buttons
on remote transmitter.The built-in key can be used to lock/unlock the
doors when the smart entry remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
smart entry remote until it clicks.
■Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps protect against vehicle
theft.
2 Immobilizer System P. 159
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the one-way
smart entry remote. 2 Remote Engine Start with Vehicle
Feedback
* P. 462
Models with remote engine starter■Built-in Key*
Smart Entry Remote*Ignition Keys with Remote
Transmitter*
Built-in Key
Release Knob
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 132 ページ 2018年8月22日 水曜日 午後2時59分
Page 136 of 675
134
uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength*
Controls

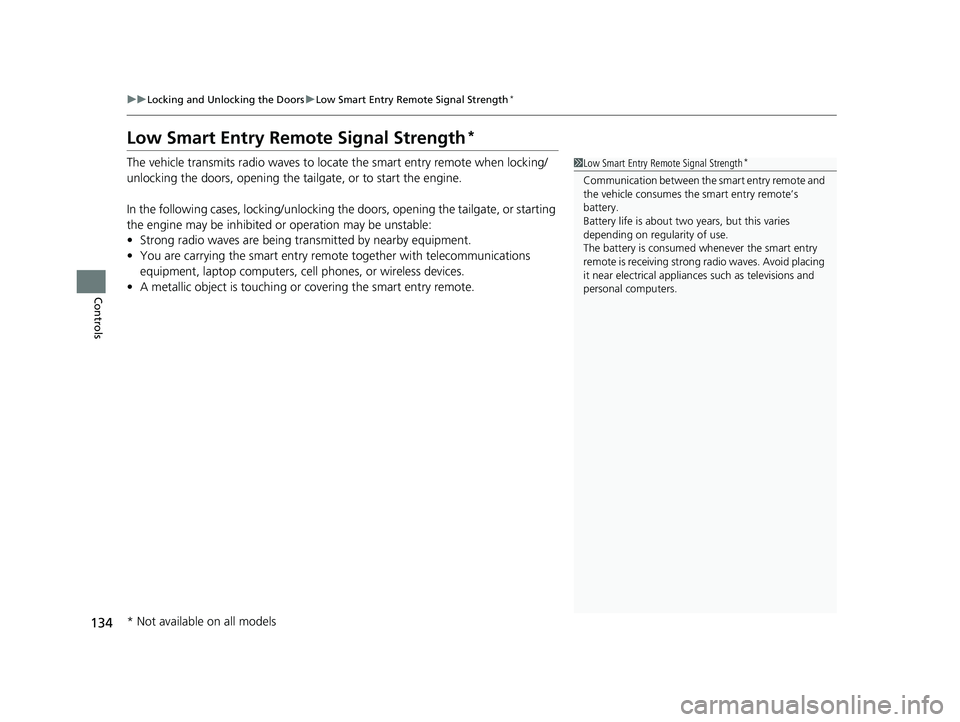

Low Smart Entry Remo te Signal Strength*
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors, opening the ta ilgate, or to start the engine.
In the following cases, locking/unlocking th e doors, opening the tailgate, or starting
the engine may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.1Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 134 ページ 2018年8月22日 水曜日 午後2時59分
Page 137 of 675
135
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside
When you carry the smart entry remote, you
can lock/unlock the doors and open the
tailgate.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the tailgate within
about 32 inches (80 cm) radius from the
tailgate outer handle.
■Locking the doors and tailgate
Touch the door lock sensor on a front door or
press the lock button on the tailgate. u Some exterior lights flash; the beeper
sounds; all the doors and tailgate lock;
and the security system sets.
■Using the Smart Entry with Push Button Start System*1Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior light comes on when you unlock
the doors and tailgate.
No doors opened: The li ght fades out after 30
seconds.
Doors and tailgate relo cked: The light goes off
immediately. 2 Interior Lights P. 205
1Using the Smart Entry with Push Button Start System*
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle with the smart entry
system, the doors and tailg ate will automatically
relock.
You can lock or unlock doors using the smart entry
system only when the power mode is in VEHICLE OFF.Door Lock
Sensor
Lock
Button
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 135 ページ 2018年8月22日 水曜日 午後2時59分
Page 140 of 675
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
138
Controls
■Unlocking the doors and tailgate
Grab the driver’s door handle: u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All the doors and tailgate unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the tailgate outer handle: u The tailgate unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
2 Using the Outer Handle P. 157
1Using the Smart Entry with Push Button Start System*
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors and tailgate while
someone else with the remote is within range.
•The door may be locked or unlocked if the door
handle is covered with wate r in heavy rain or in a
car wash if the smart entry remote is within range.
•If you grip a front door ha ndle or touch a door lock
sensor wearing gloves, the door sensor may be
slow to respond or may no t respond by locking or
unlocking the doors.
•After locking the door, you have up to 2 seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least 2 seconds befo re gripping the handle,
otherwise the door will not unlock.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors with the smart
entry remote if it is a bove or below the outside
handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
•The light flashes, and beeper sounds and unlock
settings can be customized on the audio/
information screen. 2Customized Features P. 349
Outer
Handle
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 138 ページ 2018年8月22日 水曜日 午後2時59分
Page 151 of 675

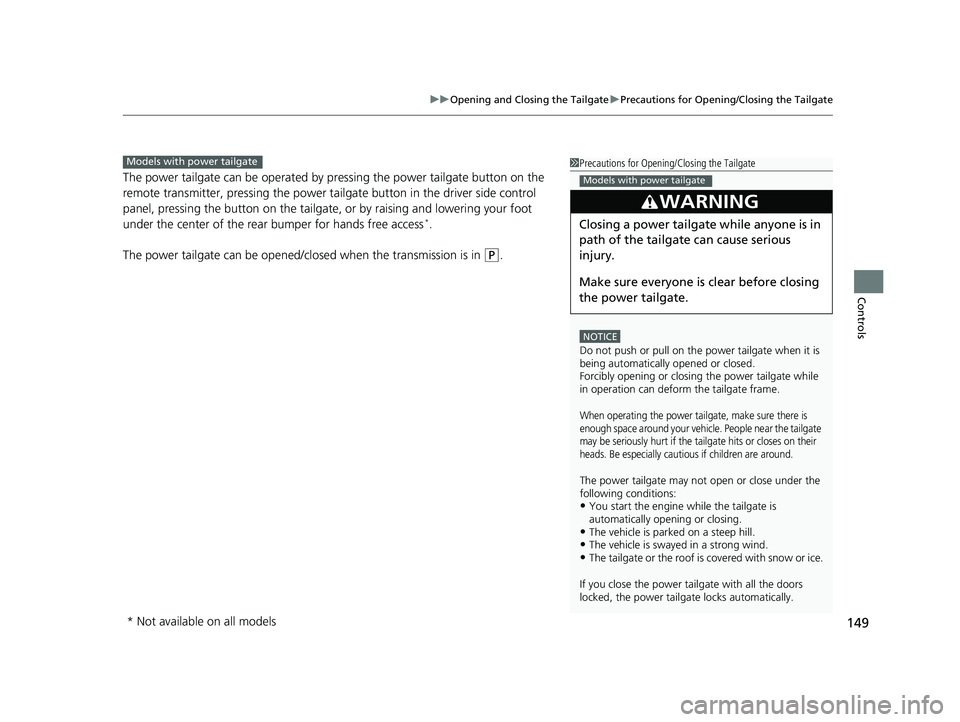

149
uuOpening and Closing the Tailgate uPrecautions for Opening/Closing the Tailgate
Controls
The power tailgate can be operated by pr essing the power tailgate button on the
remote transmitter, pressing the power tail gate button in the driver side control
panel, pressing the button on the tailgate, or by raising and lowering your foot
under the center of the rear bumper for hands free access
*.
The power tailgate can be opened/clo sed when the transmission is in
(P.
1Precautions for Opening/Closing the Tailgate
NOTICE
Do not push or pull on the power tailgate when it is
being automatically opened or closed.
Forcibly opening or closing the power tailgate while
in operation can deform the tailgate frame.
When operating the power tailgate, make sure there is
enough space around your vehicle. People near the tailgate
may be seriously hurt if the tailgate hits or closes on their
heads. Be especially cautious if children are around.
The power tailgate may not open or close under the
following conditions:
•You start the engine while the tailgate is
automatically openi ng or closing.
•The vehicle is parked on a steep hill.•The vehicle is swayed in a strong wind.•The tailgate or the roof is covered with snow or ice.
If you close the power tail gate with all the doors
locked, the power tailgate locks automatically.
3WARNING
Closing a power tailgate while anyone is in
path of the tailgate can cause serious
injury.
Make sure everyone is clear before closing
the power tailgate.
Models with power tailgate
Models with power tailgate
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 149 ページ 2018年8月22日 水曜日 午後2時59分
