HONDA CR-V 2020 Navigation Manual (in English)

19
uuPersonal Information uSaved Locations
Continued
System Setup

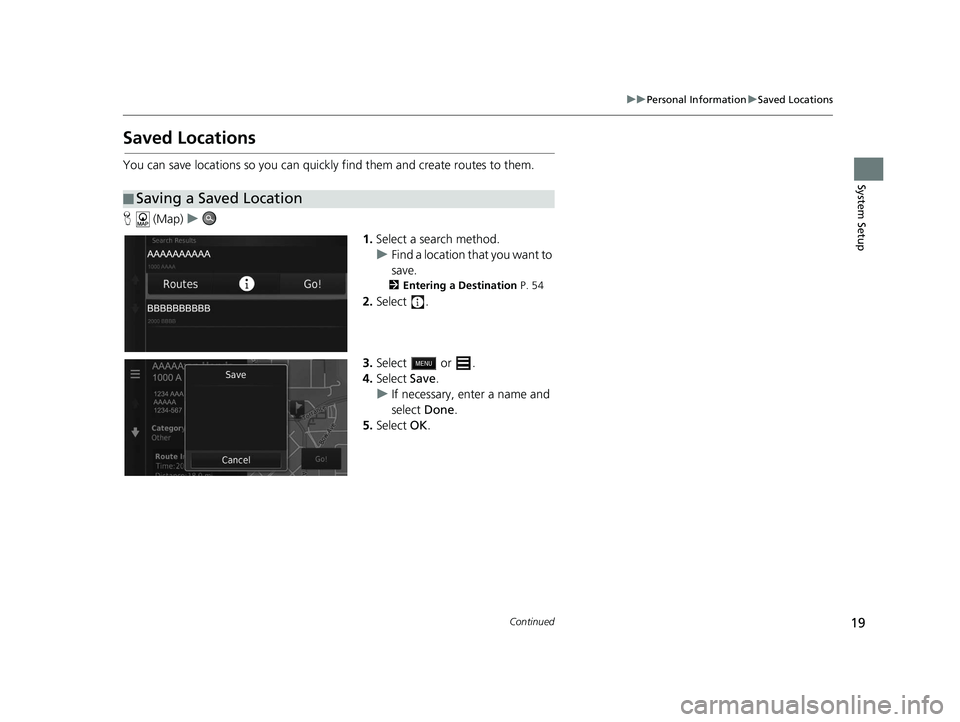

Saved Locations
You can save locations so you can quickly find them and create routes to them.
H (Map) u
1.Select a search method.
u Find a location that you want to
save.
2 Entering a Destination P. 54
2.Select .
3. Select or .
4. Select Save.
u If necessary, enter a name and
select Done.
5. Select OK.
■Saving a Saved Location
19 CR-V NAVI-31TLA8200.book 19 ページ ２０１８年８月２８日　火曜日　午後２時１７分

20
uuPersonal Information uSaved Locations
System SetupH (Map) u (Back) uView Map
1.Select a destination from the map.
2 Map Input P. 69
2.Select the destination name at the
bottom of the map.
3. Select or .
4. Select Save.
u On some places other than POI,
you can edit the place name.
5. Select OK.

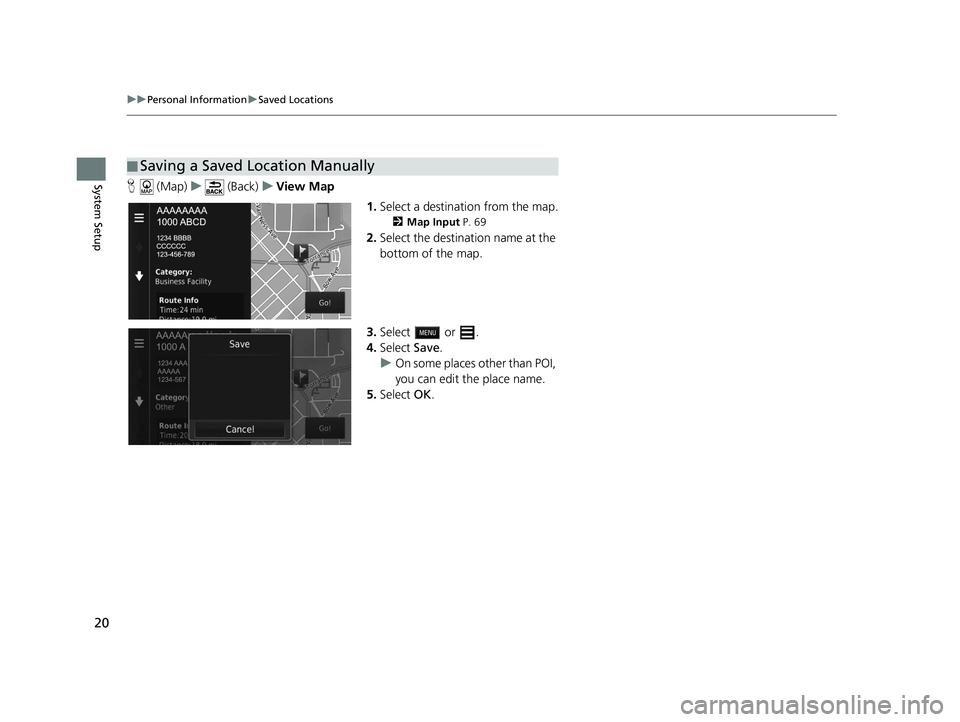

■Saving a Saved Location Manually
19 CR-V NAVI-31TLA8200.book 20 ページ ２０１８年８月２８日　火曜日　午後２時１７分

Continued21
uuPersonal Information uSaved Locations
System SetupH (Map) u (Back) uView Map
1.Select the vehicle icon.
2. Select Save.
3. Enter a name of the location.
4. Select Done.
5. Select OK.

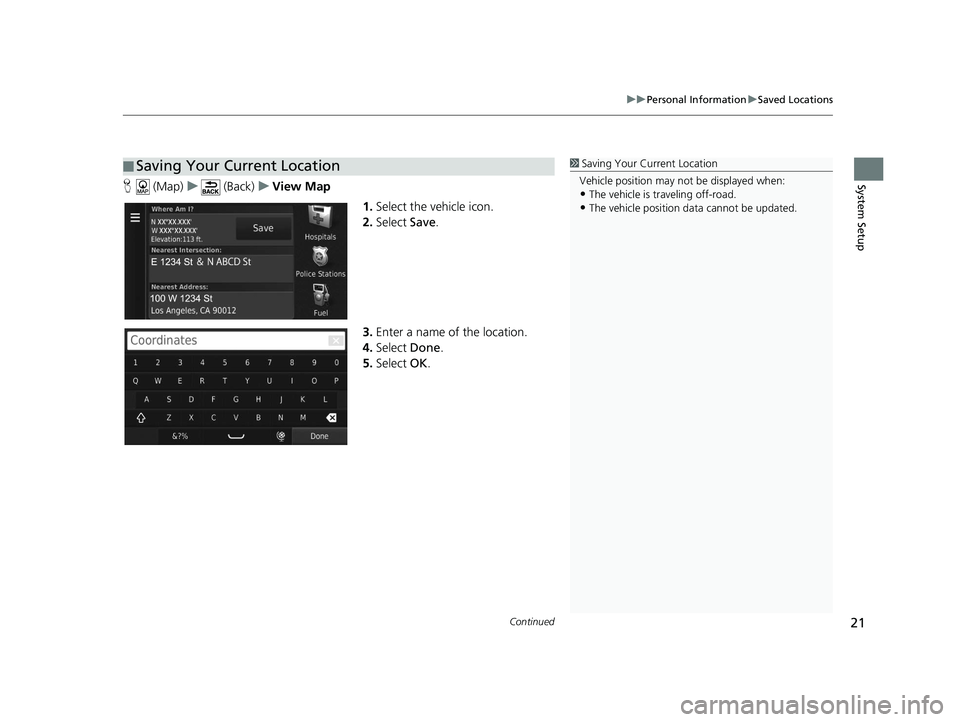

■Saving Your Current Location1
Saving Your Current Location
Vehicle position may not be displayed when:
•The vehicle is traveling off-road.
•The vehicle position da ta cannot be updated.
19 CR-V NAVI-31TLA8200.book 21 ページ ２０１８年８月２８日　火曜日　午後２時１７分

22
uuPersonal Information uSaved Locations
System SetupH (Map) uu Saved
1.Select a saved location you want
to edit.
2. Select .
3. Select or .
4. Select Edit.

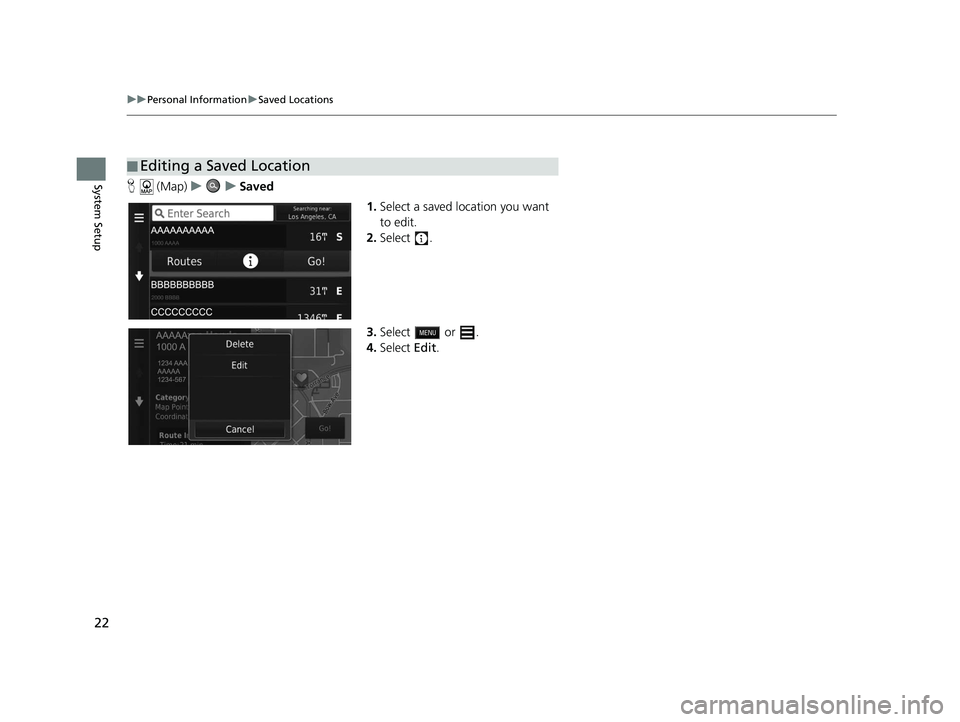

■Editing a Saved Location
19 CR-V NAVI-31TLA8200.book 22 ページ ２０１８年８月２８日　火曜日　午後２時１７分

23
uuPersonal Information uSaved Locations
Continued
System Setup

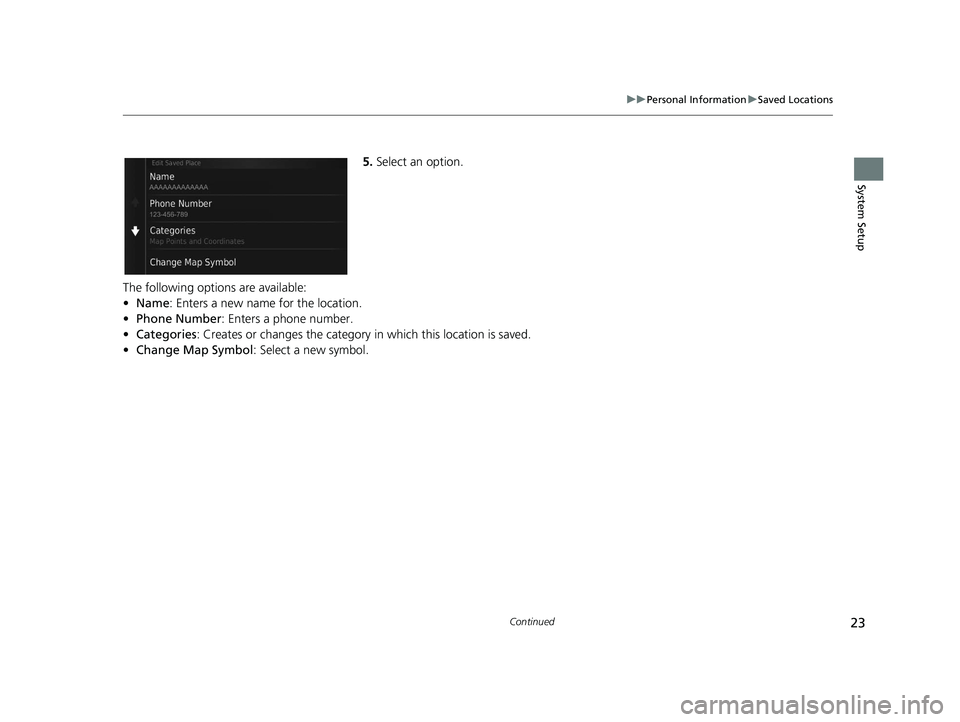

5. Select an option.
The following options are available:
• Name: Enters a new name for the location.
• Phone Number: Enters a phone number.
• Categories : Creates or changes the category in which this location is saved.
• Change Map Symbol : Select a new symbol.
19 CR-V NAVI-31TLA8200.book 23 ページ ２０１８年８月２８日　火曜日　午後２時１７分

24
uuPersonal Information uSaved Locations
System SetupH (Map) uu Saved
1.Select a saved location you want
to delete.
2. Select .
3. Select or .
4. Select Delete.
5. Select Yes.

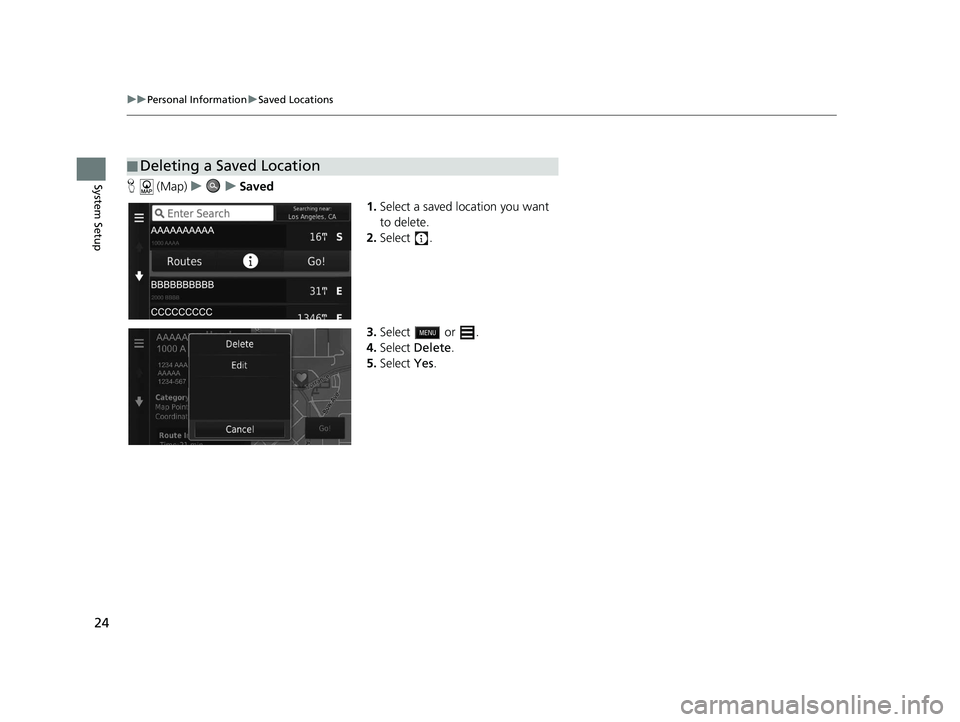

■Deleting a Saved Location
19 CR-V NAVI-31TLA8200.book 24 ページ ２０１８年８月２８日　火曜日　午後２時１７分

25
uuPersonal Information uSaved Locations
System SetupH (Map) uu Saved
1.Select or .
2. Select Delete Saved Places .
3. Select a saved location you want
to delete.
u Select Select All to delete all
saved locations.
4. Select Delete .
5. Select Yes.

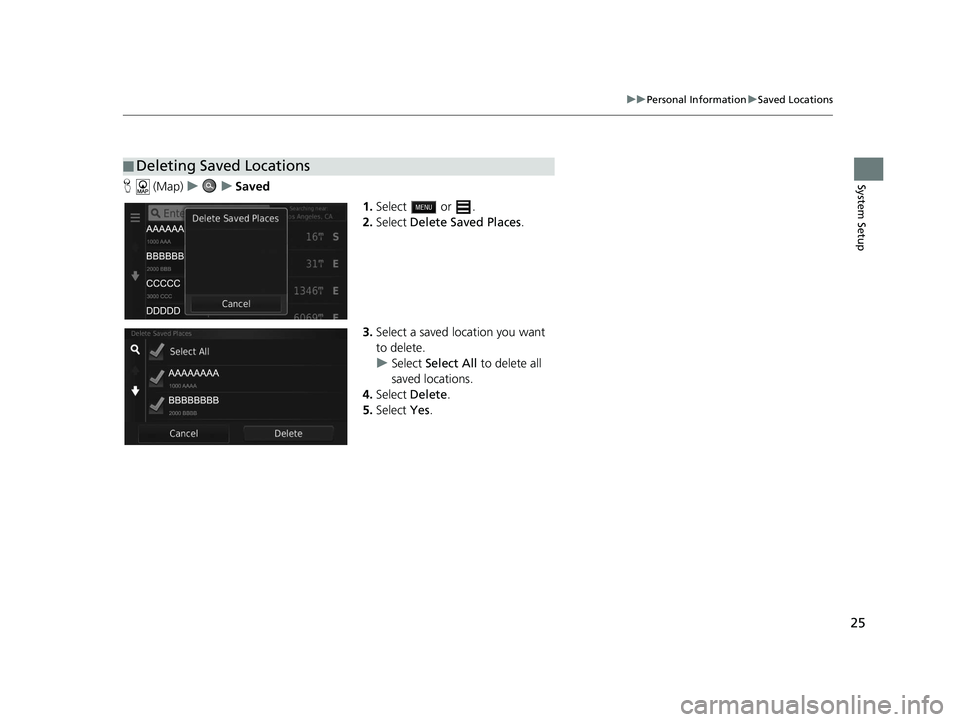

■Deleting Saved Locations
19 CR-V NAVI-31TLA8200.book 25 ページ ２０１８年８月２８日　火曜日　午後２時１７分

26
System Setup
Display Mode Settings
Switching Display Mode Manually
Set the screen brightness separately for Day and Night modes. Press the
(Display Mode) icon to cycle through the display modes (Day to Night to Off).
Press the (Display Mode) icon.
uThe Brightness bar is displayed for
a few seconds.
u Select or to adjust the
brightness.1Switching Display Mode Manually
You can also adjust the display brightness by sliding
or swiping on the Brightness bar.
You can change the touchs creen sensitivity setting.
2 Refer to the Owners Manual.
19 CR-V NAVI-31TLA8200.book 26 ページ ２０１８年８月２８日　火曜日　午後２時１７分

27

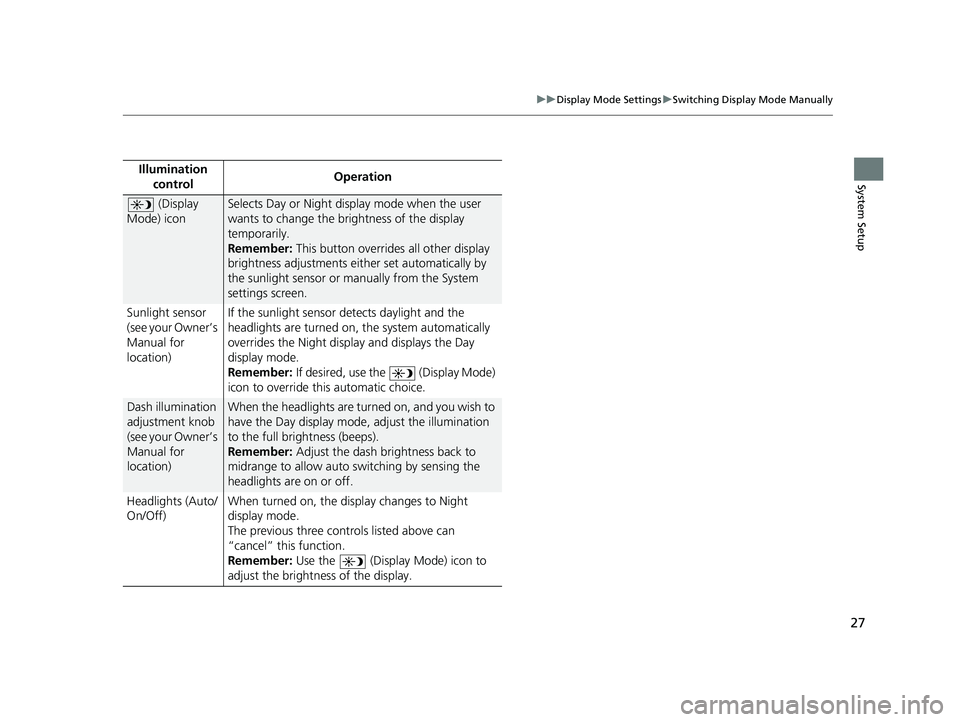

uuDisplay Mode Settings uSwitching Display Mode Manually
System SetupIllumination
control Operation
(Display
Mode) iconSelects Day or Night display mode when the user
wants to change the brightness of the display
temporarily.
Remember: This button overrides all other display
brightness adjustments either set automatically by
the sunlight sensor or manually from the System
settings screen.
Sunlight sensor
(see your Owner’s
Manual for
location) If the sunlight sensor detects daylight and the
headlights are turned on, the system automatically
overrides the Nigh
t display and displays the Day
display mode.
Remember: If desired, use the (Display Mode)
icon to override th is automatic choice.
Dash illumination
adjustment knob
(see your Owner’s
Manual for
location)When the headlights are turn ed on, and you wish to
have the Day display mode, adjust the illumination
to the full brightness (beeps).
Remember: Adjust the dash brightness back to
midrange to allow auto switching by sensing the
headlights are on or off.
Headlights (Auto/
On/Off) When turned on, the di
splay changes to Night
display mode.
The previous three controls listed above can
“cancel” this function.
Remember: Use the (Display Mode) icon to
adjust the brightness of the display.
19 CR-V NAVI-31TLA8200.book 27 ページ ２０１８年８月２８日　火曜日　午後２時１７分

28
System Setup
Map & Vehicle
H (Map) u (Back) uSettings uMap & Vehicle
Change the map settings. Select an option.
The following options are available:
• Vehicle : Changes the icon to represent your position on the map.
2Vehicle P. 29
•Driving Map View : Sets the perspective on the map.
2Driving Map View (Map Orientation) P. 30
•Map Detail : Sets the level of detail on the map. More detail may cause the map
to draw slower.
2 Map Detail P. 31
•Map Theme : Changes the color of the map data.
2Map Theme P. 32
•Map Buttons : Sets which icons are included on the map. Up to three icons can
be included on the map.
2 Map Buttons P. 33
•Map Layers : Sets the data that appears on the map.
2Map Layers P. 34
•Dashboards : Sets the map dashboard layout.
2Dashboards P. 34
19 CR-V NAVI-31TLA8200.book 28 ページ ２０１８年８月２８日　火曜日　午後２時１７分
