HONDA CR-V 2020 (in English) Owners Manual

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Blind spot
information
System
Indicator
*
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Stays on while blind spot
information system is turned off.
—
●Comes on when mud, snow, or ice
accumulates in the vicinity of
sensor.●Comes on while driving - Remove the
obstacle in the vicinity of sensor.
2 Blind spot information System*
P. 516
●Comes on if there is a problem
with the system.●Comes on while driving - Have your
vehicle checked by a dealer.
ECON Mode
Indicator●Comes on when you press the
ECON button.
2ECON Button P. 482
Auto Idle Stop
Indicator (Green)•Comes on when Auto Idle Stop is
in operation. The engine
automatically shuts off.
2 Auto Idle Stop P. 476—
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 89 ページ ２０１９年１０月３日　木曜日　午後４時５５分

90
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
System Indicator
(Amber)
•Comes on for a few seconds
when you turn the ignition switch
to ON
(w*1, then goes off.
——
•Comes on when Auto Idle Stop
system has been turned off by the
Auto Idle Stop OFF button.
2Auto Idle Stop System ON/OFF P. 477
•Blinks if there is a problem with
the Auto Idle Stop system.•Blinks - Have your vehicle checked by a
dealer.
Road Departure
Mitigation (RDM)
Indicator
●Comes on for a few seconds
when you turn the ignition switch
to ON
(w*1, then goes off.●Comes on if there is a problem
with the RDM system.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on if the RDM is
deactivated temporarily after the
battery has been disconnected,
then re-connected.●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 90 ページ ２０１９年１０月３日　木曜日　午後４時５５分

91
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Road Departure
Mitigation (RDM)
Indicator
●Comes on when the RDM system
shuts itself off.●Indicator may come on temporarily when
passing through an en closed space, such
as a tunnel.
●The area around the radar sensor is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off with
a soft cloth. Indicator may take some time
to go off after the radar sensor is cleaned.
●Have your vehicle checked by a dealer if
the indicator does not go off even after
you cleaned the radar sensor.
2 Collision Mitigation Braking
SystemTM (CMBSTM) P. 536
●Comes on when the RDM system
shuts itself off.●Stays on - The temperature inside the
camera is too high.
Use the climate contro l system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down.
2 Front Sensor Camera P. 483
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 91 ページ ２０１９年１０月３日　木曜日　午後４時５５分

92
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
Road Departure
Mitigation
(RDM) Indicator
●Comes on when the RDM system
shuts itself off.●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off with
a soft cloth.
●Have your vehicle checked by a dealer if
the indicator and message come back on
after you cleaned the area around the
camera.
2 Front Sensor Camera P. 483
●Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.●Make sure the total load is within the
Maximum Load Limit.
2Maximum Load Limit P. 455●Stays on constantly - Have your vehicle
checked by a dealer.
—
Adaptive Cruise
Control (ACC)
with Low Speed
Follow Indicator
(Amber)●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if there is a problem
with ACC with Low Speed Follow.
●Comes on while driving - Have your
vehicle checked by a dealer.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 92 ページ ２０１９年１０月３日　木曜日　午後４時５５分

93
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
with Low Speed
Follow Indicator
(Amber)
●Comes on if the ACC with Low
Speed Follow is deactivated
temporarily after the battery has
been disconnected, then re-
connected.●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
●Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.
●ACC with Low Speed Follow has
been automatically canceled.
●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 455●Stays on constantly - Have your vehicle
checked by a dealer.
—
Adaptive Cruise
Control ( ACC)
with Low Speed
Follow Indicator
(Green)●Comes on when you press the
MAIN button.
2Adaptive Cruise Control (ACC) with
Low Speed Follow P. 485—
Lane Keeping
Assist System
(LKAS ) Indicator
(Amber)●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if there is a problem
with the LKAS.
●Stays on constantly - Have your vehicle
checked by a dealer.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 93 ページ ２０１９年１０月３日　木曜日　午後４時５５分

94
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
Lane Keeping
Assist System
(LKAS ) Indicator
(Green)●Comes on when you press the
MAIN button.
2Lane Keeping Assist System (LKAS)
P. 505—
Collision
Mitigation
Braking System
TM
(CMBSTM)
Indicator
●Comes on for a few seconds
when you turn the ignition switch
to ON
(w*1, then goes off.●Comes on when you deactivate
the CMBSTM. A driver information
interface message appears for
five seconds.
●Comes on if there is a problem
with the CMBSTM.
●Stays on constantly without the
CMBSTM off - Have your vehicle checked
by a dealer.
2 Collision Mitigation Braking
SystemTM (CMBSTM) P. 536
●Comes on if the CMBSTM is
deactivated temporarily after the
battery has been disconnected,
then re-connected.●Drive a short distance at more than 12
mph (20 km/h). The i ndicator should go
off. If it does not, have your vehicle
checked by a dealer.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 94 ページ ２０１９年１０月３日　木曜日　午後４時５５分

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
●Comes on when the CMBSTM
system shuts itself off.●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in
a safe place, and wipe it off with a soft cloth.
2 Front Sensor Camera P. 483●Have your vehicle checked by a dealer if the
indicator does not go off even after you
cleaned the camera.
2Collision Mitigation Braking SystemTM
(CMBSTM) P. 536
●Stays on - The temperature inside the camera is
too high. Use the climate control system to cool
down the camera. The system activates when the
temperature inside the camera cools down.
2 Front Sensor Camera P. 483
●Indicator may come on temporarily when
passing through an enclos ed space, such as a
tunnel.
●The area around the radar sensor is blocked by
dirt, mud, etc. St op your vehicle in a safe place,
and wipe it off with a soft cloth. Indicator may
take some time to go off after the radar sensor
is cleaned.
●Have your vehicle checked by a dealer if the
indicator does not go off even after you clean
the sensor cover.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 536
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 95 ページ ２０１９年１０月３日　木曜日　午後４時５５分

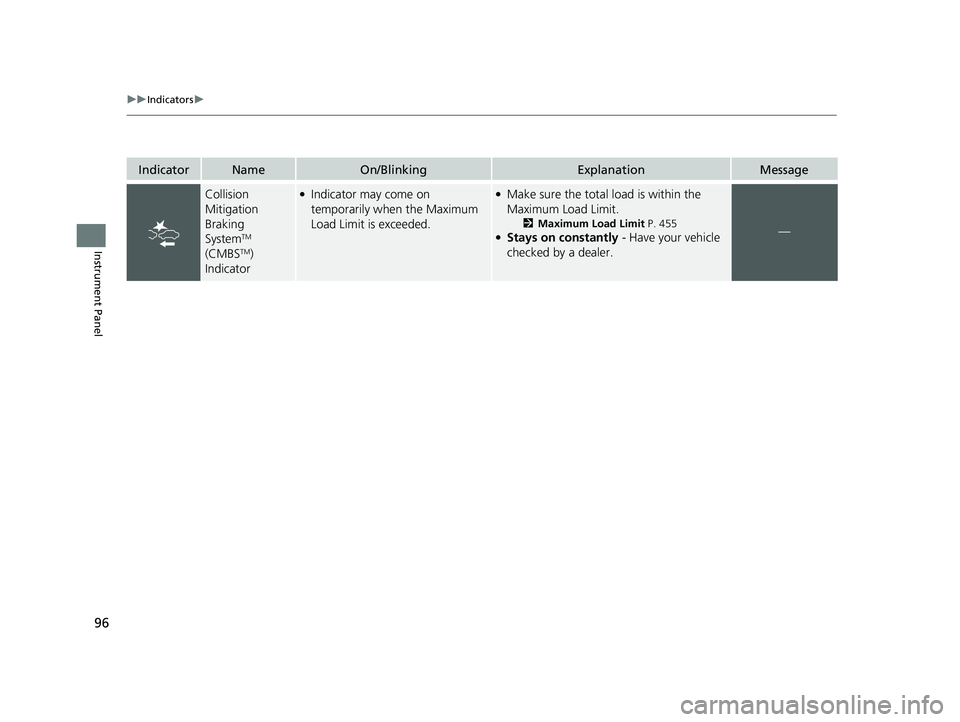

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
●Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 455●Stays on constantly - Have your vehicle
checked by a dealer.—
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 96 ページ ２０１９年１０月３日　木曜日　午後４時５５分

97
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (d isplay/information) button to see the message
again with the system message indicator on.
MessageConditionExplanation
●Appears if any door or the tailgate is not completely
closed.
●Appears if any door or the tailgate is opened while
driving. The beeper sounds.
●Goes off when all doors and the tailgate are closed.
●Appears if there is a problem with the shutter grille,
and the radiator coolant temperature is too high.●Power output will be reduced, so you may not be able to
accelerate or maintain your current speed. Have your
vehicle checked by a dealer.
●Appears when the washer fluid gets low.●Refill the washer fluid.
2 Refilling Window Washer Fluid P. 580
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 565
•Appears while you are customizing the settings and
the transmission is in other than
(P.
2 Customized Features P. 121
Canadian models
Models with color audio system
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 97 ページ ２０１９年１０月３日　木曜日　午後４時５５分

98
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
MessageConditionExplanation
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 627
●Appears when you turn the ignition switch to ON
(w*1 without fastening the driver's seat belt.
●Fasten the seat belt properly before you start to drive.
●Appears when there is a pr oblem with the sensor on
the battery.●Have your vehicle checked by a dealer.
2 Checking the Battery P. 599
●Appears if the automatic br ake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
●Appears when the automa tic brake hold system is
turned off.
2 Automatic Brake Hold P. 532
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 532
●Appears when the automa tic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.●Press the automatic brake ho ld button with the brake
pedal depressed.
2 Automatic Brake Hold P. 532
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 98 ページ ２０１９年１０月３日　木曜日　午後４時５５分
