TPMS HONDA CR-V 2020 (in English) Owner's Guide

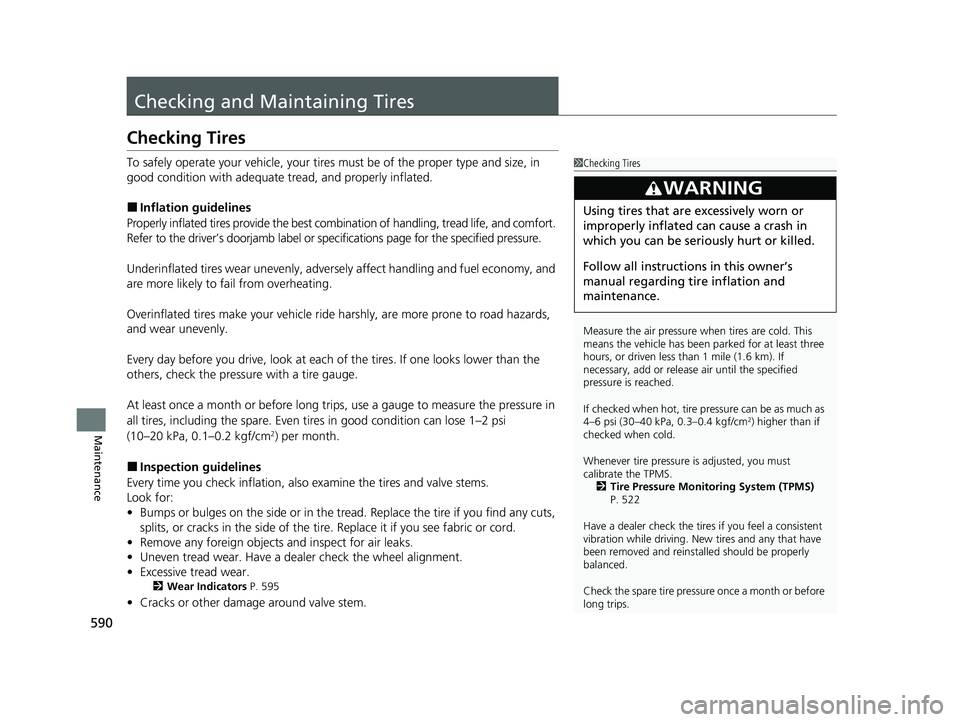

590
Maintenance
Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provide the best combination of handling, tread life, and comfort.
Refer to the driver’s doorjamb label or spec ifications page for the specified pressure.
Underinflated tires wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips, use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1–2 psi
(10–20 kPa, 0.1–0.2 kgf/cm
2) per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the si de of the tire. Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 595
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm
2) higher than if
checked when cold.
Whenever tire pressure is adjusted, you must
calibrate the TPMS. 2 Tire Pressure Monitoring System (TPMS)
P. 522
Have a dealer check the tires if you feel a consistent
vibration while driving. Ne w tires and any that have
been removed and reinst alled should be properly
balanced.
Check the spare tire pressu re once a month or before
long trips.
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding ti re inflation and
maintenance.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 590 ページ ２０１９年１０月３日　木曜日　午後４時５５分

597
uuChecking and Maintaining Tires uTire Rotation
Maintenance
Tire Rotation
Rotating tires according to the maintena nce messages on the driver information
interface helps to distribute wear more evenly and increase tire life.
■Tires without rotation marks
Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 Tire Pressure Monitoring System (TPMS)
P. 522
Front
Direction MarkFront
Front
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 597 ページ ２０１９年１０月３日　木曜日　午後４時５５分

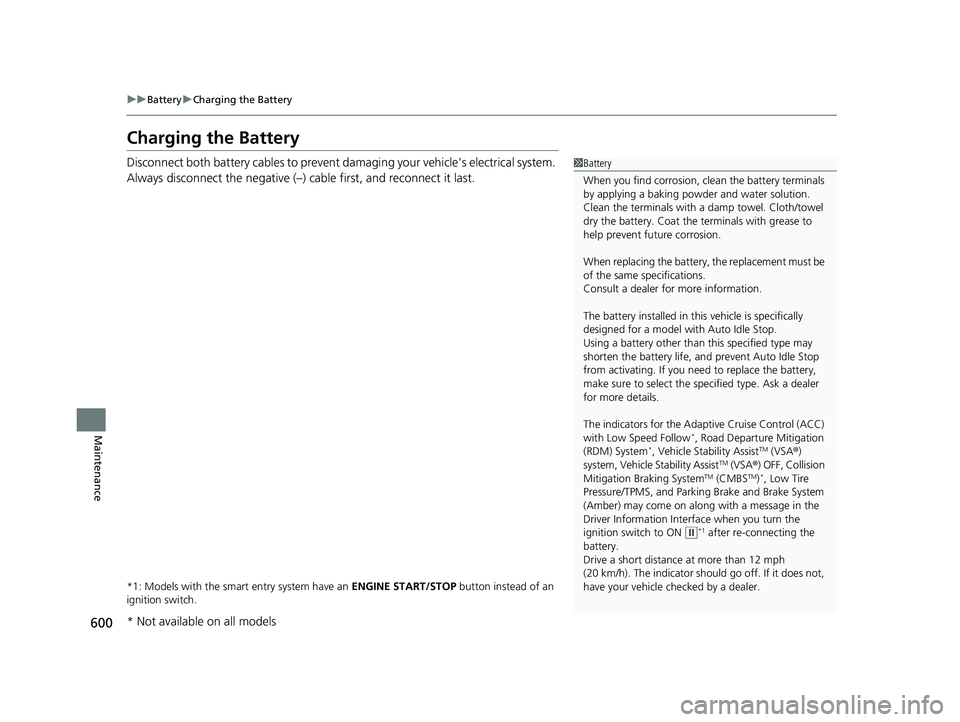

600
uuBattery uCharging the Battery
Maintenance
Charging the Battery
Disconnect both battery cables to prevent da maging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Battery
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
The battery installed in this vehicle is specifically
designed for a model wi th Auto Idle Stop.
Using a battery other than this specified type may
shorten the battery life, a nd prevent Auto Idle Stop
from activating. If you need to replace the battery,
make sure to select the specified type. Ask a dealer
for more details.
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow
*, Road Departure Mitigation
(RDM) System*, Vehicle Stability AssistTM (VSA ®)
system, Vehicle Stability AssistTM (VSA ®) OFF, Collision
Mitigation Braking SystemTM (CMBSTM)*, Low Tire
Pressure/TPMS, and Parking Brake and Brake System
(Amber) may come on along with a message in the
Driver Information Interface when you turn the
ignition switch to ON
( w*1 after re-connecting the
battery.
Drive a short distance at more than 12 mph
(20 km/h). The indicator shoul d go off. If it does not,
have your vehicle ch ecked by a dealer.
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 600 ページ ２０１９年１０月３日　木曜日　午後４時５５分

611
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 612
If a Tire Goes Flat Changing a Flat Tire ......................... 613
Engine Does Not Start Checking the Engine ........................ 620
If the Smart Entry Remote Battery is Weak .......................................... 621
Emergency Engine Stop ................... 622
Jump Starting .................................... 623
Shift Lever Does Not Move .............. 626
Overheating How to Handle Overheating ............. 627 Indicator, Coming On/Blinking
If the Low Oil Pressu
re Indicator Comes
On................................................ 629
If the Charging System Indicator Comes
On ................................................. 629
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 630
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 631
If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On ..... 632
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 633
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 634
Fuses Fuse Locations ................................. 635
Inspecting and Changing Fuses ........ 639
Emergency Towing ........................... 640
When You Cannot Open the Tailgate.. 641Refueling................................................. 642
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 611 ページ ２０１９年１０月３日　木曜日　午後４時５５分

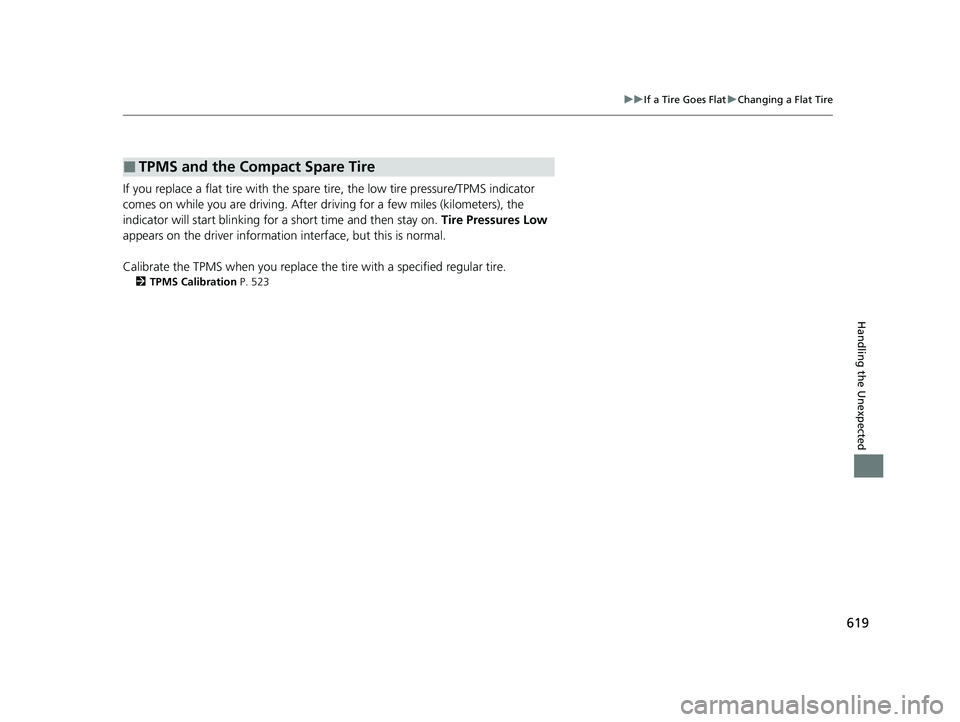

619
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After dr iving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressures Low
appears on the driver information interface, but this is normal.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 523
■TPMS and the Compact Spare Tire
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 619 ページ ２０１９年１０月３日　木曜日　午後４時５５分

625
uuJump Starting u
Handling the Unexpected
Once your vehicle's engine has started, re move the jumper cables in the following
order:
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■What to Do After the Engine Starts1 What to Do After the Engine Starts
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Road Departure Mitigation
(RDM), Vehicle Stability Assist
TM (VSA ®) system,
Vehicle Stability AssistTM (VSA ®) OFF, Collision
Mitigation Braking SystemTM (CMBSTM), low tire
pressure/TPMS, and Parking Brake and Brake System
(Amber) may come on along with a message in the
Driver Information Interface when you turn the
ignition switch to ON
( w*1 after reconnecting the
battery.
Drive a short distance at more than 12 mph (20 km/
h). The indicator should go of f. If it does not, have
your vehicle checked by a dealer.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 625 ページ ２０１９年１０月３日　木曜日　午後４時５５分

634
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is signifi cantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire is installed,
the indicator blinks for about one minute, and then stays on.
■What to do when the indicator comes on
Drive carefully avoiding abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 523
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator will go off after dr iving for a few miles (kilometers).
u Calibrate the TPMS after a full-size tire is reinstalled.
2 TPMS Calibration P. 523
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 634 ページ ２０１９年１０月３日　木曜日　午後４時５５分

661
Index
High Beam Indicator.................................. 87
Hill Start Assist System ..................... 466, 471
HomeLink ® Universal Transceiver ........... 387
Honda App License Agreement .............. 338
Honda Sensing ®........................................ 26
HondaLink ®............................................ 316
I
Identification Numbers ............................ 646
Engine and Transmission ......................... 646
Vehicle Identification............................... 646
Ignition Switch ......................................... 170
Illumination Control ................................ 189
Knob ...................................................... 189
Immobilizer System .................................. 160
Immobilizer System Indicator..................... 88
Indicators .................................................... 78
Adaptive Cruise Control (ACC) with Low Speed Follow ............................ 92, 93, 485
Anti-lock Brake System (ABS) .................... 83
Auto Idle Stop (Amber) ............................. 90
Auto Idle Stop (Green) .............................. 89
Automatic Brake Hold ....................... 80, 532
Blind spot information ...................... 89, 517
Charging System............................... 81, 629
Collision Mitigati on Braking System
TM
(CMBSTM) .................................... 94, 95, 96
ECON Mode ..................................... 89, 482
Electric Power Steering (EPS)
System ............................................ 85, 633 Fog Light ................................................... 87
High Beam ................................................ 87
Immobilizer System .................................... 88
Lane Keeping Assist System (LKAS) ...... 93, 94
Lights On ................................................... 87
Low Fuel .................................................... 83
Low Oil Pressure ................................ 81, 629
Low Tire Pressure/TPMS ............... 85, 86, 526
Maintenance Minder ............................... 563
Malfunction Indicator Lamp ............... 81, 630
Parking Brake and Brake System
(Amber) ............................................. 79, 80
Parking Brake and Brake System (Red)........................................ 78, 631, 632
Road Departure Mitigation (RDM) .. 90, 91, 92
Seat Belt Reminder .............................. 41, 82
Security System Alarm ............................... 88
Shift Lever Position .................................... 82
Supplemental Restraint System ............ 59, 83
System Message ........................................ 86
Transmission .............................................. 82
Turn Signal ................................................ 87
Vehicle Stability Assist
TM (VSA ®)
System............................................. 84, 513
VSA ® OFF .......................................... 84, 514
Information ............................................... 643
Instant Fuel Economy ............................... 119
Instrument Panel ........................................ 77
Brightness Control ................................... 189
Interior Lights ........................................... 208
Interior Rearview Mirror .......................... 196iPod
................................................... 249, 301
J
Jack (Wheel Nut Wrench) ........................ 616
Jump Starting ........................................... 623
K
Key Number Tag ....................................... 136
Keyless Lockout Prevention ..................... 145
Keys ........................................................... 135
Lockout Prevention.................................. 145
Master Keys ............................................ 135
Number Tag ............................................ 136
Rear Door Won’t Open............................ 147
Remote Transmitter ................................. 142
Types and Functions ................................ 135
Valet Key................................................. 136
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 473
L
Lane Keeping Assist System (LKAS) ......... 505
LaneWatchTM............................................ 519
LATCH (Child Seats) .............................. 67, 71
Lights ................................................. 176, 581
Auto High-Beam ..................................... 181
Automatic ............................................... 177
Bulb Replacement ................................... 581
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 661 ページ ２０１９年１０月３日　木曜日　午後４時５５分

664
Index
Speedometer............................................. 112
SRS Airbags (Airbags) ................................. 51
Starting Assist Brake Function ................. 481
Starting the Engine .......................... 465, 467
Does Not Start ......................................... 620
Engine Switch Buzzer....................... 170, 173
Jump Starting .......................................... 623
Steering Wheel ......................................... 195
Adjusting ................................................. 195
Stopping .................................................... 546
Summer Tires ............................................ 598
Sunglasses Holder ..................................... 223
Supplemental Restraint System (SRS) ........ 51
Switches (Around the Steering
Wheel) ............................................. 4, 5, 170
System Message Indicator .......................... 86
T
Tachometer............................................... 112
Tailgate ..................................................... 149
Unable to Open ....................................... 641
Temperature Outside Temperature Display ................... 119
Temperature Sensor ................................. 119
Theft Protection ........................................ 236
Time (Setting) ........................................... 132
Tire Pressure Monitoring System (TPMS) ...................................................... 522
Indicator .............................................. 85, 86 Tires
........................................................... 590
Air Pressure ..................................... 591, 645
Checking and Maintaining ...................... 590
Inspection ............................................... 590
Labeling .................................................. 591
Puncture (Flat Tire) .................................. 613
Regulations ............................................. 593
Rotation .................................................. 597
Spare Tire ........................................ 613, 645
Summer .................................................. 598
Tire Chains .............................................. 598
Wear Indicators ....................................... 595
Winter..................................................... 598
Tonneau Cover ......................................... 227
Tools .......................................................... 612
Towing a Trailer ....................................... 457
Equipment and Accessories ..................... 458
Load Limits .............................................. 457
Towing Your Vehicle ................................ 462
Behind a Motorhome .............................. 462
Emergency .............................................. 640
TPMS (Tire Pressure Monitoring
System) .................................................... 522
Indicator.............................................. 85, 86
Transmission ............................................. 474
Continuously Variable ............................. 474
Fluid ........................................................ 578
Number................................................... 646
Shift Lever Position Indicator.............. 82, 475
TRIP Knob ................................................. 114
Trip Meter ................................................. 114 Troubleshooting
...................................... 611
Blown Fuse ..................................... 635, 636
Brake Pedal Vibrates ................................. 30
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 640
Engine Won’t Start ................................. 620
Noise When Braking ................................. 31
Overheating ............................................ 627
Puncture/Flat Tire .................................... 613
Rear Door Won’t Open ..................... 30, 147
Select Lever Won’t Move ........................ 626
Warning Indicators.................................... 78
Turbo Engine Vehicle .............................. 558
Turn Signals .............................................. 175
Indicators (Instru ment Panel) ..................... 87
U
Under-floor Storage Area ....................... 214
Unlocking the Doors ................................ 138
Unlocking the Fron t Doors from the
Inside ......................................................... 15
USB Flash Drives ....................... 254, 310, 337
USB Port(s) ................................................ 235
V
Valet Key.................................................. 136
Vanity Mirrors .............................................. 7
Vehicle Identification Number ................ 646
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 664 ページ ２０１９年１０月３日　木曜日　午後４時５５分
