uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle's
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 455
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock al l doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 146
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 198
2 Adjusting the Front Head Restraints P. 204
•Adjust the mirrors and steering wh eel properly for your driving.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Steering Wheel P. 195
2 Adjusting the Mirrors P. 196

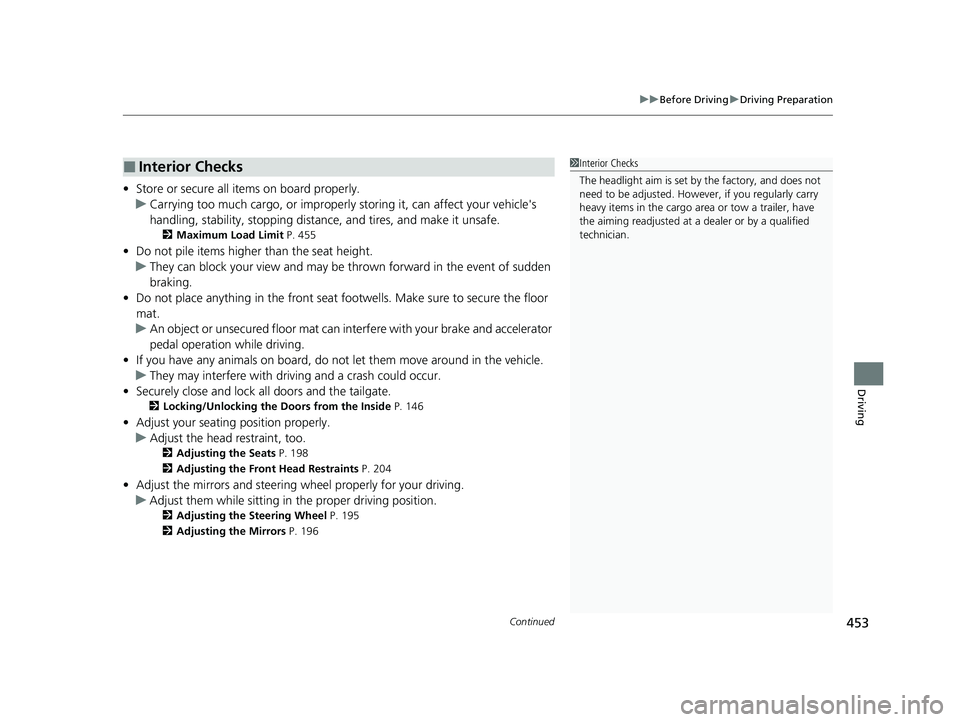

■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 453 ページ ２０１９年１０月３日　木曜日　午後４時５５分

Continued469
uuWhen Driving uStarting the Engine
Driving
You can remotely start the engine using the button on the smart entry remote.
■To start the engine
When started remotely, the engine automati cally shuts off after 10 minutes of idling
and/or the brake pedal and ENGINE START/STOP button have not been pressed
simultaneously.
To extend the run time for another 10 mi nutes during the first run, press the
button, then press an d hold the button.
u Some exterior lights flash six times if a 10-minute extension request was
transmitted successfully.
■Remote Engine Start with Vehicle Feedback*1 Remote Engine Start with Vehicle Feedback*
The remote engine start may violate local laws.
Before using the remote e ngine start, check your
local laws.
If there are buildings an d obstacles between your
vehicle and the remote, th e range will be reduced.
The range may be less when the vehicle is running.
This distance may vary by external electrical
interference.
The engine may not start by the remote engine start
if:
•You have disabled a remo te engine start setting
using the audio/information screen*.•The power mode is not in VEHICLE OFF (LOCK).
•The gear is in a position other than ( P.
•The hood is open, or any door or the tailgate is
unlocked.
3WARNING
Carbon monoxide ga s is toxic and can
rapidly accumulate in closed or even partly
enclosed areas.
Breathing it can cause unconsciousness and
even kill you.
Never use the remote engine starter with
the vehicle parked in a garage or other
areas with limited ventilation.
Press the button, th en press and hold
the button.
Some exterior lights flash once.
Go within the range,
and try again.
LED: Blinks when any button is pressed.
Some exterior lights flash six
times if the engine runs
successfully. Some exterior lights will not
flash if the engine runs
unsuccessfully.
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 469 ページ ２０１９年１０月３日　木曜日　午後４時５５分

552
Driving
Multi-View Rear Camera
About Your Multi-View Rear Camera
The audio/information screen can display your vehicle’s rear view.
The display automatically changes to a rear view when the shift lever is moved to
(R.
■Multi-View Rear Camera Display Area
1About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
You can change the Camera Guideline On or Off
settings. 2 Customized Features P. 353
You can change the Fixed Guideline and Dynamic
Guideline settings.
2 Customized Features P. 360
Fixed Guideline
On: Guidelines appear when you shift into
(R.
Off: Guidelines do not appear.
Dynamic Guideline
On: Guidelines move accordi ng to the steering wheel
direction.
Off: Guidelines do not move.
Models with color audio system
Models with Display AudioGuidelines Bumper Wide View Mode
Normal View Mode
Top Down View Mode
Approx.
39 inches (1 m)
Approx.
20 inches (50 cm)
Tailgate Open
Range
Camera
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 552 ページ ２０１９年１０月３日　木曜日　午後４時５５分

611
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 612
If a Tire Goes Flat Changing a Flat Tire ......................... 613
Engine Does Not Start Checking the Engine ........................ 620
If the Smart Entry Remote Battery is Weak .......................................... 621
Emergency Engine Stop ................... 622
Jump Starting .................................... 623
Shift Lever Does Not Move .............. 626
Overheating How to Handle Overheating ............. 627 Indicator, Coming On/Blinking
If the Low Oil Pressu
re Indicator Comes
On................................................ 629
If the Charging System Indicator Comes
On ................................................. 629
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 630
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 631
If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On ..... 632
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 633
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 634
Fuses Fuse Locations ................................. 635
Inspecting and Changing Fuses ........ 639
Emergency Towing ........................... 640
When You Cannot Open the Tailgate.. 641Refueling................................................. 642
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 611 ページ ２０１９年１０月３日　木曜日　午後４時５５分

637
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Accessory10 A
2Key Lock5 A
3Option 310 A
4Option 2*15 A
Transmission*2(10 A)
5Option10 A
6SRS Indicator10 A
7Meter10 A
8Fuel Pump15 A
9A/C10 A
10Accessory Power Socket
(Center Console)(20 A)
11Engine Control5 A
12Passenger's Side Door Lock10 A
13Driver's Side Door Unlock10 A
14Rear Driver's Side Power Window20 A
15Front Passenger's Side Power Window20 A
16Door Lock20 A
17Transmission*1
Option 2*2(10 A)
5 A
Circuit ProtectedAmps
18Front Driver's Lumber support*(10 A)
19Moonroof*(20 A)
20Starter10 A
21ACG10 A
22Daytime Running Light10 A
23Steering Wheel Heater* (10 A)
24Option5 A
25Driver's Door Lock(10 A)
26Passenger's Side Door Unlock10 A
27Rear Passenger's Side
Power Window20 A
28Driver's Power Window20 A
29Front Accessory Power Socket20 A
30Smart Entry*1
STS*210 A5 A
31Driver's Power Seat
Reclining*(20 A)
32Front Seat Heater*(20 A)
33Driver's Power Seat Sliding*(20 A)
34ABS/VSA10 A
35SRS10 A
36HAC Option*20 A
37Trailer15 A
38Driver's Side Door Lock10 A
*1:Models with smart entry system
*2:Models without smart entry system
39Driver's Door Unlock(10 A)
aPower Tailgate Closer*(20 A)
bPassenger's Power Seat Sliding*(20 A)
cPassenger's Power Seat Reclining*(20 A)
dPanorama Shade Motor(20 A)
eAudio Amp(20 A)
fEPT L(20 A)
gEPT R(20 A)
hAccessory Power Socket (Cargo Area)(20 A)
Circuit ProtectedAmps
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 637 ページ ２０１９年１０月３日　木曜日　午後４時５５分

641
Handling the Unexpected

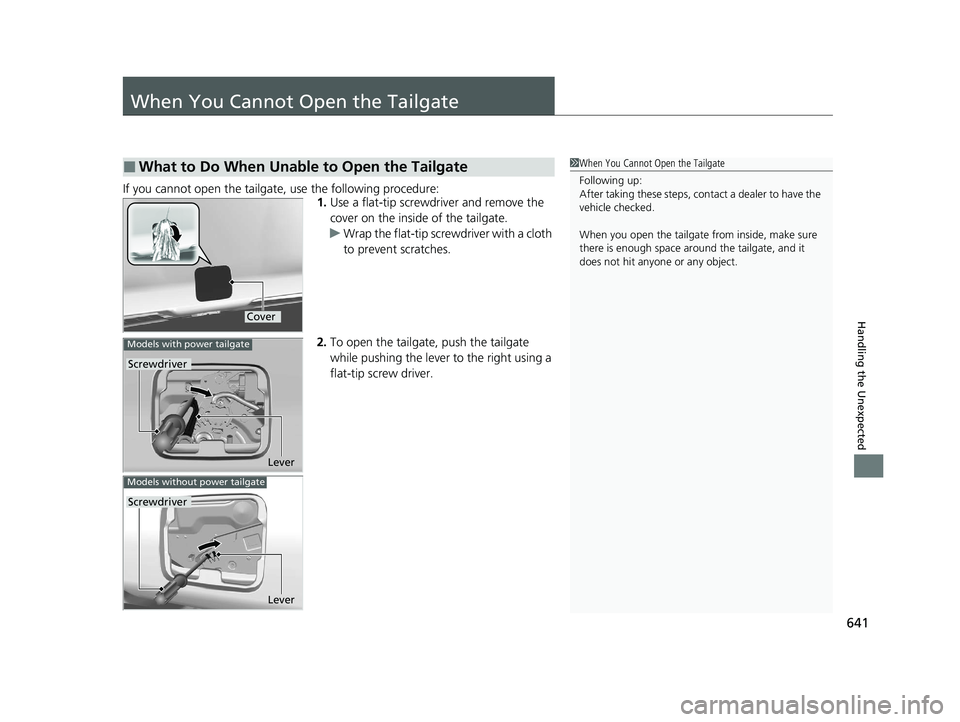

When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure:1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while pushing the lever to the right using a
flat-tip screw driver.
■What to Do When Unable to Open the Tailgate1When You Cannot Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
Screwdriver
Models without power tailgate
Lever
Screwdriver
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 641 ページ ２０１９年１０月３日　木曜日　午後４時５５分

662
Index
Daytime Running Lights ........................... 185
Fog Lights ................................................ 180
High Beam Indicator .................................. 87
Interior .................................................... 208
Light Switches ......................................... 176
Lights On Indicator .................................... 87
Turn Signals ............................................. 175
Load Limits ................................................ 455
Locking/Unlocking .................................... 135
Auto Door Locking/Unlocking .................. 148
Childproof Door Locks ............................. 147
From Inside .............................................. 146
From Outside ........................................... 138
Keys ........................................................ 135
Using a Key ............................................. 144
Lockout Prevention System ...................... 145
Low Battery Charge .................................. 629
Low Fuel Indicator ...................................... 83
Low Oil Pressure Indicator ................. 81, 629
Low Smart Entry Remote Signal Strength ................................................... 137
Lower Anchors ...................................... 67, 71
Luggage (Maximum Load Limit) .............. 455
Lumbar Support ........................................ 199
Lumbar Support Adjustment Switch ....... 199
M
Maintenance............................................. 559
Adding the Coolant ................................. 577
Battery..................................................... 599 Brake Fluid .............................................. 579
Cleaning ................................................. 604
Coolant ................................................... 576
Maintenance Minder
TM............................ 563
Oil ........................................................... 572
Precautions ............................................. 560
Remote Transmitter ................................. 601
Replacing Light Bulbs .............................. 581
Safety...................................................... 561
Service Items ........................................... 566
Tires ........................................................ 590
Transmission Fluid ................................... 578
Under the Hood ...................................... 569
Malfunction Indicator Lamp .............. 81, 630
Map Lights ................................................ 210
Maximum Load Limit ............................... 455
Meters, Gauges ......................................... 112
Mirrors ...................................................... 196
Adjusting ................................................ 196
Door ....................................................... 197
Exterior ................................................... 197
Interior Rearview ..................................... 196
Modifications (and Accessories) .............. 609
Moonroof ................................................. 166
MP3 ................................................... 254, 310
Multi-View Rear Camera .......................... 552
N
Numbers (Identification).......................... 646
O
Odometer................................................. 114
Off-Highway Driving Guidelines ............. 463
Oil (Engine) .............................................. 571
Adding ................................................... 573
Checking ................................................ 572
Displaying Oil Life ................................... 564
Low Oil Pressure Indicator ................. 81, 629
Recommended Engine Oil ....................... 571
Viscosity.................................................. 571
Open Source Licenses .............................. 352
Opening/Closing Hood ...................................................... 570
Moonroof ............................................... 166
Power Windows...................................... 163
Tailgate................................................... 149
Outside Temperature Display ................. 119
Overheating ............................................. 627
P
Pandora®......................................... 252, 308
Panic Mode ............................................... 162
Panoramic Roof ........................................ 167
Parking ..................................................... 546
Parking Brake ........................................... 528
Parking Brake and Brake System
Indicator (Amber) ............................... 79, 80
Parking Brake and Brake System Indicator (Red) .......................... 78, 631, 632
Passenger Airbag Off Indicator ................. 60
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 662 ページ ２０１９年１０月３日　木曜日　午後４時５５分

663
Index
Passing Indicators..................................... 176
Playing Bluetooth ® Audio ............... 257, 313
Power Tailgate ......................................... 151
Power Windows ....................................... 163
Precautions While Driving ....................... 472
Driving Guidelines for Your Utility Vehicle .................................................. 472
Rain ........................................................ 472
Pregnant Women ....................................... 46
Puncture (Tire) ......................................... 613
R
Radio (FM/AM)................................. 247, 290
Radio (SiriusXM ®)..................................... 294
Radio Data System (RDS) ................. 248, 293
Range ........................................................ 115
RDS (Radio Data System) ................. 248, 293
Readiness Codes (Emissions Testing) ...... 649
Real Time AWD with Intelligent Control System
TM.................................................. 521
Rear Seat Heaters ..................................... 226
Rear Seats (Folding Down) ...................... 202
Rearview Mirror ....................................... 196
Refueling .................................................. 554
Fuel Gauge ............................................. 112
Gasoline ......................................... 554, 644
Low Fuel Indicator..................................... 83
Regulations .............................. 526, 593, 647
Remote Transmitter ................................. 142 Replacement
Battery .................................................... 601
Bulbs ....................................................... 581
Fuses ............................................... 635, 636
Rear Wiper Blade Rubber ......................... 588
Tires ........................................................ 596
Wiper Blade Rubber ................................. 586
Reporting Safety Defects ......................... 648
Resetting a Trip Meter ............................. 115
Road Departure Mitigation (RDM) .......... 501
On and Off .............................................. 503
S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 76
Safety Message ............................................. 1
Seat Belts ..................................................... 39
Adjusting the Shoulder Anchor .................. 44
Automatic Seat Belt Tensioners .................. 42
Checking ................................................... 47
Detachable Anchor .................................... 45
Fastening ................................................... 43
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 70
Pregnant Women ...................................... 46
Reminder ................................................... 41
Warning Indicator ................................ 41, 82
Seat Heaters ...................................... 225, 226 Seats
.......................................................... 198
Adjusting ................................................ 198
Driver’s Seat Lumbar Support .................. 198
Front Seat Heaters ................................... 225
Front Seats .............................................. 198
Rear Seats ............................................... 202
Seat Heaters .................................... 225, 226
Security System ......................................... 160
Security System Alarm Indicator................. 88
Select Lever ......................................... 23, 474
Operation.......................................... 23, 475
Releasing................................................. 626
Won’t Move ............................................ 626
Selecting a Child Seat ................................. 66
Selector Knob (Audio) .............................. 240
Setting the Clock ...................................... 132
Shift Lever ........................................... 23, 474
Shift Lever Position Indicator ............ 82, 475
Shifting (Transmission) ............................. 474
Shoulder Anchor ........................................ 44
Side Airbags ................................................ 55
Side Curtain Airbags .................................. 57
Siri ® Eyes Free ................................... 260, 323
SiriusXM ® Radio ........................................ 294
Smart Entry System .................................. 138
Snow Tires ................................................. 598
Song By Voice
TM (SBV) .............................. 304
Spare Tire .......................................... 613, 645
Spark Plugs ............................................... 644
Specifications ............................................ 644
Specified Fuel ................................... 554, 644
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 663 ページ ２０１９年１０月３日　木曜日　午後４時５５分

664
Index
Speedometer............................................. 112
SRS Airbags (Airbags) ................................. 51
Starting Assist Brake Function ................. 481
Starting the Engine .......................... 465, 467
Does Not Start ......................................... 620
Engine Switch Buzzer....................... 170, 173
Jump Starting .......................................... 623
Steering Wheel ......................................... 195
Adjusting ................................................. 195
Stopping .................................................... 546
Summer Tires ............................................ 598
Sunglasses Holder ..................................... 223
Supplemental Restraint System (SRS) ........ 51
Switches (Around the Steering
Wheel) ............................................. 4, 5, 170
System Message Indicator .......................... 86
T
Tachometer............................................... 112
Tailgate ..................................................... 149
Unable to Open ....................................... 641
Temperature Outside Temperature Display ................... 119
Temperature Sensor ................................. 119
Theft Protection ........................................ 236
Time (Setting) ........................................... 132
Tire Pressure Monitoring System (TPMS) ...................................................... 522
Indicator .............................................. 85, 86 Tires
........................................................... 590
Air Pressure ..................................... 591, 645
Checking and Maintaining ...................... 590
Inspection ............................................... 590
Labeling .................................................. 591
Puncture (Flat Tire) .................................. 613
Regulations ............................................. 593
Rotation .................................................. 597
Spare Tire ........................................ 613, 645
Summer .................................................. 598
Tire Chains .............................................. 598
Wear Indicators ....................................... 595
Winter..................................................... 598
Tonneau Cover ......................................... 227
Tools .......................................................... 612
Towing a Trailer ....................................... 457
Equipment and Accessories ..................... 458
Load Limits .............................................. 457
Towing Your Vehicle ................................ 462
Behind a Motorhome .............................. 462
Emergency .............................................. 640
TPMS (Tire Pressure Monitoring
System) .................................................... 522
Indicator.............................................. 85, 86
Transmission ............................................. 474
Continuously Variable ............................. 474
Fluid ........................................................ 578
Number................................................... 646
Shift Lever Position Indicator.............. 82, 475
TRIP Knob ................................................. 114
Trip Meter ................................................. 114 Troubleshooting
...................................... 611
Blown Fuse ..................................... 635, 636
Brake Pedal Vibrates ................................. 30
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 640
Engine Won’t Start ................................. 620
Noise When Braking ................................. 31
Overheating ............................................ 627
Puncture/Flat Tire .................................... 613
Rear Door Won’t Open ..................... 30, 147
Select Lever Won’t Move ........................ 626
Warning Indicators.................................... 78
Turbo Engine Vehicle .............................. 558
Turn Signals .............................................. 175
Indicators (Instru ment Panel) ..................... 87
U
Under-floor Storage Area ....................... 214
Unlocking the Doors ................................ 138
Unlocking the Fron t Doors from the
Inside ......................................................... 15
USB Flash Drives ....................... 254, 310, 337
USB Port(s) ................................................ 235
V
Valet Key.................................................. 136
Vanity Mirrors .............................................. 7
Vehicle Identification Number ................ 646
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 664 ページ ２０１９年１０月３日　木曜日　午後４時５５分
