HONDA CR-V 2020 Owner's Manual (in English)

649Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle's emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, tu rn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 649 ページ ２０１９年１０月３日　木曜日　午後４時５５分

650
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 650 ページ ２０１９年１０月３日　木曜日　午後４時５５分

651Continued
Information

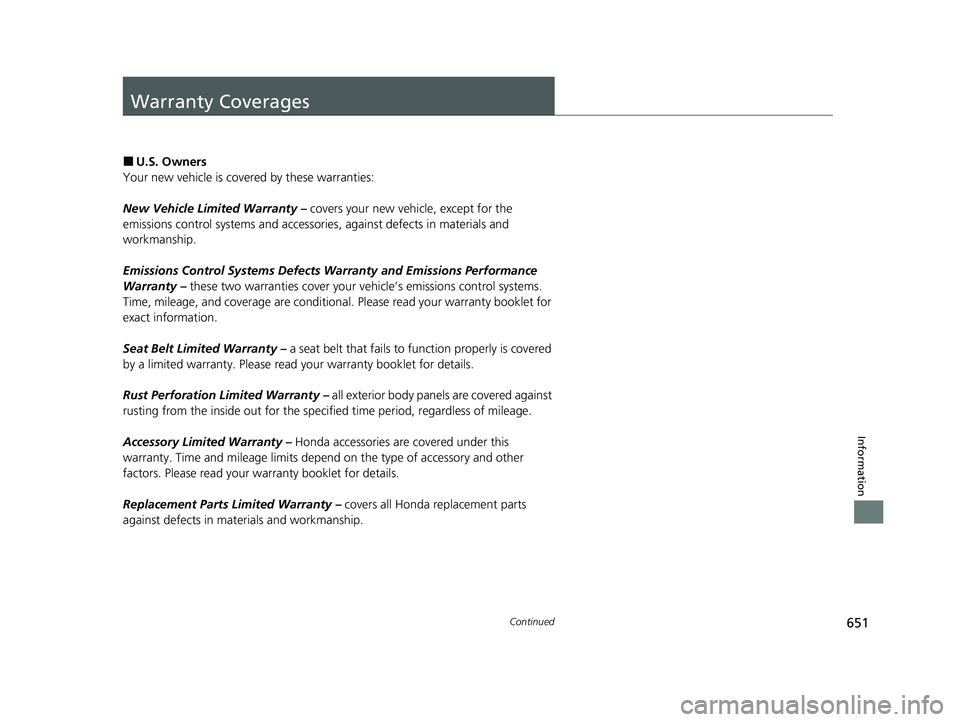

Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in mate rials and workmanship.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 651 ページ ２０１９年１０月３日　木曜日　午後４時５５分

652
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from your dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came wi th your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the em ission warranties by contacting:
Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
[email protected]
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 652 ページ ２０１９年１０月３日　木曜日　午後４時５５分

653
Information

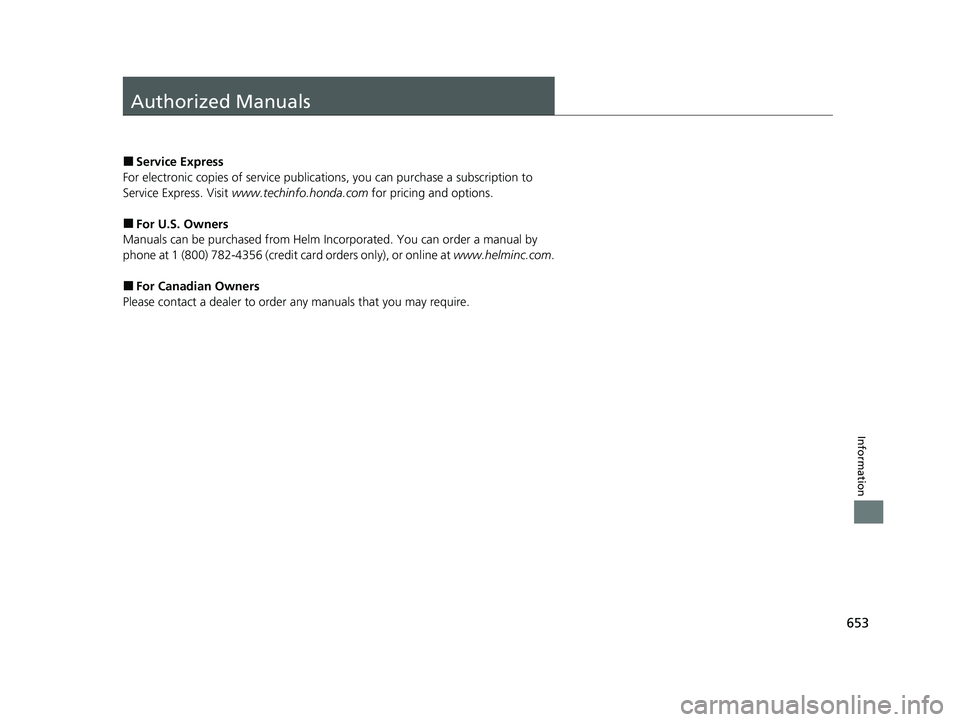

Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit ca rd orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 653 ページ ２０１９年１０月３日　木曜日　午後４時５５分

654
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Honda Client
Relations/Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 646
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 654 ページ ２０１９年１０月３日　木曜日　午後４時５５分

655
uuCustomer Service Information u
Information

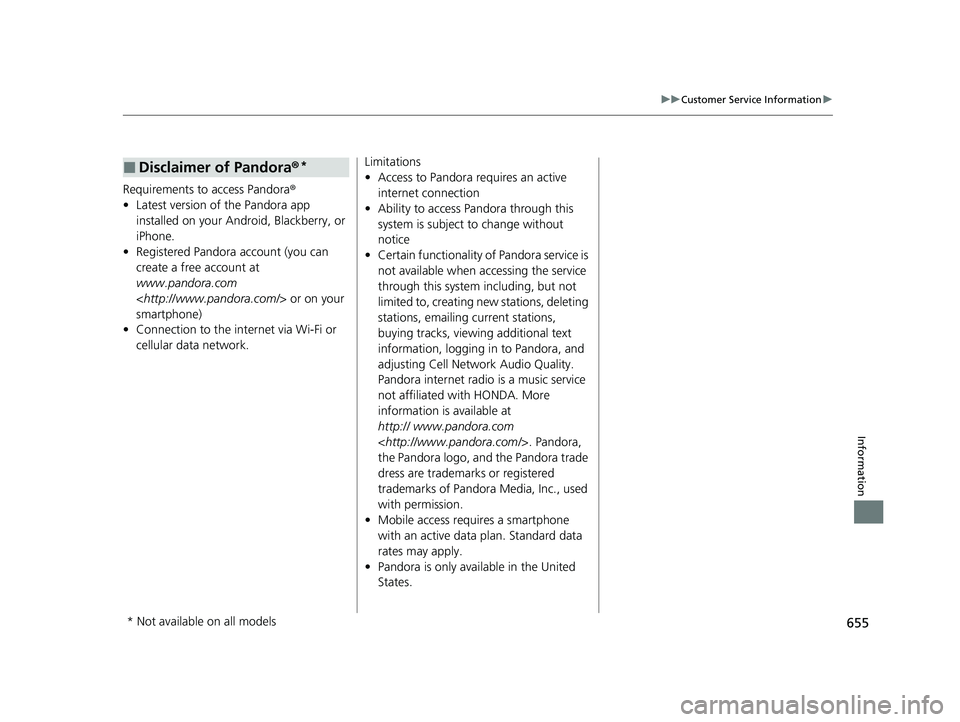

Requirements to access Pandora®
• Latest version of the Pandora app
installed on your Android, Blackberry, or
iPhone.
• Registered Pandora account (you can
create a free account at
www.pandora.com
or on your
smartphone)
• Connection to the in ternet via Wi-Fi or
cellular data network.
■Disclaimer of Pandora ®*Limitations
•Access to Pandora requires an active
internet connection
• Ability to access Pandora through this
system is subject to change without
notice
• Certain functionality of Pandora service is
not available when accessing the service
through this system including, but not
limited to, creating new stations, deleting
stations, emailing current stations,
buying tracks, viewing additional text
information, logging in to Pandora, and
adjusting Cell Network Audio Quality.
Pandora internet radio is a music service
not affiliated with HONDA. More
information is available at
http:// www.pandora.com
. Pandora,
the Pandora logo, and the Pandora trade
dress are trademarks or registered
trademarks of Pandora Media, Inc., used
with permission.
• Mobile access requires a smartphone
with an active data plan. Standard data
rates may apply.
• Pandora is only available in the United
States.
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 655 ページ ２０１９年１０月３日　木曜日　午後４時５５分

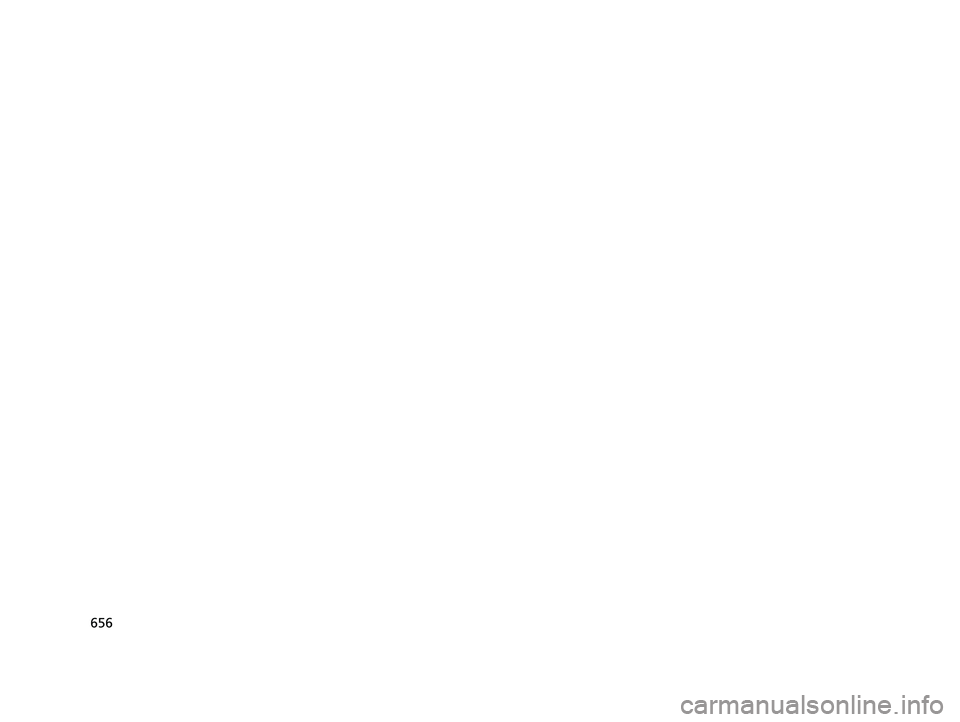

656
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 656 ページ ２０１９年１０月３日　木曜日　午後４時５５分

Index
657
Index
Index
Numbers
4WD.......................................................... 521
A
ABS (Anti-lock Brake System) .................. 534
Accessories and Modifications ................ 609
Accessory Power Sockets ......................... 217
Adaptive Cruise Control (ACC) with Low Speed Follow .......................................... 485
Adding the Coolant ................................. 577
Additives Coolant .................................................. 576
Engine Oil ............................................... 571
Washer ................................................... 580
Additives, Engine Oil ............................... 571
Adjusting Armrest .................................................. 207
Front Seats.............................................. 198
Head Restraints ....................................... 204
Mirrors.................................................... 196
Rear Seats ............................................... 202
Steering Wheel ....................................... 195
Temperature ........................................... 119
Adjusting the Sound ........................ 245, 283
Agile Handling Assist ............................... 515
Air Conditioning System (Climate
Control System) ...................................... 228
Changing the Mode................................ 229
Defrosting the Windshield and
Windows .............................................. 229 Dust and Pollen Filter ............................... 603
Recirculation/Fresh Air Mode ................... 229
Sensor ..................................................... 232
Synchronization Mode ............................. 231
Using Automatic Climate Control ............ 228
Air Pressure ....................................... 591, 645
Airbags ........................................................ 48
Advanced Airbags ..................................... 54
Airbag Care ............................................... 61
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 51
Indicator .............................................. 59, 83
Passenger Airbag Off Indicator .................. 60
Sensors ...................................................... 48
Side Airbags .............................................. 55
Side Curtain Airbags .................................. 57
All-Wheel Drive (AWD) ............................ 521
AM/FM Radio .................................... 247, 290
Android Auto
TM........................................ 327
Anti-lock Brake System (ABS) .................. 534
Indicator .................................................... 83
Apple CarPlay
TM........................................ 324
Armrest ..................................................... 207
Audio Remote Controls ............................ 237
Audio System ............................ 234, 240, 261
Adjusting the Sound ........................ 245, 283
AM/FM Radio .................................. 247, 290
Android Auto
TM....................................... 327
Apple CarPlayTM....................................... 324
Audio/Information Screen ................ 241, 262
Changing the Home Screen Icon Layout .. 266 Changing the Screen Interface ................ 280
Closing Apps ........................................... 282
Customizing the Meter............................ 267
Display Setup .................................. 246, 284
Error Messages ........................................ 331
General Information ................................ 336
Home Screen........................................... 273
HondaLink
®........................................... 316
How to use Siri ® Eyes Free .............. 260, 323
iPod ................................................ 249, 301
Limitations for Manual Operation ............ 285
Menu Customize ..................................... 281
MP3/WMA/AAC .............................. 254, 310
Pandora ®....................................... 252, 308
Playing Bluetooth ® Audio ................ 257, 313
Playing SiriusXM ® Radio .......................... 294
Reactivating ............................................ 236
Recommended Devices............................ 337
Remote Controls ..................................... 237
Security Code .......................................... 236
Selecting an Audio Source ....................... 285
Song By Voice
TM (SBV) ............................. 304
Status Area ............................................. 279
Theft Protection ...................................... 236
USB Flash Drives ...................... 254, 310, 337
USB Port(s) .............................................. 235
Voice Control Operation.......................... 286
Wallpaper Setup.............................. 243, 271
Wi-Fi Connection .................................... 321
Audio/Information Screen ............... 241, 262
Authorized Manuals ................................ 653
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 657 ページ ２０１９年１０月３日　木曜日　午後４時５５分

658
Index
Auto Door Locking/Unlocking................. 148
Customize ............................................... 127
Auto High-Beam ....................................... 181
Auto Idle Stop ........................................... 476
OFF Button .............................................. 477
Auto Idle Stop Indicator (Amber) .............. 90
Auto Idle Stop Indicator (Green) ............... 89
Automatic Brake Hold .............................. 532
Indicator ............................................ 80, 532
Automatic Intermittent Wipers ............... 187
Automatic Lighting .................................. 177
Average Fuel Economy ............................. 115
Average Speed .......................................... 115
AWD (All-Wheel Drive) ............................ 521
B
Battery....................................................... 599
Charging System Indicator ................. 81, 629
Jump Starting .......................................... 623
Maintenance (Checking the Battery) ........ 599
Maintenance (Replacing).......................... 601
Belts (Seat) .................................................. 39
Beverage Holders ...................................... 215
Blind spot information System ................ 516
Indicator .................................................... 89
Bluetooth ® Audio ............................. 257, 313
Bluetooth ® HandsFreeLink ®........... 390, 414
Booster Seats (For Children) ....................... 74
Brake System ............................................. 528
Anti-lock Brake System (ABS) ................... 534 Automatic Brake Hold ............................. 532
Brake Assist System ................................. 535
Fluid ........................................................ 579
Foot Brake............................................... 531
Indicator (Red) ........................... 78, 631, 632
Parking Brake .......................................... 528
Brightness Control (Instrument Panel) .... 189
Bulb Replacement .................................... 581
Brake/Taillight, Rear Turn Signal Light
and Rear Side Marker Lights .................. 583
Fog Lights ............................................... 583
Front Turn Signal/ Front Side Marker Lights .................................................... 583
Headlights ............................................... 581
High-Mount Brake Light .......................... 585
Parking/Daytime Running Lights .............. 583
Rear License Plate Light ........................... 585
Side Turn Signal/Emergency Indicator Lights .................................................... 583
Taillight and Back-Up Lights .................... 584
Bulb Specifications ................................... 644
C
Carbon Monoxide Gas ............................... 75
Cargo Hooks ............................................. 222
Carrying Cargo ................................. 453, 455
Certification Label .................................... 646
Changing Bulbs ........................................ 581
Charging System Indicator ................. 81, 629Child Safety
................................................ 62
Childproof Door Locks ............................ 147
Child Seat ................................................... 62
Booster Seats ............................................ 74
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/ Shoulder Seat Belt ................................... 70
Larger Children ......................................... 73
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Childproof Door Locks ............................. 147
Cleaning the Exterior ............................... 606
Cleaning the Interior ............................... 604
Climate Control System ........................... 228
Changing the Mode................................ 228
Defrosting the Windshield and
Windows .............................................. 229
Dust and Pollen Filter .............................. 603
Recirculation/Fresh Air Mode................... 229
Sensors ................................................... 232
Synchronization Mode ............................ 231
Using Automatic Climate Control............ 228
Clock ......................................................... 132
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 536
Coat Hook ................................................ 221
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 536
Compact Spare Tire .......................... 613, 645
Compass .................................................... 448
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 658 ページ ２０１９年１０月３日　木曜日　午後４時５５分
