Page 124 of 671

122
uuGauges and Displays uDriver Information Interface
Instrument Panel
■Customization flow
Press the button.
ENTERClock & Vehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
3
4
TPMS Calibration
ENTER
“Trip B” Reset Timing
Fuel Efficiency Backlight
3
4
ACC Forward Vehicle Detect Beep
3
4
Tachometer
ENTER
Forward Collision Warning Distance
3
4
3
4
Lane Keeping Assist Suspend Beep
Road Departure Mitigation Setting
Adjust Alarm Volume
Speed/Distance Units
3
4
ENTER
Driver Assist System Setup
Meter Setup
Driver Attention Monitor
Auto Engine Idle Stop Guidance Screens
ENTER
Adjust Clock
3
4Clock Setup
Clock Display
3
4
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 122 ページ 2019年10月3日 木曜日 午後4時55分
Page 127 of 671

125
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/Français /Español
Adjust Outside Temp.
DisplayAdjusts the temperature r eading by a few degrees.-5°F ~ ±0°F*1 ~ +5°F
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.When Fully Refueled/ IGN
OFF /Manually Reset*1
“Trip B” Reset Timing
Changes the setting of ho w to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.When Fully Refueled/ IGN
OFF /Manually Reset*1
Adjust Alarm VolumeChanges the alarm volu me, such as buzzers,
warnings, turn signal sound, and so on.High /Mid*1/Low
Fuel Efficiency BacklightTurns the ambient meter feature on and off.ON*1/OFF
Auto Engine Idle Stop
Guidance ScreensTurns the engine idle-stop guidance displayed in the
meter display on and off during the auto engine idle
stop system is in operation.
ON /OFF*1
Speed/Distance UnitsSelects the trip computer units.mph ∙miles*1/km/h ∙km
TachometerSelects whether the tachom eter is displayed on the
driver information interface.ON*1/ OFF
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 125 ページ 2019年10月3日 木曜日 午後4時55分
Page 130 of 671

128
uuGauges and Displays uDriver Information Interface
Instrument Panel
■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset .
1. Press the button to select Clock &
Vehicle Settings , then press the ENTER
button.
2. Press the / button until Meter Setup
appears on the display.
3. Press the ENTER button.
u Language Selection appears first in the
display.
34
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 128 ページ 2019年10月3日 木曜日 午後4時55分
Page 357 of 671

355
uuCustomized Features u
Continued
Features
Display ChangeAudio
Wallpaper
WallpaperSelect
Import
Delete
Color ThemeBlue
Red
Amber
Violet
Language
Clock Format12h
24h
License
Bluegreen
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 355 ページ 2019年10月3日 木曜日 午後4時55分
Page 360 of 671

358
uuCustomized Features u
Features
*1:Default Setting
Setup
GroupCustomizable FeaturesDescriptionSelectable Settings
Settings Display Change
Changes the display type. Audio
*1/Wallpaper
Wallpaper Select
Changes the wallpaper type. Clock*1/
Image 1/ Image 2/
Image 3
Import Imports an image file for a new wallpaper.
2
Wallpaper Setup P. 243—
Delete Deletes an image file for a wallpaper. Image 1/Image 2 /Image 3
Color Theme Changes the background color of the audio/
information screen. Blue
*1/
Red/ Amber /Violet/
Bluegreen
Language Changes the display language. English
*1/French /Spanish
Clock Format Selects the digital clock display from 12H to
24H. 12h
*1/
24h
License Shows the legal information. —
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 358 ページ 2019年10月3日 木曜日 午後4時55分

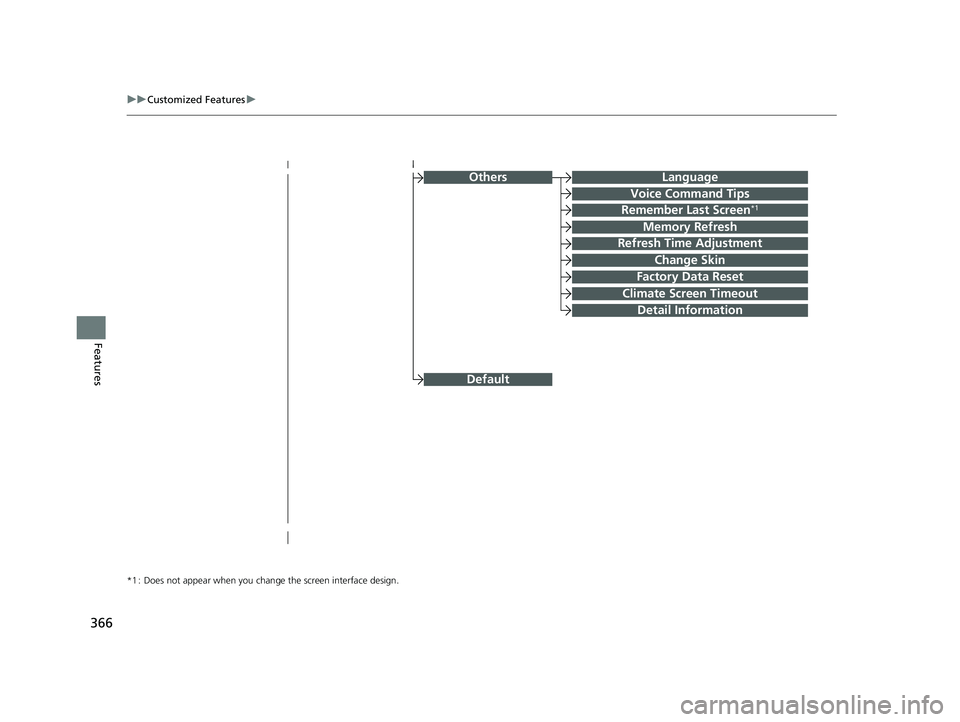

Page 368 of 671

366
uuCustomized Features u
Features
OthersLanguage
Voice Command Tips
Remember Last Screen*1
Memory Refresh
Refresh Time Adjustment
Change Skin
Factory Data Reset
Climate Screen Timeout
Detail Information
*1 : Does not appear when you chang e the screen interface design.
Default
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 366 ページ 2019年10月3日 木曜日 午後4時55分
Page 381 of 671

379
uuCustomized Features u
Continued
Features
*1:Default Setting
*2:Does not appear when you chan ge the screen interface design.
*3:Appears only when you change the screen interface design. Setup
Group Customizable Featur
es Description Selectable Settings
System
Clock
Clock/Wallpaper
Type*2/Clock
Type*3
Clock
See Info on P. 370
Wallpaper
Clock Adjustment
Auto Time Zone*
Manual Time Zone*
Auto Daylight Saving Time
Clock Format
Clock Display
Overlay Clock Location
Clock Reset
Others
LanguageChange the display language.
English (United
States)*1/Français /
Español
Voice Command Tips
Alerts you when manual co ntrol of the system is
disabled to prevent distraction while driving.
Only voice commands are available.
On*1/ Off
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 379 ページ 2019年10月3日 木曜日 午後4時55分
