spark plugs replace HONDA CR-V 2020 Owner's Manual (in English)

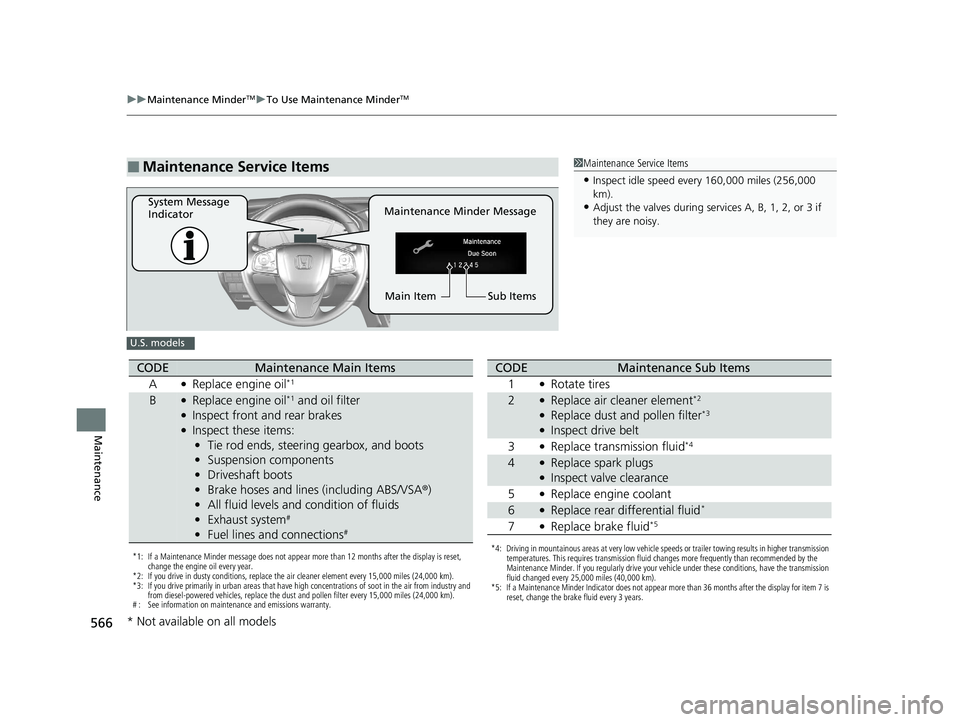

566
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission
temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed every 25,000 miles (40,000 km).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*
7●Replace brake fluid*5
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 566 ページ ２０１９年１０月３日　木曜日　午後４時５５分

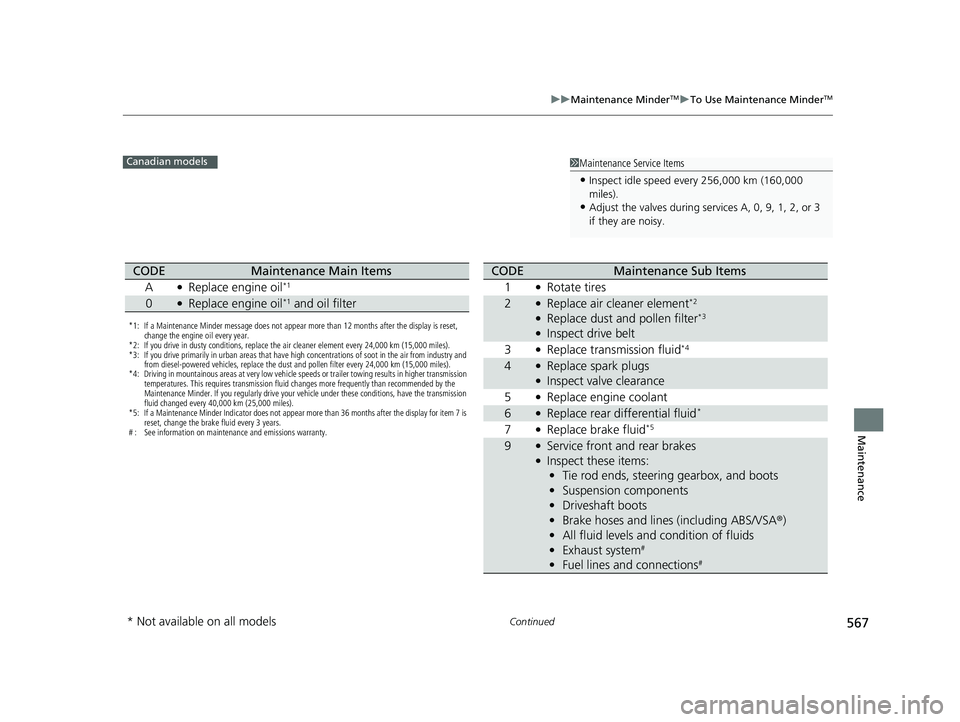

567
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
1Maintenance Service Items
•Inspect idle speed every 256,000 km (160,000
miles).
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission
temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed every 40,000 km (25,000 miles).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*
7●Replace brake fluid*5
9●Service front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 567 ページ ２０１９年１０月３日　木曜日　午後４時５５分

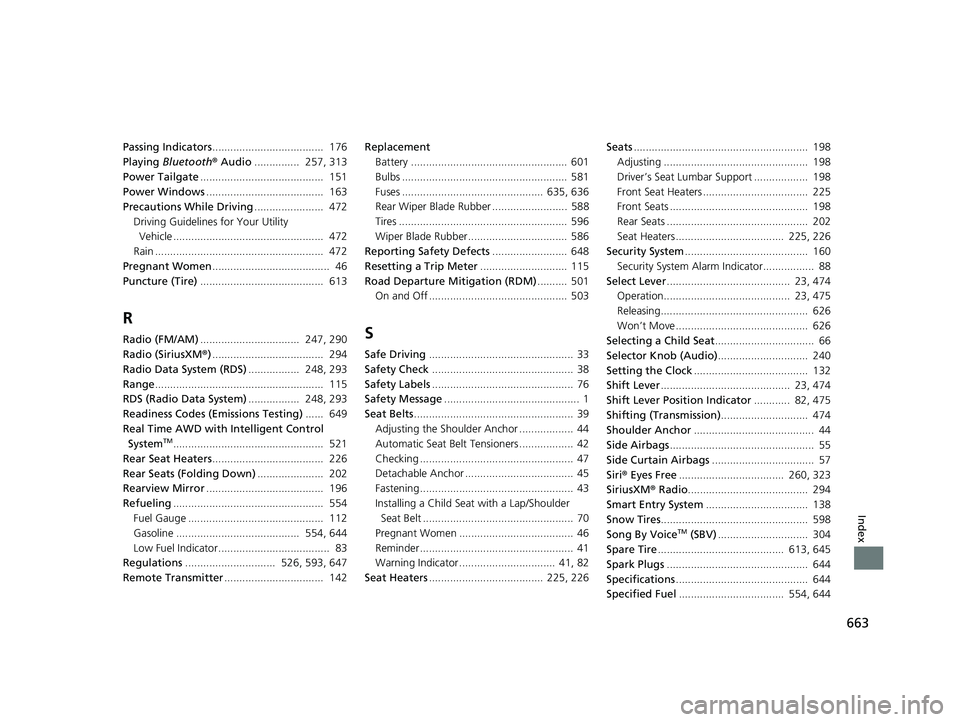

663
Index
Passing Indicators..................................... 176
Playing Bluetooth ® Audio ............... 257, 313
Power Tailgate ......................................... 151
Power Windows ....................................... 163
Precautions While Driving ....................... 472
Driving Guidelines for Your Utility Vehicle .................................................. 472
Rain ........................................................ 472
Pregnant Women ....................................... 46
Puncture (Tire) ......................................... 613
R
Radio (FM/AM)................................. 247, 290
Radio (SiriusXM ®)..................................... 294
Radio Data System (RDS) ................. 248, 293
Range ........................................................ 115
RDS (Radio Data System) ................. 248, 293
Readiness Codes (Emissions Testing) ...... 649
Real Time AWD with Intelligent Control System
TM.................................................. 521
Rear Seat Heaters ..................................... 226
Rear Seats (Folding Down) ...................... 202
Rearview Mirror ....................................... 196
Refueling .................................................. 554
Fuel Gauge ............................................. 112
Gasoline ......................................... 554, 644
Low Fuel Indicator..................................... 83
Regulations .............................. 526, 593, 647
Remote Transmitter ................................. 142 Replacement
Battery .................................................... 601
Bulbs ....................................................... 581
Fuses ............................................... 635, 636
Rear Wiper Blade Rubber ......................... 588
Tires ........................................................ 596
Wiper Blade Rubber ................................. 586
Reporting Safety Defects ......................... 648
Resetting a Trip Meter ............................. 115
Road Departure Mitigation (RDM) .......... 501
On and Off .............................................. 503
S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 76
Safety Message ............................................. 1
Seat Belts ..................................................... 39
Adjusting the Shoulder Anchor .................. 44
Automatic Seat Belt Tensioners .................. 42
Checking ................................................... 47
Detachable Anchor .................................... 45
Fastening ................................................... 43
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 70
Pregnant Women ...................................... 46
Reminder ................................................... 41
Warning Indicator ................................ 41, 82
Seat Heaters ...................................... 225, 226 Seats
.......................................................... 198
Adjusting ................................................ 198
Driver’s Seat Lumbar Support .................. 198
Front Seat Heaters ................................... 225
Front Seats .............................................. 198
Rear Seats ............................................... 202
Seat Heaters .................................... 225, 226
Security System ......................................... 160
Security System Alarm Indicator................. 88
Select Lever ......................................... 23, 474
Operation.......................................... 23, 475
Releasing................................................. 626
Won’t Move ............................................ 626
Selecting a Child Seat ................................. 66
Selector Knob (Audio) .............................. 240
Setting the Clock ...................................... 132
Shift Lever ........................................... 23, 474
Shift Lever Position Indicator ............ 82, 475
Shifting (Transmission) ............................. 474
Shoulder Anchor ........................................ 44
Side Airbags ................................................ 55
Side Curtain Airbags .................................. 57
Siri ® Eyes Free ................................... 260, 323
SiriusXM ® Radio ........................................ 294
Smart Entry System .................................. 138
Snow Tires ................................................. 598
Song By Voice
TM (SBV) .............................. 304
Spare Tire .......................................... 613, 645
Spark Plugs ............................................... 644
Specifications ............................................ 644
Specified Fuel ................................... 554, 644
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 663 ページ ２０１９年１０月３日　木曜日　午後４時５５分
