Navigation HONDA CR-V 2021 Navigation Manual (in English)

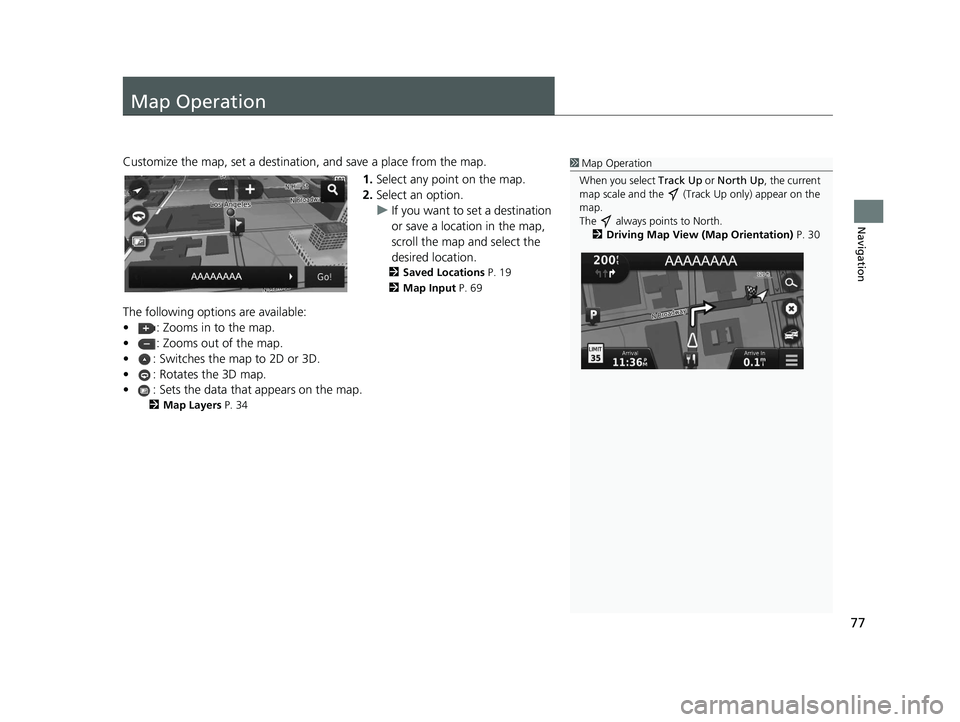

77
Navigation
Map Operation
Customize the map, set a destination, and save a place from the map.
1.Select any point on the map.
2. Select an option.
u If you want to set a destination
or save a location in the map,
scroll the map and select the
desired location.
2 Saved Locations P. 19
2 Map Input P. 69
The following options are available:
• : Zooms in to the map.
• : Zooms out of the map.
• : Switches the map to 2D or 3D.
• : Rotates the 3D map.
• : Sets the data that appears on the map.
2Map Layers P. 34
1Map Operation
When you select Track Up or North Up, the current
map scale and the (Track Up only) appear on the
map.
The always points to North. 2 Driving Map View (Map Orientation) P. 30
19 CR-V NAVI-31TLA8200.book 77 ページ ２０１８年８月２８日　火曜日　午後２時１７分

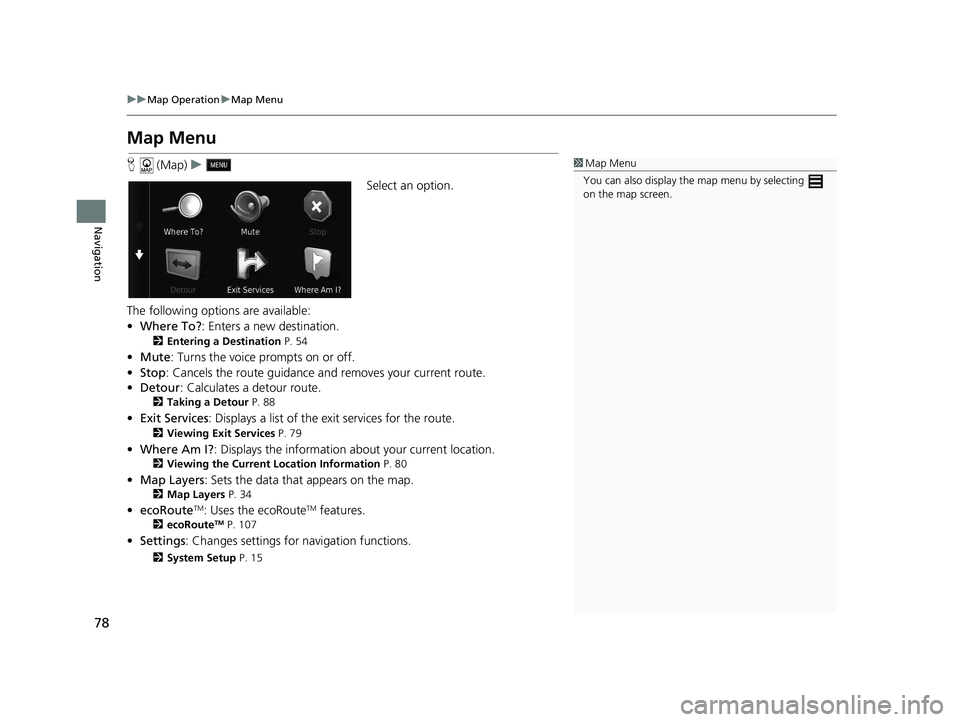

78
uuMap Operation uMap Menu
Navigation
Map Menu
H (Map) u
Select an option.
The following options are available:
• Where To? : Enters a new destination.
2Entering a Destination P. 54
•Mute : Turns the voice prompts on or off.
• Stop : Cancels the route guidance and removes your current route.
• Detour : Calculates a detour route.
2Taking a Detour P. 88
•Exit Services : Displays a list of the exit services for the route.
2Viewing Exit Services P. 79
•Where Am I? : Displays the info rmation about your current location.
2Viewing the Current Lo cation Information P. 80
•Map Layers : Sets the data that appears on the map.
2Map Layers P. 34
•ecoRouteTM: Uses the ecoRouteTM features.
2 ecoRouteTM P. 107
•Settings : Changes settings for navigation functions.
2System Setup P. 15
1Map Menu
You can also display the map menu by selecting
on the map screen.
19 CR-V NAVI-31TLA8200.book 78 ページ ２０１８年８月２８日　火曜日　午後２時１７分

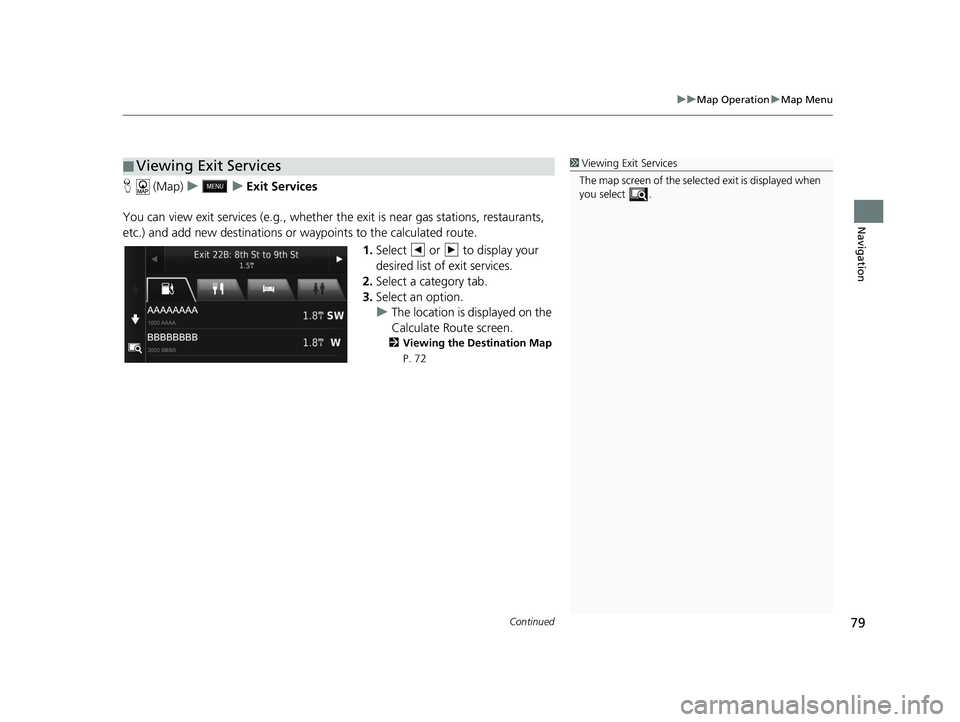

Continued79
uuMap Operation uMap Menu
Navigation
H (Map) uu Exit Services
You can view exit services (e.g., whether th e exit is near gas stations, restaurants,
etc.) and add new destinations or waypoints to the calculated route.
1.Select or to display your
desired list of exit services.
2. Select a category tab.
3. Select an option.
u The location is displayed on the
Calculate Route screen.
2 Viewing the Destination Map
P. 72
■ Viewing Exit Services1
Viewing Exit Services
The map screen of the selected exit is displayed when
you select .
19 CR-V NAVI-31TLA8200.book 79 ページ ２０１８年８月２８日　火曜日　午後２時１７分

uuMap Operation uMap Menu

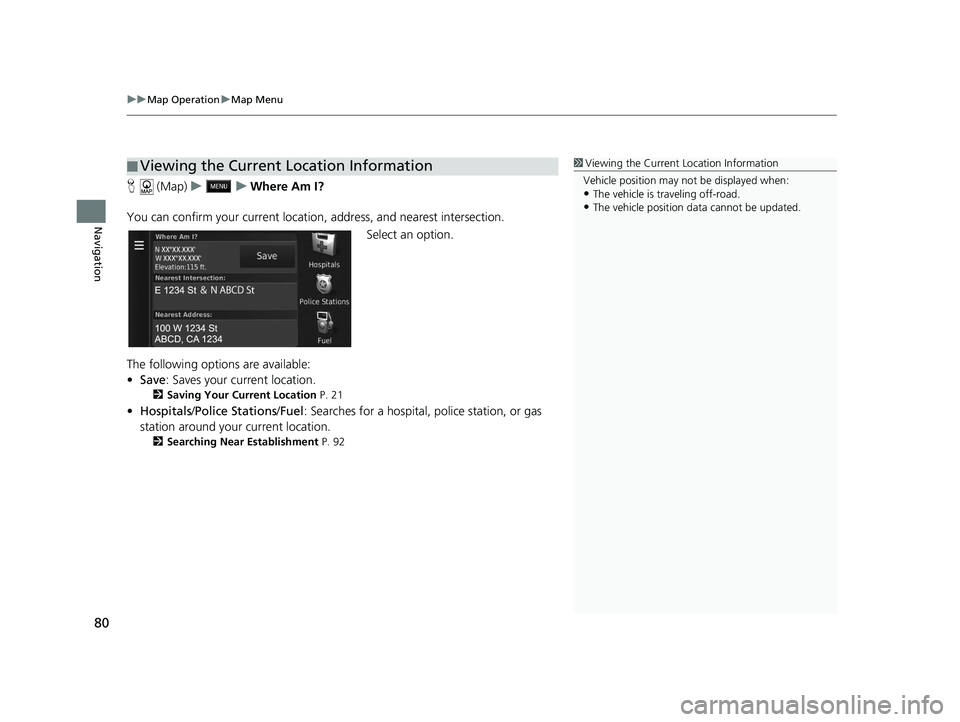

80
Navigation
H (Map) uu Where Am I?
You can confirm your current location , address, and nearest intersection.
Select an option.
The following options are available:
• Save : Saves your current location.
2Saving Your Current Location P. 21
•Hospitals /Police Stations /Fuel : Searches for a hospital, police station, or gas
station around your current location.
2 Searching Near Establishment P. 92
■Viewing the Current Location Information1
Viewing the Current Location Information
Vehicle position may not be displayed when:
•The vehicle is traveling off-road.
•The vehicle position da ta cannot be updated.
19 CR-V NAVI-31TLA8200.book 80 ページ ２０１８年８月２８日　火曜日　午後２時１７分

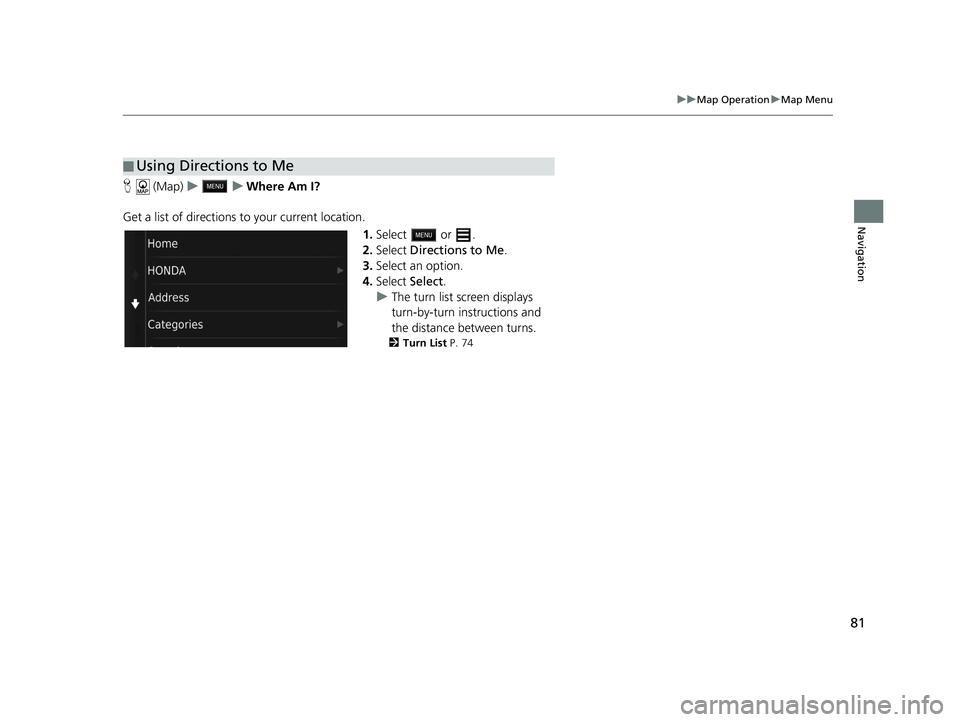

81
uuMap Operation uMap Menu
Navigation
H (Map) uu Where Am I?
Get a list of directions to your current location. 1.Select or .
2. Select Directions to Me .
3. Select an option.
4. Select Select.
u The turn list screen displays
turn-by-turn instructions and
the distance between turns.
2 Turn List P. 74
■Using Directions to Me
19 CR-V NAVI-31TLA8200.book 81 ページ ２０１８年８月２８日　火曜日　午後２時１７分

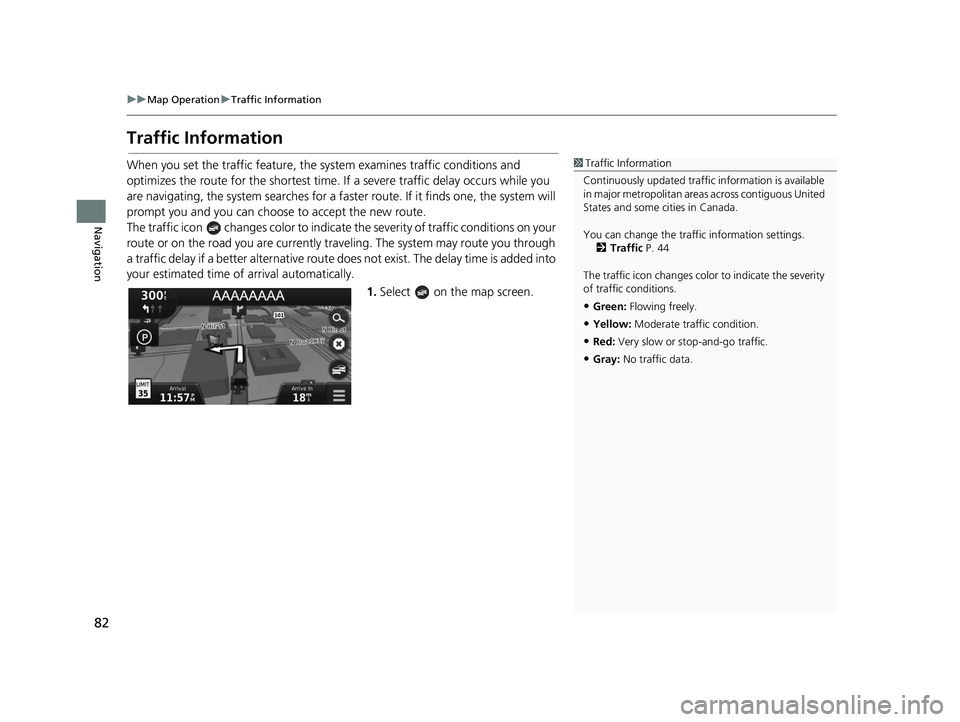

82
uuMap Operation uTraffic Information
Navigation
Traffic Information
When you set the traffic feature, the system examines traffic conditions and
optimizes the route for the shortest time. If a severe traffic delay occurs while you
are navigating, the system searches for a fast er route. If it finds one, the system will
prompt you and you can choose to accept the new route.
The traffic icon changes color to indicate the severity of traffic conditions on your
route or on the road you are currently tra veling. The system may route you through
a traffic delay if a better alternative route doe s not exist. The delay time is added into
your estimated time of arrival automatically.
1.Select on the map screen.1Traffic Information
Continuously updated traffic information is available
in major metropolitan area s across contiguous United
States and some ci ties in Canada.
You can change the traffi c information settings.
2 Traffic P. 44
The traffic icon changes color to indicate the severity
of traffic conditions.
•Green: Flowing freely.
•Yellow: Moderate traf fic condition.
•Red: Very slow or st op-and-go traffic.
•Gray: No traffic data.
19 CR-V NAVI-31TLA8200.book 82 ページ ２０１８年８月２８日　火曜日　午後２時１７分

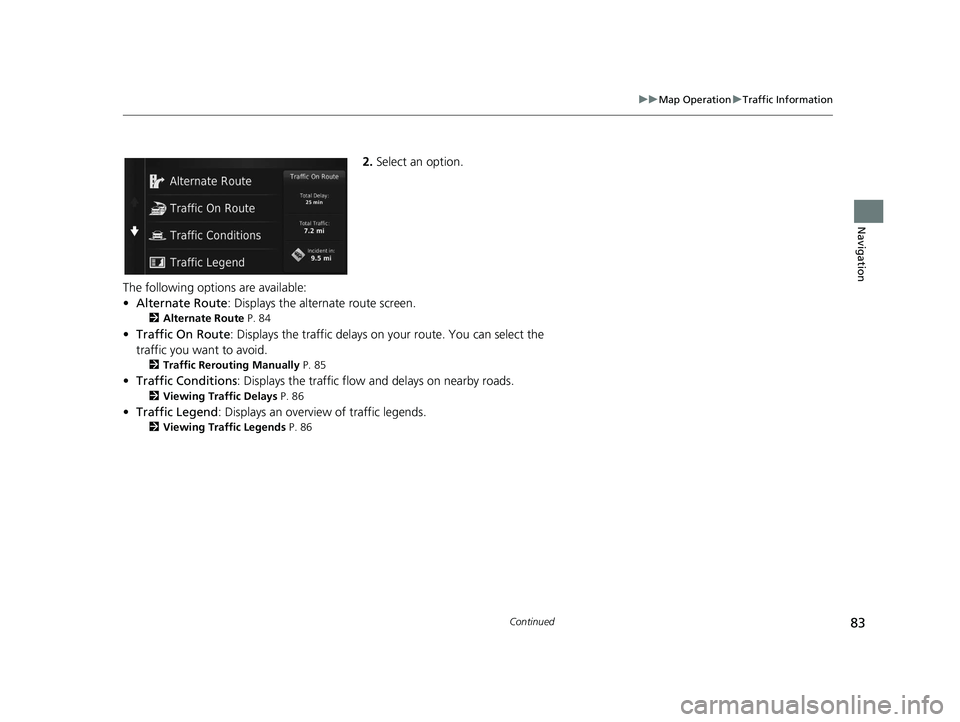

83
uuMap Operation uTraffic Information
Continued
Navigation
2. Select an option.
The following options are available:
• Alternate Route : Displays the alternate route screen.
2Alternate Route P. 84
•Traffic On Route : Displays the traffic delays on your route. You can select the
traffic you want to avoid.
2 Traffic Rerouting Manually P. 85
•Traffic Conditions : Displays the traffic flow and delays on nearby roads.
2Viewing Traffic Delays P. 86
•Traffic Legend : Displays an overview of traffic legends.
2Viewing Traffic Legends P. 86
19 CR-V NAVI-31TLA8200.book 83 ページ ２０１８年８月２８日　火曜日　午後２時１７分

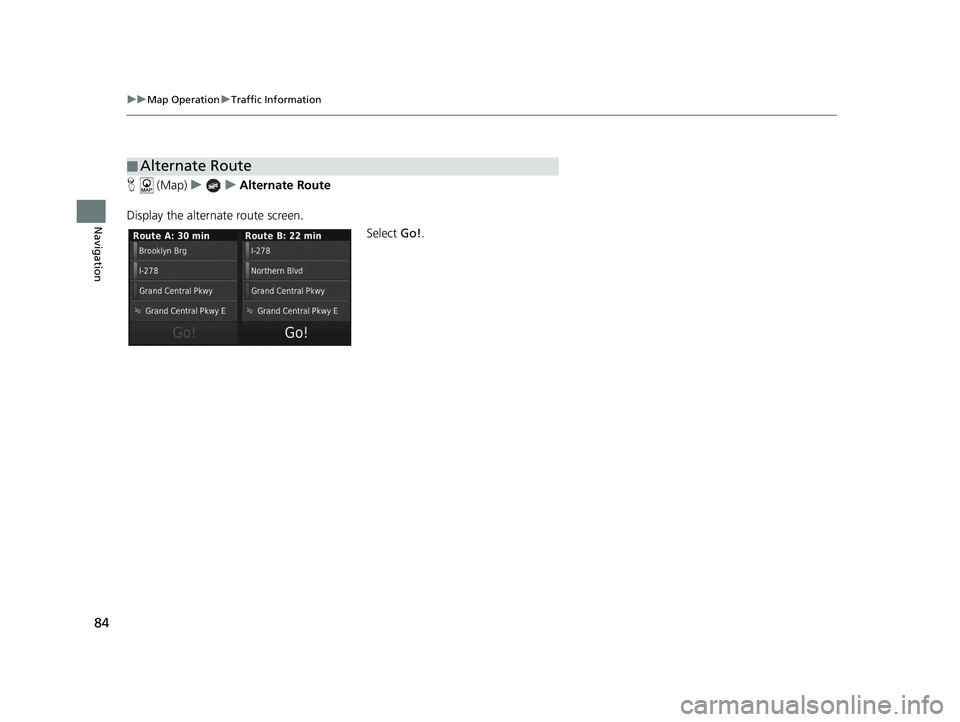

84
uuMap Operation uTraffic Information
Navigation
H (Map) uu Alternate Route
Display the alternate route screen. Select Go!.
■Alternate Route
19 CR-V NAVI-31TLA8200.book 84 ページ ２０１８年８月２８日　火曜日　午後２時１７分

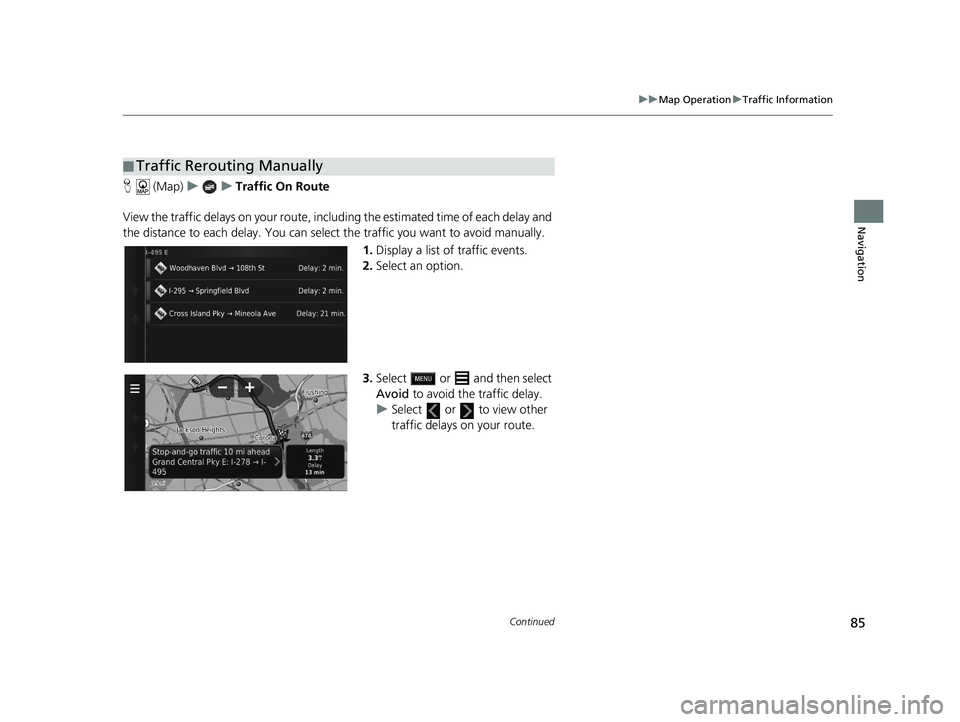

85
uuMap Operation uTraffic Information
Continued
Navigation
H (Map) uu Traffic On Route
View the traffic delays on your route, incl uding the estimated time of each delay and
the distance to each delay. You can select the traffic you want to avoid manually.
1.Display a list of traffic events.
2. Select an option.
3. Select or and then select
Avoid to avoid the traffic delay.
u Select or to view other
traffic delays on your route.
■Traffic Rerouting Manually
19 CR-V NAVI-31TLA8200.book 85 ページ ２０１８年８月２８日　火曜日　午後２時１７分

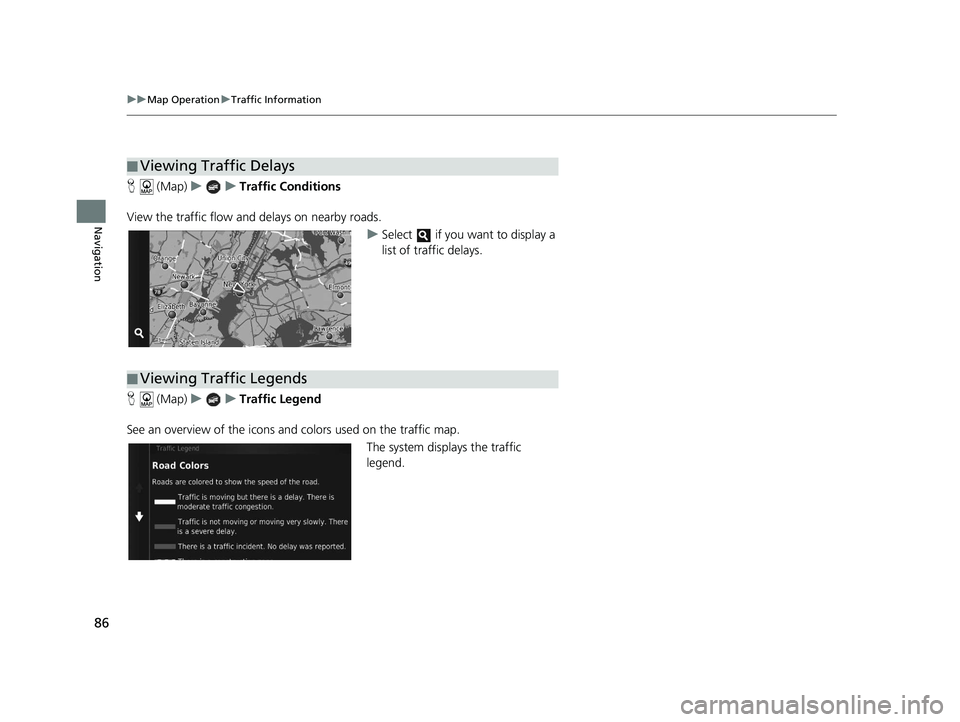

86
uuMap Operation uTraffic Information
Navigation
H (Map) uu Traffic Conditions
View the traffic flow an d delays on nearby roads.
uSelect if you want to display a
list of traffic delays.
H (Map) uu Traffic Legend
See an overview of the icons and colors used on the traffic map.
The system displays the traffic
legend.
■Viewing Traffic Delays
■Viewing Traffic Legends
19 CR-V NAVI-31TLA8200.book 86 ページ ２０１８年８月２８日　火曜日　午後２時１７分
