display HONDA CR-V 2021 Owner's Manual (in English)

375
uuCustomized Features u
Continued
Features
Driver Assist System SetupForward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Lane Keeping Assi st Suspend Beep
Road Departure Mitigation Setting
Adjust Outside Temp. Display
“Trip A” Reset Timing
“Trip B” Reset Timing
Vehicle
Meter Setup
Adjust Alarm Volume
New Message Notifications
Reverse Alert Tone
Turn By Turn Auto Display
Speed/Distance Units
CancelTPMS Calibration
Calibrate
Blind Spot Info
Fuel Efficiency Backlight
Memory Position Link
Driver Attention Monitor
Driving Position Setup
21 CR-V HYBRID HMIN-31TPG6100.book 375 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

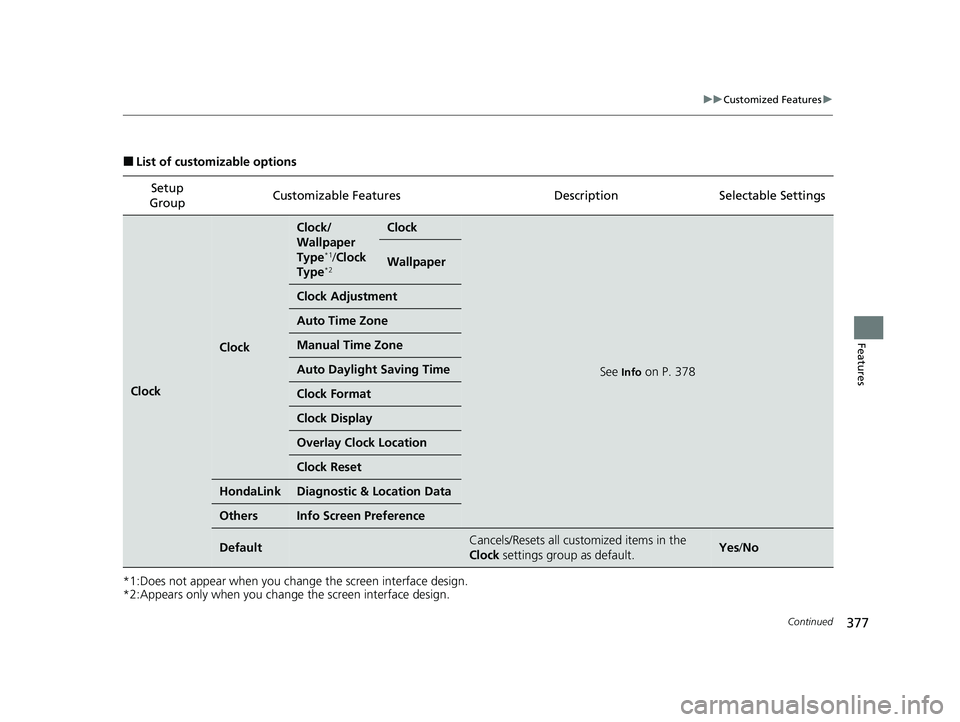

377
uuCustomized Features u
Continued
Features
■List of customizable options
*1:Does not appear when you chan ge the screen interface design.
*2:Appears only when you change the screen interface design. Setup
Group Customizable Features Descri
ption Selectable Settings
Clock
Clock
Clock/
Wallpaper
Type
*1/Clock
Type*2
Clock
See Info on P. 378
Wallpaper
Clock Adjustment
Auto Time Zone
Manual Time Zone
Auto Daylight Saving Time
Clock Format
Clock Display
Overlay Clock Location
Clock Reset
HondaLinkDiagnostic & Location Data
OthersInfo Screen Preference
DefaultCancels/Resets all customized items in the
Clock settings group as default.Yes/No
21 CR-V HYBRID HMIN-31TPG6100.book 377 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

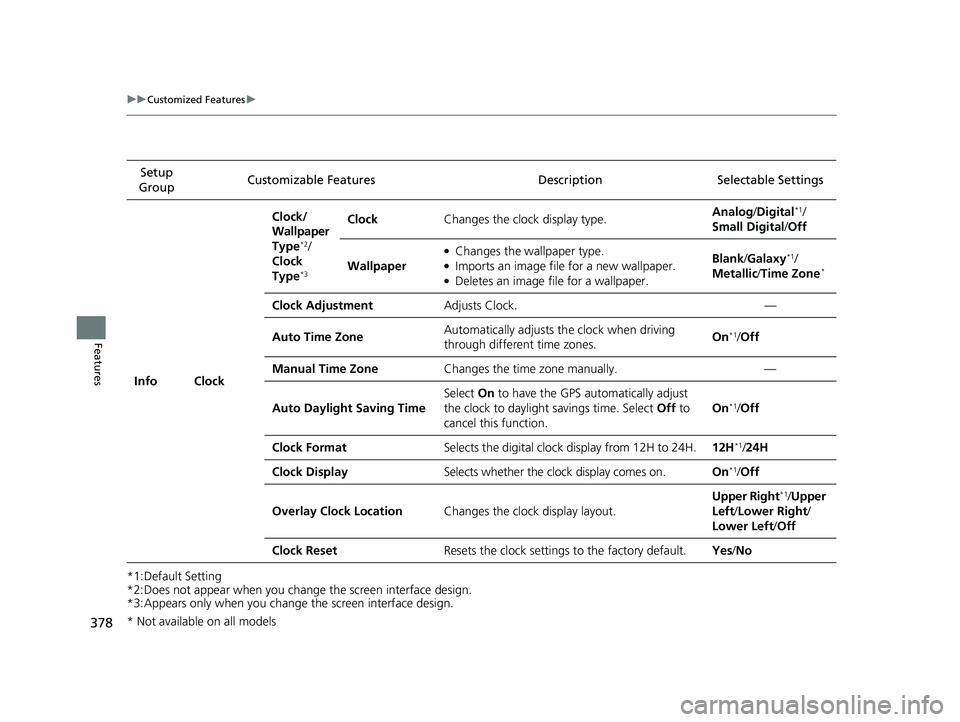

378
uuCustomized Features u
Features
*1:Default Setting
*2:Does not appear when you change the screen interface design.
*3:Appears only when you change the screen interface design.Setup
Group Customizable Features Desc
ription Selectable Settings
Info Clock Clock/
Wallpaper
Type
*2/
Clock
Type
*3
Clock Changes the clock display type. Analog
/Digital*1/
Small Digital /Off
Wallpaper
●Changes the wallpaper type.●Imports an image file for a new wallpaper.●Deletes an image file for a wallpaper. Blank
/Galaxy
*1/
Metallic /Time Zone*
Clock Adjustment Adjusts Clock. —
Auto Time Zone Automatically adjusts th
e clock when driving
through different time zones. On
*1/
Off
Manual Time Zone Changes the time zone manually. —
Auto Daylight Saving Time Select
On to have the GPS automatically adjust
the clock to daylight savings time. Select Off to
cancel this function. On
*1/
Off
Clock Format Selects the digital clock display from 12H to 24H. 12H
*1/24H
Clock Display Selects whether the clock display comes on. On
*1/Off
Overlay Clock Location Changes the clock display layout. Upper Right
*1/
Upper
Left/ Lower Right/
Lower Left /Off
Clock Reset Resets the clock settings to the factory default. Yes/No
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 378 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

379
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Info HondaLink
Diagnostic &
Location Data
Turns HondaLink
® on and off. On
*1/Off
Others Info Screen
Preference Selects the top menu wh
en the (display/
information) button is pressed.
●Info Top - A brief menu pops up.●Info Menu- A full menu pops up.●Off- A menu does not pop up. Info Top
/Info
Menu
*1/ Off
Default Cancels/Resets all customized items in the
Info settings
group as default. Yes
/No
Camera
Rear
Camera
Fixed Guideline
Selects whether the fixed gui delines come on the rear
camera monitor.
2 Multi-View Rear Camera P. 568
On*1/Off
Dynamic Guideline
Selects whether the guidelines adjust to the movement
of the steering wheel.
2 Multi-View Rear Camera P. 568
On*1/Off
Parking Sensor
Display*Selects whether to turn on the parking sensor display.Normal View/Split
View*1
DefaultCancels/Resets all customized items in the Rear Camera
setting group as default.Yes /No
Cross Traffic MonitorTurns on and off the cross traffic monitor.On*1/ Off
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 379 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

383
uuCustomized Features u
Continued
Features
*1:Default Setting
*2:Appears only when you change the screen interface design.Setup
Group Customizable Features Descri
ption Selectable Settings
Audio
BluetoothBluetooth Device List
Pairs a new phone to HFL, edits or deletes a
paired phone.
2Phone Setup P. 429
—
Other
[Your selected media]
Cover ArtTurns the cover art display on and off.On*1/Off
Audio Source Pop-Up
Selects whether the list of selectable audio source
comes on when Audio is selected on the home
screen.
On /Off*1
SoundAdjusts the settings of the audio speakers’ sound.
2 Adjusting the Sound P. 292—
DefaultCancels/Resets all customized items in the Audio
settings group as default.Yes /No
SystemHome
Home Screen Edit OrderChanges the home screen icon layout.—
Menu Icon Position*2Changes the position of the menu icons on the
Audio, Phone, and Info screen.—
Configuration of
Instrument PanelChanges the Instrument Panel screen icon
layout. —
Tachometer SettingNot available on this model—
Bluetooth® mode
iPod or USB mode
21 CR-V HYBRID HMIN-31TPG6100.book 383 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

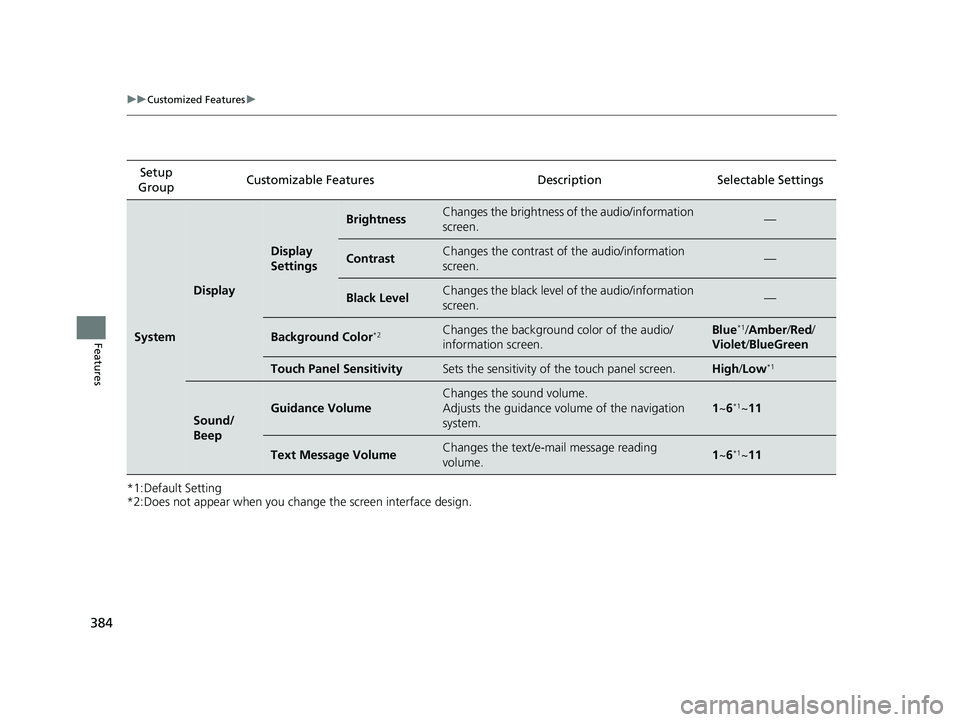

384
uuCustomized Features u
Features
*1:Default Setting
*2:Does not appear when you change the screen interface design.Setup
Group Customizable Features Descri
ption Selectable Settings
System
Display
Display
Settings
BrightnessChanges the brightness of the audio/information
screen.—
ContrastChanges the contrast of the audio/information
screen.—
Black LevelChanges the black level of the audio/information
screen.—
Background Color*2Changes the background color of the audio/
information screen.Blue*1/Amber /Red /
Violet /BlueGreen
Touch Panel SensitivitySets the sensitivity of the touch panel screen.High /Low*1
Sound/
BeepGuidance Volume
Changes the sound volume.
Adjusts the guidance volume of the navigation
system.
1 ~6*1~11
Text Message VolumeChanges the text/e-mail message reading
volume. 1~6*1~11
21 CR-V HYBRID HMIN-31TPG6100.book 384 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

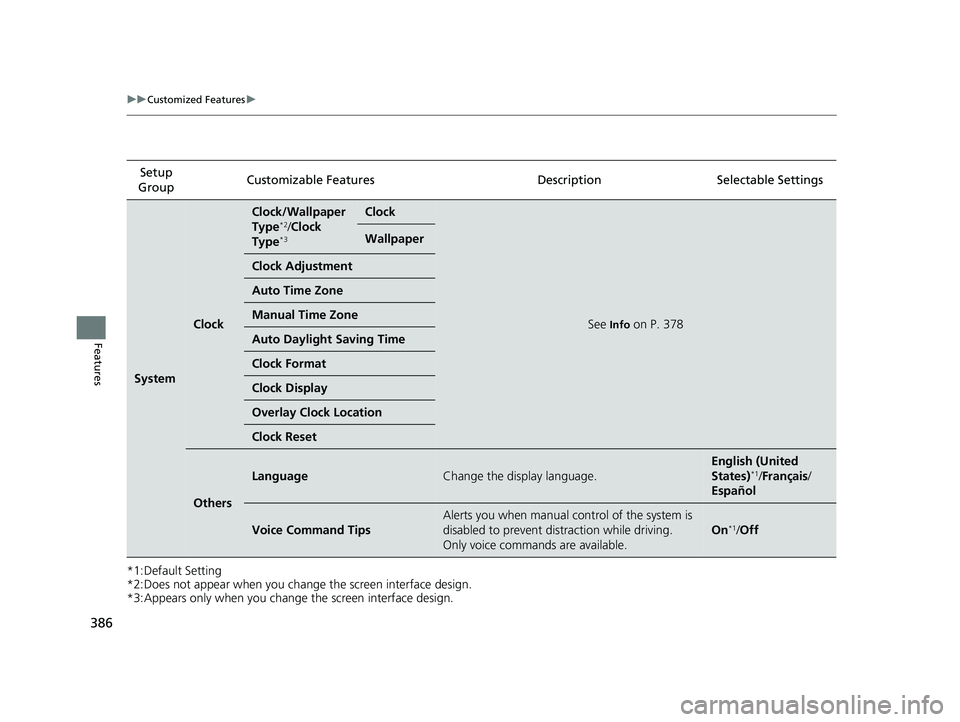

386
uuCustomized Features u
Features
*1:Default Setting
*2:Does not appear when you change the screen interface design.
*3:Appears only when you change the screen interface design.Setup
Group Customizable Features
DescriptionSelectable Settings
System
Clock
Clock/Wallpaper
Type*2/Clock
Type*3
Clock
See Info on P. 378
Wallpaper
Clock Adjustment
Auto Time Zone
Manual Time Zone
Auto Daylight Saving Time
Clock Format
Clock Display
Overlay Clock Location
Clock Reset
Others
LanguageChange the display language.
English (United
States)*1/Français /
Español
Voice Command Tips
Alerts you when manual control of the system is
disabled to prevent distraction while driving.
Only voice commands are available.
On*1/ Off
21 CR-V HYBRID HMIN-31TPG6100.book 386 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

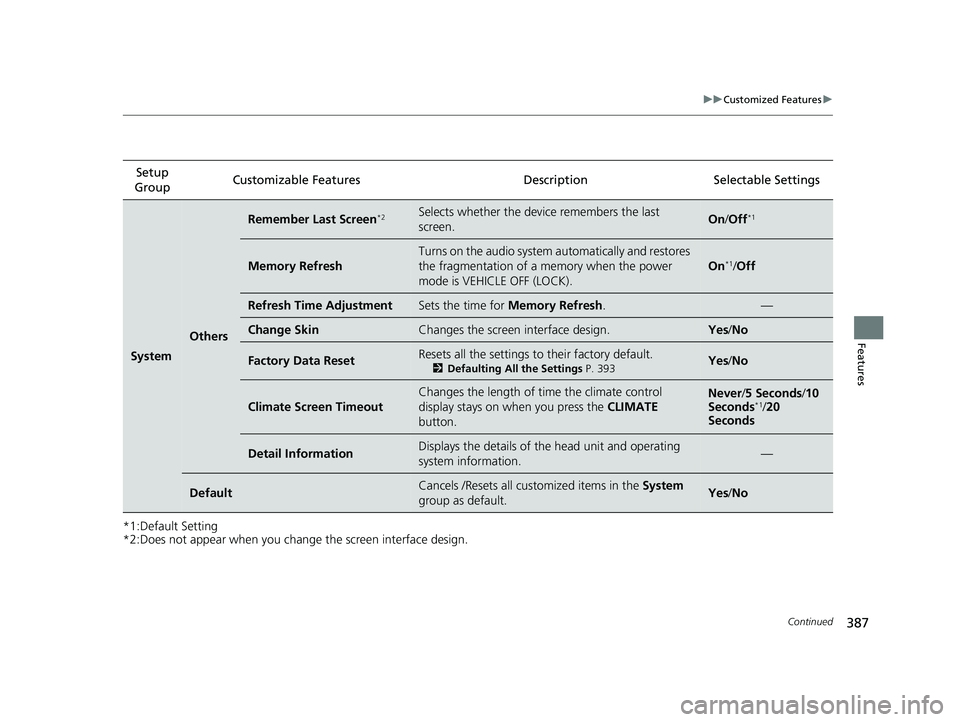

387
uuCustomized Features u
Continued
Features
*1:Default Setting
*2:Does not appear when you chan ge the screen interface design.
Setup
Group Customizable Features Descri
ption Selectable Settings
System
Others
Remember Last Screen*2Selects whether the device remembers the last
screen.On/Off*1
Memory Refresh
Turns on the audio system automatically and restores
the fragmentation of a memory when the power
mode is VEHICLE OFF (LOCK).
On*1/Off
Refresh Time AdjustmentSets the time for Memory Refresh . —
Change SkinChanges the screen interface design.Yes/No
Factory Data ResetResets all the settings to their factory default.
2 Defaulting All the Settings P. 393Yes/No
Climate Screen Timeout
Changes the length of time the climate control
display stays on when you press the CLIMATE
button.Never/ 5 Seconds/ 10
Seconds*1/ 20
Seconds
Detail InformationDisplays the details of the head unit and operating
system information.—
DefaultCancels /Resets all cust omized items in the System
group as default.Yes /No
21 CR-V HYBRID HMIN-31TPG6100.book 387 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

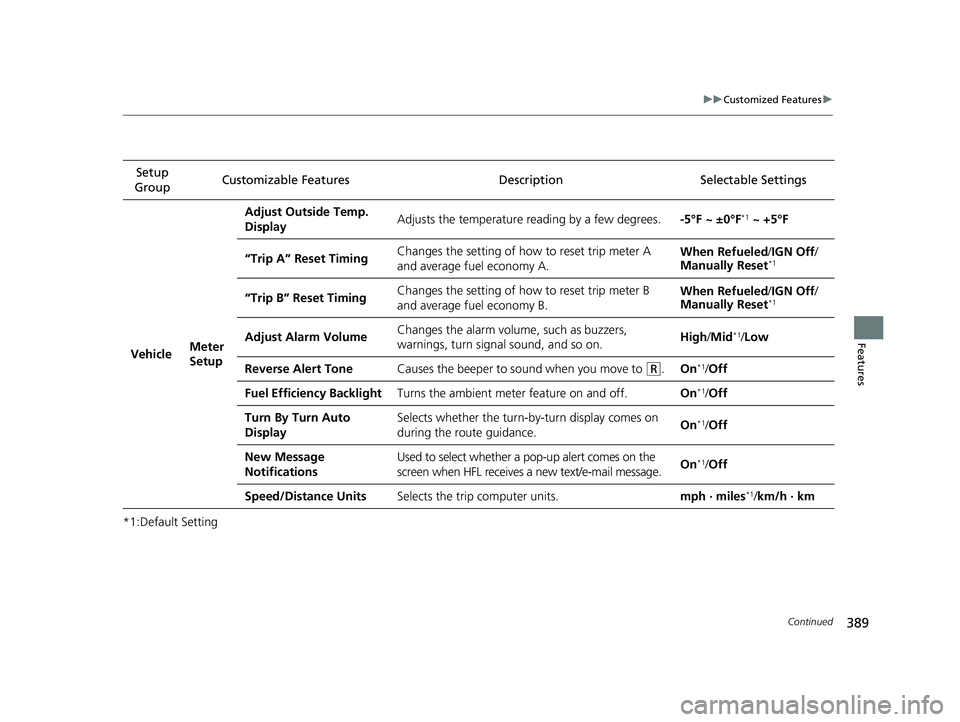

389
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
VehicleMeter
Setup
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few degrees.-5°F ~ ±0°F*1 ~ +5°F
“Trip A” Reset TimingChanges the setting of how to reset trip meter A
and average fuel economy A.When Refueled /IGN Off /
Manually Reset*1
“Trip B” Reset TimingChanges the setting of how to reset trip meter B
and average fuel economy B.When Refueled /IGN Off /
Manually Reset*1
Adjust Alarm VolumeChanges the alarm volume , such as buzzers,
warnings, turn signal sound, and so on.High /Mid*1/Low
Reverse Alert ToneCauses the beeper to s ound when you move to (R.On*1/Off
Fuel Efficiency BacklightTurns the ambient meter feature on and off.On*1/Off
Turn By Turn Auto
DisplaySelects whether the turn-b y-turn display comes on
during the route guidance.On*1/ Off
New Message
NotificationsUsed to select whether a pop-up alert comes on the
screen when HFL receives a new text/e-mail message.On*1/Off
Speed/Distance UnitsSelects the trip computer units.mph · miles*1/ km/h · km
21 CR-V HYBRID HMIN-31TPG6100.book 389 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

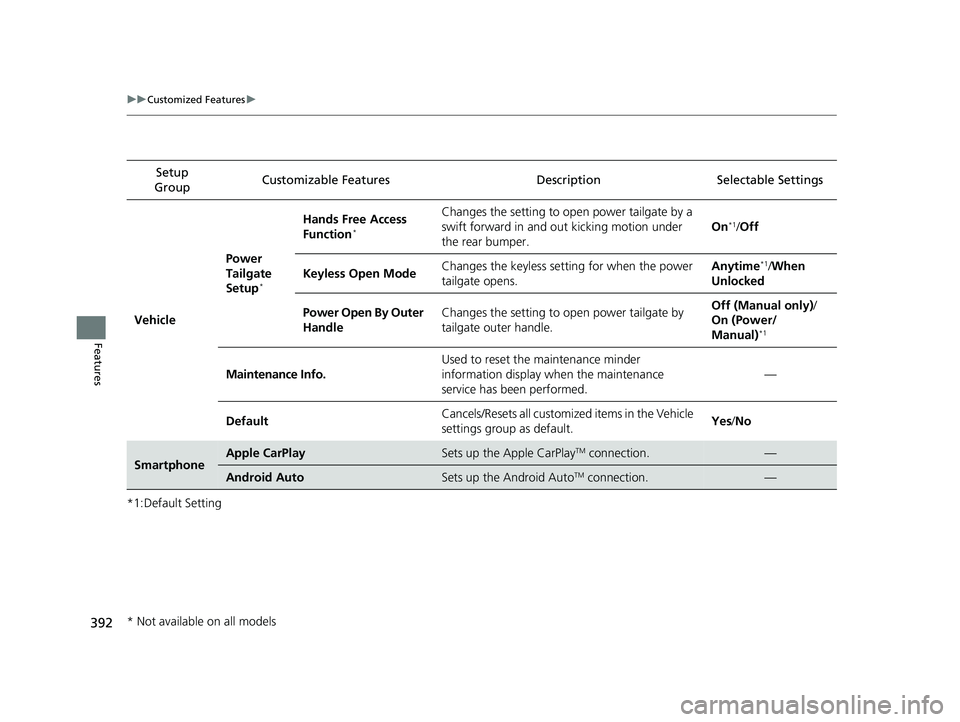

392
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Power
Tailgate
Setup
*
Hands Free Access
Function*
Changes the setting to open power tailgate by a
swift forward in and out kicking motion under
the rear bumper.
On*1/
Off
Keyless Open ModeChanges the keyless setting for when the power
tailgate opens.Anytime*1/When
Unlocked
Power Open By Outer
HandleChanges the setting to open power tailgate by
tailgate outer handle.Off (Manual only) /
On (Power/
Manual)
*1
Maintenance Info.
Used to reset the maintenance minder
information display when the maintenance
service has been performed.
—
DefaultCancels/Resets all customized items in the Vehicle
settings group as default.Yes /No
SmartphoneApple CarPlaySets up the Apple CarPlayTM connection.—
Android AutoSets up the Android AutoTM connection.—
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 392 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
