Page 626 of 690

625
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 626
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 627
Handling of the Jack ......................... 641
Power System Won’t Start Checking the Procedure ................... 642
If the Smart Entry Remote Battery is Weak .......................................... 643
Emergency Power System Off........... 644
If the 12-Volt Battery Is Dead .......... 645
Overheating How to Handle Overheating ............. 647 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 650
If the 12-volt Batt ery Charging System
Indicator Comes On ....................... 650
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 651
If the Brake System Indicator (Red) Comes On or Blinks ................................... 652
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 653
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 654
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 655
If the Transmission System Indicator Blinks along with the Warning Message... 656
Fuses Fuse Locations ................................. 657
Inspecting and Changing Fuses ........ 660
Emergency Towing ........................... 661
If You Cannot Open the Tailgate.......... 662Refueling................................................. 663
21 CR-V HYBRID HMIN-31TPG6100.book 625 ページ 2020年9月14日 月曜日 午前11時36分
Page 643 of 690

642
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready To Drive message
does not appear on the driver information interface, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or driver
information interface
messages come on.The Temperature Is Too Cold For Vehicle To Operate
message appears.2 Driver Information Interface Warning and
Information Messages P. 109
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the smart entry remote is in its operating range.
2 POWER Button Operating Range P. 185
2If the Smart Entry Remote Battery is Weak
P. 643
The POWER SYSTEM indicator comes on.Have your vehicle checked by a dealer.
The transmission system indicator blinks and Transmission
Problem. Apply Parking Brake When Parked message
appears.2 If the Transmission System Indicator Blinks
along with the Warning Message P. 656
Check the brightness
of the interior lights.The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by a dealer.
The interior lights come on normally. Check al l fuses, or have your vehicle checked by
a dealer.
2 Inspecting and Changing Fuses P. 660
Check the shift
position.The transmission is not in (P.Put the transmission into (P.
Check the
immobilizer system
indicator. When the immobilizer system indicator is blinking, the power
system cannot be turned on.
2
Immobilizer System Indicator P. 101
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 If the 12-Volt Battery Is Dead P. 645
21 CR-V HYBRID HMIN-31TPG6100.book 642 ページ 2020年9月14日 月曜日 午前11時36分
Page 644 of 690

643
uuPower System Won’t Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected

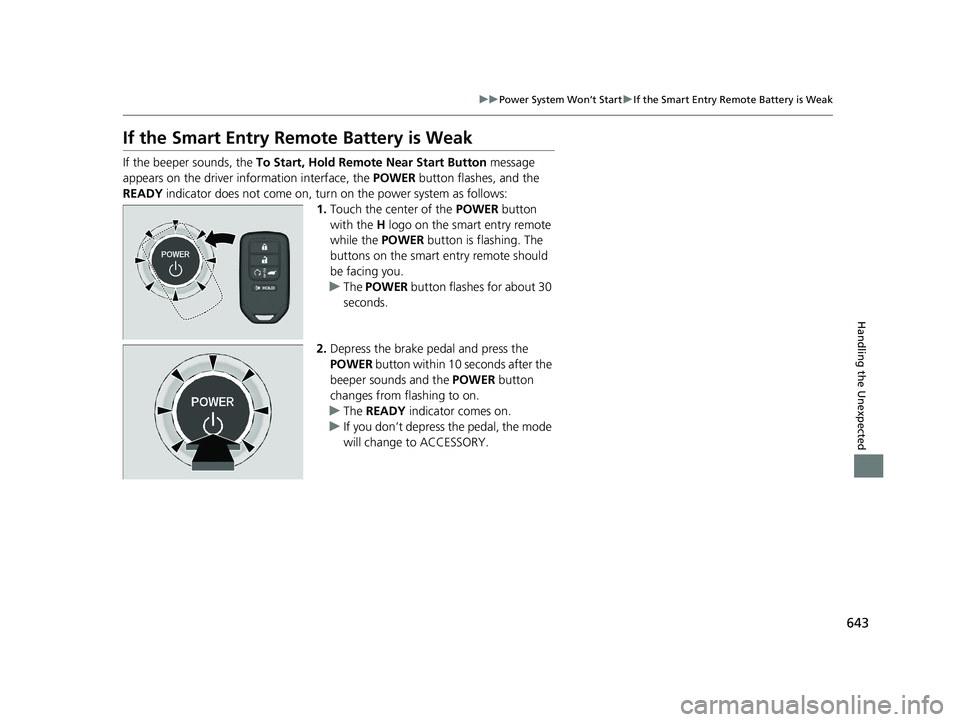

If the Smart Entry Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, the POWER button flashes, and the
READY indicator does not come on, turn on the power system as follows:
1.Touch the center of the POWER button
with the H logo on the smart entry remote
while the POWER button is flashing. The
buttons on the smart en try remote should
be facing you.
u The POWER button flashes for about 30
seconds.
2. Depress the brake pedal and press the
POWER button within 10 seconds after the
beeper sounds and the POWER button
changes from flashing to on.
u The READY indicator comes on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
21 CR-V HYBRID HMIN-31TPG6100.book 643 ページ 2020年9月14日 月曜日 午前11時36分
Page 686 of 690

685
Index
Passing Indicators..................................... 189
Playing Bluetooth ® Audio ............... 266, 322
POWER Button ......................................... 185
Power System Won’t Start ............................................. 642
Power System Indicator ............................. 93
Power Tailgate ......................................... 169
Power Windows ....................................... 180
POWER/CHARGE Gauge .......................... 126
Precautions While Driving ....................... 473
Driving Guidelines for Your Utility
Vehicle .................................................. 473
Rain ........................................................ 473
Pregnant Women ....................................... 54
Puncture (Tire) ......................................... 627
R
Radiator.................................................... 592
Radio (FM/AM) ................................. 256, 299
Radio (SiriusXM ®)..................................... 303
Radio Data System (RDS) ................. 257, 302
RDS (Radio Data System) ................. 257, 302
Readiness Codes (Emissions Testing) ...... 671
READY Indicator ........................................ 93
Real Time AWD with Intelligent Control System
TM.................................................. 490
Rear Seats (Folding Down) ...................... 212
Rearview Mirror ....................................... 205
Refueling .................................................. 570
Fuel Gauge ............................................. 126 Gasoline .......................................... 570, 666
Low Fuel Indicator ..................................... 96
Regulations ............................... 495, 607, 669
Remote Transmitter ................................. 159
Replacement
Battery .................................................... 615
Bulbs ....................................................... 596
Front Wiper Blade Rubber ........................ 599
Fuses ....................................... 657, 658, 659
Rear Wiper Blade Rubber ......................... 602
Tires ........................................................ 610
Reporting Safety Defects ......................... 670
Resetting a Trip Meter ............................. 130
Road Departure Mitigation (RDM) .......... 541
On and Off .............................................. 543
S
Safe Driving ................................................ 41
Safety Check ............................................... 46
Safety Labels ............................................... 87
Safety Message ............................................. 2
Seat Belts ..................................................... 47
Adjusting the Shoulder Anchor .................. 52
Automatic Seat Belt Tensioners .................. 50
Checking ................................................... 55
Detachable Anchor .................................... 53
Fastening ................................................... 51
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 80
Pregnant Women ...................................... 54 Reminder .................................................. 49
Warning Indicator ............................... 49, 96
Seat Heaters .............................................. 233
Seats .......................................................... 207
Adjusting ................................................ 207
Driver’s Seat Lumbar Support .................. 207
Front Seats .............................................. 207
Heaters ................................................... 233
Rear Seats ............................................... 211
Seat Heaters ............................................ 233
Security System ......................................... 177
Immobilizer System Indicator ................... 101
Security System Alarm Indicator............... 102
Select Button
Operation.......................................... 32, 477
Selecting a Child Seat ................................. 76
Selector Knob (Audio) .............................. 249
Setting the Clock ...................................... 150
Shift Button ................................................ 32
Shift Button Positions Transmission ..................................... 32, 475
Shift Position Indicator ...................... 95, 477
Shoulder Anchor ........................................ 52
Side Airbags ................................................ 64
Side Curtain Airbags .................................. 66
Siri ® Eyes Free ................................... 269, 331
SiriusXM ® Radio ........................................ 303
Smart Entry System .................................. 155
Snow Tires ................................................. 612
Song By Voice
TM (SBV) .............................. 313
Spark Plugs ............................................... 666
