Continued159

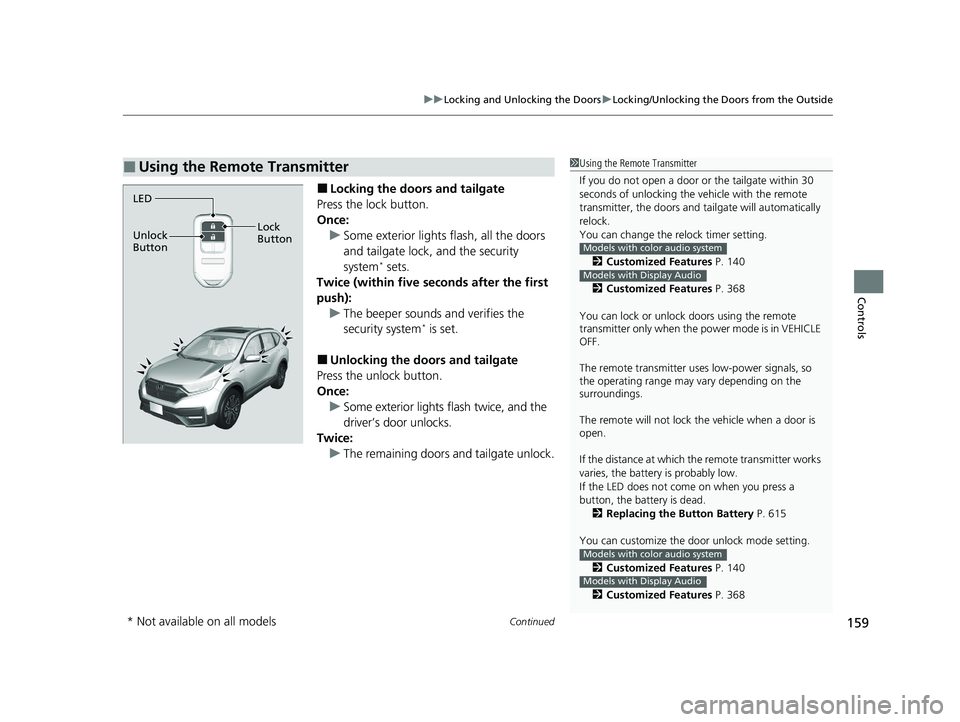

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors and tailgate
Press the lock button.
Once: u Some exterior lights flash, all the doors
and tailgate lock, and the security
system
* sets.
Twice (within five se conds after the first
push): u The beeper sounds and verifies the
security system
* is set.
■Unlocking the doors and tailgate
Press the unlock button.
Once:
u Some exterior lights flash twice, and the
driver’s door unlocks.
Twice: u The remaining doors and tailgate unlock.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle with the remote
transmitter, the doors and ta ilgate will automatically
relock.
You can change the relock timer setting.
2 Customized Features P. 140
2 Customized Features P. 368
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 615
You can customize the door unlock mode setting. 2 Customized Features P. 140
2 Customized Features P. 368
Models with color audio system
Models with Display Audio
Models with color audio system
Models with Display Audio
LED
Unlock
Button Lock
Button
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 159 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
160
Controls
If the lock or unlock button of the remote transmitter does not work, use the key
instead.
Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors and tailgate lock at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
remaining doors a nd the tailgate.
You can customize the door unlock mode setting. 2 Customized Features P. 140
2 Customized Features P. 368
Models with color audio system
Models with Display Audio
Lock
Unlock
21 CR-V HYBRID HMIN-31TPG6100.book 160 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued163

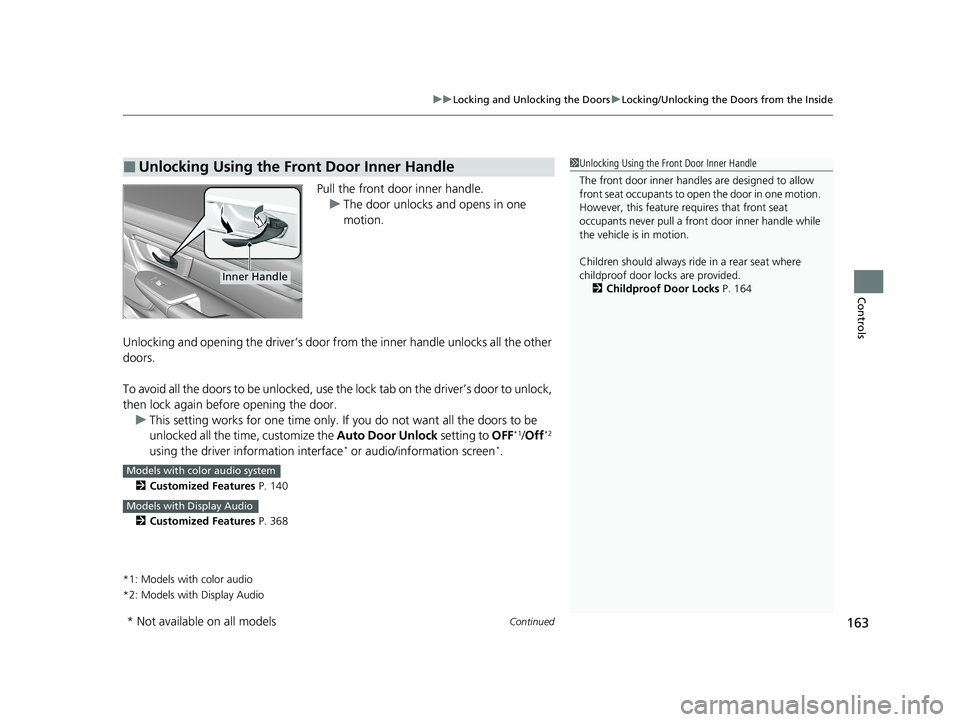

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use th e lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only. If you do not want all the doors to be
unlocked all the time, customize the Auto Door Unlock setting to OFF
*1/Off*2
using the driver information interface* or audio/information screen*.
2 Customized Features P. 140
2 Customized Features P. 368
*1: Models with color audio
*2: Models with Display Audio
■Unlocking Using the Front Door Inner Handle1 Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to ope n the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 164
Inner Handle
Models with color audio system
Models with Display Audio
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 163 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

165

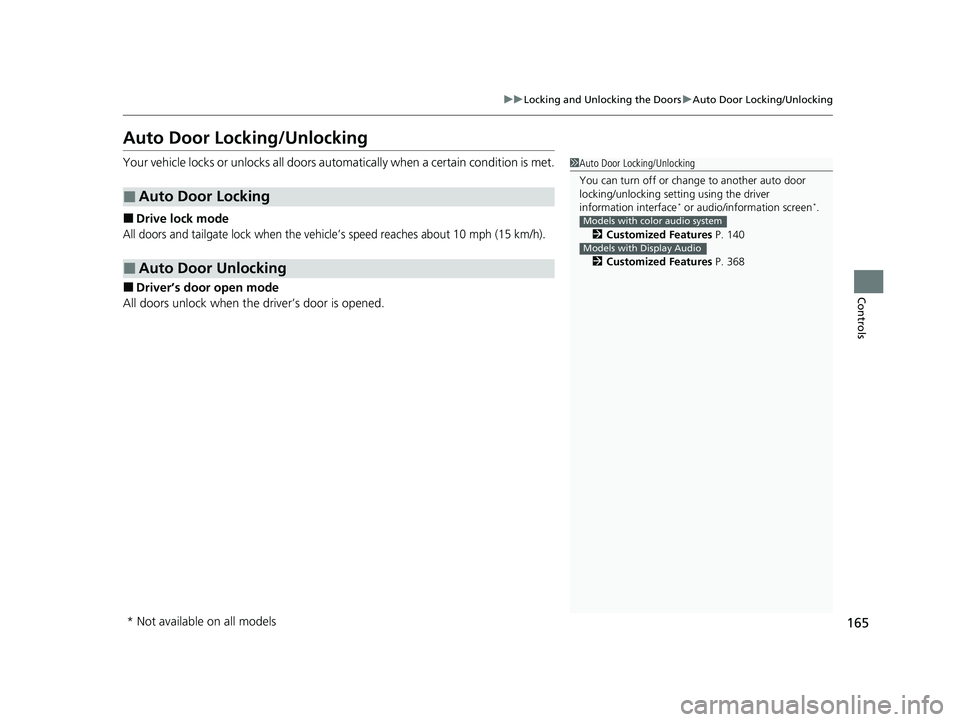

uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks or unlocks all doors automatically when a certain condition is met.
■Drive lock mode
All doors and tailgate lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the driver
information interface
* or audio/information screen*.
2 Customized Features P. 140
2 Customized Features P. 368Models with color audio system
Models with Display Audio
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 165 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued191

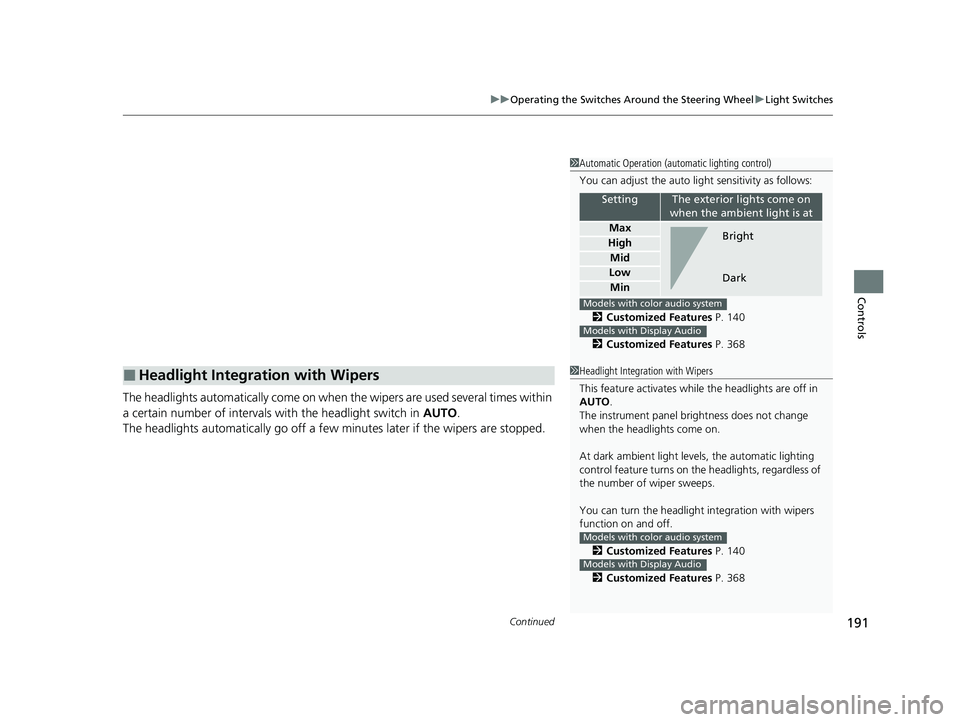

uuOperating the Switches Around the Steering Wheel uLight Switches
Controls
The headlights automatically come on when th e wipers are used several times within
a certain number of intervals with the headlight switch in AUTO.
The headlights automatically go off a few mi nutes later if the wipers are stopped.
■Headlight Integration with Wipers
1Automatic Operation (aut omatic lighting control)
You can adjust the auto li ght sensitivity as follows:
2 Customized Features P. 140
2 Customized Features P. 368
SettingThe exterior lights come on
when the ambient light is at
Max
High
Mid
Low
Min
Bright
Dark
Models with color audio system
Models with Display Audio
1 Headlight Integration with Wipers
This feature activates while the headlights are off in
AUTO .
The instrument panel br ightness does not change
when the headlights come on.
At dark ambient light leve ls, the automatic lighting
control feature turns on the headlights, regardless of
the number of wiper sweeps.
You can turn the headlight integration with wipers
function on and off.
2 Customized Features P. 140
2 Customized Features P. 368
Models with color audio system
Models with Display Audio
21 CR-V HYBRID HMIN-31TPG6100.book 191 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

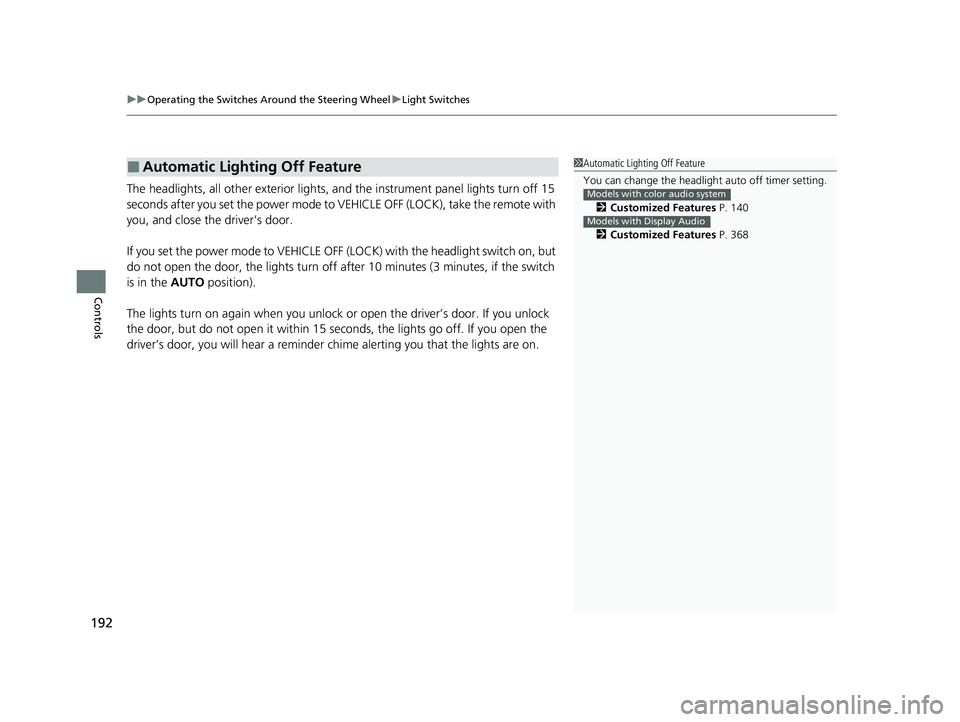

uuOperating the Switches Around the Steering Wheel uLight Switches
192
Controls
The headlights, all other exterior lights, an d the instrument panel lights turn off 15
seconds after you set the power mode to VE HICLE OFF (LOCK), take the remote with
you, and close the driver’s door.
If you set the power mode to VEHICLE OFF (LOCK) with the headlight switch on, but
do not open the door, the li ghts turn off after 10 minutes (3 minutes, if the switch
is in the AUTO position).
The lights turn on again when you unlock or open the driver’s door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver’s door, you will hear a reminder chime alerting you that the lights are on.
■Automatic Lighting Off Feature1Automatic Lighting Off Feature
You can change the headlight auto off timer setting.
2 Customized Features P. 140
2 Customized Features P. 368
Models with color audio system
Models with Display Audio
21 CR-V HYBRID HMIN-31TPG6100.book 192 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

217Continued
Controls

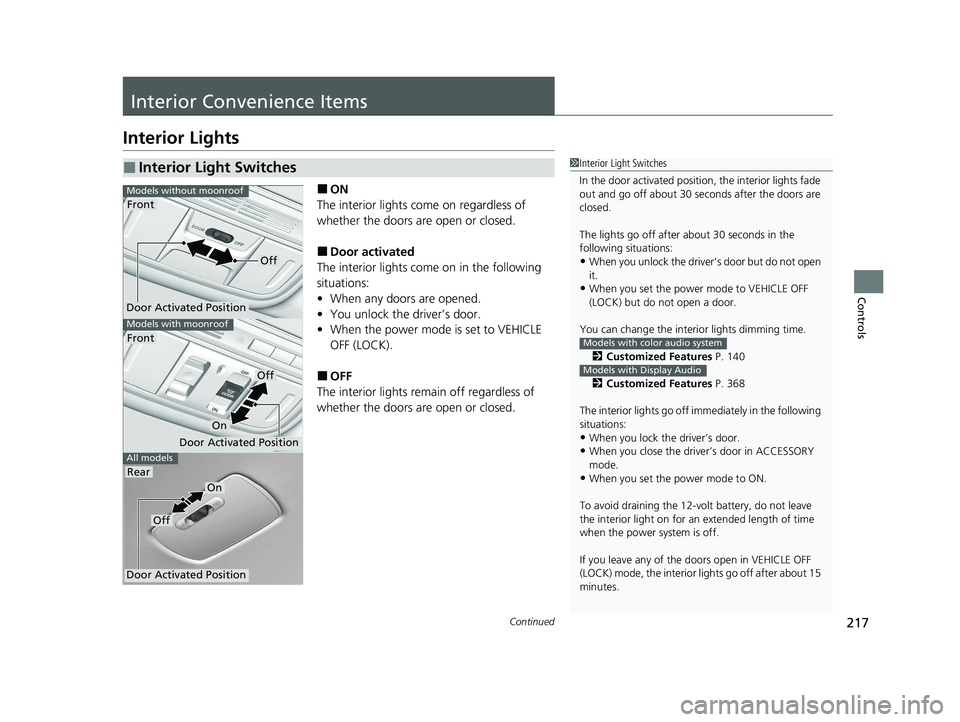

Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 140
2 Customized Features P. 368
The interior lights go off im mediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
To avoid draining the 12-vo lt battery, do not leave
the interior light on for an extended length of time
when the power system is off.
If you leave any of the doors open in VEHICLE OFF
(LOCK) mode, the interior lights go off after about 15
minutes.
Models with color audio system
Models with Display Audio
All models
Models with moonroof
Front
Models without moonroof
Door Activated Position
Front
Rear
Door Activated Position
Off
On
Door Activated Position
Off
On
Off
21 CR-V HYBRID HMIN-31TPG6100.book 217 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

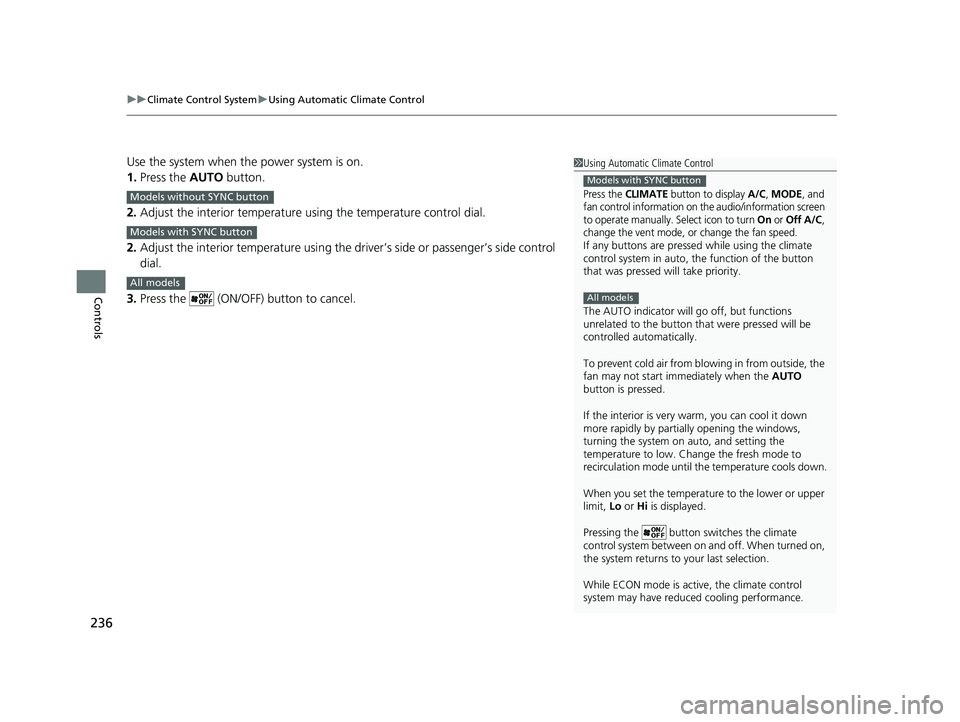

uuClimate Control System uUsing Automatic Climate Control
236
Controls
Use the system when the power system is on.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
2. Adjust the interior temperature using the dr iver’s side or passenger’s side control
dial.
3. Press the (ON/OFF) button to cancel.1Using Automatic Climate Control
Press the CLIMATE button to display A/C, MODE, and
fan control information on th e audio/information screen
to operate manually. Select icon to turn
On or Off A/C,
change the vent mode, or change the fan speed.
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button that were pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
Models with SYNC button
All models
Models without SYNC button
Models with SYNC button
All models
21 CR-V HYBRID HMIN-31TPG6100.book 236 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

241
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System ................ 242
USB Port(s) ....................................... 243
Audio System Theft Protection ......... 245
Audio Remote Controls .................... 246
Audio System Basic Operation Audio/Information Screen ................ 250
Adjusting the Sound ........................ 254
Display Setup ................................... 255
Playing AM/FM Radio ....................... 256
Playing an iPod ................................ 258
Playing Pandora ®.............................. 261
Playing a USB Flash Drive ................. 263
Models with color audio system
Playing Bluetooth ® Audio................. 266
Siri ® Eyes Free .................................. 269
Audio System Basic Operation Audio/Information Screen ................ 271
Adjusting the Sound ........................ 292
Display Setup ................................... 293
Voice Control Operation .................. 295
Playing AM/FM Radio ....................... 299
Playing SiriusXM ® Radio ................... 303
Playing an iPod ................................ 310
Song By Voice
TM (SBV) ...................... 313
Playing Pandora ®............................. 317
Playing a USB Flash Drive ................. 319
Models with Display Audio
Playing Bluetooth ® Audio ................ 322
HondaLink ®..................................... 324
Wi-Fi Connection ............................. 329
Siri ® Eyes Free .................................. 331
Apple CarPlay
TM............................... 332
Android AutoTM............................... 335
Audio Error Messages ...................... 339
General Information on the Audio System ............................................. 344
Customized Features ................ 361, 368
HomeLink ® Universal Transceiver
*.. 394
Bluetooth® HandsFreeLink® ..... 397, 421
Compass
*.......................................... 455
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 241 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

243
uuAudio System uUSB Port(s)
Continued
Features
USB Port(s)
Install the iPod USB connector or the USB flash drive to the USB port.
■On the front of the center console
The USB port (1.0A) is for playing audio files
on a USB flash drive, connecting a cellular
phone, and charging devices.
The USB port (1.5A) is for charging devices,
playing audio files and connecting compatible
phones with Apple CarPlay
TM or Android
AutoTM.
u To prevent any potenti al issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay
TM, and for
Android AutoTM, the USB cables should
be certified by USB-IF to be compliant
with USB 2.0 Standard.
*1: Models with color audio system
*2: Models with Display Audio
1 USB Port(s)
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend using an ex tension cable with the
USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend backing up yo ur data before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.5A/2.5A of power. It
does not output 1.5A/2.5A unless the device
requests.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Under certain condi tions, a device connected to the
port may generate noise to the radio station you are
listening to.
On the front of the center console
*1
*2
USB Port (1.0A)
USB Port (1.5A)*
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 243 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
