Engine air filter HONDA CR-V 2021 Owner's Manual (in English)

582
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for tire repair kit bottle●Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission
temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed every 47,500 miles (75,000 km) or 3 years.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid
7●Replace brake fluid*5
21 CR-V HYBRID HMIN-31TPG6100.book 582 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

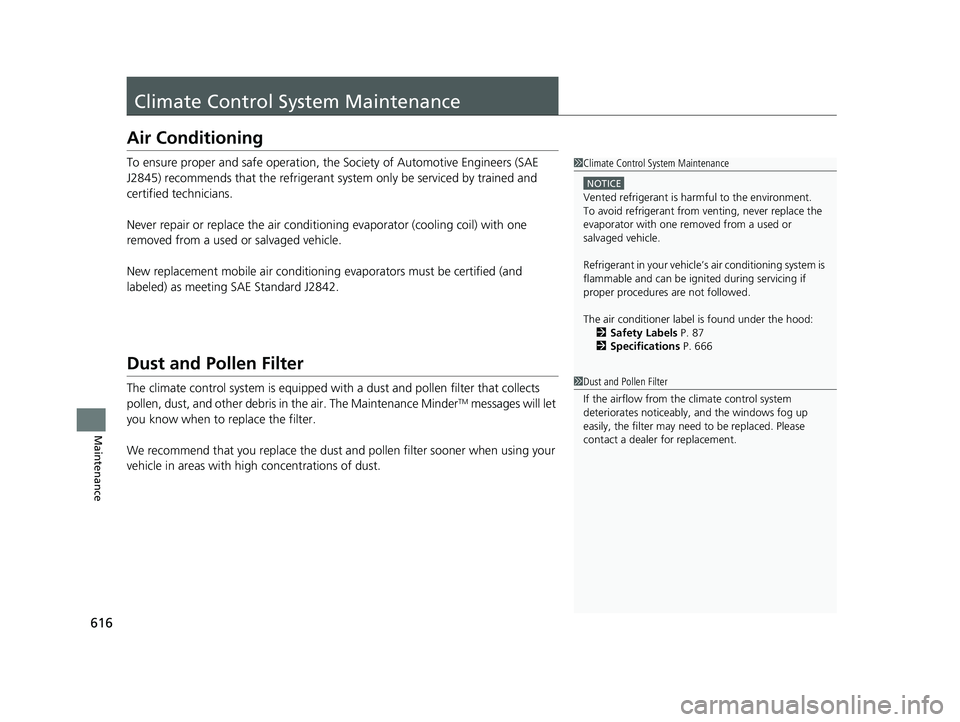

616
Maintenance
Climate Control System Maintenance
Air Conditioning
To ensure proper and safe operation, th e Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant system only be serviced by trained and
certified technicians.
Never repair or replace the air conditioning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.
Dust and Pollen Filter
The climate control system is equipped with a dust and pollen filter that collects
pollen, dust, and other debris in the air. The Maintenance MinderTM messages will let
you know when to replace the filter.
We recommend that you replace the dust a nd pollen filter sooner when using your
vehicle in areas with high concentrations of dust.
1 Climate Control System Maintenance
NOTICE
Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one re moved from a used or
salvaged vehicle.
Refrigerant in your vehicle’ s air conditioning system is
flammable and can be igni ted during servicing if
proper procedures are not followed.
The air conditioner labe l is found under the hood:
2 Safety Labels P. 87
2 Specifications P. 666
1Dust and Pollen Filter
If the airflow from the climate control system
deteriorates noticeably, and the windows fog up
easily, the filter may need to be replaced. Please
contact a dealer for replacement.
21 CR-V HYBRID HMIN-31TPG6100.book 616 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Index
679
Index
Index
Numbers
12-volt Battery......................................... 613
Charging System Indicator ................ 95, 650
Maintenance (Check ing the 12-volt
Battery) ................................................. 613
12-volt Battery Charging System Indicator ........................................... 95, 650
4WD .......................................................... 490
A
AAC................................................... 263, 319
ABS (Anti-lock Brake System) .................. 555
Accessories and Modifications ................ 622
Accessory Power Socket ........................... 228
Adaptive Cruise Control (ACC) with Low
Speed Follow .................................. 105, 515
Additives
Coolant .................................................. 591
Engine Oil ............................................... 586
Washer ................................................... 595
Additives, Engine Oil ............................... 586
Adjusting Armrest .................................................. 216
Front Seats.............................................. 207
Head Restraints ....................................... 214
Mirrors.................................................... 205
Rear Seats ............................................... 211
Steering Wheel ....................................... 204
Temperature ........................................... 138
Adjusting the Sound ........................ 254, 292 Agile Handling Assist
............................... 489
Air Conditioning System (Climate Control
System) .................................................... 234
Changing the Mode ................................ 237
Defrosting the Windshield and
Windows ............................................... 237
Dust and Pollen Filter ............................... 616
Recirculation/Fresh Air Mode ................... 237
Sensor ..................................................... 240
Synchronized Mode ................................. 239
Using Automatic Climate Control ............ 234
Air Pressure ....................................... 605, 667
Airbags ........................................................ 56
Advanced Airbags ..................................... 62
Airbag Care ............................................... 71
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 59
Indicator .............................................. 68, 97
Passenger Airbag Off Indicator .................. 69
Sensors ...................................................... 56
Side Airbags .............................................. 64
Side Curtain Airbags .................................. 66
All-Wheel Drive (AWD) ............................ 490
AM/FM Radio .................................... 256, 299
Android Auto
TM........................................ 335
Anti-lock Brake System (ABS) .................. 555
Indicator .................................................... 97
Apple CarPlay
TM........................................ 332
Armrest ..................................................... 216
Audio Remote Controls ............................ 246 Audio System
............................ 242, 249, 270
Adjusting the Sound........................ 254, 292
AM/FM Radio .................................. 256, 299
Android Auto
TM....................................... 335
Apple CarPlayTM....................................... 332
Audio/Information Screen................ 250, 271
Changing the Home Screen Icon Layout .. 275
Changing the Screen Interface ................ 289
Closing Apps ........................................... 291
Customizing the Meter............................ 276
Display Setup .................................. 255, 293
Error Messages ........................................ 339
General Information ................................ 344
Home Screen........................................... 282
HondaLink ®........................................... 324
How to use Siri ® Eyes Free .............. 269, 331
iPod ................................................ 258, 310
Limitations for Manual Operation ............ 294
Menu Customize ..................................... 290
MP3/WMA/AAC .............................. 263, 319
Pandora ®....................................... 261, 317
Playing Bluetooth ® Audio ................ 266, 322
Playing SiriusXM ® Radio .......................... 303
Reactivating ............................................ 245
Recommended Devices............................ 345
Remote Controls ..................................... 246
Security Code .......................................... 245
Selecting an Audio Source ....................... 294
Song By Voice
TM (SBV) ............................. 313
Status Area ............................................. 288
Theft Protection ...................................... 245
21 CR-V HYBRID HMIN-31TPG6100.book 679 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

682
Index
Exhaust Gas Hazard (Carbon Monoxide).. 86
Exterior Care (Cleaning) ........................... 619
Exterior Mirrors ......................................... 206
F
Features..................................................... 241
Filters Dust and Pollen ....................................... 616
Oil ........................................................... 589
Flat Tire ..................................................... 627
Floor Mats ................................................. 618
Fluids
Brake ....................................................... 594
Engine Coolant ........................................ 591
Windshield Washer .................................. 595
FM/AM Radio .................................... 256, 299
Fog Light Indicator ................................... 101
Folding Down the Rear Seats ................... 212
Foot Brake ................................................. 552
Front Airbags (SRS) ..................................... 59
Front Seats ................................................ 207
Adjusting ................................................. 207
Front Sensor Camera ................................ 546
Fuel ...................................................... 34, 570
Fuel Economy and CO
2 Emissions............. 573
Gauge ..................................................... 126
Instant Fuel Economy ............................... 130
Low Fuel Indicator ..................................... 96
Range ...................................................... 130
Recommendation .................................... 570 Refueling................................................. 570
Fuel Economy and CO
2 Emissions ............ 573
Fuel Fill Door ...................................... 34, 571
Fuses .......................................................... 657
Inspecting and Changing......................... 660
Locations................................. 657, 658, 659
G
Gasoline (Fuel)
Fuel Economy and CO
2 Emissions ............ 573
Information ............................................. 570
Refueling................................................. 570
Gauges ...................................................... 126
Glass (care) ........................................ 617, 620
Glove Box .................................................. 219
H
Handling of the Jack ................................ 641
Handling the Unexpected ........................ 625
HandsFreeLink ® (HFL) ....................... 397, 421
Automatic Import of Cellular Phonebook
and Call History ............................. 411, 434
Caller’s ID Information............................. 408
Displaying Messages................................ 449
HFL Buttons..................................... 397, 421
HFL Menus ...................................... 399, 424
HFL Status Display ........................... 398, 423
In Case of Emergency .............................. 453
Limitations for Manual Operation .... 398, 423 Making a Call ................................. 415, 442
Options During a Call...................... 420, 446
Phone Setup ................................... 403, 429
Phonebook Phonetic M
odification........... 438
Receiving a Call............................... 419, 445
Receiving a Text/E-mail Message ............. 447
Ring Tone ....................................... 408, 433
Selecting a Text/E-mail Message
Account ................................................ 448
Speed Dial ...................................... 412, 435
To Clear the System ................................ 410
To Set Up Text/E-mail Message Options .. 432
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 301
Head Restraints ........................................ 214
Headlights ................................................ 189
Aiming.................................................... 596
Auto High-Beam ..................................... 194
Automatic Operation .............................. 190
Dimming................................................. 189
Operating ............................................... 189
Heated Door Mirror Button .................... 200
Heated Steering Wheel ........................... 232
Heaters ..................................................... 233
HFL (HandsFreeLink ®) ...................... 397, 421
High Beam Indicator ................................ 100
High Voltage Battery ............................... 500
Hill Start Assist System ............................. 472
HomeLink ® Universal Transceiver ........... 394
Honda App License Agreement .............. 346
Honda Sensing ®................................ 35, 501
21 CR-V HYBRID HMIN-31TPG6100.book 682 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
