How to set compass HONDA CR-V 2021 Owner's Manual (in English)

241
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System ................ 242
USB Port(s) ....................................... 243
Audio System Theft Protection ......... 245
Audio Remote Controls .................... 246
Audio System Basic Operation Audio/Information Screen ................ 250
Adjusting the Sound ........................ 254
Display Setup ................................... 255
Playing AM/FM Radio ....................... 256
Playing an iPod ................................ 258
Playing Pandora ®.............................. 261
Playing a USB Flash Drive ................. 263
Models with color audio system
Playing Bluetooth ® Audio................. 266
Siri ® Eyes Free .................................. 269
Audio System Basic Operation Audio/Information Screen ................ 271
Adjusting the Sound ........................ 292
Display Setup ................................... 293
Voice Control Operation .................. 295
Playing AM/FM Radio ....................... 299
Playing SiriusXM ® Radio ................... 303
Playing an iPod ................................ 310
Song By Voice
TM (SBV) ...................... 313
Playing Pandora ®............................. 317
Playing a USB Flash Drive ................. 319
Models with Display Audio
Playing Bluetooth ® Audio ................ 322
HondaLink ®..................................... 324
Wi-Fi Connection ............................. 329
Siri ® Eyes Free .................................. 331
Apple CarPlay
TM............................... 332
Android AutoTM............................... 335
Audio Error Messages ...................... 339
General Information on the Audio System ............................................. 344
Customized Features ................ 361, 368
HomeLink ® Universal Transceiver
*.. 394
Bluetooth® HandsFreeLink® ..... 397, 421
Compass
*.......................................... 455
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 241 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

455
Features

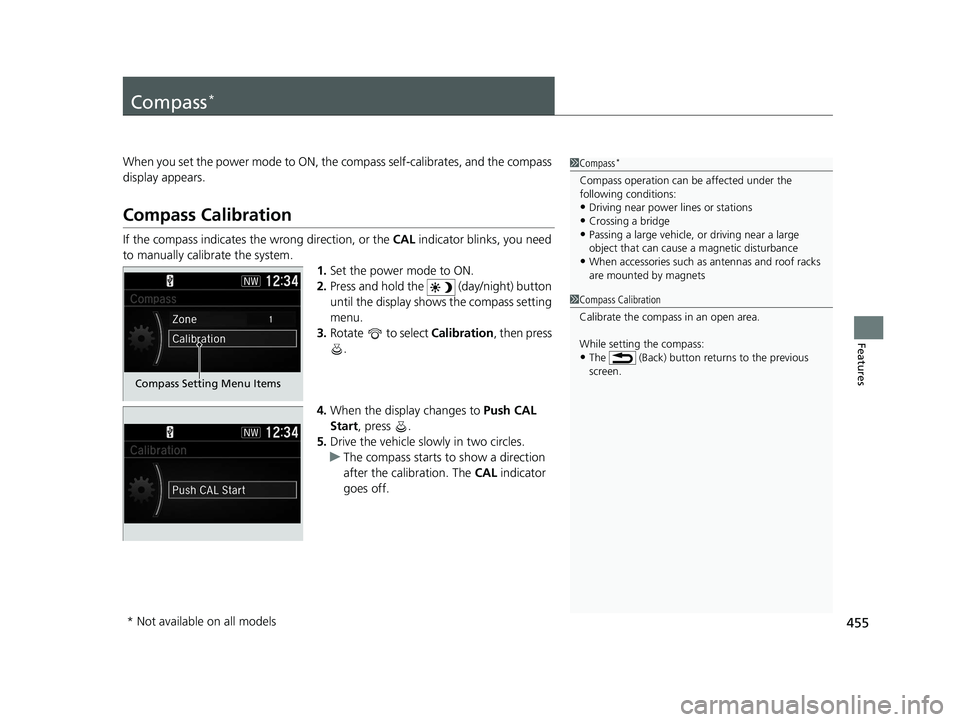

Compass*
When you set the power mode to ON, the compass self-calibrates, and the compass
display appears.
Compass Calibration
If the compass indicates the wrong direction, or the CAL indicator blinks, you need
to manually calibrate the system.
1.Set the power mode to ON.
2. Press and hold the (day/night) button
until the display shows the compass setting
menu.
3. Rotate to select Calibration, then press
.
4. When the display changes to Push CAL
Start, press .
5. Drive the vehicle slow ly in two circles.
u The compass starts to show a direction
after the calibration. The CAL indicator
goes off.
1 Compass*
Compass operation can be affected under the
following conditions:
•Driving near power lines or stations
•Crossing a bridge•Passing a large vehicle, or driving near a large
object that can cause a magnetic disturbance
•When accessories such as antennas and roof racks
are mounted by magnets
1 Compass Calibration
Calibrate the compass in an open area.
While setting the compass:
•The (Back) button returns to the previous
screen.
Compass Setting Menu Items
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 455 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

456
uuCompass*uCompass Zone Selection
Features

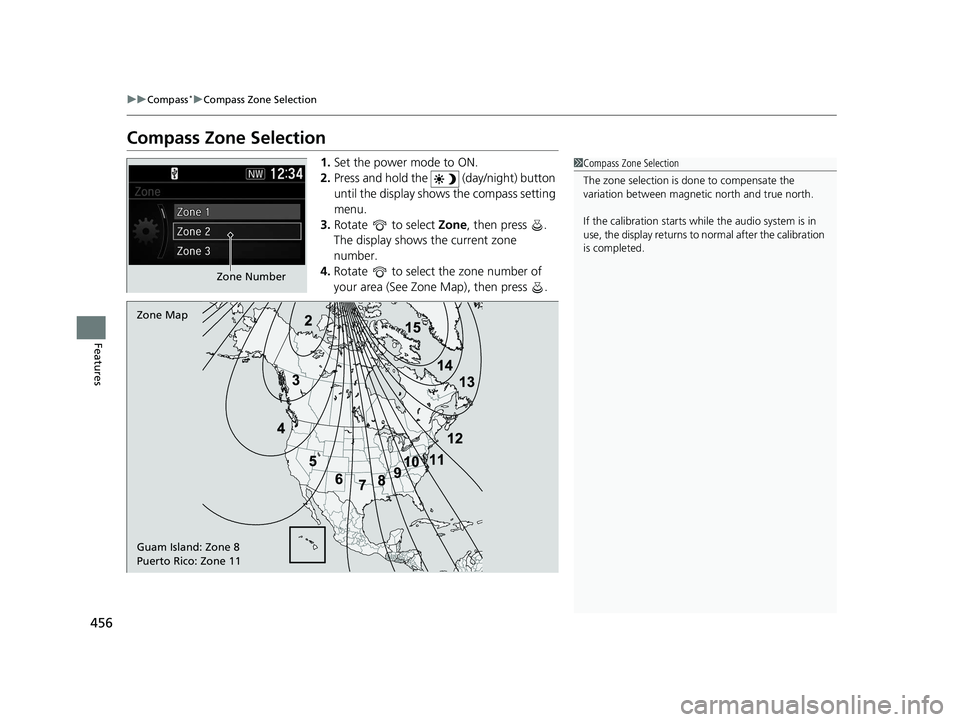

Compass Zone Selection
1. Set the power mode to ON.
2. Press and hold the (day/night) button
until the display shows the compass setting
menu.
3. Rotate to select Zone, then press .
The display shows the current zone
number.
4. Rotate to select the zone number of
your area (See Zone Map), then press .1Compass Zone Selection
The zone selection is done to compensate the
variation between magneti c north and true north.
If the calibration starts while the audio system is in
use, the display returns to normal after the calibration
is completed.
Zone Number
Zone Map
Guam Island: Zone 8
Puerto Rico: Zone 11
