Page 6 of 690
Contents
Child Safety P. 72Exhaust Gas Hazard P. 86Safety Labels P. 87
Tailgate P. 166 Security System P. 177 Windows P. 180
Operating the Switches Around the Steering Wheel P. 185 Mirrors P. 205
Climate Control System P. 234
Audio Error Messages P. 339 General Information on the Audio System P. 344
Bluetooth ® HandsFreeLink ® P. 397, 421 Compass* P. 455
Off-Highway Driving Guidelines P. 465 When Driving P. 467 Honda Sensing ® P. 501 Braking P. 549
Refueling P. 570 Fuel Economy and CO
2 Emissions P. 573
Maintenance Under the Hood P. 584 Replacing Light Bulbs P. 596
Checking and Maintaining Tires P. 604 12-volt Battery P. 613 Remote Transmitter Care P. 615
Cleaning P. 617 Accessories and Modifications P. 622
Handling of the Jack P. 641 Power System Won’t Start P. 642 If the 12-Volt Battery Is Dead P. 645
Fuses P. 657 Emergency Towing P. 661
Refueling P. 663
Devices that Emit Radio Waves P. 669 Reporting Safety Defects P. 670
Authorized Manuals P. 676 Customer Service Information P. 677
Quick Reference GuideP. 6
Safe DrivingP. 41
Instrument PanelP. 89
ControlsP. 149
FeaturesP. 241
DrivingP. 457
MaintenanceP. 575
Handling the UnexpectedP. 625
InformationP. 665
IndexP. 679
21 CR-V HYBRID HMIN-31TPG6100.book 5 ページ 2020年9月14日 月曜日 午前11時36分
Page 8 of 690
7
Quick Reference Guide
❚Navigation System Voice Control Buttons*
() See the Navigation System Manual
❚Bluetooth ® HandsFreeLink ® System Voice
Control Buttons
(P397, 421)
❚ / / / Buttons (P128, 246)
❚ENTER Button (P128, 246)
❚Wipers/Washers (P197)
❚Headlights/Turn Signals (P188, 189)
❚Fog Lights* (P193)
❚Interval Button (P526)
❚MAIN Button (P516, 534)
❚ (Display/Information) Button
(P128, 271)
❚Selector (-) (P 482)
❚Selector (+) (P 482)
❚ (TRIP) Knob (P129)
❚Brightness Control (P201)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P515)
❚Lane Keeping Assist System (LKAS) Button
(P532)
❚Horn (Press an area around .)
❚Heated Steering Wheel Button* (P232)
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 7 ページ 2020年9月14日 月曜日 午前11時36分
Page 10 of 690
9
Quick Reference Guide
❚Moonroof Switch* (P184)
❚LATCH to Secure a Child Seat (P77)
❚Grab Handle
❚Map Lights (P218)
❚Seat Belts (P47)
❚Ceiling Light (P217)
❚Side Curtain Airbags (P66)
❚Seat Belt with Detachable Anchor (P53)
❚Seat Belt to Secure a Child Seat (P82)
❚Seat Belt (Installing a Child Seat) (P80)
❚Rear Cargo Cover (P226)
❚USB Ports (On the Back of the
Center Console)* (P243)
❚Front Seat (P207)
❚Sun Visors
❚Vanity Mirrors
❚Center Console Box (P220)
❚Sunglasses Holder (P225)
❚Side Airbags (P64)
❚Coat Hook (P223)
❚Rear Seat (P211)
❚Cargo Area Lights (P218)
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 9 ページ 2020年9月14日 月曜日 午前11時36分
Page 11 of 690
Visual Index
10
Quick Reference Guide
❚Windshield Wipers (P197, 599)
❚Door Lock/Unlock Control (P155)
❚How to Refuel (P571)
❚Rear Wiper (P199, 602)
❚Brake/Taillights (P596)
❚Power Door Mirrors (P206)
❚Maintenance Under the Hood (P584)
❚Fog Lights* (P193, 596)
❚Multi-View Rear Camera (P568)
❚Front Turn Signal/Front Side Marker Lights
(P188, 189, 596)
❚Tires (P604, 627)
❚Opening/Closing the Tailgate (P166)
❚Side Turn Signal Lights* (P188, 596)
❚Headlights (P189, 596)
❚Taillights (P597)
❚Rear Turn Signal Lights (P596)
❚Rear Side Marker Lights (P596)
❚Back-Up Lights (P597)
❚Rear License Plate Light (P598)
❚Parking/Daytime Running Lights (P189, 193, 596)
❚Tailgate Outer Handle (P173)
❚High-Mount Brake Light (P598)
21 CR-V HYBRID HMIN-31TPG6100.book 10 ページ 2020年9月14日 月曜日 午前11時36分
Page 12 of 690
11
Quick Reference Guide
SPORT HYBRID i-MMD (intelligent Multi-Mode
Drive)
Your SPORT HYBRID i-MMD vehicle uses both an electric motor and a gasoline engine as propulsion sources, with the electric motor
receiving electricity from an internal High Voltage battery or in ternal generator. The High Voltage battery is charged from the generator
driven by the engine or regenerative braking.
When driving, your vehicle is propelled exclusively by the electric motor, exclusively by the gasoline engine, or by a combination of the two.
The system selects which propulsion source is most appropriate and automatically switches to it. Under certain circumstances, pressing the
EV button can manually enable EV (driven only on electricity) mode.
●Energy efficiency
As with a gasoline-powered vehicle, hybrid vehicle fuel efficien cy and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engin e.
In addition, heavy climate control system use negatively affects vehicle range and efficiency. Either of these use patterns will more quickly
reduce the High Voltage battery's state of charge.
●Battery types
There are two types of batteries used in this vehicle; a standard 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a high voltage battery that is used to power the propulsion motor and recharge the 12-volt battery.
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 11 ページ 2020年9月14日 月曜日 午前11時36分
Page 24 of 690
23
Quick Reference Guide
Turn Signals (P188)
Lights (P189)
Turn Signal Control Lever
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P197)
*1: Models with automatic intermittent
wipers
*2: Models without automatic intermittent
wipers
Wiper/Washer Control Lever Adjustment Ring MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Low Sensitivity*1
Lower speed, fewer sweeps*2
High Sensitivity*1
Higher speed, more sweeps*2(+:(+:
(-:(-:
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P204)
●To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Models with automatic intermittent wipers
Lever
To lock
To adjust
21 CR-V HYBRID HMIN-31TPG6100.book 23 ページ 2020年9月14日 月曜日 午前11時36分
Page 37 of 690
36
Quick Reference Guide
Maintenance (P575)
Under the Hood (P584)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P596)
●Inspect all lights regularly.
Wiper Blades (P599)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P604)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter
driving.
21 CR-V HYBRID HMIN-31TPG6100.book 36 ページ 2020年9月14日 月曜日 午前11時36分
Page 39 of 690
38
Quick Reference Guide
What to Do If
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P555)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, slide the
lever up to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The exterior lights are left on.
●The power mode is in ACCESSORY.
21 CR-V HYBRID HMIN-31TPG6100.book 38 ページ 2020年9月14日 月曜日 午前11時36分
Page 63 of 690
uuAirbags uFront Airbags (SRS)
62
Safe DrivingThe airbags have advanced features to help reduce the likelihood of airbag related
injuries to smaller occupants.
The driver’s advanced airbag system includes a
seat position sensor.
Based on information from this sensor and the
severity of the impact, the advanced airbag
system determines the optimal deployment of
the driver’s airbag.
The front passenger’s advanced airbag system
has weight sensors. The sensors are used for
occupant classification to activate or
deactivate the front passenger’s airbag.
For adult size occupants, the system will
automatically activate the front passenger’s
airbag. If a small adult sits in the front
passenger seat and the system does not
recognize him/her as an adult, see
2 Passenger Airbag Off Indicator P. 69
■Advanced Airbags1Advanced Airbags
If there is a problem with the driver’s seat position
sensor or the passenger’s s eat weight sensors, the
SRS indicator will come on, and in the event of a
crash, the airbag will deploy (regardless of the driver’s
seating position or passenger’s occupant
classification) with a fo rce corresponding to the
severity of the impact. 2 Supplemental Restraint System (SRS)
Indicator P. 68
For the advanced front airbags to work properly,
confirm that:
•The occupant is sitting in an upright position,
wearing the seat belt prope rly and the seat back is
not excessively reclined.
•The occupant is not leaning against the door or
center console.
•The occupant’s feet are plac ed on the floor in front
of them.
•There are no objects ha nging from the front
passenger’s seat.
•Only small, lightweight objec ts are in the seat back
pocket.
•The steering wheel and passenger’s side dashboard
are not obstructed by any object.
•No liquid has been spille d on or under the seat.
Driver’s
Seat
Position
Sensor
Passenger’s Seat
Weight Sensors
21 CR-V HYBRID HMIN-31TPG6100.book 62 ページ 2020年9月14日 月曜日 午前11時36分

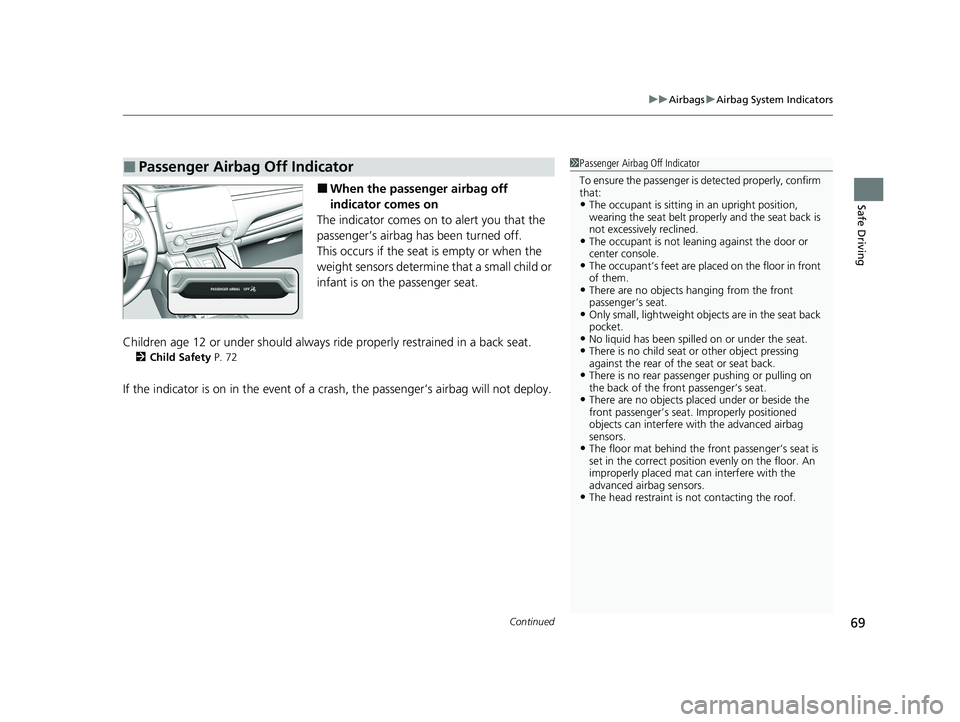

Page 70 of 690
Continued69
uuAirbags uAirbag System Indicators
Safe Driving■When the passenger airbag off
indicator comes on
The indicator comes on to alert you that the
passenger’s airbag has been turned off.
This occurs if the seat is empty or when the
weight sensors determine that a small child or
infant is on the passenger seat.
Children age 12 or under should always ride properly restrained in a back seat.
2 Child Safety P. 72
If the indicator is on in the event of a crash, the passenger’s airbag will not deploy.
■Passenger Airbag Off Indicator1Passenger Airbag Off Indicator
To ensure the passenger is detected properly, confirm
that:
•The occupant is sitting in an upright position,
wearing the seat belt prope rly and the seat back is
not excessively reclined.
•The occupant is not leaning against the door or
center console.
•The occupant’s feet are plac ed on the floor in front
of them.
•There are no objects ha nging from the front
passenger’s seat.
•Only small, lightweight objec ts are in the seat back
pocket.
•No liquid has been spille d on or under the seat.•There is no child seat or other object pressing
against the rear of the seat or seat back.
•There is no rear passenger pushing or pulling on
the back of the front passenger’s seat.
•There are no objects placed under or beside the
front passenger’s seat . Improperly positioned
objects can interfere with the advanced airbag
sensors.
•The floor mat behind the front passenger’s seat is
set in the correct position evenly on the floor. An
improperly placed mat can interfere with the
advanced airbag sensors.
•The head restraint is not contacting the roof.
21 CR-V HYBRID HMIN-31TPG6100.book 69 ページ 2020年9月14日 月曜日 午前11時36分
