Visual Index
8
Quick Reference Guide
❚Rearview Mirror (P205)
❚Driver’s Front Airbag
(P59)
❚Memory Buttons* (P 203)
❚Interior Fuse Box (P659)
❚Passenger’s Front Airbag
(P59)
❚SET Button* (P 203)
❚Power Window Switches (P181)
❚Door Mirror Controls (P206)
❚Master Door Lock Switch (P 164)
❚Electric Parking Brake
Switch
(P549)
❚Automatic Brake Hold
Button
(P553)
❚Glove Box (P219)
❚SPORT Button (P481)
❚Accessory Power Socket
(P228)
❚Shift Buttons (P475)
❚EV Button (P14)
❚ECON Button (P485)
❚Wireless Charger* (P229)
❚USB Port(s) (P243)
❚Hood Release Handle (P585)
❚Fuel Fill Door Release Handle (P571)
❚Driver’s Pocket
21 CR-V HYBRID HMIN-31TPG6100.book 8 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Visual Index
10
Quick Reference Guide
❚Windshield Wipers (P197, 599)
❚Door Lock/Unlock Control (P155)
❚How to Refuel (P571)
❚Rear Wiper (P199, 602)
❚Brake/Taillights (P596)
❚Power Door Mirrors (P206)
❚Maintenance Under the Hood (P584)
❚Fog Lights* (P193, 596)
❚Multi-View Rear Camera (P568)
❚Front Turn Signal/Front Side Marker Lights
(P188, 189, 596)
❚Tires (P604, 627)
❚Opening/Closing the Tailgate (P166)
❚Side Turn Signal Lights* (P188, 596)
❚Headlights (P189, 596)
❚Taillights (P597)
❚Rear Turn Signal Lights (P596)
❚Rear Side Marker Lights (P596)
❚Back-Up Lights (P597)
❚Rear License Plate Light (P598)
❚Parking/Daytime Running Lights (P189, 193, 596)
❚Tailgate Outer Handle (P173)
❚High-Mount Brake Light (P598)
21 CR-V HYBRID HMIN-31TPG6100.book 10 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

35
Quick Reference Guide
Honda Sensing® (P501)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the front grille and a front sensor
camera mounted to the interior side of the
windshield, behind the rear view mirror.
The camera is located
behind the rearview
mirror.
Front Sensor
Camera
Radar Sensor
The radar sensor is
in
side the front grille.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P504)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when the
potential for a collision is determined, as
well as to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P515)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Lane Keeping Assist
System (LKAS)
(P532)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Road Departure
Mitigation (RDM) System
(P541)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
21 CR-V HYBRID HMIN-31TPG6100.book 35 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

205
Controls
Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When you are driving after dark, the
automatic dimming rearview mirror reduces
the glare from headlights behind you. This
feature is always active.
■Rearview Mirror with Day and Night Positions*
1Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Front Seats P. 207
Tab
Daytime
Position Night
Position
■Automatic Dimming Rearview Mirror*
Sensor
1
Automatic Dimming Rearview Mirror*
The auto dimming function cancels when the
transmission is in
(R.
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 205 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued225
uuInterior Convenience Items uStorage Items
Controls
To open the sunglasses holder, press and
release the indent. To close, press it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Conversation mirror
The sunglasses holder comes with a mirror.
Open the sunglasses holder fully, then push it
back to the first detent.
You can use the mirror to view the rear seats.
■Sunglasses Holder1 Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Press
21 CR-V HYBRID HMIN-31TPG6100.book 225 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuWhen Driving uBlind spot information System*
498
Driving
■When the system detects a vehicle1Blind spot information System*
The blind spot information system alert indicator may
not come on under the following conditions:
•A vehicle does not stay in the alert zone for more
than two seconds.
•A vehicle is parked in a side lane.
•The speed difference betw een your vehicle and the
vehicle you are passing is greater than 6 mph (10
km/h).
•An object not detected by the radar sensors
approaches or passes your vehicle.
•A vehicle running in the adjacent lane is a
motorcycle or other small vehicle.
You can change the setting for the blind spot
information system. 2 Customized Features P. 368
■Comes on when:●A vehicle enters the alert zone from behind
to overtake you with a speed difference of
no more than 31 mph (50 km/h) from your
vehicle.
●You pass a vehicle with a speed difference
of no more than 12 mph (20 km/h).
■Blinks and the beeper sounds when:
You move the turn signal lever in the direction
of the detected vehicle. The beeper sounds
three times. Comes On
Blinks
Blind spot information
System Alert Indicator:
Located on the outside rearview mirror on
both sides.
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 498 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

501Continued
Driving
Honda Sensing®
Honda Sensing® is a driver support system which employs the use of two distinctly
different kinds of sensors: a radar sensor located inside the front grille and a front
sensor camera mounted to the interior side of the windshield, behind the rearview
mirror.
Honda Sensing ® has following functions.
■The functions which do not requir e switch operations to activate
• Collision Mitigation Braking SystemTM (CMBSTM) 2 P. 504
• Road Departure Mitigation (RDM) System 2 P. 541
■The functions wh ich require switch operations to activate
• Adaptive Cruise Control ( ACC) with Low Speed Follow
2 P. 515
• Lane Keeping Assist System (LKAS) 2 P. 532
21 CR-V HYBRID HMIN-31TPG6100.book 501 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued505
uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
Driving
■How the system works
The system starts monitoring the roadway ah ead when your vehicle speed is about
3 mph (5 km/h) and there is a vehicle in front of you. The radar sensor is
in the front grille.
The CMBS
TM activates when:●The speed difference between your vehicle and a vehicle or pedestrian detected in
front of you becomes about 3 mph (5 km/h) and over with a chance of a collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and the system
determines there is a chance of a collision with:
- Vehicles detected in front of you that are stationary, oncoming, or traveling in
your same direction.
- A pedestrian who is detected in front of you.
●Your vehicle speed is above 62 mph (100 km/h), and the system determines
there is a chance of a collision with a vehicle detected in front of you traveling
in your same direction. The camera is
located behind the
rearview mirror.
When to use
1
How the system works
When the CMBS
TM activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential coll ision is not determined.
21 CR-V HYBRID HMIN-31TPG6100.book 505 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

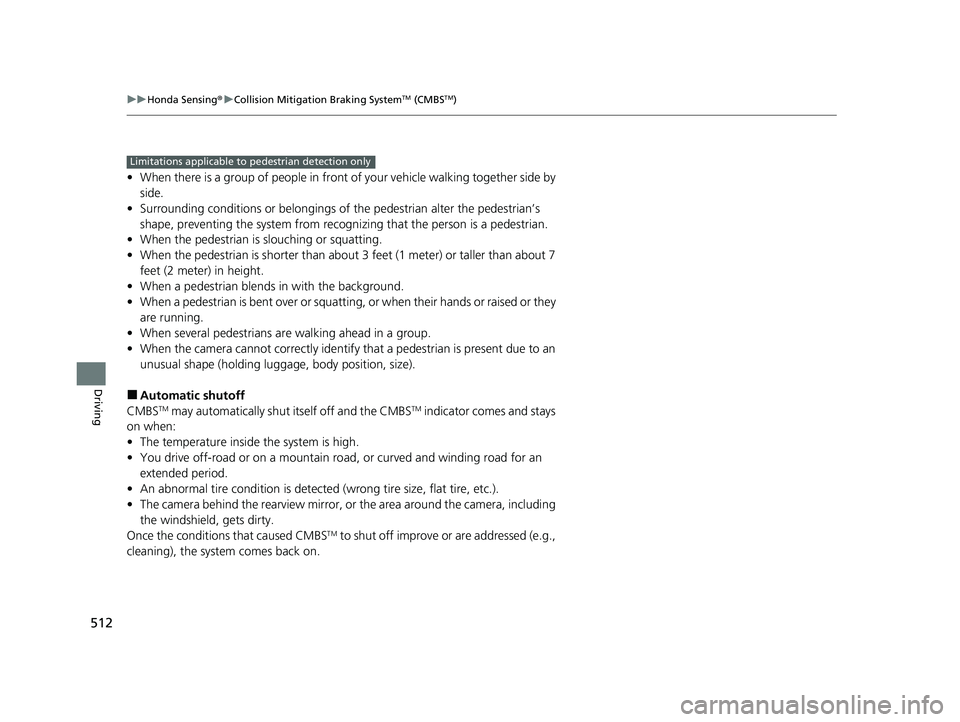

512
uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
Driving
• When there is a group of people in front of your vehicle walking together side by
side.
• Surrounding conditions or belongings of the pedestrian alter the pedestrian’s
shape, preventing the system from recogn izing that the person is a pedestrian.
• When the pedestrian is slouching or squatting.
• When the pedestrian is shorter than about 3 feet (1 meter) or taller than about 7
feet (2 meter) in height.
• When a pedestrian blends in with the background.
• When a pedestrian is bent over or squatting, or when their hands or raised or they
are running.
• When several pedestrians are walking ahead in a group.
• When the camera cannot correctly identify that a pedestrian is present due to an
unusual shape (holding luggage, body position, size).
■Automatic shutoff
CMBSTM may automatically shut itself off and the CMBSTM indicator comes and stays
on when:
• The temperature inside the system is high.
• You drive off-road or on a mountain ro ad, or curved and winding road for an
extended period.
• An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
Once the conditions that caused CMBS
TM to shut off improve or are addressed (e.g.,
cleaning), the system comes back on.
Limitations applicable to pedestrian detection only
21 CR-V HYBRID HMIN-31TPG6100.book 512 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

515
uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow
Continued
Driving
Adaptive Cruise Control (ACC) with Low Speed
Follow
Helps maintain a constant vehicle speed and a set following-interval behind a vehicle
detected ahead of yours and, if the detect ed vehicle comes to a stop, can decelerate
and stop your ve hicle, without you having to keep your foot on the brake or the
accelerator.
When ACC with Low Speed Follo w slows your vehicle by applying the brakes, your
vehicle’s brake lights will illuminate.
1 Adaptive Cruise Control (ACC) with Low Speed Follow
Important Reminder
As with any system, there are limits to ACC with Low
Speed Follow. Use the brake pedal whenever
necessary, and always keep a safe interval between
your vehicle and other vehicles.
For directions on the prop er handling of the radar
sensor, refer to the following page. 2 Radar Sensor P. 548
3WARNING
Improper use of ACC with Low Speed
Follow can lead to a crash.
Use ACC with Low Speed Follow only
when driving on expressways or
freeways and in good weather
conditions.
3WARNING
ACC with Low Speed Follow has limited
braking capability and may not stop
your vehicle in time to avoid a collision
with a vehicle that qu ickly stops in front
of you.
Always be prepared to apply the brake
pedal if the cond itions require.
When to use
■Vehicle speed for ACC wi th Low Speed Follow: A vehicle is detected ahead
within ACC with Low Speed Follow range – ACC with Low Speed Follow
operates at speeds up to 90 mph (145 km/h).
No vehicle is detected within ACC with Low Speed Follow range – ACC with
Low Speed Follow operates at the speed of 25 mph (40 km/h) or above.
■Shift position for ACC with Low Speed Follow: In ( D.
The radar sensor is
inside the front grille.
The camera is
located behind
the rearview
mirror.
21 CR-V HYBRID HMIN-31TPG6100.book 515 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
