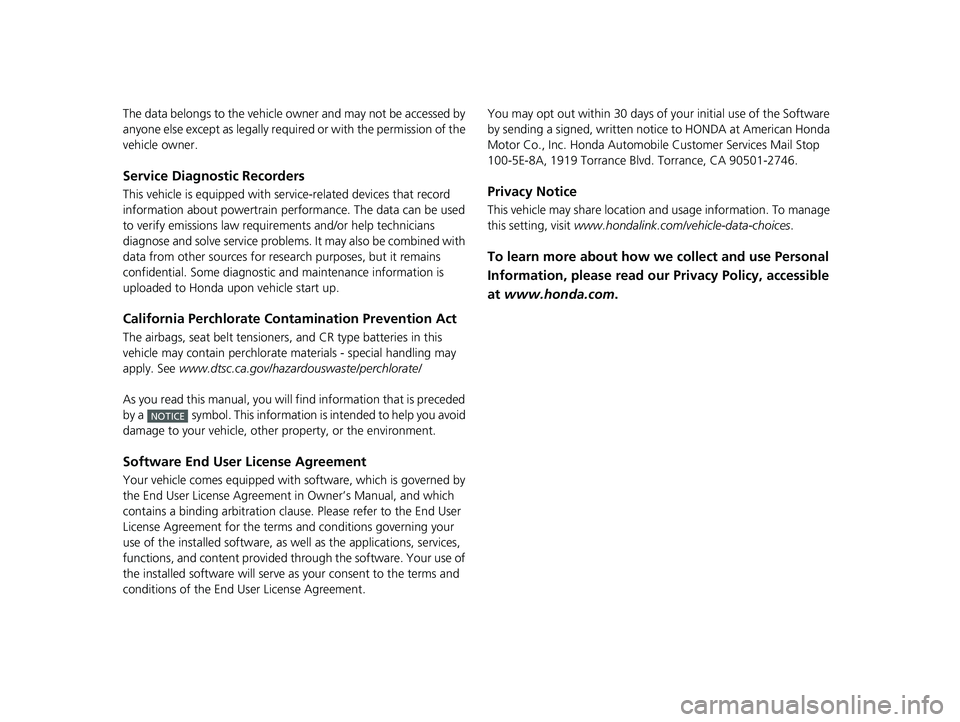

The data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with se rvice-related devices that record
information about powertrain perfo rmance. The data can be used
to verify emissions law requirem ents and/or help technicians
diagnose and solve service problems . It may also be combined with
data from other sources for research purposes, but it remains
confidential. Some diagnostic and maintenance information is
uploaded to Honda upon vehicle start up.
California Perchlorate Conta mination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, othe r property, or the environment.
Software End User License Agreement
Your vehicle comes equipped with software, which is governed by
the End User License Agreement in Owner’s Manual, and which
contains a binding arbitration clau se. Please refer to the End User
License Agreement for the terms and conditions governing your
use of the installed software, as we ll as the applications, services,
functions, and content provided through the software. Your use of
the installed software wi ll serve as your consent to the terms and
conditions of the End User License Agreement.
NOTICE
You may opt out within 30 days of your initial use of the Software
by sending a signed, written noti ce to HONDA at American Honda
Motor Co., Inc. Honda Automobile Customer Services Mail Stop
100-5E-8A, 1919 Torrance Blvd. Torrance, CA 90501-2746.
Privacy Notice
This vehicle may share location and usage information. To manage
this setting, visit www.hondalink.com/vehicle-data-choices .
To learn more about how we collect and use Personal
Information, please read our Privacy Policy, accessible
at www.honda.com .
21 CR-V HYBRID HMIN-31TPG6100.book 1 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

15
Quick Reference Guide
●Regenerative Energy and Regenerative BrakingWhen decelerating without the accelerator being depressed or the brake pedal being applied, or
while driving downhill, the electric motor acts as a generator that recovers a portion of the
electrical energy that was used to accelerate the vehicle. This regenerative braking slows the
vehicle in a manner similar to engine braking in a gasoline-powered vehicle. You can control the
rate of deceleration by using the deceleration paddle selector.
●Auto Engine Stop/Start
Your vehicle’s gasoline engine automatically stops running during vehicle operation or restarts while the vehicle is stationary when it is
appropriate.
In the following cases, however, auto engine stop may not activate.
•The vehicle momentarily needs additional power for aggressive acceleration, or driving uphill or at high speed.•The climate control system is in heavy use.
•The High Voltage battery temperature is high or low.
•The High Voltage battery is too low on charge.
●Sounds Unique to the SPORT HYBRID i-MMD System
When you first start driving this vehicle, you will likely hear so me unfamiliar sounds, particularly when you turn on the power system, or
while you are driving or accelerating from a stop. Some of thes e sounds are unique to this vehicle‘s powertrain, fuel, and climate control
systems; others are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent f rom a
vehicle of this design. These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any
new or unusual noise should one develop.
After shutting off the engine, you ma y hear certain noises coming from the vehicle. Here’s the lowdown:
●Noise from Under Vehicle: This noise is caused by the vacuum pump inside the fuel evaporation leakage check module (ELCM).
Depending on conditions, the pump will come on for about 15 minutes about 5 to 10 hours after engine shutoff. This noise is just normal
vehicle operation and doesn’t indicate a vehicle problem.
When regenerative braking is in
operation
Motor
High
Voltage
Battery
21 CR-V HYBRID HMIN-31TPG6100.book 15 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

95

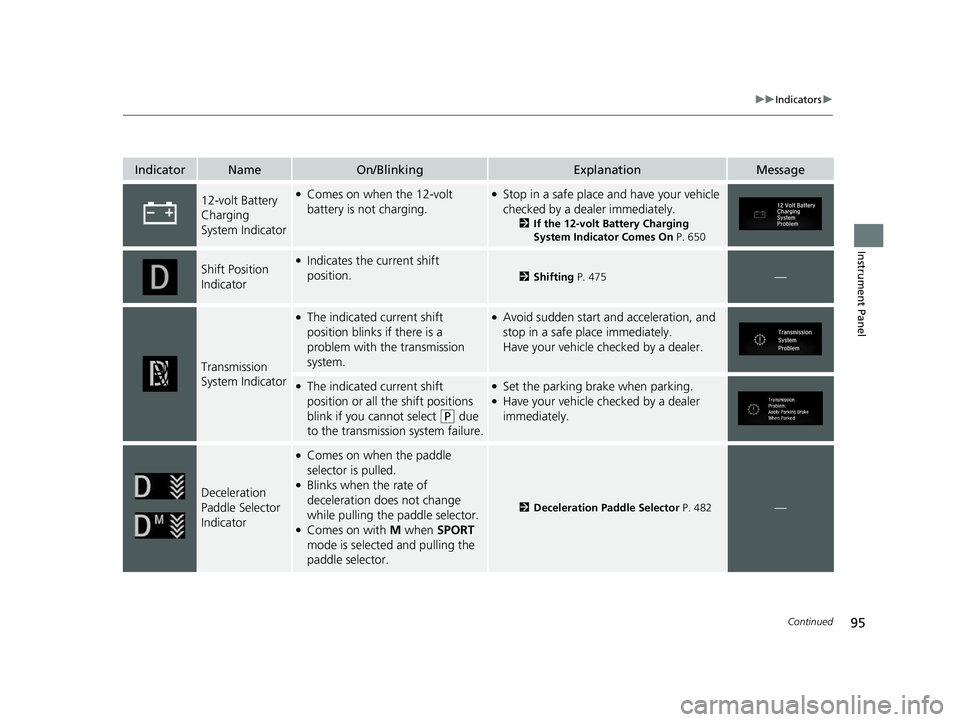

uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
12-volt Battery
Charging
System Indicator●Comes on when the 12-volt
battery is not charging.●Stop in a safe place and have your vehicle
checked by a dealer immediately.
2If the 12-volt Battery Charging
System Indicator Comes On P. 650
Shift Position
Indicator●Indicates the current shift
position.
2Shifting P. 475—
Transmission
System Indicator
●The indicated current shift
position blinks if there is a
problem with th e transmission
system.●Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by a dealer.
●The indicated current shift
position or all the shift positions
blink if you cannot select
(P due
to the transmission system failure.
●Set the parking brake when parking.●Have your vehicle checked by a dealer
immediately.
Deceleration
Paddle Selector
Indicator
●Comes on when the paddle
selector is pulled.
●Blinks when the rate of
deceleration does not change
while pulling the paddle selector.
●Comes on with M when SPORT
mode is selected and pulling the
paddle selector.
2 Deceleration Paddle Selector P. 482—
21 CR-V HYBRID HMIN-31TPG6100.book 95 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

111

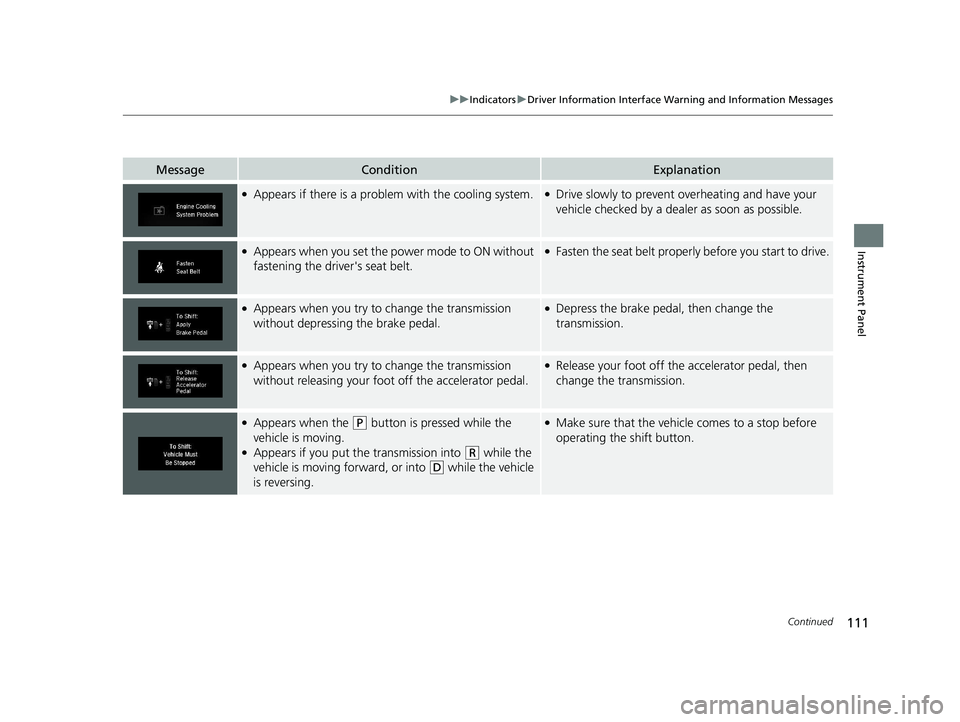

uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the cooling system.●Drive slowly to prevent overheating and have your
vehicle checked by a dealer as soon as possible.
●Appears when you set the power mode to ON without
fastening the driver's seat belt.●Fasten the seat belt properly before you start to drive.
●Appears when you try to change the transmission
without depressing the brake pedal.●Depress the brake pedal, then change the
transmission.
●Appears when you try to change the transmission
without releasing your foot off the accelerator pedal.●Release your foot off the accelerator pedal, then
change the transmission.
●Appears when the (P button is pressed while the
vehicle is moving.
●Appears if you put the transmission into (R while the
vehicle is moving forward, or into
(D while the vehicle
is reversing.
●Make sure that the vehicle comes to a stop before
operating the shift button.
21 CR-V HYBRID HMIN-31TPG6100.book 111 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

112

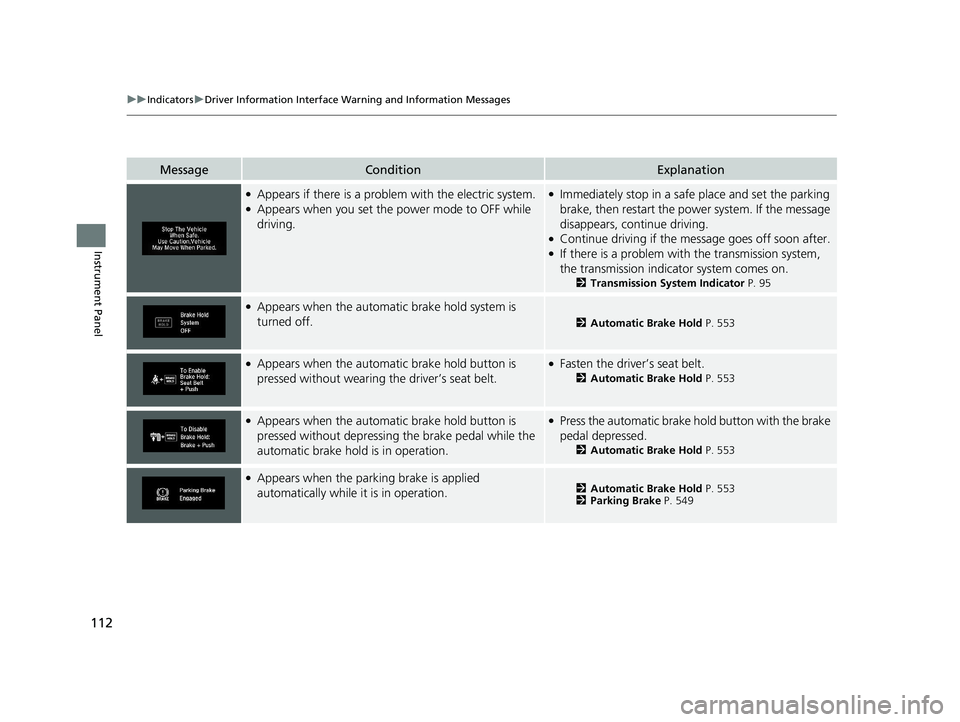

uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the electric system.●Appears when you set the power mode to OFF while
driving.
●Immediately stop in a safe place and set the parking
brake, then restart the power system. If the message
disappears, continue driving.
●Continue driving if the me ssage goes off soon after.●If there is a problem with the transmission system,
the transmission indicator system comes on.
2Transmission System Indicator P. 95
●Appears when the automatic brake hold system is
turned off.
2Automatic Brake Hold P. 553
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 553
●Appears when the automa tic brake hold button is
pressed without de pressing the brake pedal while the
automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 553
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 553
2 Parking Brake P. 549
21 CR-V HYBRID HMIN-31TPG6100.book 112 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

113

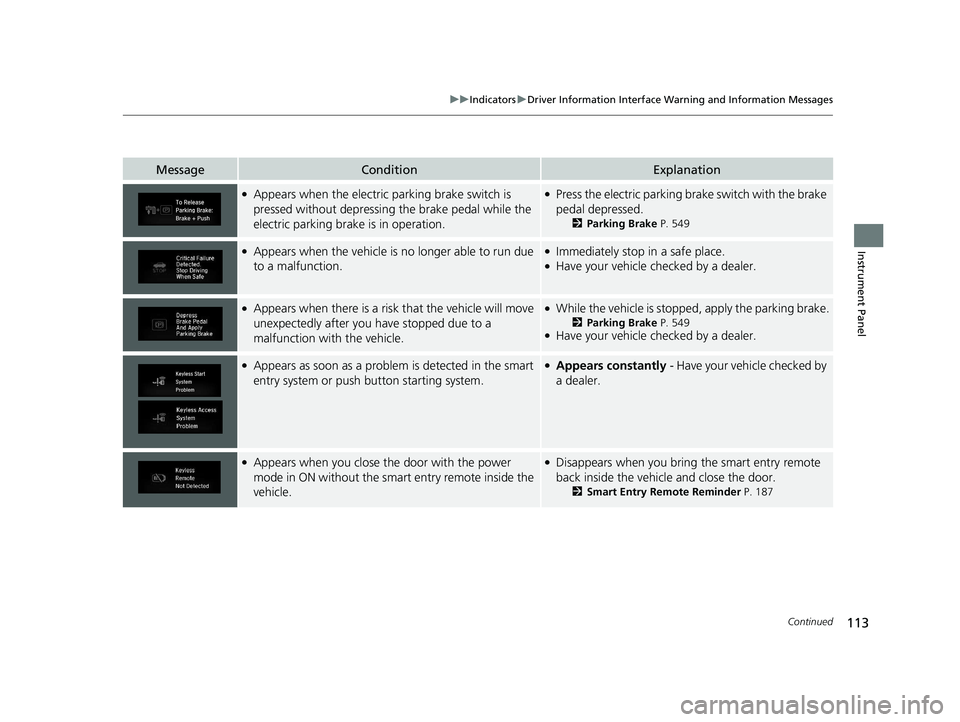

uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while the
electric parking brake is in operation.●Press the electric parking brake switch with the brake
pedal depressed.
2Parking Brake P. 549
●Appears when the vehicle is no longer able to run due
to a malfunction.●Immediately stop in a safe place.●Have your vehicle checked by a dealer.
●Appears when there is a risk that the vehicle will move
unexpectedly after you have stopped due to a
malfunction with the vehicle.●While the vehicle is stopped, apply the parking brake.
2 Parking Brake P. 549●Have your vehicle checked by a dealer.
●Appears as soon as a problem is detected in the smart
entry system or push button starting system.●Appears constantly - Have your vehicle checked by
a dealer.
●Appears when you close the door with the power
mode in ON without the smart entry remote inside the
vehicle.●Disappears when you bring the smart entry remote
back inside the vehicle and close the door.
2 Smart Entry Remote Reminder P. 187
21 CR-V HYBRID HMIN-31TPG6100.book 113 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

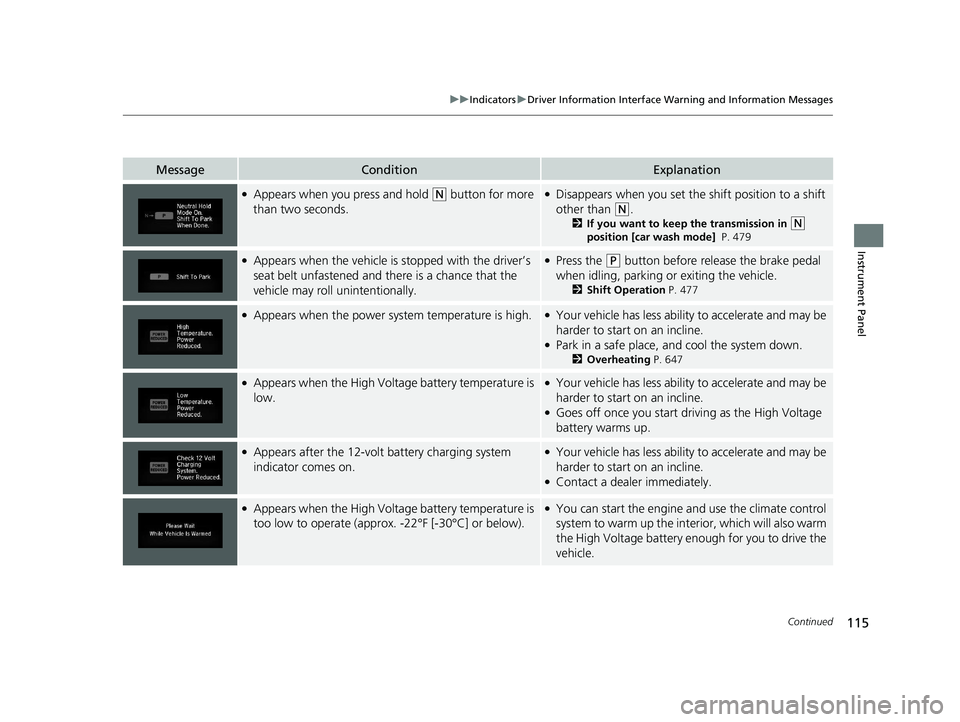

115
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you press and hold (N button for more
than two seconds.●Disappears when you set the shift position to a shift
other than
(N.
2 If you want to keep the transmission in (N
position [car wash mode] P. 479
●Appears when the vehicle is stopped with the driver’s
seat belt unfastened and there is a chance that the
vehicle may roll unintentionally.●Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 477
●Appears when the power system temperature is high.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Park in a safe place, and cool the system down.
2Overheating P. 647
●Appears when the High Volt age battery temperature is
low.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Goes off once you start dr iving as the High Voltage
battery warms up.
●Appears after the 12-volt battery charging system
indicator comes on.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Contact a dealer immediately.
●Appears when the High Volt age battery temperature is
too low to operate (approx. -22°F [-30°C] or below).●You can start the engine and use the climate control
system to warm up the interior, which will also warm
the High Voltage battery en ough for you to drive the
vehicle.
21 CR-V HYBRID HMIN-31TPG6100.book 115 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued171

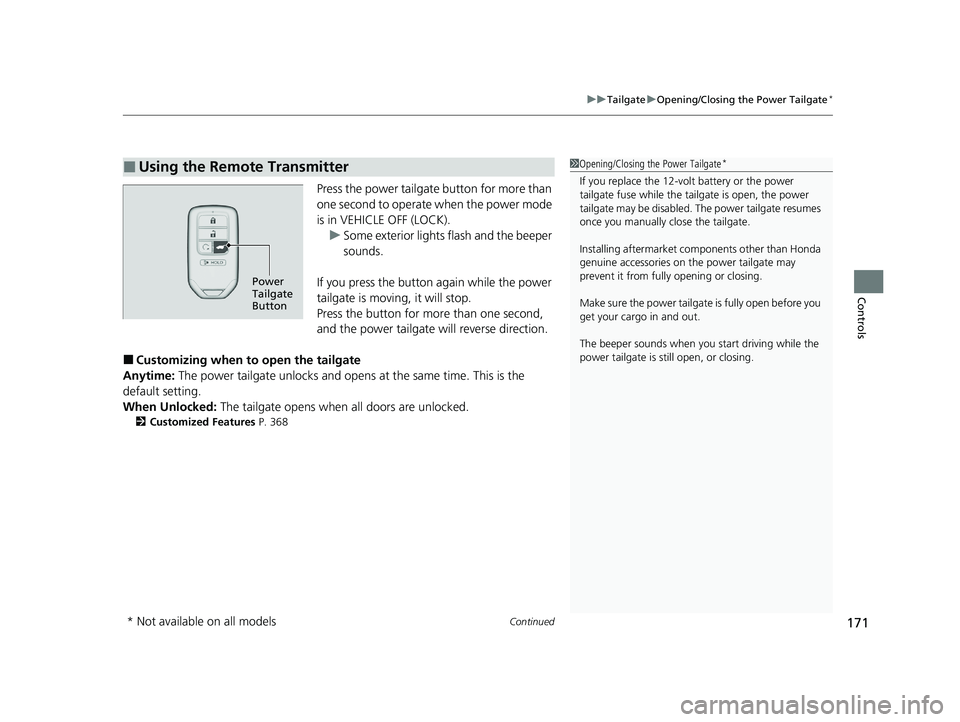

uuTailgate uOpening/Closing the Power Tailgate*
Controls
Press the power tailgate button for more than
one second to operate when the power mode
is in VEHICLE OFF (LOCK).
u Some exterior lights flash and the beeper
sounds.
If you press the button again while the power
tailgate is moving, it will stop.
Press the button for mo re than one second,
and the power tailgate will reverse direction.
■Customizing when to open the tailgate
Anytime: The power tailgate unlocks and open s at the same time. This is the
default setting.
When Unlocked: The tailgate opens when all doors are unlocked.
2Customized Features P. 368
■Using the Remote Transmitter1Opening/Closing the Power Tailgate*
If you replace the 12-volt battery or the power
tailgate fuse while the tailgate is open, the power
tailgate may be di sabled. The power tailgate resumes
once you manually cl ose the tailgate.
Installing aftermarket com ponents other than Honda
genuine accessories on the power tailgate may
prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you
get your cargo in and out.
The beeper sounds when you start driving while the
power tailgate is still open, or closing.
Power
Tailgate
Button
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 171 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

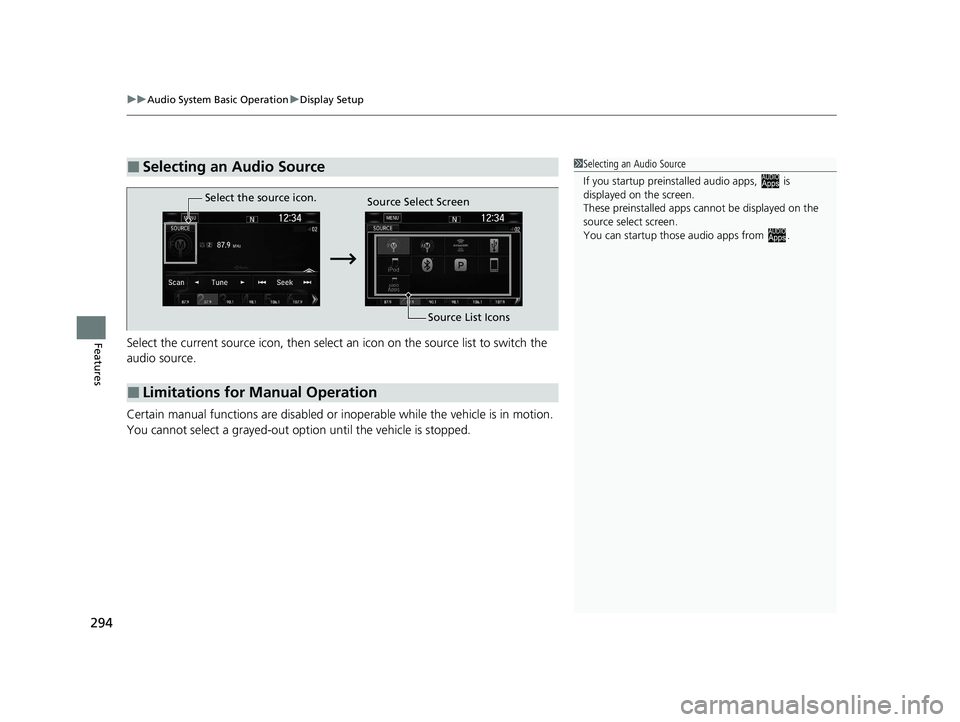

uuAudio System Basic Operation uDisplay Setup
294
FeaturesSelect the current source icon, then select an icon on the source list to switch the
audio source.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
■Selecting an Audio Source1 Selecting an Audio Source
If you startup preinstalled audio apps, is
displayed on the screen.
These preinstalled apps ca nnot be displayed on the
source select screen.
You can startup thos e audio apps from .
■Limitations for Manual Operation
Select the source icon.
Source Select Screen
Source List Icons
21 CR-V HYBRID HMIN-31TPG6100.book 294 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

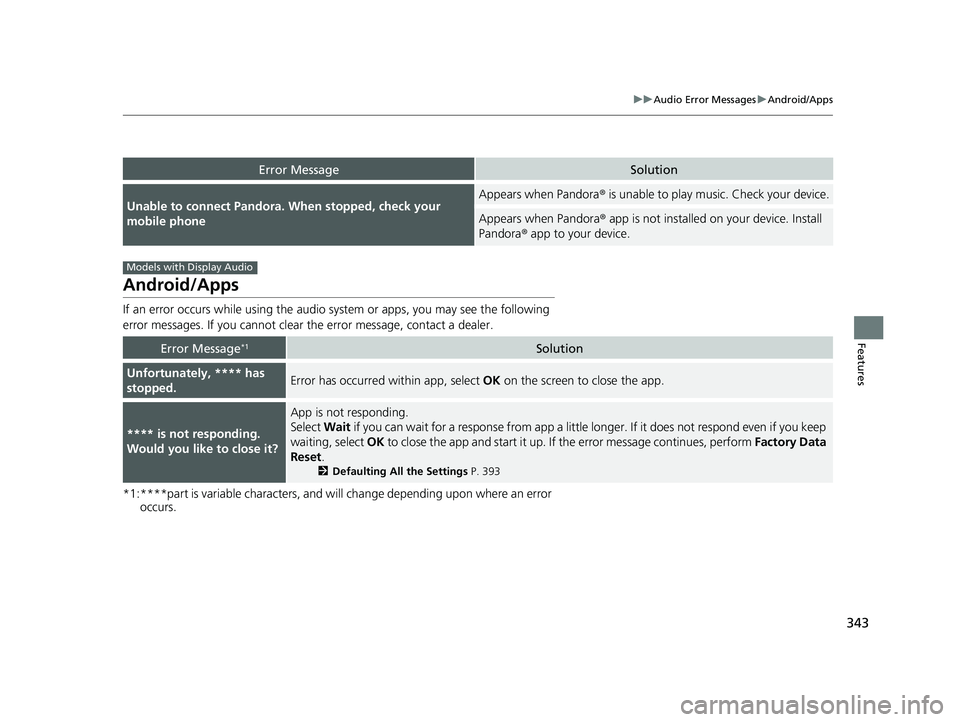

343
uuAudio Error Messages uAndroid/Apps
Features
Android/Apps
If an error occurs while using the audio system or apps, you may see the following
error messages. If you cannot clear the error message, contact a dealer.
*1:****part is variable characters, and will change depending upon where an error
occurs.
Error MessageSolution
Unable to connect Pandora. When stopped, check your
mobile phoneAppears when Pandora ® is unable to play music. Check your device.
Appears when Pandora ® app is not installed on your device. Install
Pandora ® app to your device.
Error Message*1Solution
Unfortunately, **** has
stopped.Error has occurred within app, select OK on the screen to close the app.
**** is not responding.
Would you like to close it?
App is not responding.
Select Wait if you can wait for a response from app a little longer. If it does not respond even if you keep
waiting, select OK to close the app and start it up. If the error message continues, perform Factory Data
Reset .
2Defaulting All the Settings P. 393
Models with Display Audio
21 CR-V HYBRID HMIN-31TPG6100.book 343 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
