display HONDA CR-V HYBRID 2020 Navigation Manual (in English)

78
uuMap Operation uMap Menu
Navigation
Map Menu
H (Map) u
Select an option.
The following options are available:
• Where To? : Enters a new destination.
2Entering a Destination P. 54
•Mute : Turns the voice prompts on or off.
• Stop : Cancels the route guidance and removes your current route.
• Detour : Calculates a detour route.
2Taking a Detour P. 88
•Exit Services : Displays a list of the exit services for the route.
2Viewing Exit Services P. 79
•Where Am I? : Displays the info rmation about your current location.
2Viewing the Current Lo cation Information P. 80
•Map Layers : Sets the data that appears on the map.
2Map Layers P. 34
•ecoRouteTM: Uses the ecoRouteTM features.
2 ecoRouteTM P. 107
•Settings : Changes settings for navigation functions.
2System Setup P. 15
1Map Menu
You can also display the map menu by selecting
on the map screen.
19 CR-V NAVI-31TLA8200.book 78 ページ ２０１８年８月２８日　火曜日　午後２時１７分

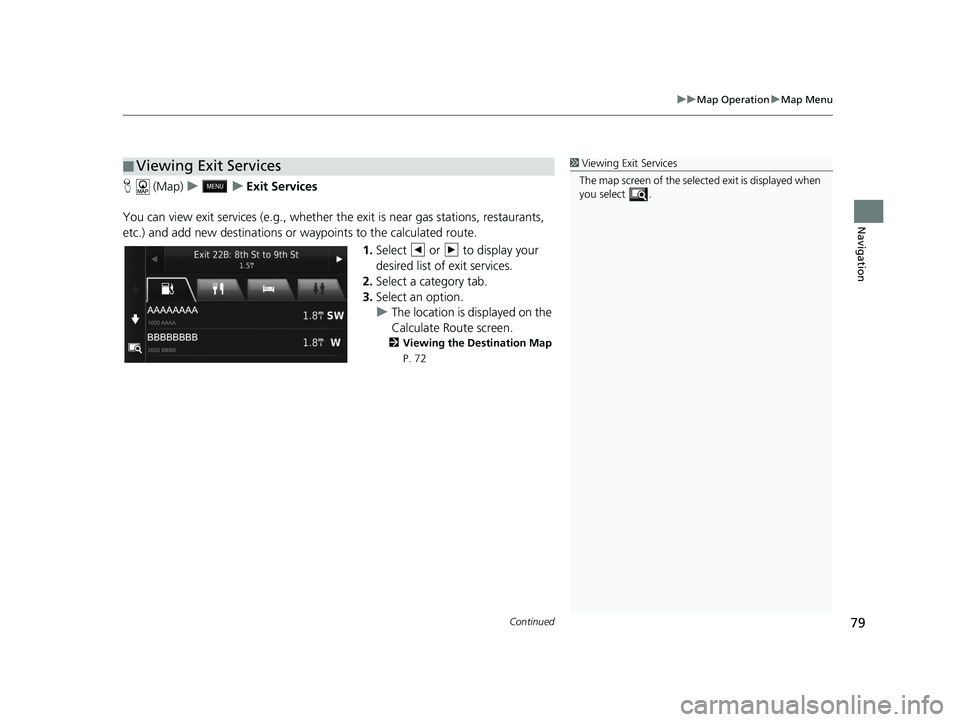

Continued79
uuMap Operation uMap Menu
Navigation
H (Map) uu Exit Services
You can view exit services (e.g., whether th e exit is near gas stations, restaurants,
etc.) and add new destinations or waypoints to the calculated route.
1.Select or to display your
desired list of exit services.
2. Select a category tab.
3. Select an option.
u The location is displayed on the
Calculate Route screen.
2 Viewing the Destination Map
P. 72
■ Viewing Exit Services1
Viewing Exit Services
The map screen of the selected exit is displayed when
you select .
19 CR-V NAVI-31TLA8200.book 79 ページ ２０１８年８月２８日　火曜日　午後２時１７分

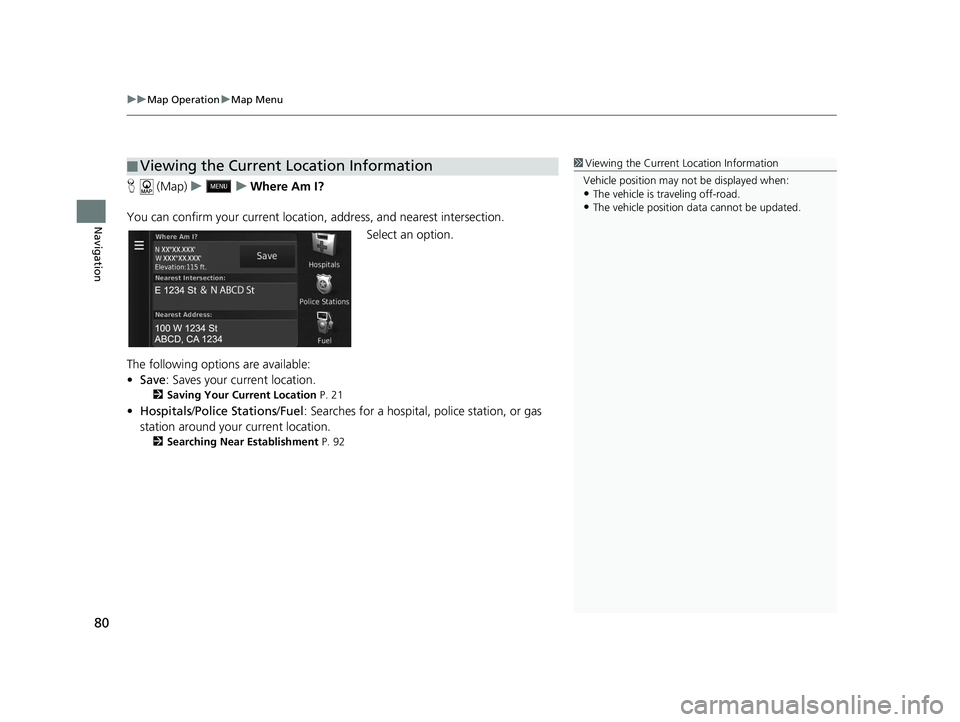

uuMap Operation uMap Menu
80
Navigation
H (Map) uu Where Am I?
You can confirm your current location , address, and nearest intersection.
Select an option.
The following options are available:
• Save : Saves your current location.
2Saving Your Current Location P. 21
•Hospitals /Police Stations /Fuel : Searches for a hospital, police station, or gas
station around your current location.
2 Searching Near Establishment P. 92
■Viewing the Current Location Information1
Viewing the Current Location Information
Vehicle position may not be displayed when:
•The vehicle is traveling off-road.
•The vehicle position da ta cannot be updated.
19 CR-V NAVI-31TLA8200.book 80 ページ ２０１８年８月２８日　火曜日　午後２時１７分

81
uuMap Operation uMap Menu
Navigation
H (Map) uu Where Am I?
Get a list of directions to your current location. 1.Select or .
2. Select Directions to Me .
3. Select an option.
4. Select Select.
u The turn list screen displays
turn-by-turn instructions and
the distance between turns.
2 Turn List P. 74
■Using Directions to Me
19 CR-V NAVI-31TLA8200.book 81 ページ ２０１８年８月２８日　火曜日　午後２時１７分

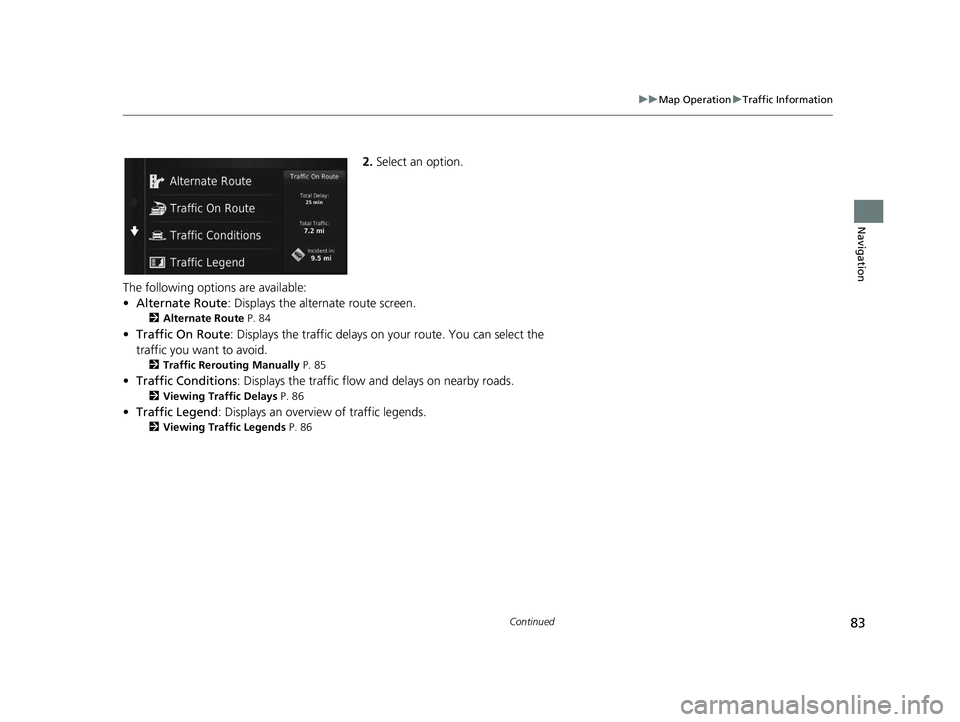

83
uuMap Operation uTraffic Information
Continued
Navigation
2. Select an option.
The following options are available:
• Alternate Route : Displays the alternate route screen.
2Alternate Route P. 84
•Traffic On Route : Displays the traffic delays on your route. You can select the
traffic you want to avoid.
2 Traffic Rerouting Manually P. 85
•Traffic Conditions : Displays the traffic flow and delays on nearby roads.
2Viewing Traffic Delays P. 86
•Traffic Legend : Displays an overview of traffic legends.
2Viewing Traffic Legends P. 86
19 CR-V NAVI-31TLA8200.book 83 ページ ２０１８年８月２８日　火曜日　午後２時１７分

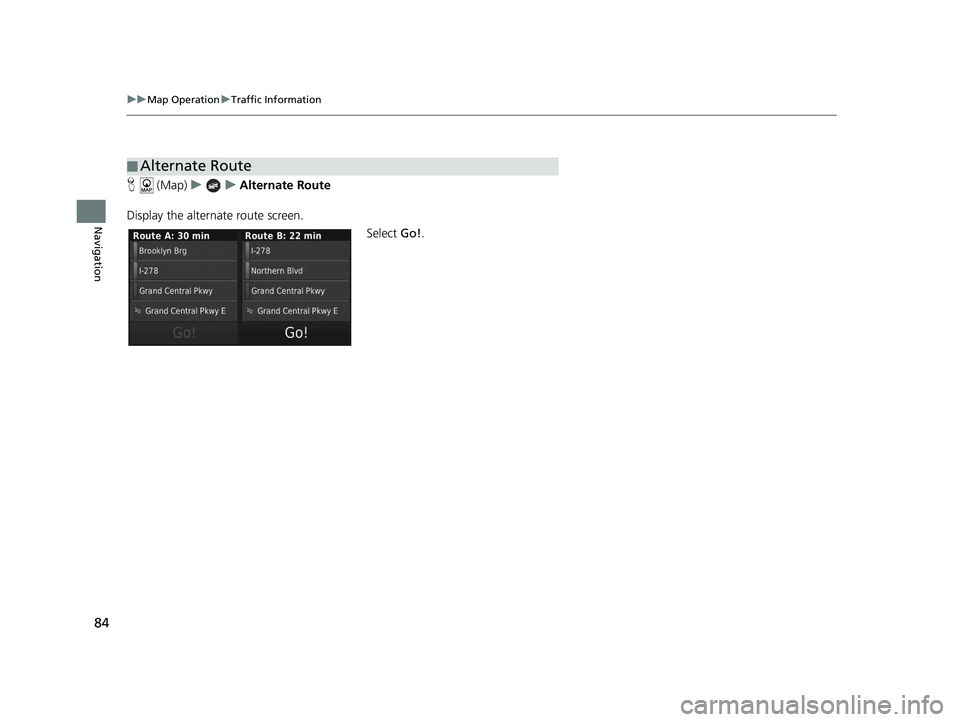

84
uuMap Operation uTraffic Information
Navigation
H (Map) uu Alternate Route
Display the alternate route screen. Select Go!.
■Alternate Route
19 CR-V NAVI-31TLA8200.book 84 ページ ２０１８年８月２８日　火曜日　午後２時１７分

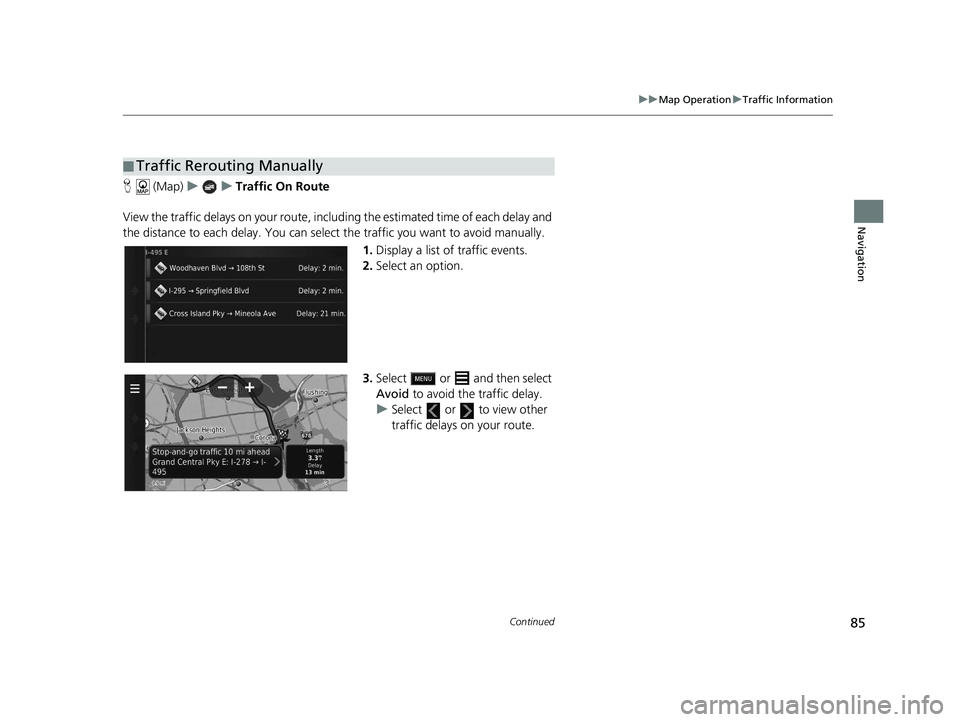

85
uuMap Operation uTraffic Information
Continued
Navigation
H (Map) uu Traffic On Route
View the traffic delays on your route, incl uding the estimated time of each delay and
the distance to each delay. You can select the traffic you want to avoid manually.
1.Display a list of traffic events.
2. Select an option.
3. Select or and then select
Avoid to avoid the traffic delay.
u Select or to view other
traffic delays on your route.
■Traffic Rerouting Manually
19 CR-V NAVI-31TLA8200.book 85 ページ ２０１８年８月２８日　火曜日　午後２時１７分

86
uuMap Operation uTraffic Information
Navigation
H (Map) uu Traffic Conditions
View the traffic flow an d delays on nearby roads.
uSelect if you want to display a
list of traffic delays.
H (Map) uu Traffic Legend
See an overview of the icons and colors used on the traffic map.
The system displays the traffic
legend.
■Viewing Traffic Delays
■Viewing Traffic Legends
19 CR-V NAVI-31TLA8200.book 86 ページ ２０１８年８月２８日　火曜日　午後２時１７分

90
uuChanging Your Route uAdding Waypoints
Navigation
Adding Waypoints
Add waypoints (pit stops) along the route to your destination.
1.While en route, select a search
method to add a new destination
or waypoint.
2 Entering a Destination P. 54
2.Select a place. Select Go!.
3. Select Add to Active Route .
u Select Start New Route to set
the location as your new
destination.
2 Entering a New Destination
P. 94
4. Select and hold , or
and then move the destination to
the desired position.
5. Select Done.
u The route is automatically
recalculated and displayed on
the map screen.
1Adding Waypoints
When you add a waypoint, the system may take
some time to update the arrival time.
19 CR-V NAVI-31TLA8200.book 90 ページ ２０１８年８月２８日　火曜日　午後２時１７分

94
uuChanging Your Destination uEntering a New Destination
Navigation
Entering a New Destination
H (Map) u
Enter a new destination using the destination menu screen even when you are en
route.
1.Select a search method to enter a
new destination.
2 Entering a Destination P. 54
2.Select a place and then select Go!.
3. Select an option.
The following options are available:
• Start New Route : Sets the location as your new destination.
• Add to Active Route : Sets the location as the first waypoint in the Edit Route
screen.
2 Adding Waypoints P. 90
1Entering a New Destination
You can also display the Where To? screen by
pressing (Back) icon on the navigation top
screen.
19 CR-V NAVI-31TLA8200.book 94 ページ ２０１８年８月２８日　火曜日　午後２時１７分
