623
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 624
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 625
Handling of the Jack ......................... 639
Power System Won’t Start Checking the Procedure ................... 640
If the Smart Entry Remote Battery is Weak .......................................... 641
Emergency Power System Off........... 642
Jump Starting .................................... 643
Overheating How to Handle Overheating ............. 645 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 648
If the 12-volt Batt ery Charging System
Indicator Comes On ....................... 648
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 649
If the Brake System Indicator (Red) Comes On or Blinks ................................... 650
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 651
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 652
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 653
If the Transmission System Indicator Blinks along with the Warning Message... 654
Fuses Fuse Locations ................................. 655
Inspecting and Changing Fuses ........ 658
Emergency Towing ........................... 659
When You Cannot Open the Tailgate.. 660Refueling................................................. 661
20 CR-V HYBRID HMIN-31TPG6000.book 623 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

640
Handling the Unexpected

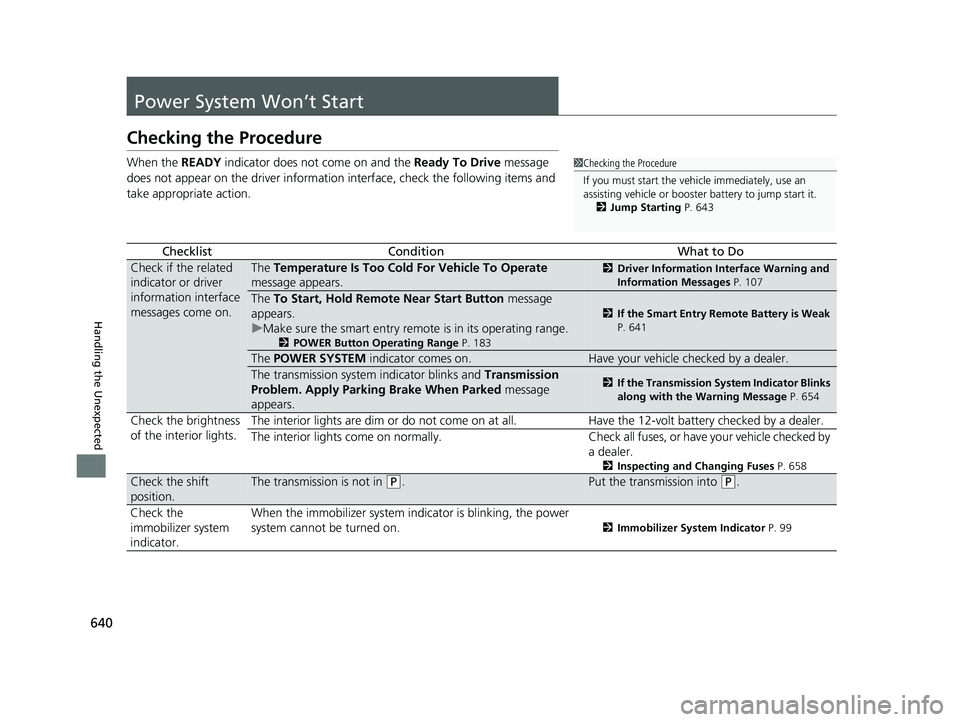

Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready To Drive message
does not appear on the driver information interface, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or driver
information interface
messages come on.The Temperature Is Too Cold For Vehicle To Operate
message appears.2 Driver Information Interface Warning and
Information Messages P. 107
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the smart entry remote is in its operating range.
2 POWER Button Operating Range P. 183
2If the Smart Entry Remote Battery is Weak
P. 641
The POWER SYSTEM indicator comes on.Have your vehicle checked by a dealer.
The transmission system indicator blinks and Transmission
Problem. Apply Parking Brake When Parked message
appears.2 If the Transmission System Indicator Blinks
along with the Warning Message P. 654
Check the brightness
of the interior lights.The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by a dealer.
The interior lights come on normally. Check al l fuses, or have your vehicle checked by
a dealer.
2 Inspecting and Changing Fuses P. 658
Check the shift
position.The transmission is not in (P.Put the transmission into (P.
Check the
immobilizer system
indicator. When the immobilizer system in
dicator is blinking, the power
system cannot be turned on.
2 Immobilizer System Indicator P. 99
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 643
20 CR-V HYBRID HMIN-31TPG6000.book 640 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

641
uuPower System Won’t Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected

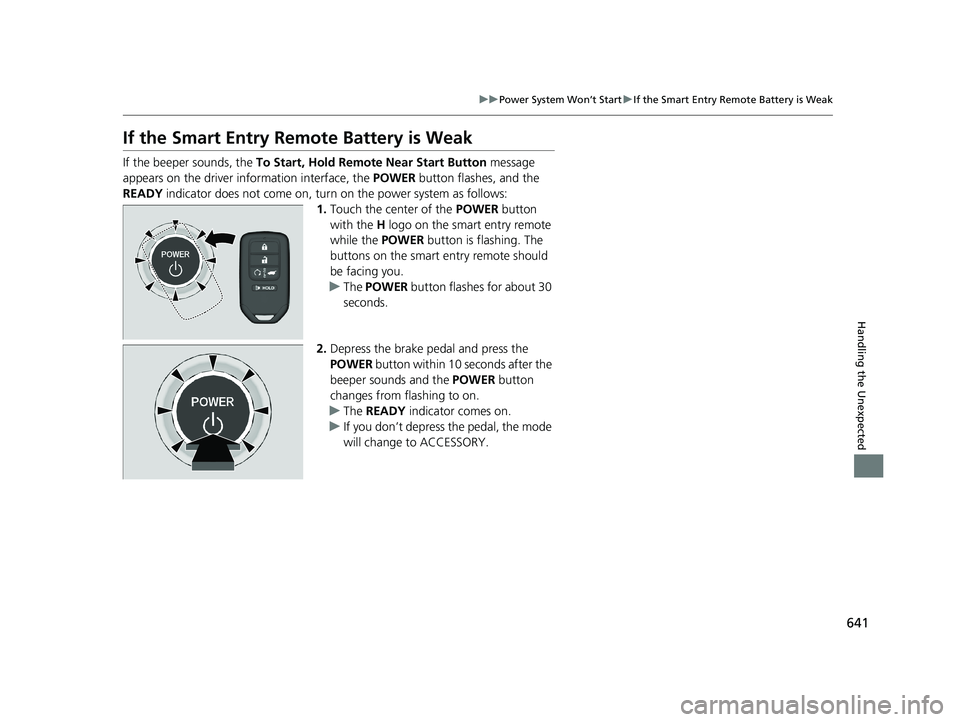

If the Smart Entry Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, the POWER button flashes, and the
READY indicator does not come on, turn on the power system as follows:
1.Touch the center of the POWER button
with the H logo on the smart entry remote
while the POWER button is flashing. The
buttons on the smart entry remote should
be facing you.
u The POWER button flashes for about 30
seconds.
2. Depress the brake pedal and press the
POWER button within 10 seconds after the
beeper sounds and the POWER button
changes from flashing to on.
u The READY indicator comes on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
20 CR-V HYBRID HMIN-31TPG6000.book 641 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

680
Index
HondaLink®............................................. 322
Hybrid Vehicle
SPORT HYBRID i-MMD (intelligent
Multi-Mode Drive).................................... 11
I
Identification Numbers ............................ 666
Engine, Motor and Transmission .............. 666
Vehicle Identification ............................... 666
Illumination Control ................................. 199
Knob ....................................................... 199
Immobilizer System .................................. 175
Indicator .................................................... 99
Indicators ..................................................... 88
12-volt Battery Charging System ........ 93, 648
ABS (Anti-lock Brake System) ..................... 95
Adaptive Cruise Control (ACC) with Low
Speed Follow ......................... 103, 104, 514
Auto High-Beam ........................................ 99
Automatic Brake Hold........................ 91, 551
Automatic Brake Hold System .................... 91
Blind spot information System ................. 100
Collision Mitigation Braking System
(CMBS) .......................................... 105, 106
Deceleration Paddle Selector ...................... 93
ECON Mode .................................... 100, 483
Electric Power Steering (EPS) System .. 96, 652
EV ............................................................. 92
EV Mode ................................................... 92
Fog Light ................................................... 99 High Beam ................................................ 98
Immobilizer System ................................... 99
Lane Keeping Assist System (LKAS) .......... 104
Lights On .................................................. 99
Low Fuel ................................................... 94
Low Oil Pressure ................................ 91, 648
Low Tire Pressure/TPMS ............. 97, 493, 653
Malfunction Indicator Lamp............... 92, 649
Parking Brake a
nd Brake System
(Amber) ........................................... 90, 651
Parking Brake a nd Brake System
(Red) ....................................... 89, 650, 651
Power System............................................ 91
READY ...................................................... 92
Road Departure Mitiga tion (RDM) ... 101, 102
Seat Belt Reminder .............................. 49, 94
Security System Alarm ............................. 100
Shift Position ............................................. 93
SPORT Mode ..................................... 94, 479
Supplemental Restraint System ............ 67, 95
System Message ........................................ 98
Transmission System.......................... 93, 654
Turn Signal and Hazard Warning ............... 98
Vehicle Stability Assist
TM (VSA ®)
System ............................................ 95, 485
VSA ® OFF .......................................... 96, 486
Information .............................................. 663
Instrument Panel ........................................ 87
Brightness Control................................... 199
Interior Lights ........................................... 215
Interior Rearview Mirror .......................... 203iPod
................................................... 256, 308
J
Jump Starting ........................................... 643
K
Key Number Tag ...................................... 151
Keyless Lockout Prevention ..................... 159
Keys ........................................................... 150
Lockout Prevention ................................. 159
Master Keys ............................................ 150
Number Tag............................................ 151
Rear Door Won’t Open ........................... 162
Remote Transmitter ................................ 157
Types and Functions................................ 150
Kickdown (Continuously Variable Transmission) .......................................... 472
L
Lane Keeping Assist System (LKAS) ........ 530
LATCH (Child Seats) ............................. 75, 80
Lights ................................................ 187, 594
Auto High-Beam ..................................... 192
Automatic............................................... 188
Bulb Replacement ................................... 594
Daytime Running Lights .......................... 191
Fog Lights ............................................... 191
High Beam Indicator Light ......................... 98
Interior.................................................... 215
20 CR-V HYBRID HMIN-31TPG6000.book 680 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

682
Index
Passing Indicators..................................... 187
Playing Bluetooth ® Audio ................ 264, 320
POWER Button .......................................... 183
Power System Won’t Start.............................................. 640
Power System Indicator .............................. 91
Power Tailgate .......................................... 167
Power Windows ........................................ 178
POWER/CHARGE Gauge ........................... 124
Precautions While Driving ........................ 471
Driving Guidelines for Your Utility
Vehicle................................................... 471
Rain ......................................................... 471
Pregnant Women ....................................... 54
Puncture (Tire) .......................................... 625
R
Radiator..................................................... 590
Radio (FM/AM) .................................. 254, 297
Radio (SiriusXM ®)...................................... 301
Radio Data System (RDS) .................. 255, 300
RDS (Radio Data System) .................. 255, 300
Readiness Codes (Emissions Testing) ....... 669
READY Indicator ......................................... 92
Real Time AWD with Intelligent Control System
TM.................................................. 488
Rear Seats (Folding Down) ....................... 210
Rearview Mirror ........................................ 203
Refueling ................................................... 568
Fuel Gauge .............................................. 124 Gasoline .......................................... 568, 664
Low Fuel Indicator ..................................... 94
Regulations ............................... 493, 605, 667
Remote Transmitter ................................. 157
Replacement
Battery .................................................... 613
Bulbs ....................................................... 594
Front Wiper Blade Rubber ....................... 597
Fuses ....................................... 655, 656, 657
Rear Wiper Blade Rubber......................... 600
Tires ........................................................ 608
Reporting Safety Defects ......................... 668
Resetting a Trip Meter ............................. 128
Road Departure Mitigation (RDM) ......... 539
On and Off.............................................. 541
S
Safe Driving ................................................ 41
Safety Check ............................................... 46
Safety Labels ............................................... 85
Safety Message ............................................. 2
Seat Belts .................................................... 47
Adjusting the Shoulder Anchor.................. 52
Automatic Seat Belt Tensioners ................. 50
Checking................................................... 55
Detachable Anchor.................................... 53
Fastening .................................................. 51
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 78
Pregnant Women ...................................... 54 Reminder .................................................. 49
Warning Indicator ............................... 49, 94
Seat Heaters ............................................. 231
Seats .......................................................... 205
Adjusting ................................................ 205
Driver’s Seat Lumbar Support .................. 205
Front Seats.............................................. 205
Heaters ................................................... 231
Rear Seats ............................................... 209
Seat Heaters ........................................... 231
Security System ........................................ 175
Immobilizer System Indicator ..................... 99
Security System Alarm Indicator .............. 100
Select Button
Operation ......................................... 32, 475
Selecting a Child Seat ................................ 74
Selector Knob (Audio) ............................. 247
Setting the Clock ...................................... 148
Shift Button ................................................ 32
Shift Button Positions Transmission ..................................... 32, 473
Shift Position Indicator ...................... 93, 475
Shoulder Anchor ........................................ 52
Side Airbags ............................................... 63
Side Curtain Airbags .................................. 65
Siri ® Eyes Free ................................... 267, 329
SiriusXM ® Radio ....................................... 301
Smart Entry System .................................. 153
Snow Tires ................................................ 610
Song By Voice
TM (SBV) .............................. 311
Spark Plugs ............................................... 664
20 CR-V HYBRID HMIN-31TPG6000.book 682 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
