Continued551
uuBraking uBrake System
Driving
Keeps the brake applied after releasing the brake pedal until the accelerator pedal is
pressed. You can use this system while th e vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.
■Automatic Brake Hold1 Automatic Brake Hold
3WARNING
Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.
If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.
Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.
3WARNING
Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.
If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.
Never leave the vehicle when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in
( P and applying the parking
brake.
■Turning on the system
Fasten your seat belt
properly, then start the
power system. Press the
automatic brake hold
button.
●The automatic brake
hold system indicator
comes on. The system
is turned on.
■Activating the system
Depress the brake pedal
to come to a complete
stop. The transmission
must not be in
( P or (R.●The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.
●Release the brake pedal
after the automatic
brake hold indicator
comes on.
■Canceling the system
Depress the accelerator
pedal while the
transmission is in a other
than
( P or (N. The
system is cancelled and
the vehicle starts to
move.
●The automatic brake
hold indicator goes
off. The system
continues to be on.
Accelerator PedalBrake PedalAutomatic Brake
Hold Button
Goes
Off
On OnComes
On
Comes
On
20 CR-V HYBRID HMIN-31TPG6000.book 551 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

553
uuBraking uAnti-lock Brake System (ABS)
Driving
Anti-lock Brake System (ABS)
Helps prevent the wheels from locking up, and helps you retain steering control by
pumping the brakes rapidly, much faster than you.
The electronic brake distribu tion (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distribution according to vehicle loading.
You should never pu mp the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pe dal. This is sometimes referred to as
“stomp and steer.“
■ABS operation
The brake pedal may pulsate slightly when the ABS is working. Depress the brake
pedal and keep holding the pedal firmly do wn. On dry pavement, you will need to
press on the brake pedal very hard before th e ABS activates. However, you may feel
the ABS activate immediately if you are trying to stop on snow or ice.
ABS may activate when you depres s the brake pedal when driving on:
• Wet or snow covered roads.
• Roads paved with stone.
• Roads with uneven surf aces, such as potholes, cracks, manholes, etc.
When the vehicle speed goes unde r 6 mph (10 km/h), the ABS stops.
■ABS1Anti-lock Brake System (ABS)
NOTICE
The ABS may not function correctly if you use a tire of
the wrong size or type.
If the ABS indicator comes on while driving, there
may be a problem with the system.
While normal braking is not affected, there is a
possibility that the ABS wi ll not be operating. Have
your vehicle checked by a dealer immediately.
The ABS is not designed for the purpose of reducing
the time or distance it takes for a vehicle to stop: It is
designed to limit brake lockup which can lead to
skidding and loss of steering control.
In the following cases, yo ur vehicle may need more
distance to stop than a vehicle without the ABS:
•You are driving on rough or uneven road surfaces,
such as gravel or snow.
The following may be observed with the ABS system:
•Motor sounds coming from the engine
compartment when the brakes are applied, or
when system checks are being performed after the
engine has been started and while the vehicle
accelerates.
•Brake pedal and/or the vehicle body vibration when
ABS activates.
These vibrations and sou nds are normal to ABS
systems and are no cause for concern.
20 CR-V HYBRID HMIN-31TPG6000.book 553 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
588
Maintenance
5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including filter):
4.0 US qt (3.8 L)
10. Reinstall the engine oi l fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that ther e is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.
13. Reinstall the under cover in the same order
it was removed.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Be sure to verify that the o il filter is designed for your
vehicle. A genuine Honda oil filter is recommended
for optimum lubrication flow and filtration properties
to assure the reliability of the engine.
Oil Filter
20 CR-V HYBRID HMIN-31TPG6000.book 588 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

642
uuPower System Won’t Start uEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the po wer system off due to an emergency
situation even while driving. If you must turn the powe r system off, do either of the
following operations:
• Press and hold the POWER button for about two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power syst em provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The transmission automa tically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1Emergency Power System Off
Do not press the POWER button while driving unless
it is absolutely necessary for the power system to be
turned off.
If you press the POWER button while driving, the
beeper sounds.
20 CR-V HYBRID HMIN-31TPG6000.book 642 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

648
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Turn the power system off and let the engine sit for approximately
three minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 585
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off with in 10 seconds: Immediately turn
the power system off and contact a dealer for repairs.
If the 12-volt Battery Charging System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when the 12-volt battery is not being charged.
■What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the 12-volt Battery Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. The power system uses the 12-volt
battery to activate. You may not be able to turn the
power system on again if you have turned it off with
this indicator on.
This indicator may blink after starting when the
outside temperature is belo w -22°F (-30°C). It will
stop blinking after th e battery warms up.
20 CR-V HYBRID HMIN-31TPG6000.book 648 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

649
uuIndicator, Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected

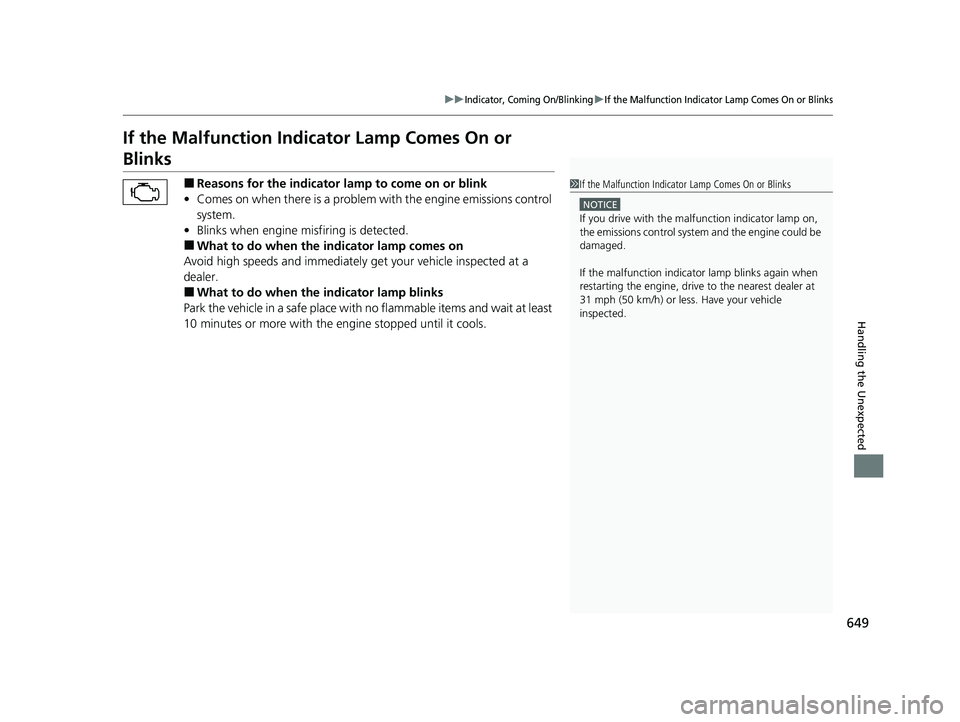

If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
20 CR-V HYBRID HMIN-31TPG6000.book 649 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

683
Index
Specifications........................................... 664
Specified Fuel ................................... 568, 664
Speedometer ............................................ 124
SPORT Mode Indicator ........................................... 94, 479
SRS Airbags (Airbags) ................................ 59
Starting the Engine Engine Switch Buzzer .............................. 184
Jump Starting ......................................... 643
Steering Wheel ........................................ 202
Adjusting ................................................ 202
Stopping ................................................... 555
Summer Tires ............................................ 610
Sunglasses Holder .................................... 223
Supplemental Restraint System (SRS) ....... 59
Switches (Around the Steering Wheel) ............................................ 6, 7, 183
System Message Indicator ......................... 98
T
Tailgate..................................................... 164
Unable to Open ...................................... 660
Temperature
Outside Temperature Display .................. 136
Temperature Sensor ................................ 136
Temporary Repair Kit (TRK) .................... 625
Theft Protection ....................................... 243
Time (Setting) ........................................... 148
Tire Pressure Monitoring System
(TPMS) ..................................................... 489 Tires
........................................................... 602
Air Pressure ..................................... 603, 665
Checking and Maintaining ....................... 602
Inspection ................................................ 602
Labeling .................................................. 603
Puncture (Flat Tire) ................................... 625
Regulations ............................................. 605
Rotation .................................................. 609
Summer .................................................. 610
Temporary Repair Kit (TRK) ...................... 625
Tire Chains .............................................. 610
Wear Indicators ....................................... 607
Winter ..................................................... 610
Tonneau Cover ......................................... 224
Tools .......................................................... 624
Towing a Trailer ....................................... 461
Towing Your Vehicle
Behind a Motorhome .............................. 462
Emergency .............................................. 659
TPMS (Tire Pressure Monitoring System) .................................................... 489
Transmission ..................................... 472, 473
Number ................................................... 666
Operating the Shift Button ...................... 475
Operation .................................................. 32
Shift Position Indicator ....................... 93, 475
Shifting ................................................... 473
Transmission System
Indicator ............................................ 93, 654
TRIP Knob .................................................. 127
Trip Meter ................................................. 127 TRK (Temporary Repair Kit)
..................... 625
Troubleshooting ....................................... 623
Blown Fuse.............................. 655, 656, 657
Brake Pedal Vibrates .................................. 38
Buzzer Sounds When Opening Door.......... 38
Emergency Towing .................................. 659
Noise When Braking .................................. 39
Overheating ............................................ 645
Power System Won’t Start ....................... 640
Puncture/Flat Tire .................................... 625
Rear Door Won’t Open...................... 38, 162
Warning Indicators .................................... 88
Turn Signals .............................................. 186
Turn signals
Indicators (Instrument Panel) ..................... 98
Turning on the Power Does Not Activate ................................... 640
U
Unlocking the Doors ................................ 153
Unlocking the Fron t Doors from the
Inside ....................................................... 160
USB Flash Drives ....................... 261, 317, 343
USB Port(s) ................................................ 241
20 CR-V HYBRID HMIN-31TPG6000.book 683 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
