change time HONDA CR-V HYBRID 2020 Owner's Manual (in English)

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicl es sold in the United States.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 41
For Safe Driving P. 42 Seat Belts P. 47 Airbags P. 56
2Instrument Panel P. 87
Indicators P. 88 Gauges and Driver Information Interface P. 124
2Controls P. 147
Clock P. 148 Locking and Unlocking the Doors P. 150
Moonroof* P. 182
Adjusting the Seats P. 205 Interior Convenience Items P. 215
2 Features P. 239
Audio System P. 240 Audio System Basic Operation P. 247, 268
Customized Features P. 359, 366 HomeLink ® Universal Transceiver* P. 392
2 Driving P. 455
Before Driving P. 456 Towing a Trailer P. 461Parking Your Vehicle P. 555 Multi-View Rear Camera P. 566
2Maintenance P. 573
Before Performing Maintenance P. 574 Maintenance MinderTM P. 577
Checking and Maintaining Wiper Blades P. 597
Climate Control System Maintenance P. 614
2Handling the Unexpected P. 623
Tools P. 624 If a Tire Goes Flat P. 625
Overheating P. 645 Indicator, Coming On/Blinking P. 648
When You Cannot Open the Tailgate P. 660
2 Information P. 663
Specifications P. 664 Identification Numbers P. 666
Emissions Testing P. 669 Warranty Coverages P. 671
20 CR-V HYBRID HMIN-31TPG6000.book 4 ページ ２０１９年１１月２８日　木曜日　午後１時 ５０分

34
Quick Reference Guide
VSA® On and Off (P486)
●The Vehicle Stability AssistTM (VSA ®)
system helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you turn on the power system.
●To partially disable VSA® functionality/
features, press and hold it until you hear
a beep.
Tire Pressure Monitoring
System (TPMS)
(P489)
●Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
●The TPMS is turned on automatically
every time you turn on the power system.
●A calibration procedure must be
performed when certain conditions arise.
CMBSTM On and Off
(P506)
●When a possible collision is likely
unavoidable, the CMBSTM can help you to
reduce the vehicle sp eed and the severity
of the collision.
●The CMBSTM is turned on every time you
turn on the power system.
●To turn the CMBSTM on or off, press and
hold the button until you hear a beep.
Refueling (P568)
Fuel recommendation: Unleaded gasoline , pump octane number 87 or higher
Fuel tank capacity:14 US gal (53 L)
aPull the fuel fill door
release handle.
bAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
20 CR-V HYBRID HMIN-31TPG6000.book 34 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

43
uuFor Safe Driving uImportant Safety Precautions
Safe Driving
■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles , and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all re gularly scheduled maintenance.
■Do not leave children unattended in the vehicle
Children, pets and people needing assistan ce left unattended in the vehicle may be
injured if they activate one or more of the vehicle controls. They may also cause the
vehicle to move, resulting in a crash in wh ich they and/or another person(s) can be
injured or killed. Also, depending on the am bient temperature, the temperature of
the interior may reach extreme levels, which ca n result in harm or death. Even if the
climate control system is on, never leave them in the vehicle unattended as the
climate control system can shut off at any time.
20 CR-V HYBRID HMIN-31TPG6000.book 43 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the smart entry remote battery becomes
weak.
2Replacing the Button Battery P. 613
●Appears when you set the power mode to ACCESSORY
or ON.
2 Turning on the Power P. 465
●Appears if you press the POWER button while the
vehicle is moving.
2 Emergency Power System Off P. 642
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2POWER Button P. 183
●Appears if the smart entry re mote’s battery is too weak
to turn on the power system or the key is not within
operating range to turn on the power system. The
beeper sounds six times.●Bring the back of the smart entry remote into contact
with the POWER button.
2If the Smart Entry Remote Battery is Weak
P. 641
20 CR-V HYBRID HMIN-31TPG6000.book 112 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

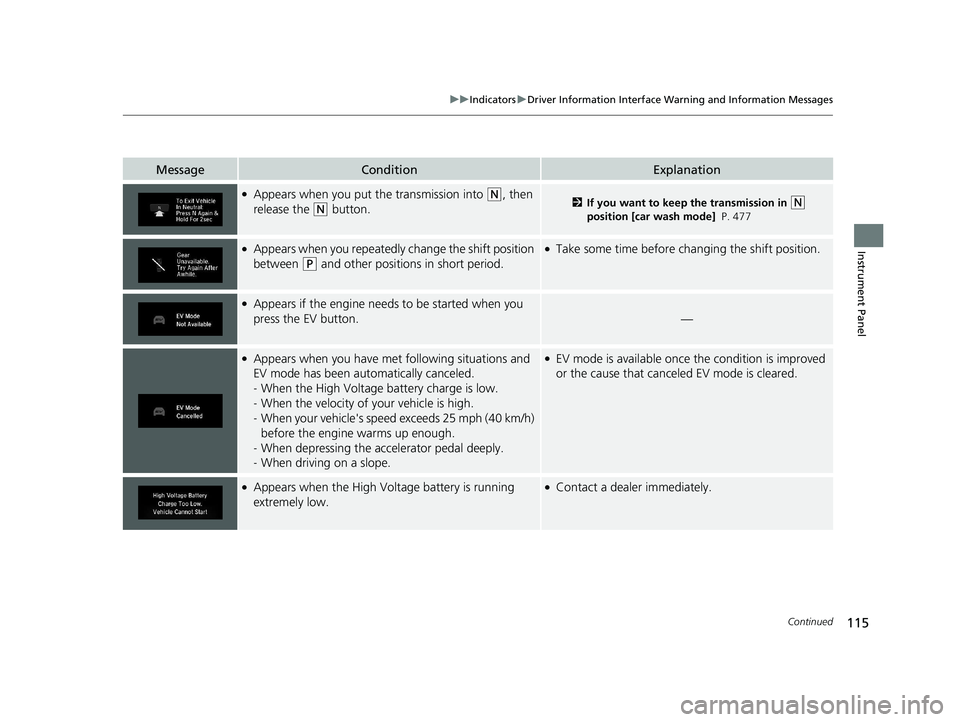

115
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you put the transmission into (N, then
release the
(N button.2 If you want to keep the transmission in (N
position [car wash mode] P. 477
●Appears when you repeatedly change the shift position
between
(P and other positions in short period.
●Take some time before chan ging the shift position.
●Appears if the engine needs to be started when you
press the EV button.
—
●Appears when you have met following situations and
EV mode has been automatically canceled.
-When the High Voltage battery charge is low.
- When the velocity of your vehicle is high.
- When your vehicle's speed exceeds 25 mph (40 km/h)
before the engine warms up enough.
- When depressing the accelerator pedal deeply.
- When driving on a slope.●EV mode is availa ble once the condition is improved
or the cause that canceled EV mode is cleared.
●Appears when the High Voltage battery is running
extremely low.●Contact a dealer immediately.
20 CR-V HYBRID HMIN-31TPG6000.book 115 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

123
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the real time AWD
with intelligent control systemTM.
●The engine drives the front wheels only in this state.
Have your vehicle checked by a dealer.
●Appears when the differential temperature is too high.●Stop in a safe place, change to (P, and idle the
engine until the message disappears. If the message
does not disappear, have your vehicle checked by a
dealer.
2 Real Time AWD with Intelligent Control
SystemTM P. 488
MessageConditionExplanation
●Appears when there is a problem with the power
tailgate system.●Manually open or close the power tailgate.●Have your vehicle checked by a dealer.
MessageConditionExplanation
●Appears while you are custom izing the settings and the
shift position changed out of
(P.2 Customized Features P. 138
Models with power tailgate
Models with color audio system
20 CR-V HYBRID HMIN-31TPG6000.book 123 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

126
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Driver Information Interface
The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Main displays
Press the (display/information) button, and then press or to change the
display. Press ENTER to see detailed information.
■Switching the Display
(Display/
Information)
Button
Press , or .
Press ENTER . Eco Drive
Display
Audio
*Phone*
Speed Unit & Disp OFF
Warning
Messages Average
Fuel
Economy Records
Driver
Attention Monitor
Range &
Fuel Average
Speed &
Elapsed Time Navigation*
& Compass*
Customize*
Power Flow Monitor
AWD Torque Distribution Mo

nitor
Maintenance
MinderTM
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 126 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

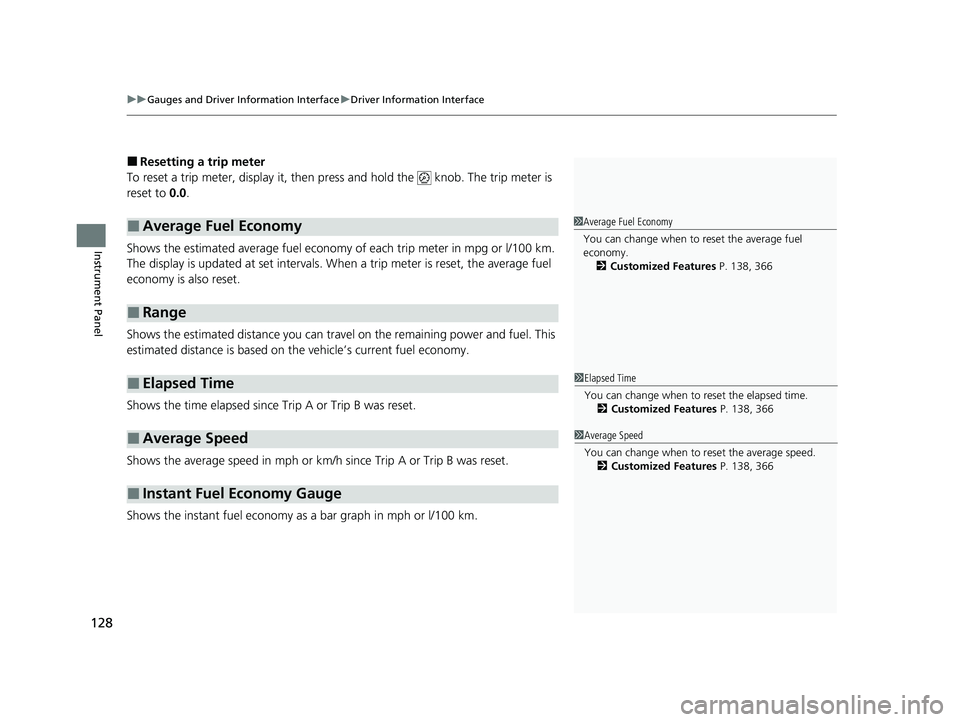

uuGauges and Driver Information Interface uDriver Information Interface
128
Instrument Panel
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can travel on the remaining power and fuel. This
estimated distance is based on the vehicle’s current fuel economy.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the instant fuel economy as a bar graph in mph or l/100 km.
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Instant Fuel Economy Gauge
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 138, 366
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 138, 366
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 138, 366
20 CR-V HYBRID HMIN-31TPG6000.book 128 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

142
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1:Default SettingSetup Group Customizabl
e Features Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/Français /Español
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few
degrees.-5°F ~ ±0°F*1 ~ +5°F
“Trip A” Reset TimingChanges the setting of how to reset trip meter
A, average fuel economy A, average speed A,
and elapsed time A.When Fully Refueled /IGN OFF /
Manually Reset*1
“Trip B” Reset Timing
Changes the setting of how to reset trip meter
B, average fuel economy B, average speed B,
and elapsed time B.When Fully Refueled /IGN OFF /
Manually Reset*1
Adjust Alarm VolumeChanges the alarm volume, such as buzzers,
warnings, turn signal sound, and so on.High /Mid*1/Low
Reverse Alert ToneCauses the beeper to sound once when the
shift position is changed to
(R.ON*1/OFF
Fuel Efficiency BacklightTurns the ambient meter feature on and off.ON*1/OFF
Speed/Distance UnitsSelects the trip computer units.km/h∙km /mph∙miles*1
20 CR-V HYBRID HMIN-31TPG6000.book 142 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

143
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Keyless
Access
Setup
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only*1/All Doors
Keyless Access Light
FlashCauses some exterior li ghts to flash when you
unlock/lock the doors.ON*1/ OFF
Keyless Access BeepSets the beeper sound or not when you grab either
front door handle.ON*1/OFF
Remote Start System
ON/OFFTurns the remote engine start feature on and off.ON*1/OFF
Lighting
Setup
Interior Light Dimming
TimeChanges the length of time the interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight Auto OFF
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light SensitivityChanges the timing for th e headlights to come on.Max/High /Mid*1/Low /Min
Auto Interior
Illumination SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
Max/High /Mid*1/Low /Min
Auto Headlight ON With
Wiper ONChanges the settings for th e wiper operation when
the headlights automatica lly come on while the
headlight switch is in the AUTO position.
ON*1/OFF
20 CR-V HYBRID HMIN-31TPG6000.book 143 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
