fuse box HONDA CR-V HYBRID 2020 Owner's Manual (in English)

Visual Index
8
Quick Reference Guide
❚Rearview Mirror (P203)
❚Driver’s Front Airbag
(P59)
❚Memory Buttons* (P 201)
❚Interior Fuse Box (P657)
❚Passenger’s Front Airbag
(P59)
❚SET Button* (P 201)
❚Power Window Switches (P179)
❚Door Mirror Controls (P204)
❚Master Door Lock Switch (P 162)
❚Electric Parking Brake
Switch
(P547)
❚Automatic Brake Hold
Button
(P551)
❚Glove Box (P217)
❚SPORT Button (P479)
❚Accessory Power Socket
(P226)
❚Shift Buttons (P473)
❚EV Button (P14)
❚ECON Button (P483)
❚Wireless Charger* (P227)
❚USB Port(s) (P241)
❚Hood Release Handle (P583)
❚Fuel Fill Door Release Handle (P569)
❚Driver’s Pocket
20 CR-V HYBRID HMIN-31TPG6000.book 8 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

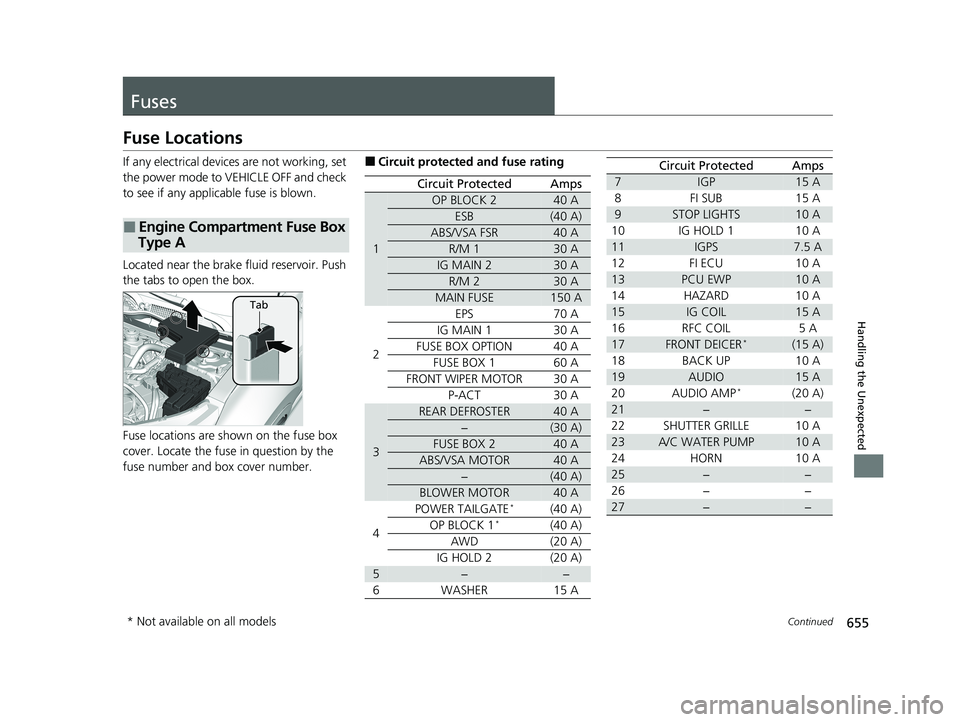

655Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applic able fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
OP BLOCK 240 A
ESB(40 A)
ABS/VSA FSR40 A
R/M 130 A
IG MAIN 230 A
R/M 230 A
MAIN FUSE150 A
2
EPS70 A
IG MAIN 130 A
FUSE BOX OPTION40 A
FUSE BOX 160 A
FRONT WIPER MOTOR30 A
P-ACT30 A
3
REAR DEFROSTER40 A
−(30 A)
FUSE BOX 240 A
ABS/VSA MOTOR40 A
−(40 A)
BLOWER MOTOR40 A
4
POWER TAILGATE*(40 A)
OP BLOCK 1*(40 A)
AWD(20 A)
IG HOLD 2(20 A)
5−−
6WASHER15 A
7IGP15 A
8FI SUB15 A
9STOP LIGHTS10 A
10IG HOLD 110 A
11IGPS7.5 A
12FI ECU10 A
13PCU EWP10 A
14HAZARD10 A
15IG COIL15 A
16RFC COIL5 A
17FRONT DEICER*(15 A)
18BACK UP10 A
19AUDIO15 A
20AUDIO AMP*(20 A)
21−−
22SHUTTER GRILLE10 A
23A/C WATER PUMP10 A
24HORN10 A
25−−
26−−
27−−
Circuit ProtectedAmps
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 655 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

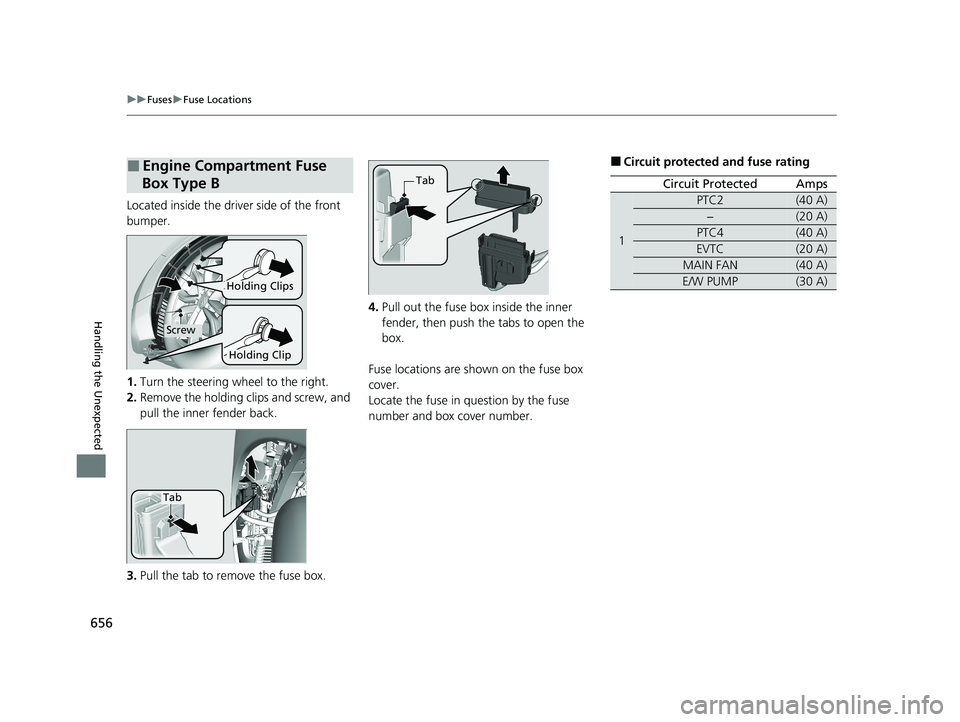

656
uuFuses uFuse Locations
Handling the Unexpected
Located inside the driver side of the front
bumper.
1. Turn the steering wheel to the right.
2. Remove the holding clips and screw, and
pull the inner fender back.
3. Pull the tab to remove the fuse box.
■Engine Compartment Fuse
Box Type B
Holding Clips
Screw
Holding Clip
Tab
4. Pull out the fuse box inside the inner
fender, then push the tabs to open the
box.
Fuse locations are sh own on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
PTC2(40 A)
−(20 A)
PTC4(40 A)
EVTC(20 A)
MAIN FAN(40 A)
E/W PUMP(30 A)
20 CR-V HYBRID HMIN-31TPG6000.book 656 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

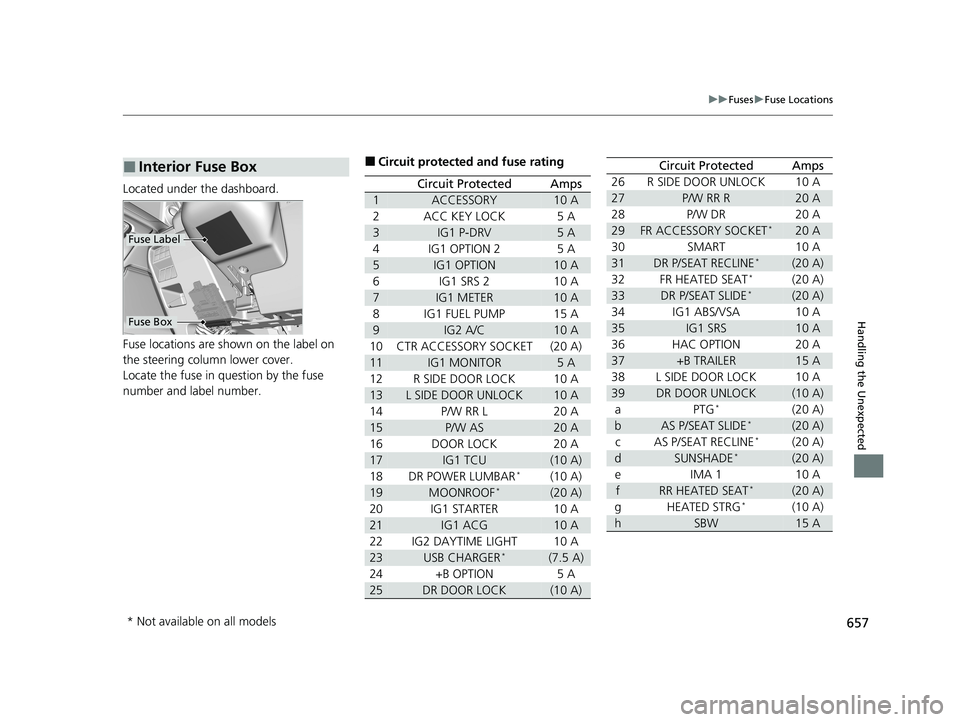

657
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the steering column lower cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label
Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACCESSORY10 A
2ACC KEY LOCK5 A
3IG1 P-DRV5 A
4IG1 OPTION 25 A
5IG1 OPTION10 A
6IG1 SRS 210 A
7IG1 METER10 A
8IG1 FUEL PUMP15 A
9IG2 A/C10 A
10CTR ACCESSORY SOCKET(20 A)
11IG1 MONITOR5 A
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14P/W RR L20 A
15P/W AS20 A
16DOOR LOCK20 A
17IG1 TCU(10 A)
18DR POWER LUMBAR*(10 A)
19MOONROOF*(20 A)
20IG1 STARTER10 A
21IG1 ACG10 A
22IG2 DAYTIME LIGHT10 A
23USB CHARGER*(7.5 A)
24+B OPTION5 A
25DR DOOR LOCK(10 A)
26R SIDE DOOR UNLOCK10 A
27P/W RR R20 A
28P/W DR20 A
29FR ACCESSORY SOCKET*20 A
30SMART10 A
31DR P/SEAT RECLINE*(20 A)
32FR HEATED SEAT*(20 A)
33DR P/SEAT SLIDE*(20 A)
34IG1 ABS/VSA10 A
35IG1 SRS10 A
36HAC OPTION20 A
37+B TRAILER15 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK(10 A)
aPTG*(20 A)
bAS P/SEAT SLIDE*(20 A)
cAS P/SEAT RECLINE*(20 A)
dSUNSHADE*(20 A)
eIMA 110 A
fRR HEATED SEAT*(20 A)
gHEATED STRG*(10 A)
hSBW15 A
Circuit ProtectedAmps
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 657 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

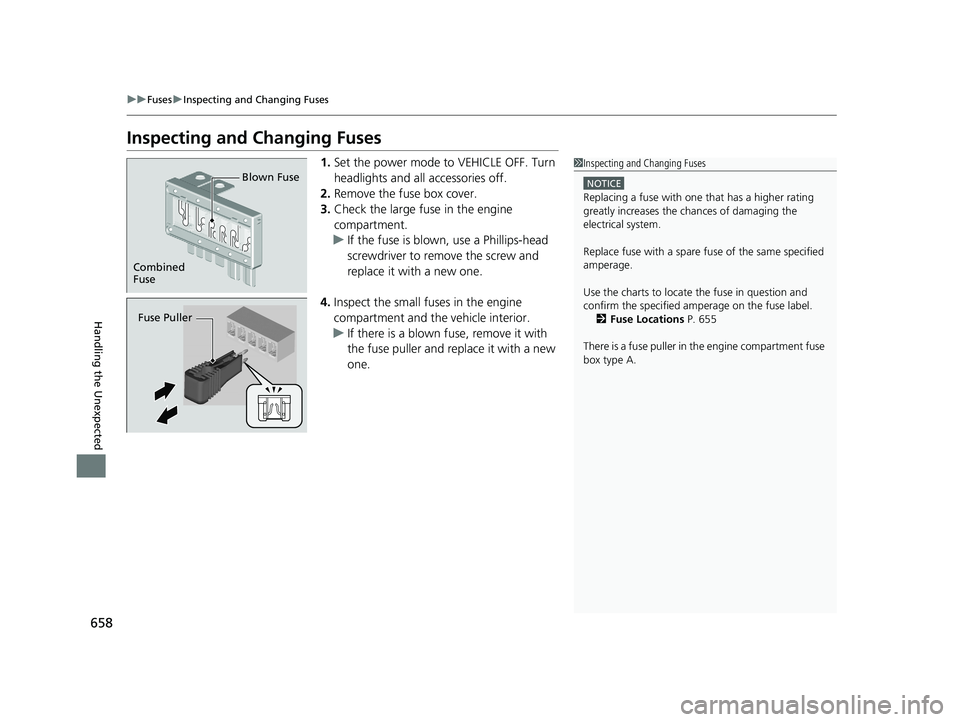

658
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 655
There is a fuse puller in the engine compartment fuse
box type A.
Combined
Fuse Blown Fuse
Fuse Puller
20 CR-V HYBRID HMIN-31TPG6000.book 658 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

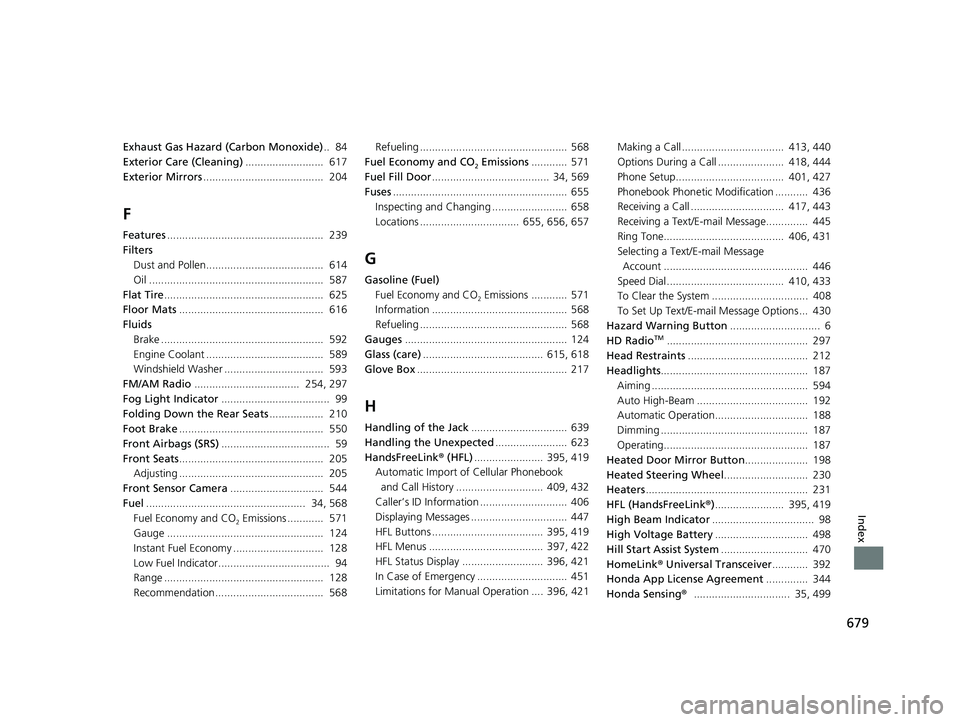

679
Index
Exhaust Gas Hazard (Carbon Monoxide).. 84
Exterior Care (Cleaning) .......................... 617
Exterior Mirrors ........................................ 204
F
Features.................................................... 239
Filters Dust and Pollen....................................... 614
Oil .......................................................... 587
Flat Tire ..................................................... 625
Floor Mats ................................................ 616
Fluids
Brake ...................................................... 592
Engine Coolant ....................................... 589
Windshield Washer ................................. 593
FM/AM Radio ................................... 254, 297
Fog Light Indicator .................................... 99
Folding Down the Rear Seats .................. 210
Foot Brake ................................................ 550
Front Airbags (SRS) .................................... 59
Front Seats ................................................ 205
Adjusting ................................................ 205
Front Sensor Camera ............................... 544
Fuel ..................................................... 34, 568
Fuel Economy and CO
2 Emissions ............ 571
Gauge .................................................... 124
Instant Fuel Economy .............................. 128
Low Fuel Indicator..................................... 94
Range ..................................................... 128
Recommendation.................................... 568 Refueling ................................................. 568
Fuel Economy and CO
2 Emissions ............ 571
Fuel Fill Door ....................................... 34, 569
Fuses .......................................................... 655
Inspecting and Changing ......................... 658
Locations ................................. 655, 656, 657
G
Gasoline (Fuel)
Fuel Economy and CO
2 Emissions ............ 571
Information ............................................. 568
Refueling ................................................. 568
Gauges ...................................................... 124
Glass (care) ........................................ 615, 618
Glove Box .................................................. 217
H
Handling of the Jack ................................ 639
Handling the Unexpected ........................ 623
HandsFreeLink ® (HFL) ....................... 395, 419
Automatic Import of Cellular Phonebook
and Call History ............................. 409, 432
Caller’s ID Information ............................. 406
Displaying Messages ................................ 447
HFL Buttons ..................................... 395, 419
HFL Menus ...................................... 397, 422
HFL Status Display ........................... 396, 421
In Case of Emergency .............................. 451
Limitations for Manual Operation .... 396, 421 Making a Call .................................. 413, 440
Options During a Call ...................... 418, 444
Phone Setup.................................... 401, 427
Phonebook Phonetic Modification ........... 436
Receiving a Call ............................... 417, 443
Receiving a Text/E-m
ail Message.............. 445
Ring Tone........................................ 406, 431
Selecting a Text/E-mail Message
Account ................................................ 446
Speed Dial ....................................... 410, 433
To Clear the System ................................ 408
To Set Up Text/E-mai l Message Options ... 430
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 297
Head Restraints ........................................ 212
Headlights ................................................. 187
Aiming .................................................... 594
Auto High-Beam ..................................... 192
Automatic Operation............................... 188
Dimming ................................................. 187
Operating................................................ 187
Heated Door Mirror Button ..................... 198
Heated Steering Wheel ............................ 230
Heaters ...................................................... 231
HFL (HandsFreeLink ®)....................... 395, 419
High Beam Indicator .................................. 98
High Voltage Battery ............................... 498
Hill Start Assist System ............................. 470
HomeLink ® Universal Transceiver ............ 392
Honda App License Agreement .............. 344
Honda Sensing ®................................ 35, 499
20 CR-V HYBRID HMIN-31TPG6000.book 679 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
