windshield wipers HONDA CR-V HYBRID 2020 Owner's Manual (in English)

Visual Index
10
Quick Reference Guide
❚Windshield Wipers (P195, 597)
❚Door Lock/Unlock Control (P153)
❚How to Refuel (P569)
❚Rear Wiper (P197, 600)
❚Brake/Taillights (P594)
❚Power Door Mirrors (P204)
❚Maintenance Under the Hood (P582)
❚Fog Lights* (P191, 594)
❚Multi-View Rear Camera (P566)
❚Front Turn Signal/Front Side Marker Lights
(P186, 187, 594)
❚Tires (P602, 625)
❚Opening/Closing the Tailgate (P164)
❚Side Turn Signal Lights* (P186, 594)
❚Headlights (P187, 594)
❚Taillights (P595)
❚Rear Turn Signal Lights (P594)
❚Rear Side Marker Lights (P594)
❚Back-Up Lights (P595)
❚Rear License Plate Light (P596)
❚Parking/Daytime Running Lights (P187, 191, 594)
❚Tailgate Outer Handle (P171)
❚High-Mount Brake Light (P596)
20 CR-V HYBRID HMIN-31TPG6000.book 10 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

23
Quick Reference Guide
Turn Signals (P186)
Lights (P187)
Turn Signal Control Lever
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P195)
*1: Models with automatic intermittent
wipers
*2: Models without automatic intermittent
wipers
Wiper/Washer Control Lever Adjustment Ring MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Low Sensitivity*1
Lower speed, fewer sweeps*2
High Sensitivity*1
Higher speed, more sweeps*2(+:(+:
(-:(-:
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P202)
●To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Models with automatic intermittent wipers
Lever
To lock
To adjust
20 CR-V HYBRID HMIN-31TPG6000.book 23 ページ ２０１９年１１月２８日　木曜日　午後１
時５０分

Continued193
uuOperating the Switches Around the Steering Wheel uAuto High-Beam
Controls
■Automatic switching between high-beam and low-beam
When auto-high beam is active, the head lights switch between high beam and low
beam based on the following conditions.
■Manual switching between high-beam and low-beam
If you want to manually switch the h eadlights between high beam and low beam,
follow either of the procedur es below. Note that when you do this, the auto high-
beam indicator will turn off and the auto high-beam will be deactivated.
Using the lever:
Pull the lever toward you for flashing the hi gh beams then release it within about
one second while driving. u To reactivate the auto hi gh-beam, pull the lever toward you for flashing the
high beams then release it while driv ing. The auto high-beam indicator will
come on.
Using the light switch:
Turn the light switch to . u To reactivate the au to high-beam, turn the light switch to AUTO when the
lever is in the low beam position, the auto high-beam indicator will come on.
1How to Use the Auto High-Beam
In the following cases, th e auto high-beam system
may not switch the head lights properly or the
switching timing may be ch anged. In case of the
automatic switching operati on does not fit for your
driving habits, please swit ch the headlights manually.
•The brightness of the lights from the preceding or
oncoming vehicle is intense or poor.
•Visibility is poor due to the weather (rain, snow,
fog, windshield frost, etc.).
•Surrounding light sources, such as street lights,
electric billboards and traf fic lights are illuminating
the road ahead.
•The brightness level of th e road ahead constantly
changes.
•The road is bumpy or has many curves.•A vehicle suddenly appears in front of you, or a
vehicle in front of you is not in the preceding or
oncoming direction.
•Your vehicle is tilted with a heavy load in the rear.•A traffic sign, mirror, or other reflective object
ahead is reflecting strong light toward the vehicle.
•The oncoming vehicle freq uently disappears under
roadside trees or be hind median barriers.
•The preceding or oncoming vehicle is a motorcycle,
bicycle, mobility scooter, or other small vehicle.
The auto high-beam system keeps the headlight low
beam when:
•Windshield wipers are op erating at a high speed.
•The camera has detected dense fog.
Switching to high beam:
All of the following conditions must
be met before the high beams turn
on.
●Your vehicle speed is 25 mph (40
km/h) or more.
●There are no preceding or
oncoming vehicle with headlights
or taillights turned on.
●There are few street lights on the
road ahead.
Switching to low beam:
One of the following conditions
must be met before the low beams
turn on.
●Your vehicle speed is 15 mph (24
km/h) or less.
●There is a preceding or oncoming
vehicle with headlights or
taillights turned on.
●There are many street lights on
the road ahead.
20 CR-V HYBRID HMIN-31TPG6000.book 193 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

195
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1, AUTO*2, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust the wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1: Models with manual intermittent operation
*2: Models with automati c intermittent operation
■Windshield Wiper/Washer1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defogger to warm the
windshield, then turn the wipers on.
NOTICE
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
If the wipers st op operating due to an obstacle such
as the build-up of snow, pa rk the vehicle in a safe
place. Rotate the wiper switch to OFF, and set the
power mode to ACCESSORY or VEHICLE OFF, then
remove the obstacle.
Models with intermittent time adjustment ring
Intermittent Time
Adjustment Ring*
MIST
INT
*1/AUTO*2
OFF
LO : Low speed wipe Pull to
use
washer.
HI
: High speed wipe
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 195 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuOperating the Switches Around the Steering Wheel uWipers and Washers
196
Controls
When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stops in
accordance with the am ount of rainfall the
rainfall sensor detects.
■AUTO sensitivity adjustment
When the wiper function is set to AUTO, you
can adjust the sensitivity of the rainfall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity
■Automatic Intermittent Wipers*1 Wipers and Washers
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
Adjustment Ring
1 Automatic Intermittent Wipers*
The rainfall sensor is in the location shown below.
NOTICE
AUTO should always be turned OFF before the
following situations in order to prevent severe
damage to the wiper system:
•Cleaning the windshield•Driving through a car wash
•No rain present
Rainfall Sensor
Low Sensitivity
High Sensitivity
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 196 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

197
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
The rear wiper and washer can be used when
the power mode is in ON.
■Wiper switch (OFF, INT, ON)
Change the wiper switch setting according to
the amount of rain.
■Washer ( )
Sprays while you rotate the switch to this
position.
Hold it to activate th e wiper and to spray the
washer. Once released, the washer spray will
stop and the rear wiper will return to its
selected switch setting after a few sweeps.
■Operating in reverse
When you shift the transmission to
( R with the windshield wipers activated, the rear
wiper operates automati cally as follows even if its switch is off.
■Rear Wiper/Washer
INT: Intermittent
OFF ON: Continuous wipe
Washer
Front Wiper PositionRear Wiper Operation
INT* (Intermittent)
AUTO* (Intermittent)Intermittent
LO (Low speed wipe)
HI (High speed wipe)Continuous
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 197 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

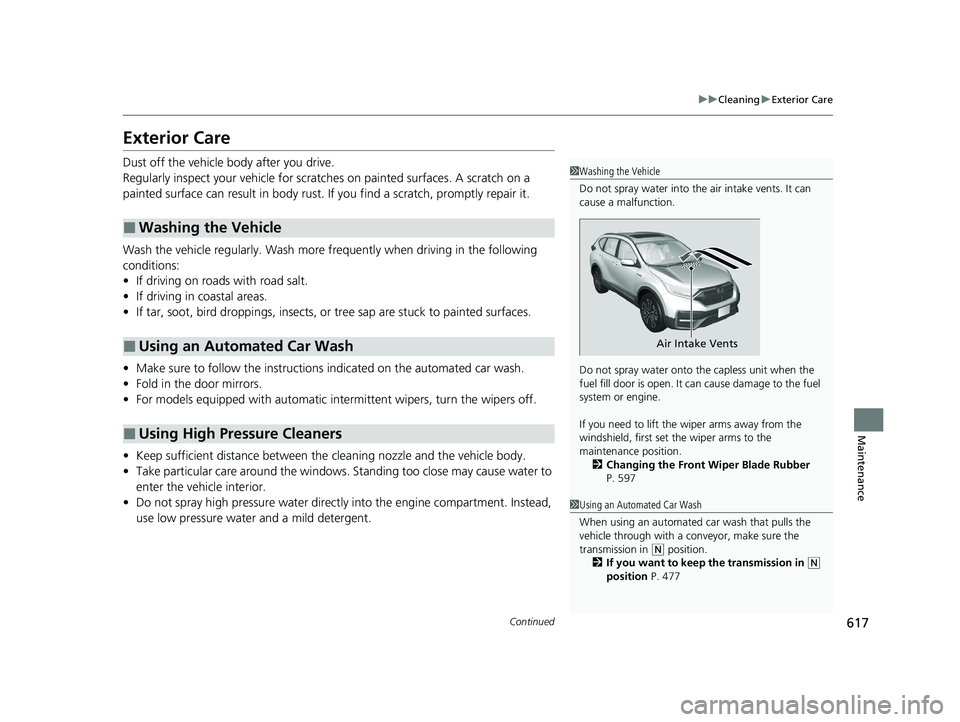

617
uuCleaning uExterior Care
Continued
Maintenance
Exterior Care
Dust off the vehicle body after you drive.
Regularly inspect your vehi cle for scratches on painted surfaces. A scratch on a
painted surface can result in body rust. If you find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
• Make sure to follow the instructions indicated on the automated car wash.
• Fold in the door mirrors.
• For models equipped with automatic inte rmittent wipers, turn the wipers off.
• Keep sufficient distance between the cleaning nozzle and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
■Washing the Vehicle
■Using an Automated Car Wash
■Using High Pressure Cleaners
1 Washing the Vehicle
Do not spray water into the air intake vents. It can
cause a malfunction.
Do not spray water onto the capless unit when the
fuel fill door is open. It ca n cause damage to the fuel
system or engine.
If you need to lift the wiper arms away from the
windshield, first set the wiper arms to the
maintenance position.
2 Changing the Front Wiper Blade Rubber
P. 597
Air Intake Vents
1 Using an Automated Car Wash
When using an automated car wash that pulls the
vehicle through with a conveyor, make sure the
transmission in
( N position.
2 If you want to keep the transmission in (N
position P. 477
20 CR-V HYBRID HMIN-31TPG6000.book 617 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

677
Index
USB Flash Drives...................... 261, 317, 343
USB Port(s) .............................................. 241
Voice Control Operation ......................... 293
Wallpaper Setup ............................. 250, 278
Wi-Fi Connection .................................... 327
Audio/Information Screen ............... 248, 269
Authorized Manuals ................................ 673
Auto Door Locking/Unlocking ................ 163
Auto High-Beam ...................................... 192
Indicator ................................................... 99
Automatic Brake Hold ............................. 551
Indicator ........................................... 91, 551
Automatic Brake Hold System Indicator ................................................... 91
Automatic Intermittent Wipers .............. 196
Automatic Lighting .................................. 188
Average Fuel Economy ............................ 128
Average Fuel Economy Records .............. 129
Average Speed ......................................... 128
AWD (All-Wheel Drive) ............................ 488
B
Battery........................................................ 12
Charging System Indicator ........................ 93
High Voltage..................................... 12, 498
Jump Starting ......................................... 643
Maintenance (Replacing) ......................... 613
Belts (Seat) .................................................. 47
Beverage Holders ..................................... 219 Blind spot information System
................ 495
Indicator .................................................. 100
Bluetooth® Audio............................. 264, 320
Bluetooth® HandsFreeLink® ........... 395, 419
Booster Seats (For Children) ...................... 83
Brake System ............................................. 547
Anti-lock Brake System (ABS) ................... 553
Automatic Brake Hold ............................. 551
Brake Assist System ................................. 554
Fluid ........................................................ 592
Foot Brake ............................................... 550
Indicator .............................................. 89, 90
Indicator (Red) ................................. 650, 651
Parking Brake .......................................... 547
Brightness Control (Instrument Panel) .... 199
Bulb Replacement .................................... 594
Brake/Taillights, Rear Turn Signal Lights and
Rear Side Marker Lights ......................... 594
Front Turn Signal/ Front Side Marker
Lights .................................................... 594
Headlights ............................................... 594
High-Mount Brake Light .......................... 596
Parking/Daytime Running Lights .............. 594
Rear License Plate Light ........................... 596
Side Turn Signal/Em ergency Indicator
Lights .................................................... 594
Taillights and Back-Up Lights ................... 595
Bulb Specifications ................................... 664
C
Carbon Monoxide Gas ............................... 84
Cargo Hook ............................................... 222
Carrying Cargo ................................. 457, 459
Certification Label .................................... 666
Changing Bulbs ........................................ 594
Charging System Indicator ................. 93, 648
Child Safety ................................................. 70
Childproof Door Locks............................. 162
Child Seat .................................................... 70
Booster Seats ............................................ 83
Child Seat for Infants................................. 72
Child Seat for Small Children ..................... 73
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 78
Larger Children ......................................... 82
Rear-facing Child Seat ............................... 72
Selecting a Child Seat ................................ 74
Childproof Door Locks ............................. 162
Cleaning the Exterior ............................... 617
Cleaning the Interior ................................ 615
Climate Control System ............................ 232
Changing the Mode ................................ 232
Defrosting the Windshield and Windows ............................................... 235
Dust and Pollen Filter............................... 614
Recirculation/Fresh Air Mode ................... 235
Sensors ................................................... 238
Synchronization Mode............................. 237
Using Automatic Climate Control ............ 232
Clock .......................................................... 148
20 CR-V HYBRID HMIN-31TPG6000.book 677 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

684
Index
V
Vanity Mirrors............................................... 9
Vehicle Identification Number ................. 666
Vehicle Stability Assist
TM (VSA ®)............... 485
Off Button ............................................... 486
OFF Indicator ............................................. 96
System Indicator ........................................ 95
Viscosity (Oil) ..................................... 584, 665
Voice Control Operation .......................... 293
Audio Commands.................................... 295
Climate Control Commands .................... 296
General Commands ................................. 296
Music Search Commands......................... 296
On Screen Commands ............................. 296
Phone Commands ................................... 295
Useful Commands ................................... 295
Voice Portal Screen .................................. 294
Voice Recognition .................................... 293
VSA ® (Vehicle Stability Assist
TM)............... 485
W
Wallpaper .......................................... 250, 278
Warning and Information Messages ....... 107
Warning Indicator On/Blinking ................ 648
Warning Labels ........................................... 85
Warranties (Warranty Manual provided
separately) ............................................... 671
Watts ......................................................... 664
WAV .................................................. 261, 317
Wear Indicators (Tire) ............................... 607 Wi-Fi Connection
...................................... 327
Window Washers ..................................... 195
Adding/Refilling Fluid .............................. 593
Switch ..................................................... 195
Windows (Opening and Closing) ............ 178
Windshield ................................................ 195
Cleaning ......................................... 615, 618
Defrosting/Defogging .............................. 235
Washer Fluid ........................................... 593
Wiper Blades ........................................... 597
Wipers and Washers................................ 195
Winter Tires .............................................. 610
Snow Tires .............................................. 610
Tire Chains .............................................. 610
Wiper and Washer Front ....................................................... 195
Wipers and Washers ................................. 195
Automatic Intermi ttent Wipers ................ 196
Checking and Replacing Wiper Blades ..... 597
Rear ........................................................ 197
Wireless Charger ...................................... 227
WMA ................................................. 261, 317
Worn Tires ................................................ 602
20 CR-V HYBRID HMIN-31TPG6000.book 684 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
